FJ60LV-KCW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F,3F

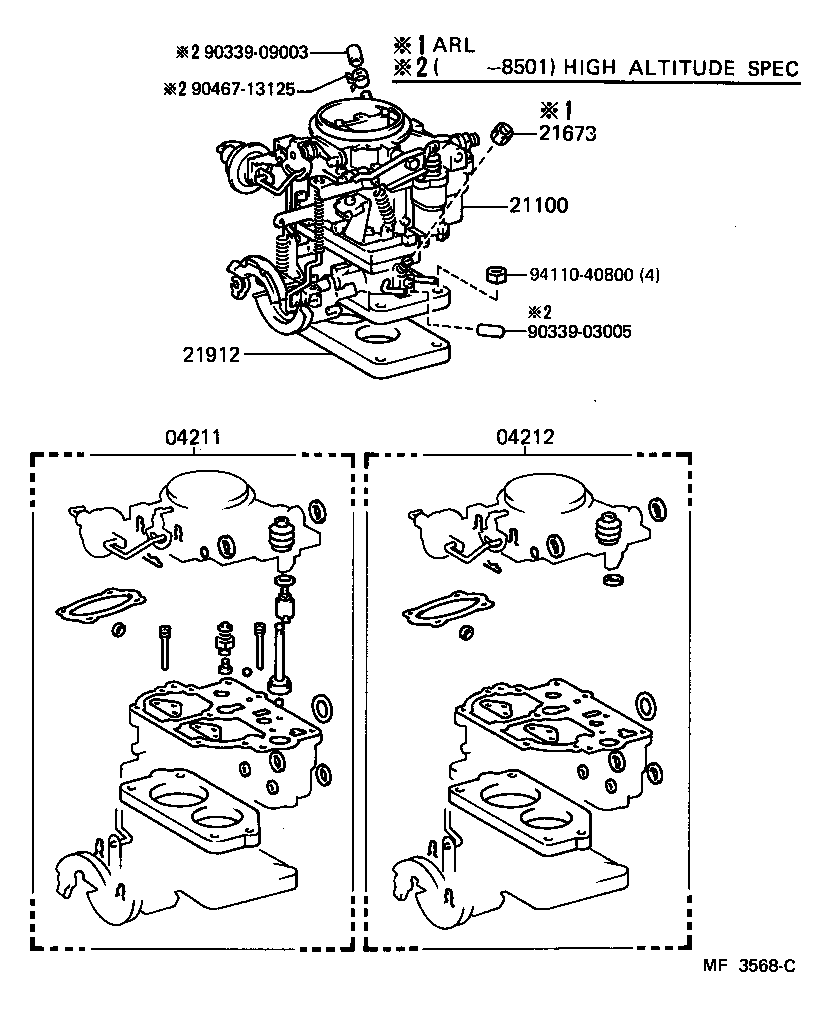

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9033903005 9033909003 9046713125 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-61130

2F..FJ60..EUR

 1
04212 - GASKET KIT, CARBURETOR
04212-61030

2F,3F..FJ6#

 1
21100 - CARBURETOR ASSY
21100-61052

2F..FJ60..EUR

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-61020

2F..FJ60

 1
Common parts
90339-03005
90339-09003
90467-13125
94110-40800
