FJ60LV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

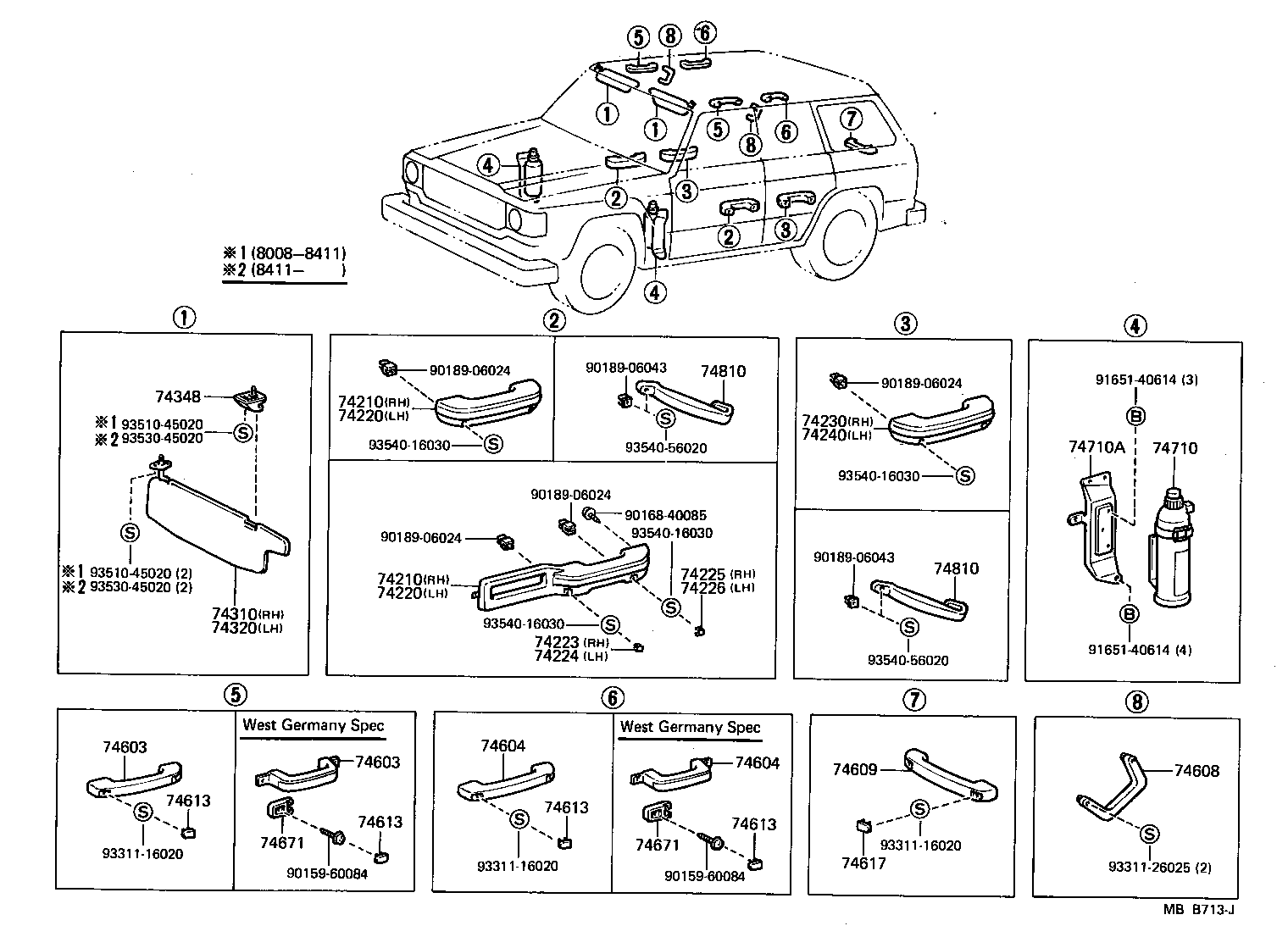

Click highlighted areas on diagram

diagram 74210 74210 74220 74220 74223 74224 74225 74226 74230 74240 74310 74320 74348 74603 74603 74604 74604 74608 74609 74613 74613 74613 74613 74617 74671 74671 74710 74710A 74810 74810 9015960084 9015960084 9016840085 9018906024 9018906024 9018906024 9018906024 9018906043 9018906043 9165140614 9165140614 9331116020 9331116020 9331116020 9331126025 9351045020 9351045020 9353045020 9353045020 9354016030 9354016030 9354016030 9354016030 9354056020 9354056020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-90A0108

BJ60,FJ60,HJ60..LHD..SRF..GEN

W/MIRROR,IVORY,IVORY

 1
74310-90A0008

BJ60,FJ60,HJ60..LHD..SRF..SOB

IVORY,IVORY

 1
74320 - VISOR ASSY, LH
74320-90A0008

BJ60,FJ60..LHD..SRF..SOB..GEN

IVORY,IVORY

 1
74348 - HOLDER, VISOR
74348-1201008

BJ60,FJ60,HJ60

IVORY,IVORY

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002008

BJ60,FJ60,HJ60

IVORY

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002008

BJ60,FJ60,HJ60

IVORY

 1
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002008

BJ60,FJ60,HJ60..WGV

IVORY

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002008

BJ60,FJ60,HJ60..WGV

IVORY

 2
74608 - GRIP SUB-ASSY, REAR DOOR ASSIST
74620-8700108

BJ60,FJ60,HJ60

IVORY

 2
74620-90A0008

BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR

IVORY,IVORY

 2
74609 - GRIP ASSY, BACK DOOR ASSIST
74610-1002008

BJ60,FJ60,HJ60

IVORY

 1
74613 - PLUG, ASSIST GRIP
74617-1401008

BJ60,FJ60,HJ60..WGV

IVORY

 6
74613 - PLUG, ASSIST GRIP
74617-1401008

BJ60,FJ60,HJ60..WGV

IVORY

 6
74613 - PLUG, ASSIST GRIP
74617-1401008

BJ60,FJ60,HJ60..WGV

IVORY

 6
74613 - PLUG, ASSIST GRIP
74617-1401008

BJ60,FJ60,HJ60..WGV

IVORY

 6
74617 - PLUG, BACK DOOR ASSIST GRIP
74617-1401008

BJ60,FJ60,HJ60

IVORY

 2
74810 - PULL ASSY, DOOR, INSIDE
74811-90A0003

BJ60,FJ60,HJ60..WGV..GEN

SHADOW GRAY,SHADOW GRAY,TRIM1#

 4
74811-90A00

BJ60,FJ60..SOB..GEN

 4
74811-90A0006

BJ60,FJ60,HJ60..WGV..GEN

DARK BROWN,DARK BROWN,TRIM4#

 4
74810 - PULL ASSY, DOOR, INSIDE
74811-90A0003

BJ60,FJ60,HJ60..WGV..GEN

SHADOW GRAY,SHADOW GRAY,TRIM1#

 4
74811-90A00

BJ60,FJ60..SOB..GEN

 4
74811-90A0006

BJ60,FJ60,HJ60..WGV..GEN

DARK BROWN,DARK BROWN,TRIM4#

 4
Common parts
90159-60084
90168-40085
90189-06024
90189-06043
91651-40614
93311-16020
93311-26025
93510-45020
93530-45020
93540-16030
93540-56020
