FJ60LV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

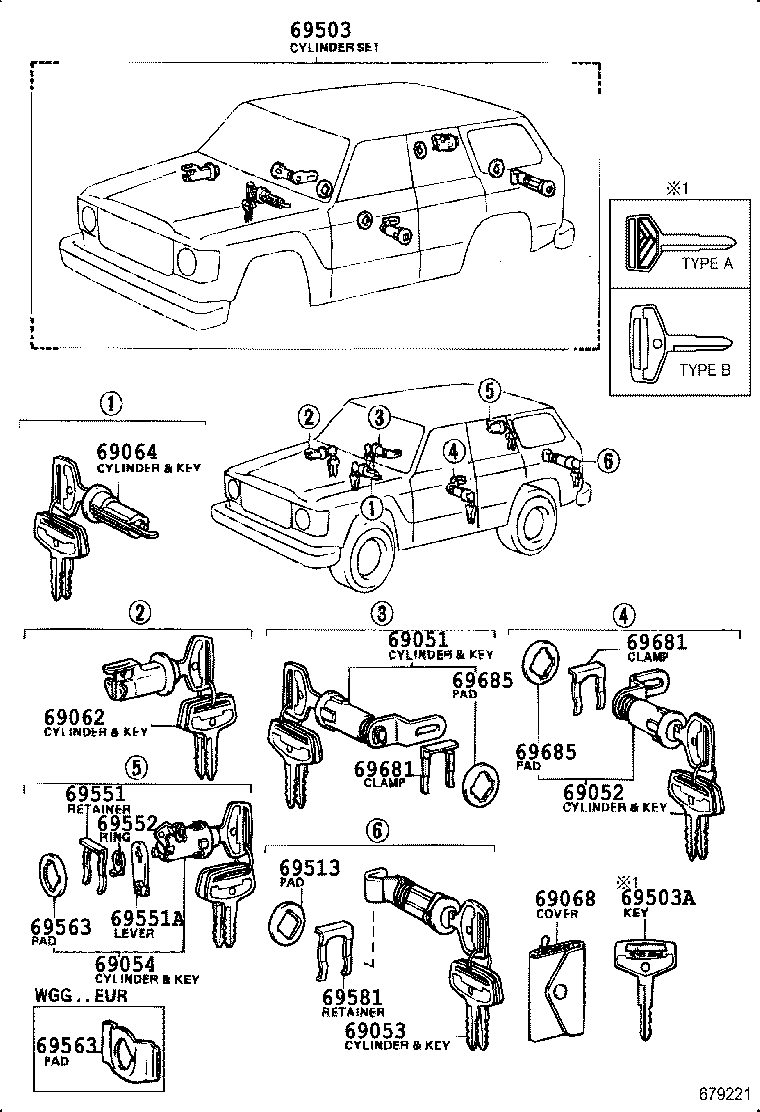

Click highlighted areas on diagram

diagram 69051 69052 69053 69054 69062 69064 69068 69503 69503A 69513 69551 69551A 69552 69563 69563 69581 69681 69681 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-90A00

BJ60,FJ60,HJ60

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-90A00

BJ60,FJ60,HJ60

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69058-19065

BJ60,FJ60,HJ60

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69051-19176

BJ60,FJ60,HJ60..SOB

 1
69055-90A03

BJ60,FJ60,HJ60..SOB

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-14010

FJ60

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

BJ60,FJ6#,HJ6#

 1
69503 - CYLINDER SET, LOCK
69005-90A06

FJ60..SOB

 1
69503A - KEY, BLANK
90999-00066

BJ60,FJ60,HJ60

MASTER KEY,TYPE A:REFER ILLUST.

 2
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-14010

BJ60,FJ6#,HJ6#

 1
69551 - RETAINER, BACK DOOR LOCK CYLINDER
69681-20040

BJ60,FJ60,HJ60..SOB

 1
69563 - PAD, BACK DOOR LOCK CYLINDER
69513-90A00

BJ60,FJ60,HJ60..SOB

 1
69563 - PAD, BACK DOOR LOCK CYLINDER
69513-90A00

BJ60,FJ60,HJ60..SOB

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

BJ60,FJ6#,HJ6#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ60,FJ6#,HJ6#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ60,FJ6#,HJ6#

 2
69685 - PAD, LOCK CYLINDER
69513-90A00

BJ60,FJ6#,HJ6#

 2
69685 - PAD, LOCK CYLINDER
69513-90A00

BJ60,FJ6#,HJ6#

 2
