FJ60LV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F,3F

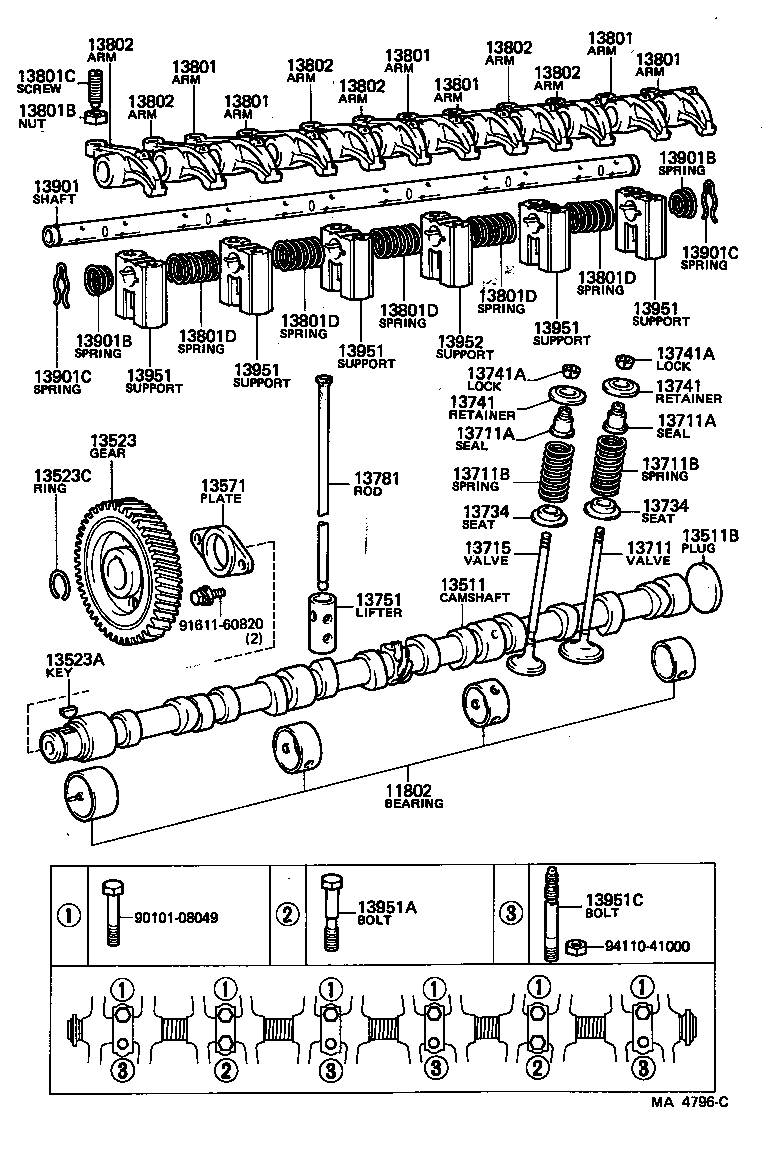

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523C 13571 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13802 13802 13901 13901B 13901B 13901C 13901C 13951 13951 13951 13951 13951 13951A 13951C 13952 9010108049 9161160820 9411041000
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-60021

2F..FJ60

U/S 0.25

 1
11802-60011

2F..FJ60

STD

 1
11805-60021

2F..FJ60

U/S 0.50

 1
13511 - CAMSHAFT
13511-60060

2F,3F..FJ6#

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90331-48010

2F,3F..FJ6#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-60030

2F..FJ60

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

2F,3F..FJ6#

 1
95161-10519

2F,3F..FJ6#

 1
13523C - RING, SNAP CAMSHAFT(FOR TIMING GEAR)
90520-29051

2F,3F..FJ6#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-60010

2F..FJ60

 1
13711 - VALVE, INTAKE
13711-60021

2F..FJ60

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02048

2F,3F..FJ6#

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02048

2F,3F..FJ6#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

2F,3F..FJ6#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

2F,3F..FJ6#

 12
13715 - VALVE, EXHAUST
13715-61010

2F..FJ60..LHD..GEN

LOW-OCTANE SPEC

 6
13715-61020

2F..FJ60..LHD..GEN

LOW-OCTANE SPEC

 6
13715-60032

2F..FJ60..GEN

 6
13734 - SEAT, VALVE SPRING
13734-60030

2F,3F..FJ6#

 12
13734 - SEAT, VALVE SPRING
13734-60030

2F,3F..FJ6#

 12
13741 - RETAINER, VALVE SPRING
13741-60030

2F..FJ60..EUR,GEN

 12
13741-60030

2F..FJ60..LHD..GEN

INTAKE,LOW-OCTANE SPEC

 6
13741-61010

2F..FJ60..LHD..GEN

EXHAUST,LOW-OCTANE SPEC

 6
13741-60030

2F..FJ60..GEN

 12
13741 - RETAINER, VALVE SPRING
13741-60030

2F..FJ60..EUR,GEN

 12
13741-60030

2F..FJ60..LHD..GEN

INTAKE,LOW-OCTANE SPEC

 6
13741-61010

2F..FJ60..LHD..GEN

EXHAUST,LOW-OCTANE SPEC

 6
13741-60030

2F..FJ60..GEN

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

2F..FJ60..LHD..GEN

EXHAUST,LOW-OCTANE SPEC

 12
90913-03012

2F..FJ60..EUR,GEN

 24
90913-03012

2F..FJ60..GEN

 24
90913-03012

2F..FJ60..LHD..GEN

INTAKE,LOW-OCTANE SPEC

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

2F..FJ60..LHD..GEN

EXHAUST,LOW-OCTANE SPEC

 12
90913-03012

2F..FJ60..EUR,GEN

 24
90913-03012

2F..FJ60..GEN

 24
90913-03012

2F..FJ60..LHD..GEN

INTAKE,LOW-OCTANE SPEC

 12
13751 - LIFTER, VALVE
13751-61010

2F..FJ60

STD

 12
13755-61010

2F..FJ60

O/S 0.05

 12
13781 - ROD, VALVE PUSH
13781-61010

2F..FJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61021

2F..FJ60

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61021

2F..FJ60

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61021

2F..FJ60

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61021

2F..FJ60

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61021

2F..FJ60

 6
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-61021

2F..FJ60

 6
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-10014

2F..FJ60

 12
13801C - SCREW, VALVE ADJUSTING
90913-05007

2F..FJ60

 12
90913-05007

2F..FJ60

 12
90913-05007

2F..FJ60

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

2F..FJ60

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

2F..FJ60

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

2F..FJ60

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

2F..FJ60

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

2F..FJ60

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61021

2F..FJ60

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61021

2F..FJ60

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61021

2F..FJ60

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61021

2F..FJ60

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61021

2F..FJ60

 6
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-61021

2F..FJ60

 6
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-61011

2F..FJ60

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

2F,3F..FJ6#

 2
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

2F,3F..FJ6#

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

2F,3F..FJ6#

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

2F,3F..FJ6#

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-61012

2F,3F..FJ6#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-61012

2F,3F..FJ6#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-61012

2F,3F..FJ6#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-61012

2F,3F..FJ6#

 5
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-61012

2F,3F..FJ6#

 5
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01006

2F,3F..FJ6#

 2
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
13994-61010

2F..FJ60

 4
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-61012

2F,3F..FJ6#

 1
Common parts
90101-08049
91611-60820
94110-41000
