FJ60LV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

Click highlighted areas on diagram

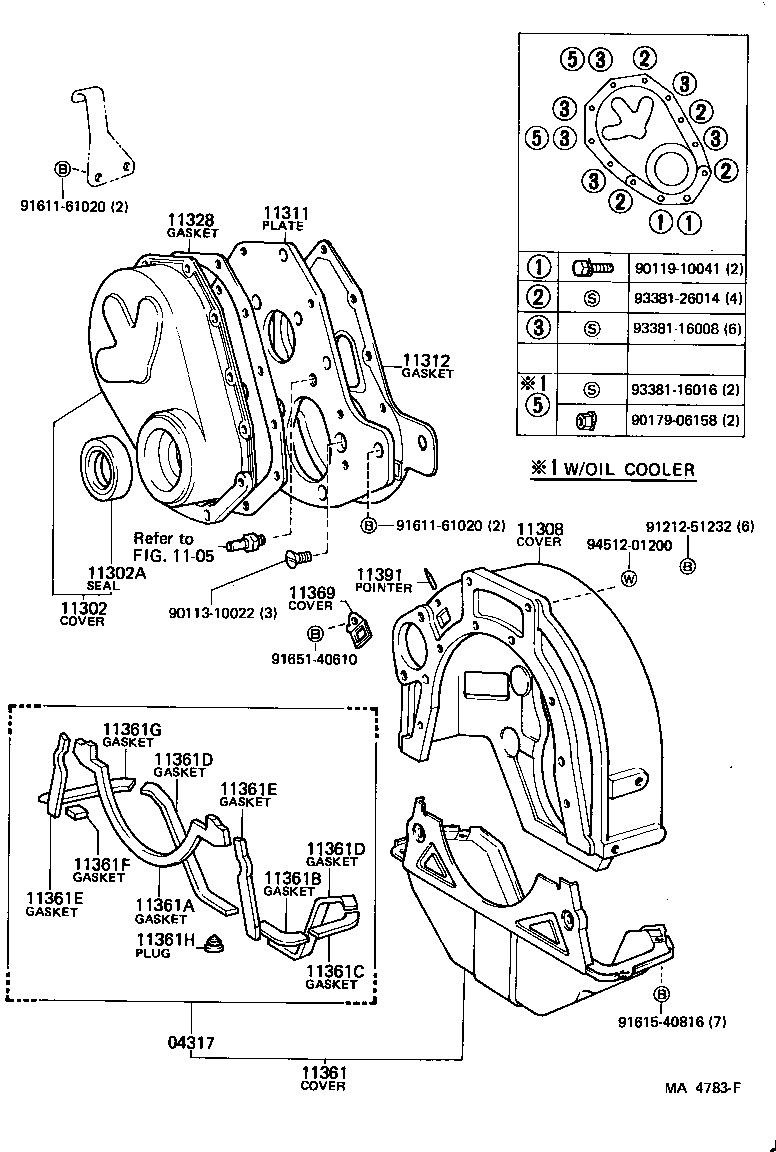

diagram 04317 1105 11302 11302A 11308 11311 11312 11328 11361 11361A 11361B 11361C 11361D 11361D 11361E 11361E 11361F 11361G 11361H 11369 11391 9011310022 9011910041 9017906158 9121251232 9161161020 9161161020 9161540816 9165140610 9338116008 9338116016 9338126014 9451201200
Part # Description Qty Price
04317 - GASKET KIT, CLUTCH UNDER COVER
04317-60020

FJ60

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61020

2F..FJ60

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

2F..FJ60

 1
11308 - COVER SUB-ASSY, FLYWHEEL HOUSING
31111-60032

2F..FJ60

 1
31111-60031

2F..FJ60

 1
31111-60030

2F..FJ60

 1
11311 - PLATE, FRONT END
11311-61010

2F..FJ60

 1
11312 - GASKET, FRONT END PLATE
11312-61010

2F..FJ60

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-60010

2F..FJ60

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
31104-60020

2F..FJ60

 1
11361A - GASKET, CLUTCH UNDER COVER, NO.1
31131-60010

2F,3F..FJ6#

 1
11361B - GASKET, CLUTCH UNDER COVER, NO.2
31132-60020

2F,3F..FJ6#

 1
11361C - GASKET, CLUTCH UNDER COVER, NO.3
31133-60020

2F,3F..FJ6#

 1
11361D - GASKET, CLUTCH UNDER COVER, NO.4
31134-60020

2F..FJ60

 2
11361D - GASKET, CLUTCH UNDER COVER, NO.4
31134-60020

2F..FJ60

 2
11361E - GASKET, CLUTCH UNDER COVER, NO.5
31135-60020

2F..FJ60

 2
11361E - GASKET, CLUTCH UNDER COVER, NO.5
31135-60020

2F..FJ60

 2
11361F - GASKET, CLUTCH UNDER COVER, NO.6
31136-60010

2F,3F..FJ6#

 1
11361G - GASKET, CLUTCH UNDER COVER, NO.7
31137-60010

2F,3F..FJ6#

 1
11361H - PLUG, HOLE(FOR CLUTCH UNDER COVER)
90950-01200

2F,3F..FJ6#

 1
11369 - COVER, FLYWHEEL HOUSING FRONT
11369-60011

2F,3F..FJ6#

 1
11391 - POINTER, TIMING
11391-60010

2F,3F..FJ6#

 1
Common parts
90113-10022
90119-10041
90179-06158
91212-51232
91611-61020
91615-40816
91651-40610
93381-16008
93381-16016
93381-26014
94512-01200
Linked diagrams
1105
