FJ60LG-KZ (1982)

Toyota Land Cruiser

Production Oct 1982 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)BJ60,FJ60 ; (8008-8411)HJ60..ARL,GEN; (8008-8411)HJ60..LHD..EUR

Click highlighted areas on diagram

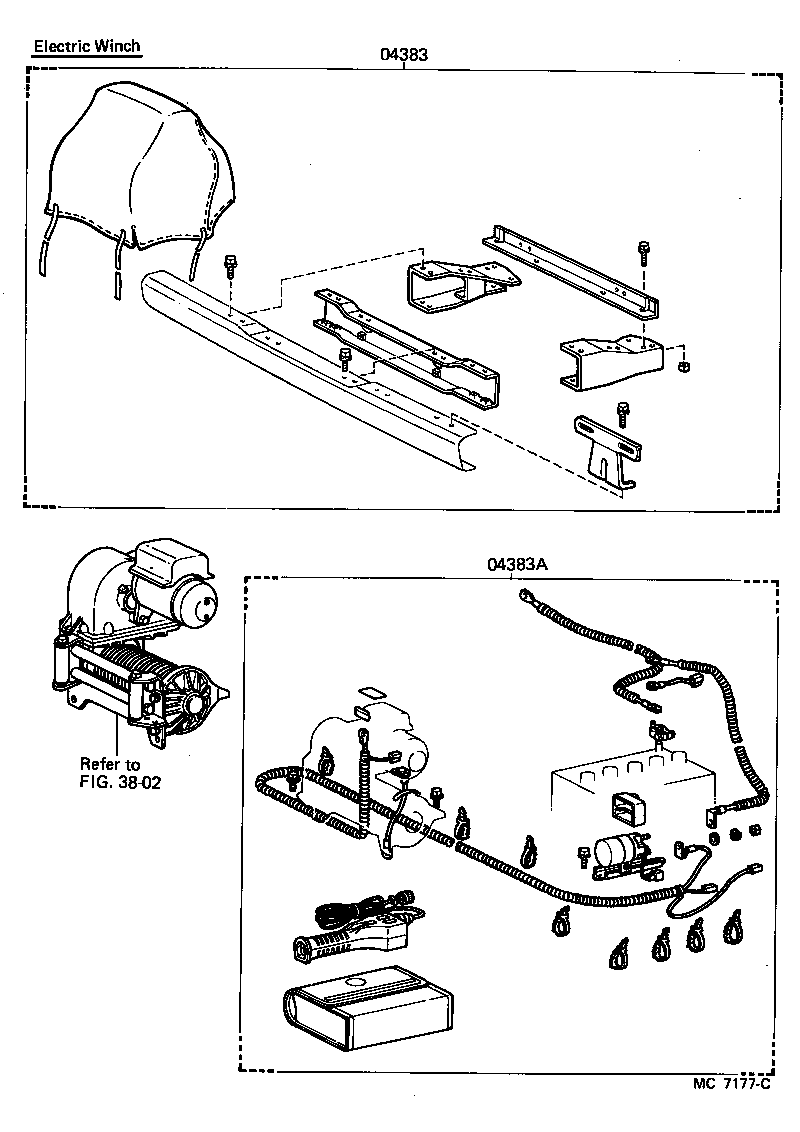

diagram 04383 04383A 3802
Part # Description Qty Price
04383 - FITTING KIT, NO.1, WINCH
04383-60070

BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR

ELECTRIC

 1
04383-60080

BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR

MECHANICAL

 1
04383A - FITTING KIT, NO.2, WINCH
04384-60050

FJ60

 1
Linked diagrams
3802
