FJ60LG-KZ (1982)

Toyota Land Cruiser

Production Oct 1982 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)4F

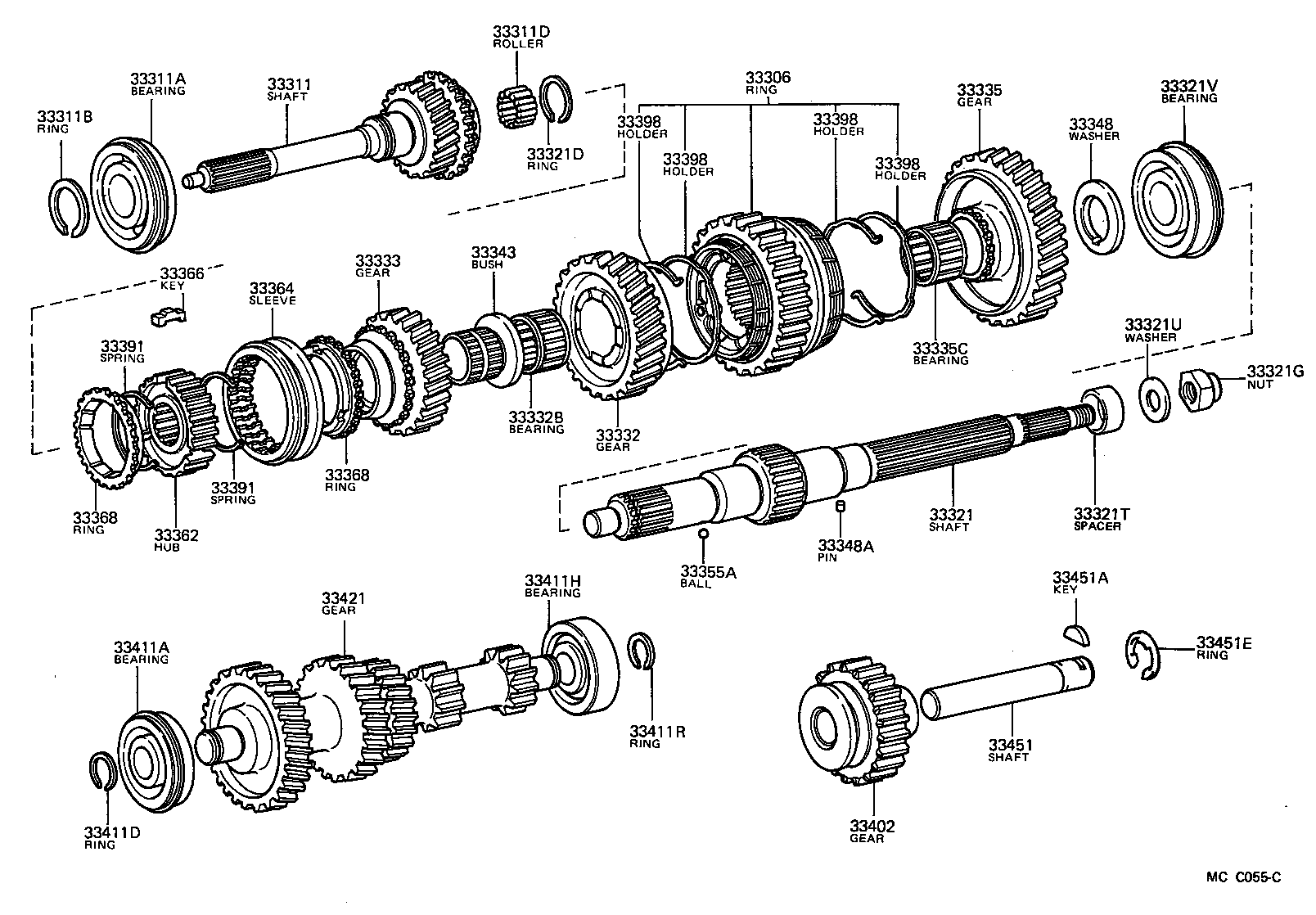

Click highlighted areas on diagram

diagram 33306 33311 33311A 33311B 33311D 33321 33321D 33321G 33321T 33321U 33321V 33332 33332B 33333 33335 33335C 33343 33348 33348A 33355A 33362 33364 33366 33368 33368 33391 33391 33398 33398 33398 33398 33402 33411A 33411D 33411H 33411R 33421 33451 33451A 33451E
Part # Description Qty Price
33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1
33306-36016

BJ60,FJ60,HJ60

 1
33311 - SHAFT, INPUT
33311-60070

FJ60,HJ60

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
97154-06308

BJ60,FJ6#,HJ60..4F

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-36015

BJ60,FJ6#,HJ6#..MTM

T=3.31-3.42,T=3.31-3.42

 1
90520-36016

BJ60,FJ6#,HJ6#..MTM

T=3.20-3.31,T=3.20-3.31

 1
33311D - BEARING, INPUT SHAFT
90361-06049

BJ60,FJ6#,HJ6#..MTM

 17
33321 - SHAFT, OUTPUT
33321-60051

BJ60,FJ60,HJ60..4F

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-36251

BJ60,FJ6#,HJ6#..MTM

T=2.45-2.50,T=2.45-2.50

 1
90520-36250

BJ60,FJ6#,HJ6#..MTM

T=2.40-2.45,T=2.40-2.45

 1
90520-36254

BJ60,FJ6#,HJ6#..MTM

T=2.60-2.65,T=2.60-2.65

 1
90520-36253

BJ60,FJ6#,HJ6#..MTM

T=2.55-2.60,T=2.55-2.60

 1
90520-36255

BJ60,FJ6#,HJ6#..MTM

T=2.65-2.70,T=2.65-2.70

 1
90520-36252

BJ60,FJ6#,HJ6#..MTM

T=2.50-2.55,T=2.50-2.55

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-26002

BJ60,FJ6#,HJ6#..MTM

 1
33321T - SPACER (FOR OUTPUT SHAFT)
90560-35007

BJ60,FJ60,HJ60..4F

 1
33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
90201-26003

BJ60,FJ6#,HJ6#..MTM

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
97154-06308

BJ60,FJ60,HJ60..4F

 1
33332 - GEAR, 2ND
33332-60020

BJ60,FJ6#,HJ6#..MTM

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-44065

BJ60,FJ6#,HJ6#..MTM

 1
33333 - GEAR, 3RD
33333-60030

BJ60,FJ6#,HJ6#..MTM

 1
33335 - GEAR, 1ST
33335-60020

BJ60,FJ6#,HJ6#..MTM

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-44065

BJ60,FJ6#,HJ6#..MTM

 1
33343 - BUSH, 3RD & 2ND GEAR
33343-36020

BJ60,FJ6#,HJ6#..MTM

 1
33348 - WASHER, 1ST GEAR THRUST
33348-36012

BJ60,FJ6#,HJ6#..MTM

 1
33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER)
90250-05202

BJ60,FJ6#,HJ6#..MTM

 1
33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
90360-06004

BJ60,FJ6#,HJ6#..MTM

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-36021

BJ60,FJ6#,HJ6#..MTM

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-36051

BJ60,FJ6#,HJ6#..MTM

 1
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-36020

BJ60,FJ6#,HJ6#..MTM

 3
33368 - RING, SYNCHRONIZER, NO.2
33368-20012

BJ60,FJ6#,HJ6#..MTM

 2
33368 - RING, SYNCHRONIZER, NO.2
33368-20012

BJ60,FJ6#,HJ6#..MTM

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-20010

BJ60,FJ6#,HJ6#..MTM

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-20010

BJ60,FJ6#,HJ6#..MTM

 2
33398 - HOLDER, SYNCHRONIZER RING
33398-36011

BJ60,FJ60,HJ60

 4
33398 - HOLDER, SYNCHRONIZER RING
33398-36011

BJ60,FJ60,HJ60

 4
33398 - HOLDER, SYNCHRONIZER RING
33398-36011

BJ60,FJ60,HJ60

 4
33398 - HOLDER, SYNCHRONIZER RING
33398-36011

BJ60,FJ60,HJ60

 4
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-36021

BJ60,FJ60,HJ60

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
97153-06332

BJ60,FJ6#,HJ60..4F

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90520-30216

BJ60,FJ6#,HJ6#..MTM

T=2.15,MARK 2,T=2.15-2.20

 1
90520-30214

BJ60,FJ6#,HJ6#..MTM

T=2.05,MARK 0,T=2.05-2.10

 1
90520-30218

BJ60,FJ6#,HJ6#..MTM

T=2.25,MARK 4,T=2.25-2.30

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
90365-32010

BJ60,FJ6#,HJ60..4F

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-29099

BJ60,FJ6#,HJ60..4F

T=2.1

 1
33421 - GEAR, COUNTER
33411-60050

BJ60,FJ60,HJ60

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-36022

BJ60,FJ6#,HJ6#..MTM

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
95161-10322

BJ60,FJ60,HJ60

 1
33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT)
90523-27001

BJ60,FJ6#,HJ6#..MTM

 1
