FJ60LG-KZ (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Nov 1984
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8411)FJ60

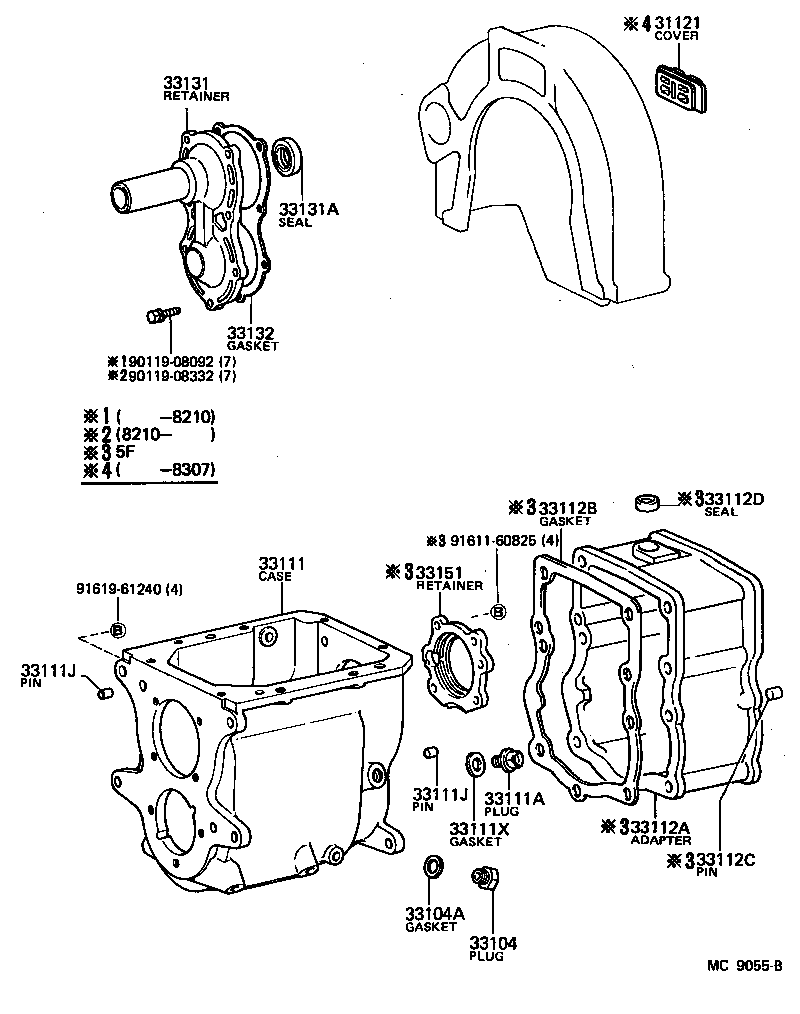

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-60021 |
FJ60 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BJ60,FJ6#,HJ6#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
BJ60,FJ60,HJ60 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BJ60,FJ60,HJ60 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BJ60,FJ6#,HJ6#..MTM L=17,OD=12,L=17,OD=12 |
2 | ||
| 90250-12216 |
BJ60,FJ6#,HJ6#..MTM L=14,OD=12,L=14,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BJ60,FJ6#,HJ6#..MTM L=17,OD=12,L=17,OD=12 |
2 | ||
| 90250-12216 |
BJ60,FJ6#,HJ6#..MTM L=14,OD=12,L=14,OD=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
BJ60,FJ60,HJ60 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-60020 |
FJ6#,HJ60..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-28004 |
BJ60,FJ6#,HJ60..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36010 |
BJ60,FJ6#,HJ60..MTM |
2 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90119-08332 | ||||
| 91611-60825 | ||||
| 91619-61240 | ||||
