FJ60LG-KW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)FJ60..LHD

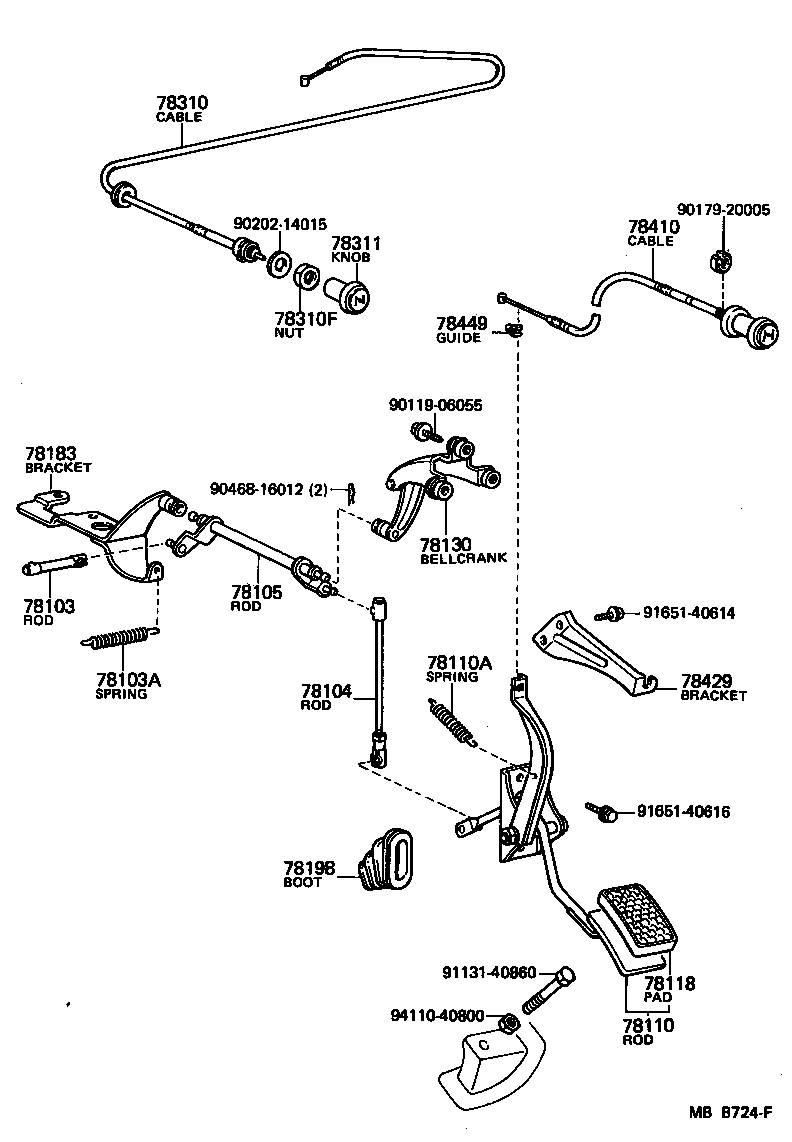

Click highlighted areas on diagram

diagram 78103 78103A 78104 78105 78110 78110A 78118 78130 78183 78198 78310 78310F 78311 78410 78429 78449 9011906055 9017920005 9020214015 9046816012 9113140860 9165140614 9165140616 9411040800
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-90A00

FJ60..LHD

 1
78103A - SPRING (FOR ACCELERATOR CONNECTING ROD, NO.1)
90506-12034

FJ60..LHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-90A00

FJ60..LHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-90A00

FJ60..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A02

FJ60..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90506-12262

BJ60,FJ6#,HJ60..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78170-90A00

FJ60..LHD

 1
78183 - BRACKET, ACCELERATOR LINK ROD
78014-90A00

FJ60..LHD

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-90352

FJ60,HJ60..LHD

 1
78310 - CABLE ASSY, CHOKE
78310-90A01

FJ60..EUR

 1
78310F - NUT, CHOKE
90170-11003

FJ60

 1
78311 - KNOB, CHOKE CONTROL CABLE
78303-90A01

FJ60..EUR,GEN

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A02

BJ60,FJ6#,HJ6#..LHD

 1
78429 - BRACKET, THROTTLE ROD
78471-90A00

BJ60,FJ6#,HJ6#..LHD

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
Common parts
90119-06055
90179-20005
90202-14015
90468-16012
91131-40860
91651-40614
91651-40616
94110-40800
