FJ60LG-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Nov 1984
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8411) ; (8411- )ARL

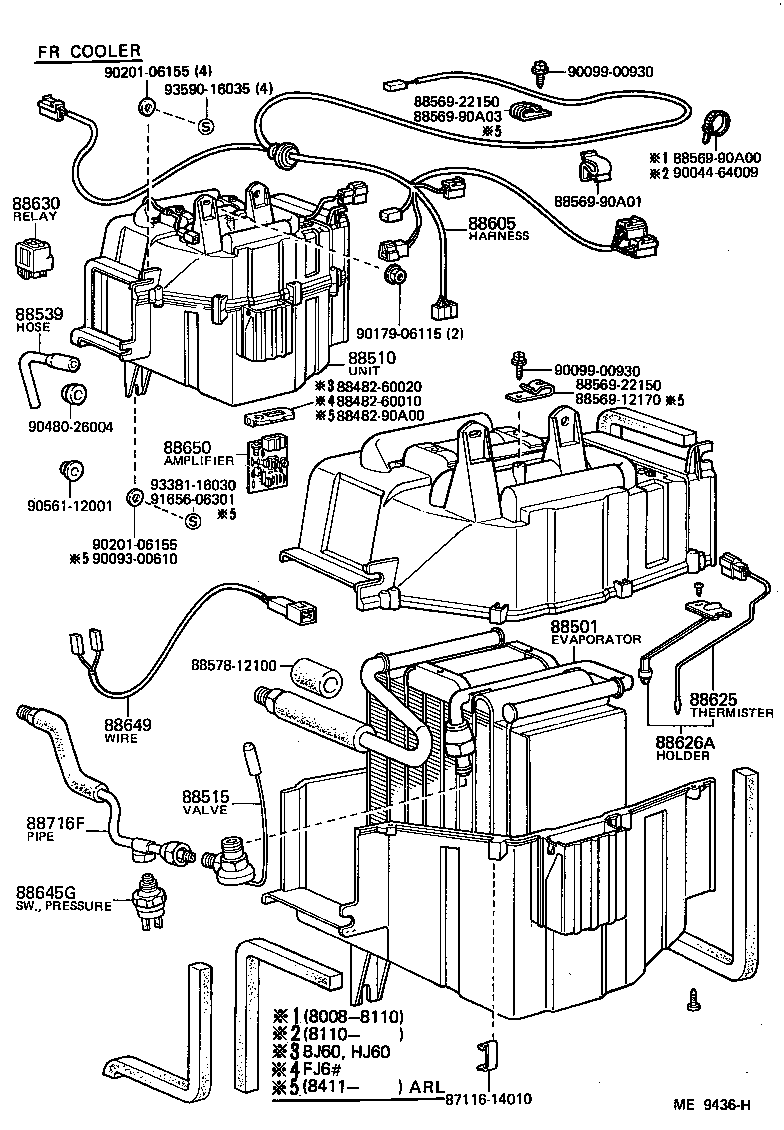

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A01 |
BJ60,FJ60,HJ60..LHD..GEN |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-90A01 |
BJ60,FJ60,HJ60..LHD..GEN |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
BJ60,FJ60,HJ60..GEN FR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A01 |
FJ60..LHD..GEN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-90A01 |
BJ60,FJ6#,HJ60..LHD..(GEN,ME) |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 85913-90A01 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22020 |
BJ60,FJ6#,HJ60..ARL,GEN,ME |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60020 |
FJ60..ARL,GEN |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A05 |
BJ60,FJ60,HJ60..LHD..GEN FR |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88482-60010 | ||||
| 88482-60020 | ||||
| 88482-90A00 | ||||
| 88569-12170 | ||||
| 88569-22150 | ||||
| 88569-90A00 | ||||
| 88569-90A01 | ||||
| 88569-90A03 | ||||
| 88578-12100 | ||||
| 90044-64009 | ||||
| 90093-00610 | ||||
| 90099-00930 | ||||
| 90179-06115 | ||||
| 90201-06155 | ||||
| 90480-26004 | ||||
| 90561-12001 | ||||
| 91656-06301 | ||||
| 93381-16030 | ||||
| 93590-16035 | ||||
