FJ60LG-K (1980)
Toyota Land Cruiser
(8008-8411)2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-60011 |
2F..FJ60 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
2F..FJ60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
2F..FJ60 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16333-61110 |
2F..FJ60..GEN W/OIL COOLER |
1 | ||
| 16333-61100 |
2F..FJ60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03052 |
2F..FJ60 *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-61041 |
2F..FJ60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-61020 |
2F,3F..FJ6# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-60010 |
2F..FJ60 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-43002 |
2F,3F..FJ6# |
1 | ||
| 16361 - FAN | ||||
| 16361-61020 |
2F..FJ60..WGG..GEN TEMPERED,OD=450,7BLADES |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-60081 |
2F..FJ60 |
1 | ||
| 16381B - SPACER, FAN BELT ADJUSTING BAR | ||||
| 90560-12263 |
2F..FJ60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-61040 |
2F..FJ60 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
2F,3F..FJ6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
2F,3F..FJ6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2F..FJ60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-90A00 |
2F,3F..FJ6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12101 |
2F,3F..FJ6# *H,L=670 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2F,3F..FJ6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2F,3F..FJ6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 85361-30070 |
2F..FJ60 12V BATTERY |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90A00 |
2F,3F..FJ6# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
2F,3F..FJ6# |
1 | ||
| 16507B - INSULATOR, RADIATOR PIPE | ||||
| 17853-38010 |
2F..FJ60..ARL,GEN W/COOLER |
1 | ||
| 16507B - INSULATOR, RADIATOR PIPE | ||||
| 17853-38010 |
2F..FJ60..ARL,GEN W/COOLER |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01172 |
2F..FJ60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
2F,3F..FJ6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
2F,3F..FJ6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01163 |
2F..FJ60..ARL,GEN WATER PUMP SIDE,W/COOLER |
1 | ||
| 90916-01056 |
2F..FJ60 WATER PUMP SIDE |
1 | ||
| 99554-70185 |
2F..FJ60..ARL,GEN RADIATOR SIDE,W/COOLER |
1 | ||
| 16571-61090 |
2F..FJ60 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01163 |
2F..FJ60..ARL,GEN WATER PUMP SIDE,W/COOLER |
1 | ||
| 90916-01056 |
2F..FJ60 WATER PUMP SIDE |
1 | ||
| 99554-70185 |
2F..FJ60..ARL,GEN RADIATOR SIDE,W/COOLER |
1 | ||
| 16571-61090 |
2F..FJ60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ60 PIPE SIDE |
1 | ||
| 96111-10530 |
2F..FJ60..ARL,GEN W/COOLER |
2 | ||
| 96111-10510 |
2F..FJ60 RADIATOR SIDE |
1 | ||
| 96111-10530 |
2F..FJ60 RADIATOR SIDE |
1 | ||
| 96111-10510 |
2F..FJ60..ARL,GEN W/COOLER |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ60 PIPE SIDE |
1 | ||
| 96111-10530 |
2F..FJ60..ARL,GEN W/COOLER |
2 | ||
| 96111-10510 |
2F..FJ60 RADIATOR SIDE |
1 | ||
| 96111-10530 |
2F..FJ60 RADIATOR SIDE |
1 | ||
| 96111-10510 |
2F..FJ60..ARL,GEN W/COOLER |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10580 |
2F..FJ60 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10580 |
2F..FJ60 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61030 |
2F..FJ60..GEN |
1 | ||
| 16577-61110 |
2F..FJ60..LHD..4F..SRF..LUB..GEN W/COOLER |
1 | ||
| 16577-61040 |
2F..FJ60..LUB;2F..FJ60..5F..SOB;2F..FJ60..SOB..EUR;2F..FJ60..HRF..SOB;2F..FJ60..RHD..4F..SOB W/HEATER |
1 | ||
| 16577-61120 |
2F..FJ60..ARL,GEN W/COOLER & HEATER |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61030 |
2F..FJ60..GEN |
1 | ||
| 16577-61110 |
2F..FJ60..LHD..4F..SRF..LUB..GEN W/COOLER |
1 | ||
| 16577-61040 |
2F..FJ60..LUB;2F..FJ60..5F..SOB;2F..FJ60..SOB..EUR;2F..FJ60..HRF..SOB;2F..FJ60..RHD..4F..SOB W/HEATER |
1 | ||
| 16577-61120 |
2F..FJ60..ARL,GEN W/COOLER & HEATER |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61030 |
2F..FJ60..GEN |
1 | ||
| 16577-61110 |
2F..FJ60..LHD..4F..SRF..LUB..GEN W/COOLER |
1 | ||
| 16577-61040 |
2F..FJ60..LUB;2F..FJ60..5F..SOB;2F..FJ60..SOB..EUR;2F..FJ60..HRF..SOB;2F..FJ60..RHD..4F..SOB W/HEATER |
1 | ||
| 16577-61120 |
2F..FJ60..ARL,GEN W/COOLER & HEATER |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61030 |
2F..FJ60..GEN |
1 | ||
| 16577-61110 |
2F..FJ60..LHD..4F..SRF..LUB..GEN W/COOLER |
1 | ||
| 16577-61040 |
2F..FJ60..LUB;2F..FJ60..5F..SOB;2F..FJ60..SOB..EUR;2F..FJ60..HRF..SOB;2F..FJ60..RHD..4F..SOB W/HEATER |
1 | ||
| 16577-61120 |
2F..FJ60..ARL,GEN W/COOLER & HEATER |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61010 |
2F,3F..FJ6# |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61010 |
2F,3F..FJ6# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61010 |
2F,3F..FJ6# |
2 | ||
| 16584A - SPACER, RADIATOR MOUNTING INSULATOR | ||||
| 90561-09005 |
2F,3F..FJ6# |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61010 |
2F,3F..FJ6# |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-61010 |
2F,3F..FJ6# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-61121 |
2F..FJ60..ARL,GEN TEMPERED |
1 | ||
| Common parts | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90467-09022 | ||||
| 91611-40825 | ||||
| 91611-40845 | ||||
| 91611-41025 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-60830 | ||||
| 91651-60840 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

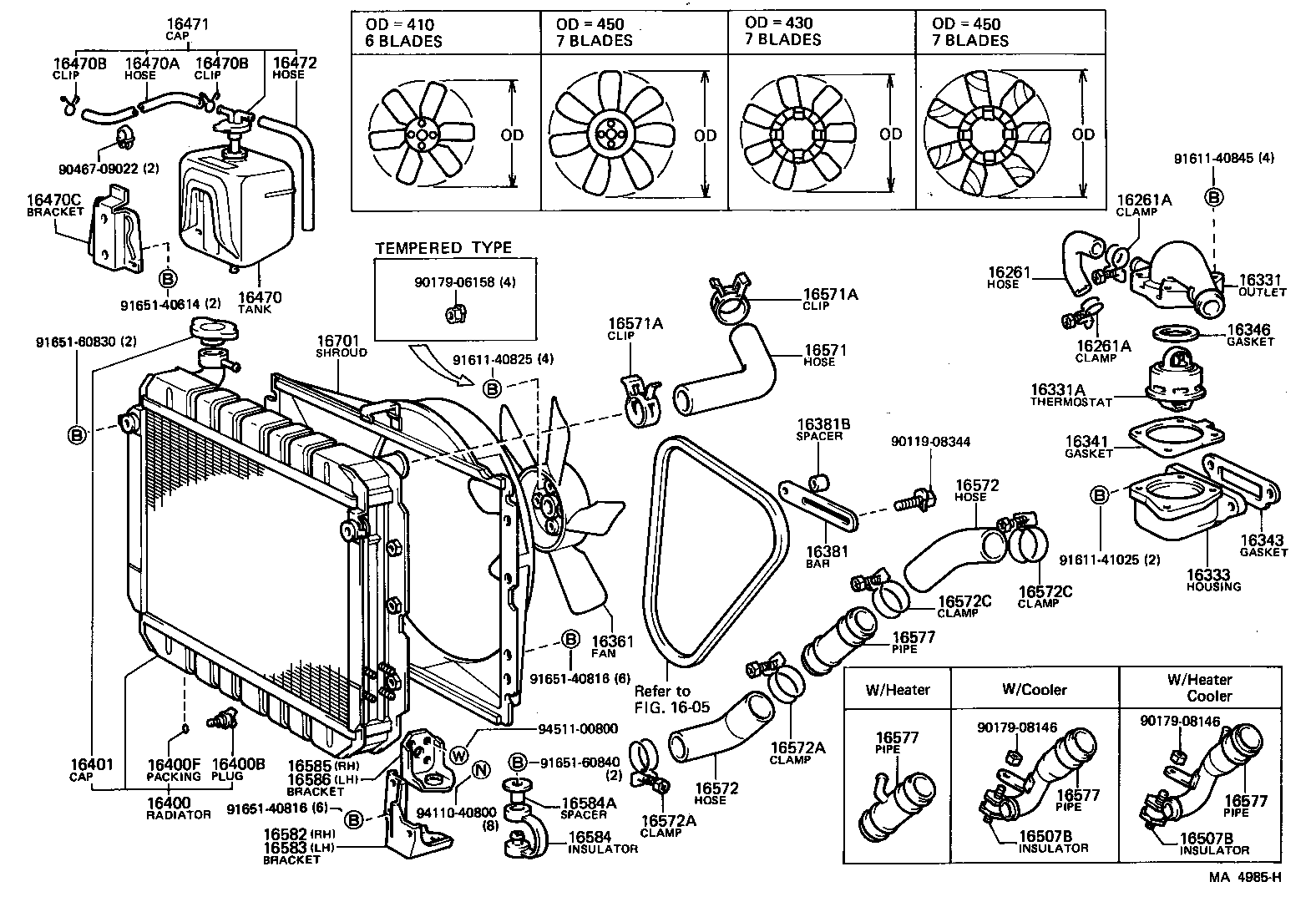

| Linked diagrams | ||||
| 1605 | ||||
