FJ55V-B (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7309)FJ55..RHD

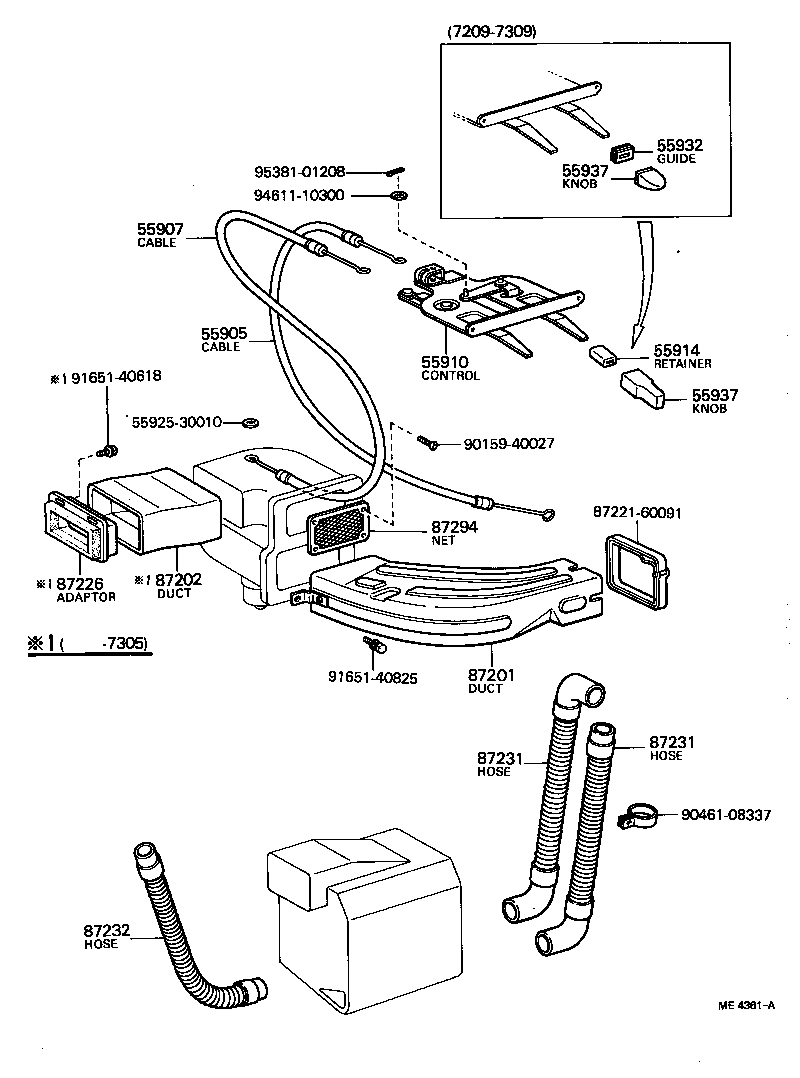

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 87287-60100 |
FJ55..RHD L=654 |
1 | ||
| 87287-60101 |
FJ55..RHD L=610 |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 87286-60091 |
FJ55 L=981 |
1 | ||
| 87286-60092 |
FJ55..RHD L=970 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55901-90352 |
FJ55 |
1 | ||
| 55910-90351 |
FJ55 |
1 | ||
| 55901-90353 |
FJ55 |
1 | ||
| 55914 - RETAINER, HEATER CONTROL KNOB | ||||
| 55915-90351 |
FJ55 |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55916-90352 |
FJ55 |
2 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55916-90352 |
FJ55 |
2 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-60103 |
FJ55..RHD |
1 | ||
| 87202 - DUCT, HEATER AIR | ||||
| 87212-60090 |
FJ55 |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-60091 |
FJ55 |
1 | ||
| 87226-60090 |
FJ55 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87232-60100 |
FJ55..RHD L=650 |
1 | ||
| 87231-60090 |
FJ55..RHD L=400 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87232-60100 |
FJ55..RHD L=650 |
1 | ||
| 87231-60090 |
FJ55..RHD L=400 |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87233-60091 |
FJ55..RHD |
1 | ||
| 87294 - NET, AIR DUCT | ||||
| 87294-60090 |
FJ55 |
1 | ||
| Common parts | ||||
| 55925-30010 | ||||
| 87221-60091 | ||||
| 90159-40027 | ||||
| 90461-08337 | ||||
| 91651-40618 | ||||
| 91651-40825 | ||||
| 94611-10300 | ||||
| 95381-01208 | ||||
