FJ55V-B (1969)
Toyota Land Cruiser
(6903-8007)

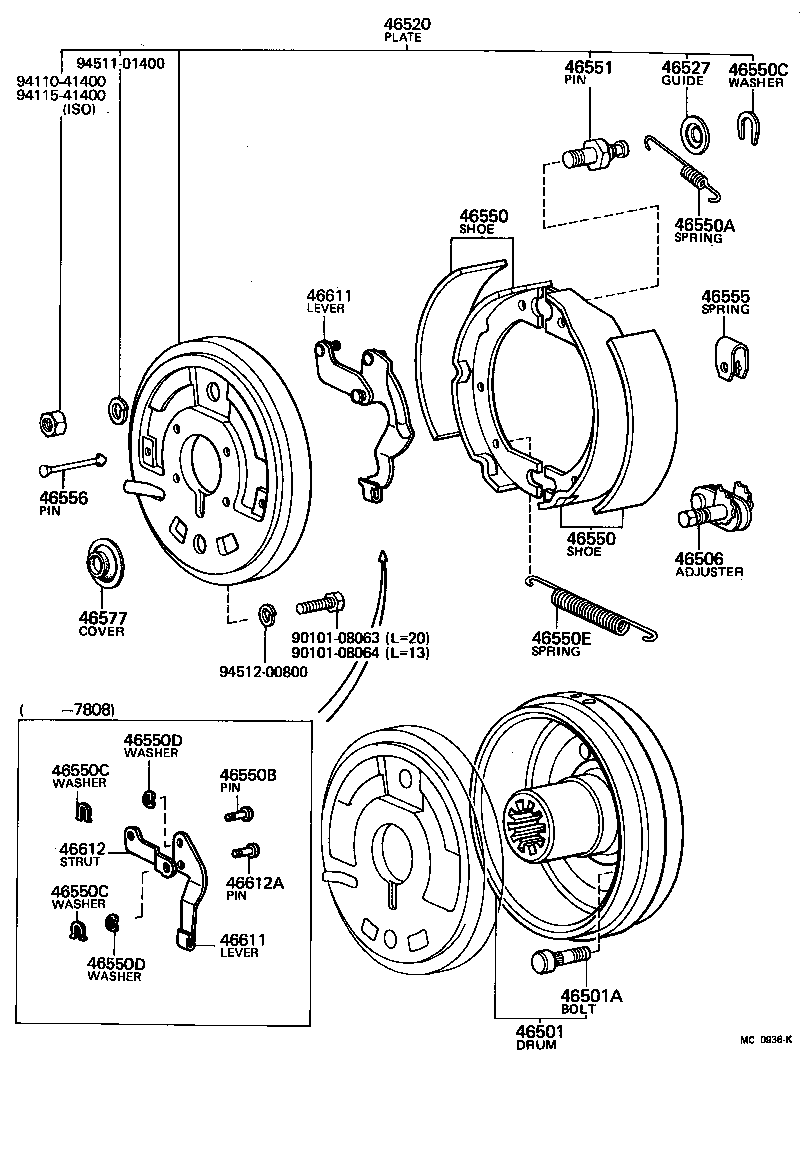

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-60011 |
FJ4#,55,HJ45 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-10007 |
FJ4#,55,HJ45 |
4 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46506-35010 |
FJ4#,55 |
1 | ||
| 46520 - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46520-60901 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46527 - GUIDE, SHOE(FOR PARKING BRAKE) | ||||
| 46527-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-35011 |
FJ4#,55 |
2 | ||
| 46550-35012 |
FJ4#,55 |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-35011 |
FJ4#,55 |
2 | ||
| 46550-35012 |
FJ4#,55 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16052 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46550B - PIN(FOR PARKING BRAKE SHOE) | ||||
| 90249-08016 |
FJ4#,55 |
2 | ||
| 90249-08005 |
FJ4#,55,HJ45 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
FJ4#,55,HJ45 ID=6 |
3 | ||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 90213-04004 |
FJ4#,55,HJ45 ID= 4 |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
FJ4#,55,HJ45 ID=6 |
3 | ||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 90213-04004 |
FJ4#,55,HJ45 ID= 4 |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
FJ4#,55,HJ45 ID=6 |
3 | ||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 90213-04004 |
FJ4#,55,HJ45 ID= 4 |
3 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46551 - PIN, ANCHOR(FOR PARKING BRAKE) | ||||
| 46551-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46611-35010 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46611-35010 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-35010 |
FJ55;BJ4#,FJ40,43,45,HJ45..RHD |
1 | ||
| 46612A - PIN(FOR PARKING BRAKE SHOE LEVER STRUT) | ||||
| 90249-08005 |
FJ4#,55,HJ45 |
1 | ||
| Common parts | ||||
| 90101-08063 | ||||
| 90101-08064 | ||||
| 94110-41400 | ||||
| 94115-41400 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
(6903-8007)FJ55..RHD

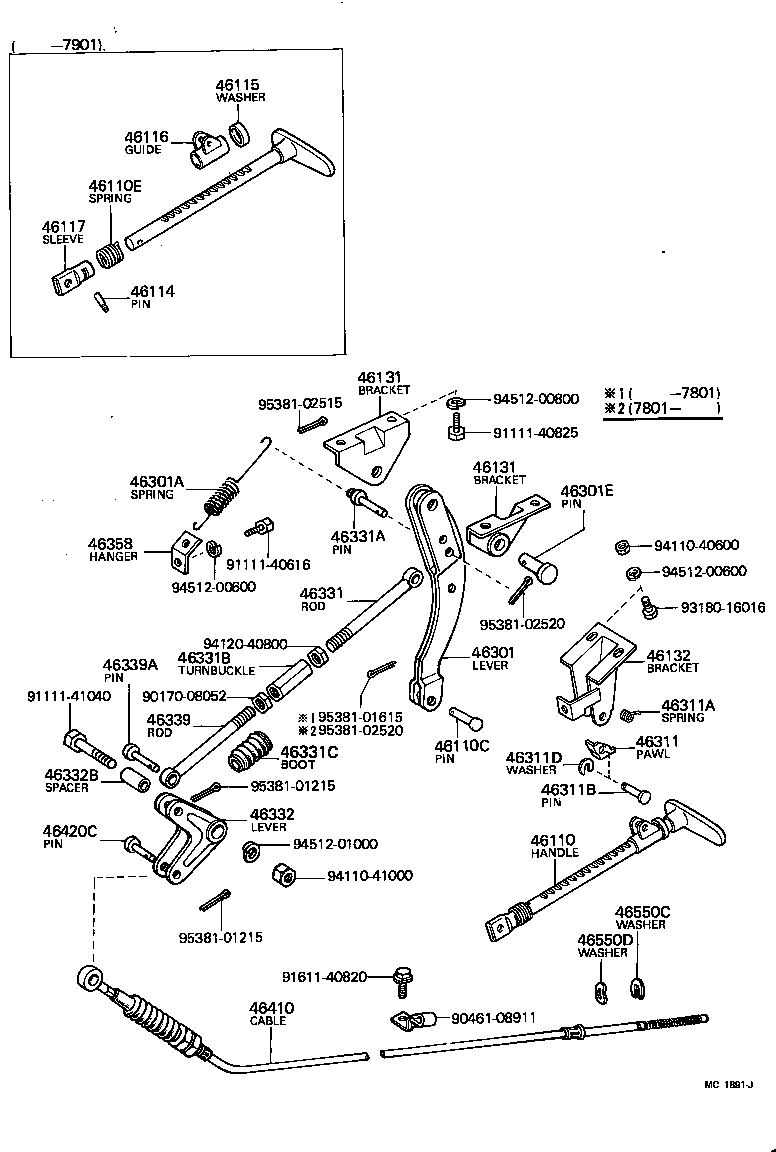

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46120-60031 |
FJ55..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 46110C - PIN(FOR PARKING BRAKE HANDLE SET) | ||||
| 90240-08038 |
BJ4#,FJ4#,55,HJ45 ID=1.6 |
1 | ||
| 46110E - SPRING, TORSION(FOR PARKING BRAKE PLUNGER) | ||||
| 90508-14038 |
BJ4#,FJ40,43,45,55,HJ45..RHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46115 - WASHER, PARKING BRAKE PLUNGER | ||||
| 46115-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46116 - GUIDE, PARKING BRAKE PLUNGER | ||||
| 46116-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
BJ4#,FJ40,43,45,55,HJ45..RHD |
1 | ||
| 46131 - BRACKET SUB-ASSY, PARKING BRAKE | ||||
| 46132-60010 |
FJ55 |
2 | ||
| 46131 - BRACKET SUB-ASSY, PARKING BRAKE | ||||
| 46132-60010 |
FJ55 |
2 | ||
| 46132 - BRACKET, PARKING BRAKE PLUNGER, NO.2 | ||||
| 46131-60020 |
FJ55 FOR SINGLE MASTER CYLINDER |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30010 |
FJ55..RHD;BJ4#,FJ4#,HJ45 |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-18055 |
FJ55 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-12045 |
FJ55..RHD |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30020 |
BJ4#,FJ40,43,45,55,HJ45 FOR SINGLE MASTER CYLINDER |
1 | ||
| 46311-60010 |
FJ4#,55 FOR TANDEM MASTER CYLINDER |
1 | ||
| 46311-60010 |
FJ40,55 FOR TANDEM MASTER CYLINDER |
1 | ||
| 46311-60010 |
FJ40,43,55 FOR TANDEM MASTER CYLINDER |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46331 - ROD, INTERMEDIATE LEVER PULL | ||||
| 46331-60010 |
FJ55 |
1 | ||
| 46331A - PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD) | ||||
| 90249-08012 |
FJ55 |
1 | ||
| 46331B - TURNBUCKLE(FOR INTERMEDIATE LEVER PULL ROD) | ||||
| 90587-08008 |
FJ55 |
1 | ||
| 46331C - BOOT(FOR INTERMEDIATE LEVER PULL ROD) | ||||
| 36371-60010 |
FJ55 |
1 | ||
| 46332 - LEVER, PARKING BRAKE LINK | ||||
| 46332-60010 |
FJ55 |
1 | ||
| 46332B - SPACER(FOR PARKING BRAKE LINK LEVER) | ||||
| 90560-10237 |
FJ55 |
1 | ||
| 46339 - ROD, INTERMEDIATE LEVER PULL NO.2 | ||||
| 46339-60010 |
FJ55 |
1 | ||
| 46339A - PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD NO.2) | ||||
| 90240-08038 |
FJ55 |
1 | ||
| 46358 - HANGER, PULL ROD RETURN SPRING | ||||
| 46358-60010 |
FJ4#,55,HJ45 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60031 |
FJ55 L=1131,FOR 3-SPEED T/M |
1 | ||
| 46410-60041 |
FJ55..RHD L=1164,FOR 4-SPEED T/M |
1 | ||
| 46410-60031 |
FJ55..RHD L=1131,FOR 3-SPEED T/M |
1 | ||
| 46410-60041 |
FJ55 L=1164,FOR 4-SPEED T/M |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08038 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
FJ4#,55,HJ45 ID=6 |
3 | ||
| 90213-07006 |
BJ4#,FJ4#,55,HJ45 ID= 7.5 |
1 | ||
| 90213-09005 |
BJ4#,FJ4#,55,HJ45 ID=11.5 |
1 | ||
| 90213-04004 |
FJ4#,55,HJ45 ID= 4 |
3 | ||
| 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90461-08911 | ||||
| 91111-40616 | ||||
| 91111-40825 | ||||
| 91111-41040 | ||||
| 91611-40820 | ||||
| 93180-16016 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-01215 | ||||
| 95381-01615 | ||||
| 95381-02515 | ||||
| 95381-02520 | ||||
