FJ55V- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-8007)FJ55

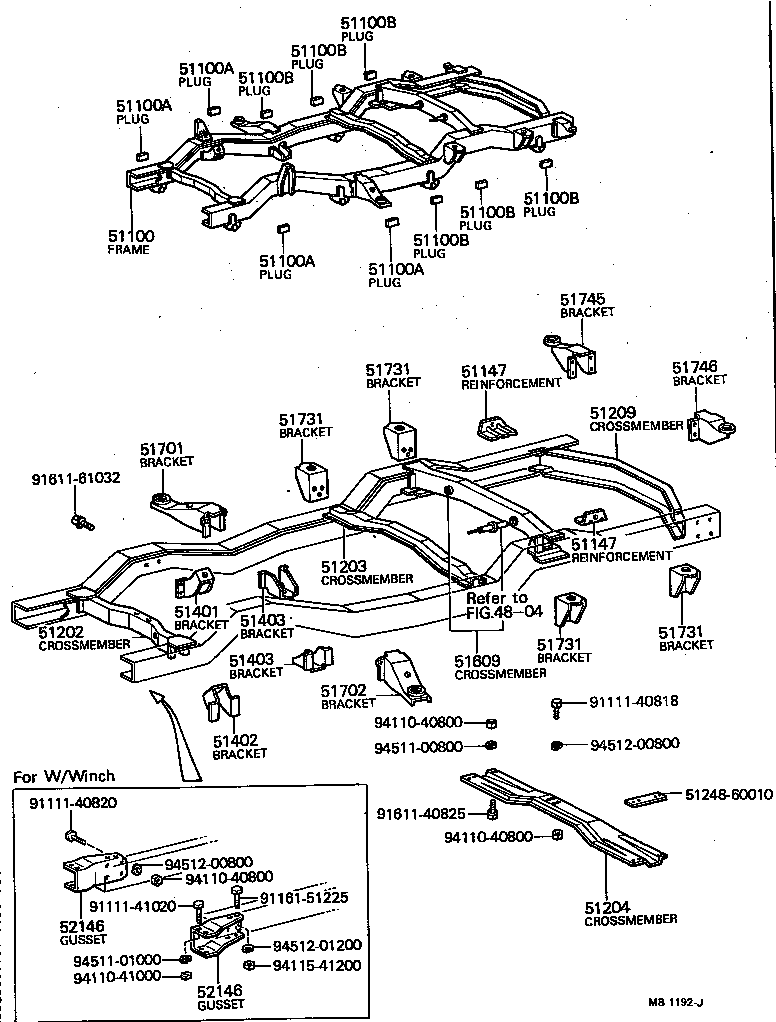

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-60170 |
FJ55..RHD W/WINCH |
1 | ||
| 51001-60150 |
FJ55..RHD |
1 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01033 |
FJ55 |
4 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01033 |
FJ55 |
4 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01033 |
FJ55 |
4 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01033 |
FJ55 |
4 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01035 |
FJ55 |
6 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01035 |
FJ55 |
6 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01035 |
FJ55 |
6 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01035 |
FJ55 |
6 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01035 |
FJ55 |
6 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01035 |
FJ55 |
6 | ||
| 51147 - REINFORCEMENT, SIDE RAIL REAR SPRING REAR HANGER | ||||
| 51147-60010 |
FJ55 |
2 | ||
| 51147 - REINFORCEMENT, SIDE RAIL REAR SPRING REAR HANGER | ||||
| 51147-60010 |
FJ55 |
2 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-60040 |
FJ55..RHD |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-60040 |
FJ55 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51241-60020 |
FJ55 |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51281-60040 |
FJ55 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-60020 |
FJ55 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60020 |
FJ55 |
1 | ||
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51432-60010 |
FJ55 LH. |
1 | ||
| 51431-60030 |
FJ55 RH. |
1 | ||
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51432-60010 |
FJ55 LH. |
1 | ||
| 51431-60030 |
FJ55 RH. |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51203-60030 |
FJ55 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-60010 |
FJ55 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-60010 |
FJ55 |
1 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-60030 |
FJ55 |
4 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-60030 |
FJ55 |
4 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-60030 |
FJ55 |
4 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-60030 |
FJ55 |
4 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51709-60010 |
FJ55 |
1 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51709-60010 |
FJ55 |
1 | ||
| 52146 - GUSSET, WINCH SUPPORT | ||||
| 52145-60010 |
FJ55 RH. |
1 | ||
| 52146-60010 |
FJ55 LH. |
1 | ||
| 52146 - GUSSET, WINCH SUPPORT | ||||
| 52145-60010 |
FJ55 RH. |
1 | ||
| 52146-60010 |
FJ55 LH. |
1 | ||
| Common parts | ||||
| 51248-60010 | ||||
| 91111-40818 | ||||
| 91111-40820 | ||||
| 91111-41020 | ||||
| 91161-51225 | ||||
| 91611-40825 | ||||
| 91611-61032 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4804 | ||||
