Toyota Land cruiser FJ55 ALTERNATOR

FJ55V- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

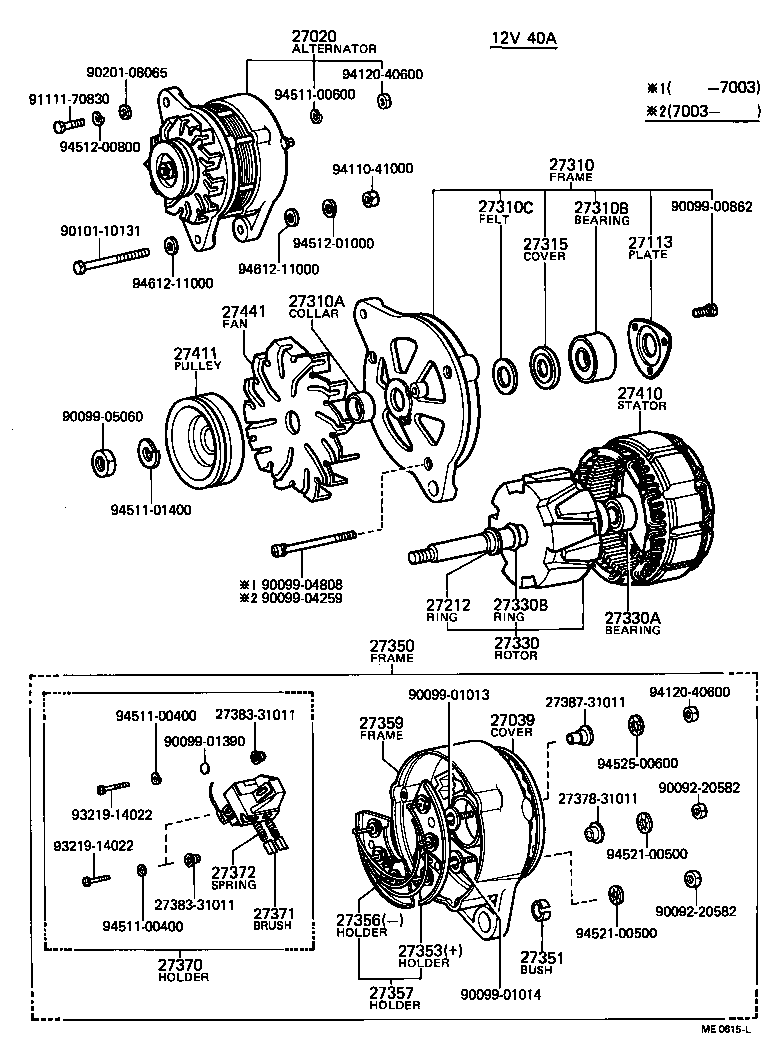

(6903-7209)F

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-60033	F..FJ4#,55 12V 40A	01/1971 - 09/1972	1
27020-60070	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27020-60032	F..FJ4#,55 12V 40A	03/1969 - 01/1971	1
27020-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27039 - COVER, ALTERNATOR REAR END
27039-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27039-33011	F..FJ4#,55 12V 40A	01/1971 - 09/1972	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27113-20010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-01083	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27212-39050	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-40041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
90099-19203	F..FJ4#,55 12V 40A	06/1970 - 01/1974	1
90099-19032	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10013	F,2F..FJ4#,55 6203Z	03/1969 - 09/1977	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004	F,2F..FJ4#,55	03/1969 - 07/1980	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011	F,2F..FJ4#,55	03/1969 - 07/1980	1
27330 - ROTOR ASSY, ALTERNATOR
27330-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27330-33010	F,2F..FJ4#,55 12V 40A	03/1969 - 07/1980	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10012	F..FJ4#,55 12V 55A,6202Z	03/1969 - 01/1975	1
97110-06201	F,2F..FJ4#,55 12V 40 & 50A,6201Z	03/1969 - 09/1977	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27350 - FRAME ASSY, RECTIFIER END
27350-60070	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27350-33010	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27350-33011	F..FJ4#,55 12V 40A	06/1970 - 01/1971	1
27350-60041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27350-33012	F..FJ4#,55 12V 40A	01/1971 - 09/1972	1
27350-60071	F..FJ4#,55 12V 40A	01/1974 - 01/1975	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-30010	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27351-60012	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27353-60070	F..FJ4#,55 12V 40A	01/1974 - 01/1975	1
27353-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27356-31012	F..FJ4#,55	03/1969 - 09/1972	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-60070	F..FJ4#,55 12V 40A	01/1974 - 01/1975	1
27357-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27357-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-33011	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27359-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27359-60014	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-45011	F..FJ4#,55 12V 40A	01/1974 - 01/1975	1
27370-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27370-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27371 - BRUSH, ALTERNATOR
27377-31010	F..FJ4#,55 RED,12V 55A	03/1969 - 01/1975	1
27371-50020	F..FJ4#,55 BLACK,12V 55A	03/1969 - 01/1975	1
27371-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-40010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	2
27372-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27410 - STATOR ASSY, ALTERNATOR
27410-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27410-33010	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
27411 - PULLEY, ALTERNATOR
27411-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27411-60032	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27441 - FAN, ALTERNATOR
27441-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441-31011	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
Common parts
27378-31011
27383-31011
27387-31011
90092-20582
90099-00862
90099-01013
90099-01014
90099-01390
90099-04259
90099-04808
90099-05060
90101-10131
90201-08065
91111-70830
93219-14022
94110-41000
94120-40600
94511-00400
94511-00600
94511-01400
94512-00800
94512-01000
94521-00500
94525-00600
94612-11000

(6903-7501)F

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-60033	F..FJ4#,55 12V 40A	01/1971 - 09/1972	1
27020-60070	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27020-60032	F..FJ4#,55 12V 40A	03/1969 - 01/1971	1
27020-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-31010	F..FJ4#,55 L=50,12V 55A	03/1969 - 01/1975	1
27379-60012	F..FJ4#,55 L=85,12V 55A	03/1969 - 01/1975	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-31010	F..FJ4#,55 L=50,12V 55A	03/1969 - 01/1975	1
27379-60012	F..FJ4#,55 L=85,12V 55A	03/1969 - 01/1975	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27113-20010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-01083	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27212-39050	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-40041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310-31011	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 09/1977	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
90099-19203	F..FJ4#,55 12V 40A	06/1970 - 01/1974	1
90099-19032	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10013	F,2F..FJ4#,55 6203Z	03/1969 - 09/1977	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004	F,2F..FJ4#,55	03/1969 - 07/1980	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011	F,2F..FJ4#,55	03/1969 - 07/1980	1
27316 - PACKING, RETAINER PLATE, ALTERNATOR
27112-60020	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27330 - ROTOR ASSY, ALTERNATOR
27330-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27330-33010	F,2F..FJ4#,55 12V 40A	03/1969 - 07/1980	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10012	F..FJ4#,55 12V 55A,6202Z	03/1969 - 01/1975	1
97110-06201	F,2F..FJ4#,55 12V 40 & 50A,6201Z	03/1969 - 09/1977	1
27350 - FRAME ASSY, RECTIFIER END
27350-60070	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27350-33010	F..FJ4#,55 12V 40A	03/1969 - 06/1970	1
27350-33011	F..FJ4#,55 12V 40A	06/1970 - 01/1971	1
27350-60041	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27350-33012	F..FJ4#,55 12V 40A	01/1971 - 09/1972	1
27350-60071	F..FJ4#,55 12V 40A	01/1974 - 01/1975	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-30010	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27351-60012	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27352 - COVER, FRAME BRUSH
27352-31010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27353-60070	F..FJ4#,55 12V 40A	01/1974 - 01/1975	1
27353-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27353-31012	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-33011	F..FJ4#,55 12V 40A	03/1969 - 09/1972	1
27359-24030	F..FJ4#,55 12V 40A	09/1972 - 01/1974	1
27359-60014	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27371 - BRUSH, ALTERNATOR
27377-31010	F..FJ4#,55 RED,12V 55A	03/1969 - 01/1975	1
27371-50020	F..FJ4#,55 BLACK,12V 55A	03/1969 - 01/1975	1
27371-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27371 - BRUSH, ALTERNATOR
27377-31010	F..FJ4#,55 RED,12V 55A	03/1969 - 01/1975	1
27371-50020	F..FJ4#,55 BLACK,12V 55A	03/1969 - 01/1975	1
27371-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27372 - SPRING, ALTERNATOR BRUSH
27372-40010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	2
27372-31011	B,F,H,2F..BJ4#,FJ4#,55,HJ45 12V 40,35 & 50A,24V 15 & 20A	03/1969 - 09/1979	2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-30010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27376 - HOLDER, ALTERNATOR BRUSH, B
27376-30010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27381 - SUPPORT, TERMINAL, ALTERNATOR
27381-31010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27410 - STATOR ASSY, ALTERNATOR
27410-60040	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27410-33010	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
27410A - HOUSING, ALTERNATOR POLE CONNECTOR
90099-37001	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27411 - PULLEY, ALTERNATOR
27411-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27411-60032	F,2F..FJ4#,55 12V 40 & 50A	03/1969 - 07/1980	1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-03265	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441 - FAN, ALTERNATOR
27441-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27441-31011	F..FJ4#,55 12V 40A	03/1969 - 01/1974	1
27442 - BASE, ALTERNATOR FAN
27442-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27443 - COVER, ALTERNATOR BEARING
27443-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-60010	F..FJ4#,55 12V 55A	03/1969 - 01/1975	1
Common parts
27383-40020
27384-40010
90092-20482
90096-05004
90096-06005
90099-00806
90099-01012
90099-02102
90099-02103
90099-02120
90099-02129
90099-04824
90099-04829
90099-05003
90101-10131
90201-08065
91111-70830
93119-14008
93119-14010
93219-14006
93219-14008
93219-15020
94110-41000
94120-40600
94511-00400
94511-00500
94511-00600
94512-00800
94512-01000
94611-10500
94611-10600
94612-11000

FJ55V- (1969)

(6903-7209)F

(6903-7501)F
