8401 - SWITCH & RELAY & COMPUTER

FJ55RV-UC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

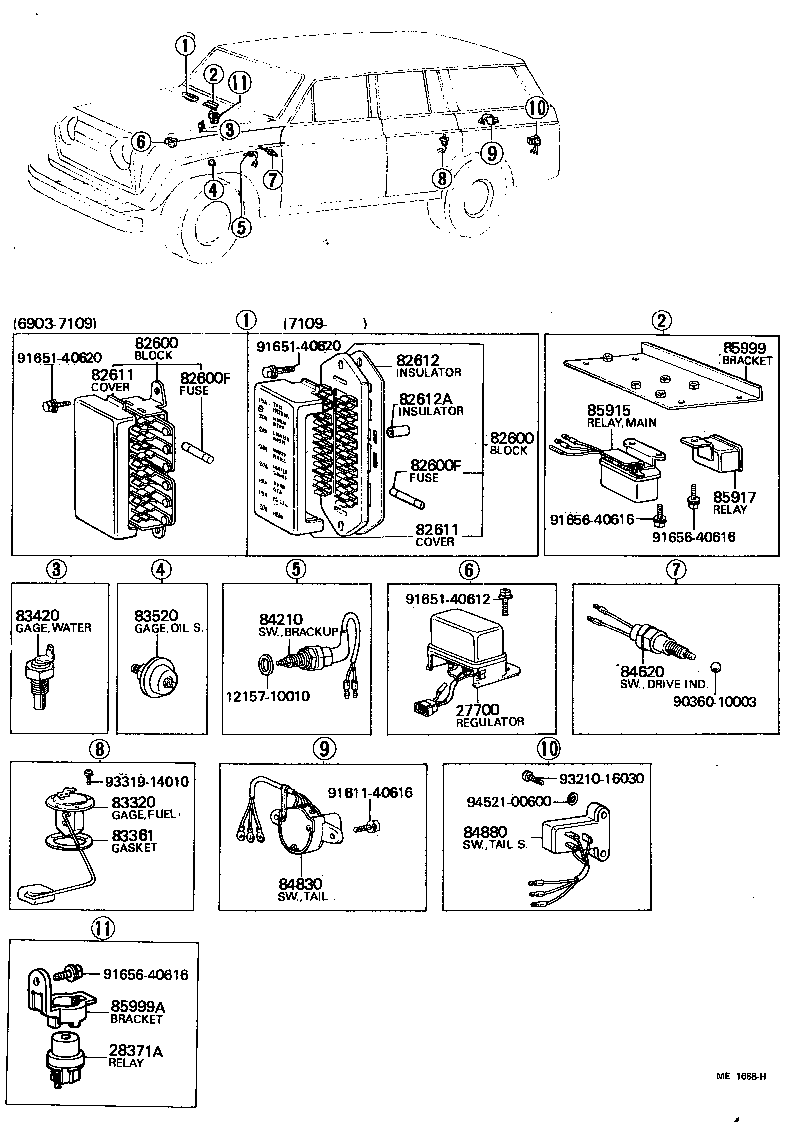

(6903-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
27700 - REGULATOR ASSY, GENERATOR
27700-60080	2F..FJ55..GEN;H,2F..FJ4#,HJ45	01/1975 - 09/1977	1
27700-40010	F,H..FJ4#,55,HJ45	03/1969 - 09/1972	1
27700-13010	H,2F..FJ4#,55,HJ45 FOR 12V	01/1979 - 07/1980	1
27700-60080	H,2F..FJ4#,55,HJ45 FOR 12V	09/1977 - 01/1979	1
82600 - BLOCK ASSY, FUSE
82600-30022	FJ4#,55	03/1969 - 09/1971	1
82600-60050	BJ4#,FJ4#,55,HJ45	09/1977 - 10/1978	1
82600-60060	BJ4#,FJ4#,55,HJ45	10/1978 - 01/1979	1
82600 - BLOCK ASSY, FUSE
82600-30022	FJ4#,55	03/1969 - 09/1971	1
82600-60050	BJ4#,FJ4#,55,HJ45	09/1977 - 10/1978	1
82600-60060	BJ4#,FJ4#,55,HJ45	10/1978 - 01/1979	1
82600F - FUSE, FUSE BLOCK
99118-62920	BJ4#,FJ4#,55,HJ45 20A,20A	03/1969 - 07/1980	2
99118-62905	BJ4#,FJ4#,55,HJ45 5A,5A	09/1977 - 01/1979	1
99118-62910	BJ4#,FJ4#,55,HJ45 10A	09/1977 - 01/1979	1
90982-07008	BJ4#,FJ4#,55,HJ45 5A	01/1979 - 07/1980	1
99118-62915	BJ4#,FJ4#,55,HJ45 15A,15A	03/1969 - 07/1980	8
99118-62905	FJ4#,55 5A,5A	03/1969 - 09/1971	1
82600F - FUSE, FUSE BLOCK
99118-62920	BJ4#,FJ4#,55,HJ45 20A,20A	03/1969 - 07/1980	2
99118-62905	BJ4#,FJ4#,55,HJ45 5A,5A	09/1977 - 01/1979	1
99118-62910	BJ4#,FJ4#,55,HJ45 10A	09/1977 - 01/1979	1
90982-07008	BJ4#,FJ4#,55,HJ45 5A	01/1979 - 07/1980	1
99118-62915	BJ4#,FJ4#,55,HJ45 15A,15A	03/1969 - 07/1980	8
99118-62905	FJ4#,55 5A,5A	03/1969 - 09/1971	1
82611 - COVER, FUSE BLOCK
82611-60060	BJ4#,FJ4#,55,HJ45	10/1978 - 01/1979	1
82611-60050	BJ4#,FJ4#,55,HJ45	09/1977 - 10/1978	1
82611-30010	FJ4#,55	03/1969 - 09/1971	1
82611-90301	BJ4#,FJ4#,55,HJ45	01/1979 - 07/1980	1
82611 - COVER, FUSE BLOCK
82611-60060	BJ4#,FJ4#,55,HJ45	10/1978 - 01/1979	1
82611-60050	BJ4#,FJ4#,55,HJ45	09/1977 - 10/1978	1
82611-30010	FJ4#,55	03/1969 - 09/1971	1
82611-90301	BJ4#,FJ4#,55,HJ45	01/1979 - 07/1980	1
83320 - GAGE ASSY, FUEL SENDER
83320-60040	FJ55	03/1969 - 09/1972	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	FJ55	03/1969 - 09/1972	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	BJ4#,FJ4#,55,HJ45 YAZAKI	10/1979 - 07/1980	1
83420-20011	FJ55	03/1969 - 09/1972	1
83420-16010	BJ4#,FJ4#,55,HJ45 DENSO	10/1979 - 07/1980	1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-55010	BJ4#,FJ4#,55,HJ45 FOR 12V	07/1975 - 01/1979	1
83520-55010	FJ4#,55,HJ45	03/1969 - 07/1975	1
83520-55011	BJ4#,FJ4#,55,HJ45 FOR 12V	01/1979 - 07/1980	1
83520-14020	BJ4#,FJ4#,55,HJ45 FOR 12V,W/OIL COOLER	09/1976 - 07/1980	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-30021	FJ40,43,45,55 3-SPEED,COLUMN SHIFT	03/1969 - 09/1971	1
84021-60010	FJ55..RHD W/BRACKET	03/1969 - 09/1972	1
84210-57012	FJ4#,55 3-SPEED,FLOOR SHIFT	03/1969 - 01/1975	1
84210-20012	FJ55 4-SPEED,FLOOR SHIFT	03/1969 - 10/1971	1
84210-57012	FJ4#,55..3F 3-SPEED,FLOOR SHIFT	01/1975 - 07/1980	1
84620 - SWITCH ASSY, FRONT DRIVE INDICATOR
84610-30020	BJ4#,FJ40,43,45,55	03/1969 - 09/1979	1
85915 - RELAY, MAIN
85915-20021	FJ55 FOR TAIL GATE	09/1977 - 07/1980	1
85917 - RELAY, FRONT DRIVE
85917-60010	FJ55;BJ4#,FJ4#..4F..(ARL,GEN) FOR MAGNET FRONT DRIVE 12V	09/1977 - 09/1979	1
Common parts
12157-10010
90360-10003
91611-40616
91651-40612
91651-40620
91656-40616
93210-16030
93319-14010
94521-00600

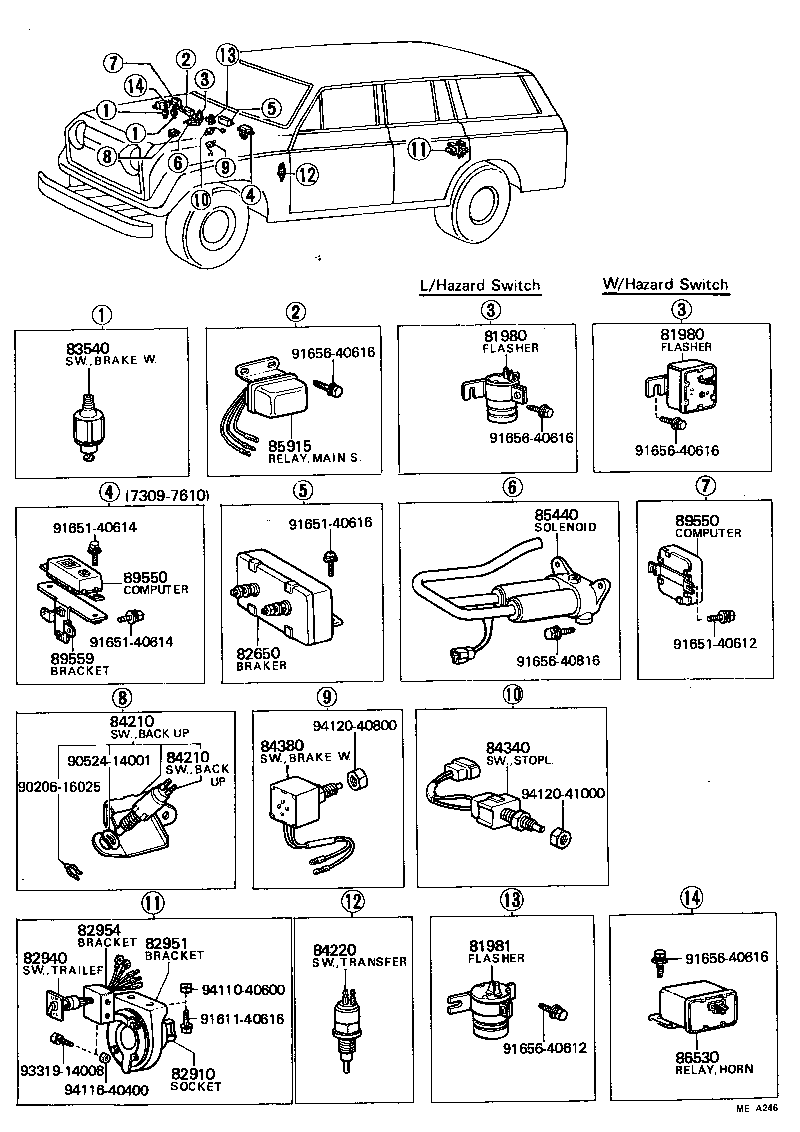

(6903-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-30030	FJ4#,55,HJ45..EUR,GEN W/HAZARD SWITCH	01/1975 - 05/1975	1
81980-30030	FJ4#,55,HJ45 W/HAZARD SWITCH	05/1975 - 09/1977	1
81980-20060	HJ45..VKC..ARL;BJ4#,FJ4#,55,HJ45..GEN FOR 12V,L/HAZARD SWITCH	09/1977 - 07/1980	1
81980-30040	BJ4#,FJ4#,55,HJ45 FOR 12V,W/HAZARD SWITCH	09/1977 - 09/1979	1
81980-20060	FJ4#,55,HJ45..GEN L/HAZARD SWITCH	05/1975 - 09/1977	1
81980-20040	FJ4#,55	03/1969 - 10/1969	1
81980-20060	FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 05/1975	1
81980-30040	BJ4#,FJ4#,55,HJ45..ARL,GEN FOR 12V,W/HAZARD SWITCH	09/1979 - 07/1980	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-30030	FJ4#,55,HJ45..EUR,GEN W/HAZARD SWITCH	01/1975 - 05/1975	1
81980-30030	FJ4#,55,HJ45 W/HAZARD SWITCH	05/1975 - 09/1977	1
81980-20060	HJ45..VKC..ARL;BJ4#,FJ4#,55,HJ45..GEN FOR 12V,L/HAZARD SWITCH	09/1977 - 07/1980	1
81980-30040	BJ4#,FJ4#,55,HJ45 FOR 12V,W/HAZARD SWITCH	09/1977 - 09/1979	1
81980-20060	FJ4#,55,HJ45..GEN L/HAZARD SWITCH	05/1975 - 09/1977	1
81980-20040	FJ4#,55	03/1969 - 10/1969	1
81980-20060	FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 05/1975	1
81980-30040	BJ4#,FJ4#,55,HJ45..ARL,GEN FOR 12V,W/HAZARD SWITCH	09/1979 - 07/1980	1
82910 - SOCKET ASSY, TRAILER
82910-60020	BJ4#,FJ4#,55..TPC,TPS,VKC,VLS,VTG	01/1975 - 09/1977	1
82910-60020	BJ4#,FJ4#,55..(TPC,TPS,VKC,VLS,VTG)..(EUR,GEN)	01/1979 - 07/1980	1
82940 - SWITCH ASSY, TRAILER SOCKET CHANGE OVER
82940-65011	BJ4#,FJ4#,55..(TPC,TPS,VKC,VLS,VTG)..(EUR,GEN)	01/1979 - 07/1980	1
82940-65010	BJ4#,FJ40,43,55	01/1975 - 06/1975	1
82940-65011	BJ4#,FJ4#,55..TPC,TPS,VKC,VLS,VTG	06/1975 - 09/1977	1
82951 - BRACKET, TRAILER SOCKET
82951-90310	FJ55	01/1975 - 01/1979	1
82954 - BRACKET, TRAILER CHANGE OVER SWITCH
82954-60010	BJ4#,FJ4#,55..(TPC,TPS,VKC,VLS,VTG)..(EUR,GEN)	01/1979 - 07/1980	1
82954-60010	BJ4#,FJ4#,55..TPC,TPS,VKC,VLS,VTG	01/1975 - 09/1977	1
83540 - SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)
84390-30011	BJ4#,FJ4#,55,HJ45	09/1977 - 04/1979	2
84390-30011	HJ45..VKC..ARL;BJ4#,FJ4#,55,HJ45..EUR,GEN	04/1979 - 07/1980	2
84210 - SWITCH ASSY, BACK-UP LAMP
84210-30021	FJ40,43,45,55 3-SPEED,COLUMN SHIFT	03/1969 - 09/1971	1
84021-60010	FJ55..RHD W/BRACKET	03/1969 - 09/1972	1
84210-57012	FJ4#,55 3-SPEED,FLOOR SHIFT	03/1969 - 01/1975	1
84210-20012	FJ55 4-SPEED,FLOOR SHIFT	03/1969 - 10/1971	1
84210-57012	FJ4#,55..3F 3-SPEED,FLOOR SHIFT	01/1975 - 07/1980	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-30021	FJ40,43,45,55 3-SPEED,COLUMN SHIFT	03/1969 - 09/1971	1
84021-60010	FJ55..RHD W/BRACKET	03/1969 - 09/1972	1
84210-57012	FJ4#,55 3-SPEED,FLOOR SHIFT	03/1969 - 01/1975	1
84210-20012	FJ55 4-SPEED,FLOOR SHIFT	03/1969 - 10/1971	1
84210-57012	FJ4#,55..3F 3-SPEED,FLOOR SHIFT	01/1975 - 07/1980	1
84340 - SWITCH ASSY, STOP LAMP
84340-30023	BJ4#,FJ4#,55,HJ45 FOR TANDEM MASTER CYLINDER	09/1975 - 09/1977	1
84340-30013	BJ4#,FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
84340-30023	BJ4#,FJ4#,55,HJ45	09/1977 - 04/1979	1
84340-30013	BJ4#,FJ4#,55,HJ45..GEN FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
84340-30023	HJ45..VKC..ARL;BJ4#,FJ4#,55,HJ45..EUR,GEN	04/1979 - 07/1980	1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-20010	BJ4#,FJ4#,55,HJ45 FOR TANDEM MASTER CYLINDER	09/1975 - 07/1980	1
85440 - SOLENOID ASSY, FRONT DRIVE
85440-60010	FJ55;BJ4#,FJ4#..4F..(ARL,GEN) FOR MAGNET FRONT DRIVE 12V	09/1977 - 09/1979	1
85915 - RELAY, MAIN
85915-20021	FJ55 FOR TAIL GATE	09/1977 - 07/1980	1
86530 - RELAY ASSY, HORN
86530-35010	FJ55..ARL,GEN DENSO	01/1975 - 07/1980	1
Common parts
90206-16025
90524-14001
91611-40616
91651-40612
91651-40614
91651-40616
91656-40612
91656-40616
91656-40816
93319-14008
94110-40600
94116-40400
94120-40800
94120-41000
