FJ55RV-UC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)FJ55

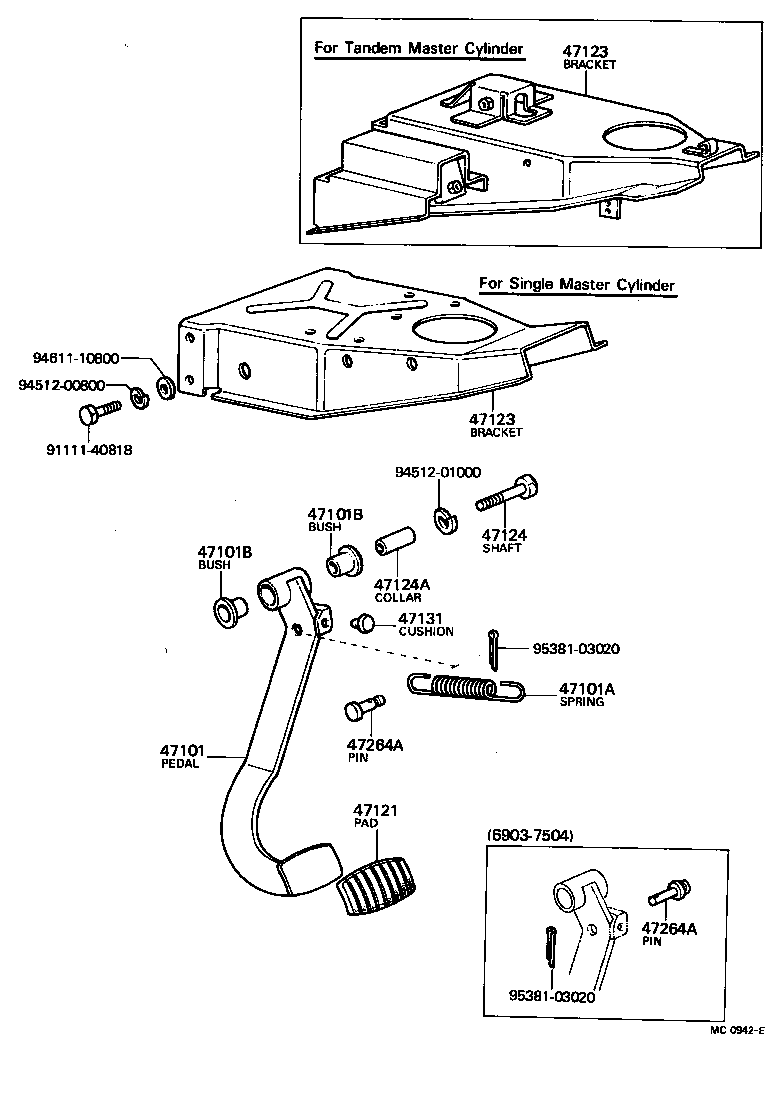

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47123 47124 47124A 47131 47264A 47264A 9111140818 9451200800 9451201000 9461110800 9538103020 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60040

FJ55..RHD

FOR SINGLE MASTER CYLINDER

 1
47101-60040

FJ55..RHD..(EUR,GEN)

FOR SINGLE MASTER CYLINDER

 1
47101-60071

BJ4#,FJ4#,55,HJ45..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16027

FJ55

 1
90506-16027

FJ55..EUR,GEN

FOR SINGLE MASTER CYLINDER

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BJ4#,FJ4#,55,HJ45

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BJ4#,FJ4#,55,HJ45

 2
47121 - PAD, BRAKE PEDAL
31321-36010

BJ4#,FJ4#,55,HJ45

 1
31321-61010

BJ4#,FJ4#,55,HJ45

 1
47123 - BRACKET, BRAKE PEDAL
55106-90351

FJ55

FOR SINGLE MASTER CYLINDER

 1
47123 - BRACKET, BRAKE PEDAL
55106-90351

FJ55

FOR SINGLE MASTER CYLINDER

 1
47124 - SHAFT, BRAKE PEDAL
91121-51071

FJ4#,55,HJ45

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

BJ4#,FJ4#,55,HJ45

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

FJ55

 1
47264A - PIN(FOR PUSH ROD)
90249-10002

BJ4#,FJ4#,55,HJ45

 1
90249-10048

BJ4#,FJ4#,55,HJ45

 1
47264A - PIN(FOR PUSH ROD)
90249-10002

BJ4#,FJ4#,55,HJ45

 1
90249-10048

BJ4#,FJ4#,55,HJ45

 1
Common parts
91111-40818
94512-00800
94512-01000
94611-10800
95381-03020
