Toyota Land cruiser FJ55 WIRING & CLAMP

FJ55RV-U (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

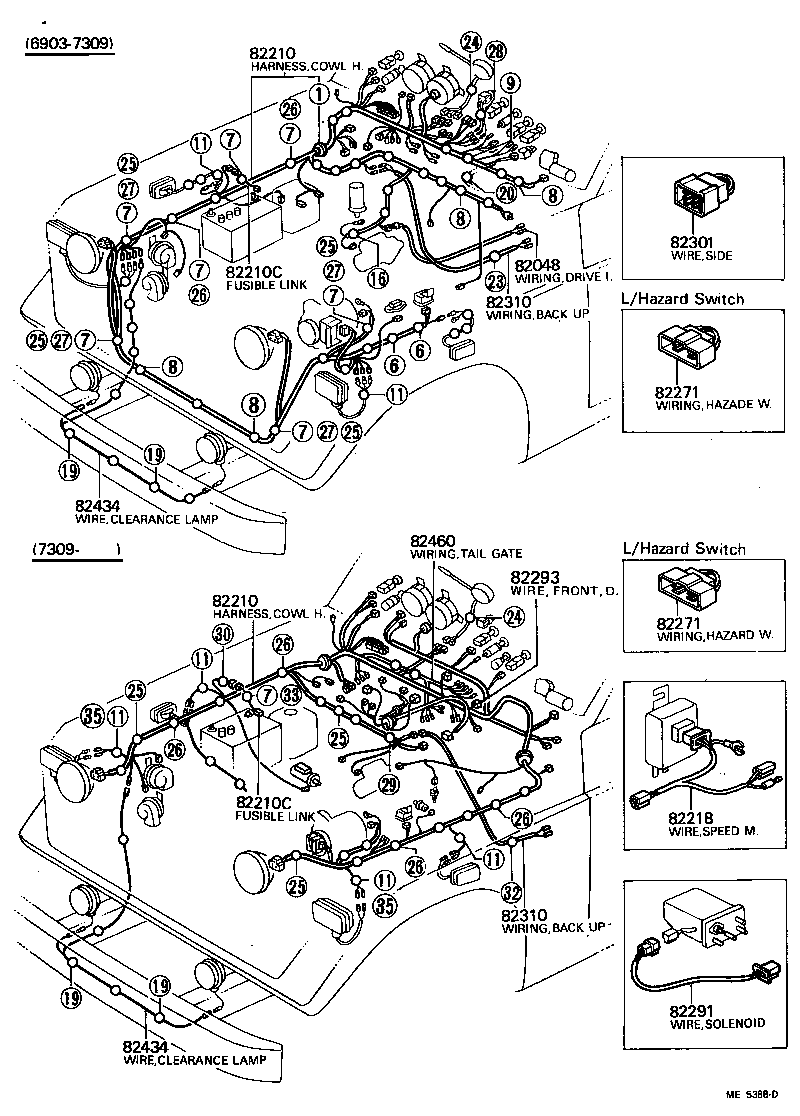

(6903-7709)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
82048 - WIRING SUB-ASSY, FRONT DRIVE INDICATOR LAMP SWITCH
82048-60010	FJ55	03/1969 - 09/1972	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-60010	FJ55..RHD..VTG	03/1969 - 10/1969	1
82210-90393	FJ55..RHD..(EUR,GEN)	01/1975 - 08/1976	1
82210-90395	FJ55..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 08/1976	1
82210-90658	FJ55..RHD	09/1977 - 04/1978	1
82210-90654	FJ55..RHD	08/1976 - 09/1977	1
82210-90658	FJ55..RHD..GEN	04/1978 - 01/1979	1
82210-90667	FJ55..RHD..GEN	01/1979 - 07/1980	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-60010	FJ55..RHD..VTG	03/1969 - 10/1969	1
82210-90393	FJ55..RHD..(EUR,GEN)	01/1975 - 08/1976	1
82210-90395	FJ55..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 08/1976	1
82210-90658	FJ55..RHD	09/1977 - 04/1978	1
82210-90654	FJ55..RHD	08/1976 - 09/1977	1
82210-90658	FJ55..RHD..GEN	04/1978 - 01/1979	1
82210-90667	FJ55..RHD..GEN	01/1979 - 07/1980	1
82210C - FUSIBLE LINK
90982-08071	FJ55	09/1977 - 07/1980	1
82210C - FUSIBLE LINK
90982-08071	FJ55	09/1977 - 07/1980	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82293 - WIRE ASSY, FRONT DRIVE SOLENOID
82290-90352	FJ55..RHD FOR MAGNET FRONT DRIVE	01/1979 - 09/1979	1
82290-90350	FJ55..RHD	01/1975 - 01/1979	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-60010	FJ55..RHD	03/1969 - 07/1970	1
82310-90352	FJ55	01/1975 - 08/1976	1
82310-90356	FJ55	01/1979 - 07/1980	1
82310-90354	FJ55	08/1976 - 01/1979	1
82310-90355	FJ55 FOR MAGNET FRONT DRIVE	08/1976 - 01/1979	1
82310-90357	FJ55 FOR MAGNET FRONT DRIVE	01/1979 - 07/1980	1
82310-90353	FJ55 FOR MAGNET FRONT DRIVE	01/1975 - 08/1976	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-60010	FJ55..RHD	03/1969 - 07/1970	1
82310-90352	FJ55	01/1975 - 08/1976	1
82310-90356	FJ55	01/1979 - 07/1980	1
82310-90354	FJ55	08/1976 - 01/1979	1
82310-90355	FJ55 FOR MAGNET FRONT DRIVE	08/1976 - 01/1979	1
82310-90357	FJ55 FOR MAGNET FRONT DRIVE	01/1979 - 07/1980	1
82310-90353	FJ55 FOR MAGNET FRONT DRIVE	01/1975 - 08/1976	1
82460 - WIRING ASSY, TAIL GATE REGULATOR
82460-90354	FJ55..RHD..VTG..GEN	09/1977 - 07/1980	1

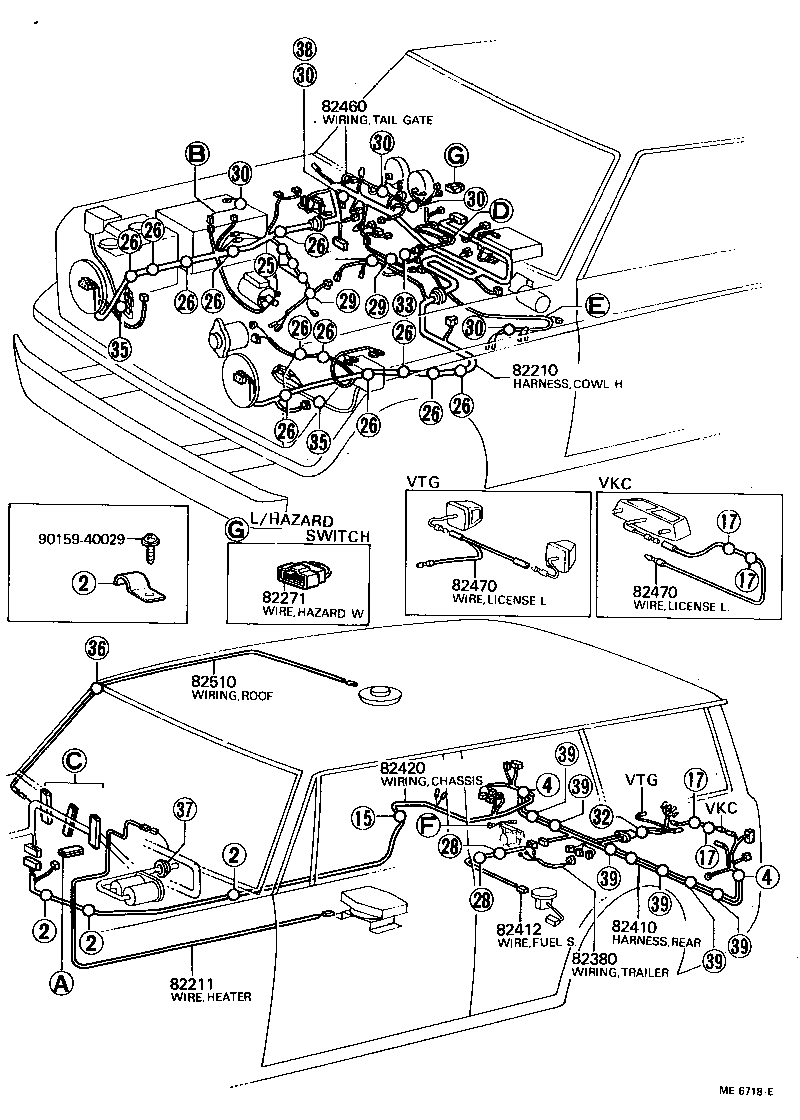

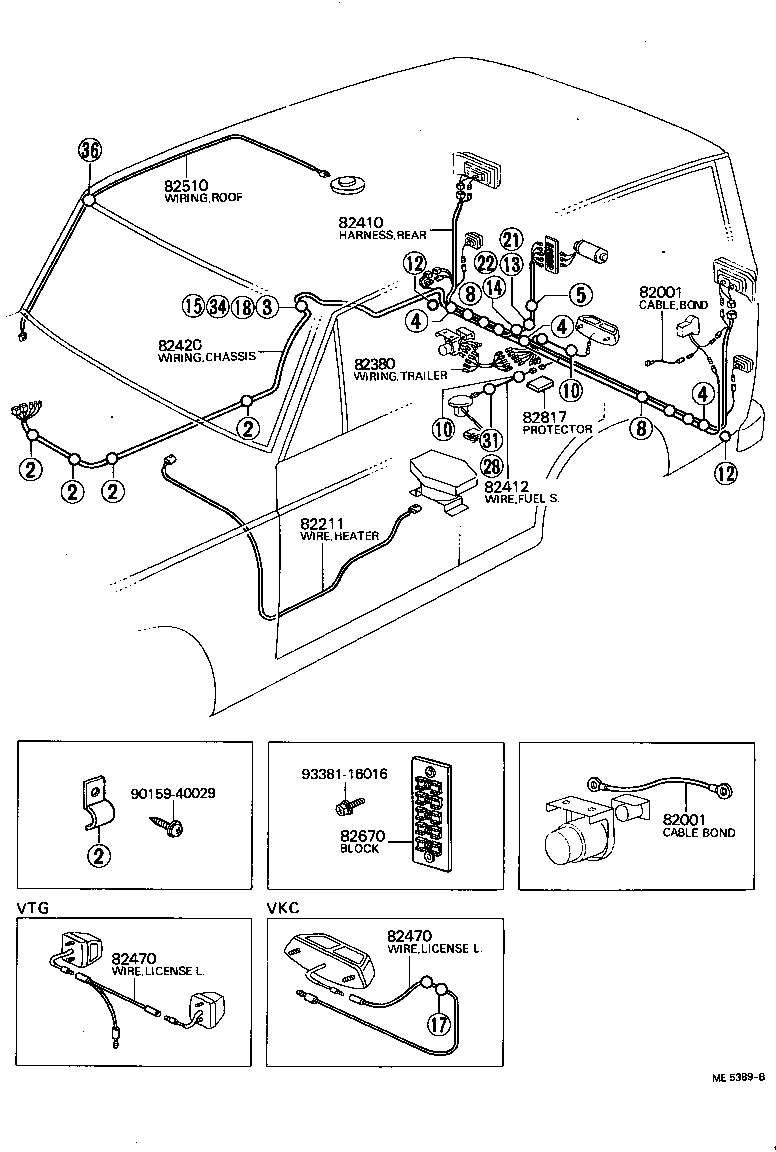

(6903-7709)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82381-60010	FJ55 L=150	01/1975 - 01/1979	1
82461-60010	FJ55..VTG L=350	03/1969 - 07/1980	1
82001 - CABLE, BOND, NO.1
82381-60010	FJ55 L=150	01/1975 - 01/1979	1
82461-60010	FJ55..VTG L=350	03/1969 - 07/1980	1
82211 - WIRE, HEATER BLOWER FAN SWITCH
82213-90351	FJ55	08/1976 - 01/1979	1
87295-60110	FJ55	03/1969 - 05/1974	1
82213-90352	FJ55	01/1979 - 07/1980	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ55	01/1975 - 06/1975	1
82380-90300	FJ55..EUR,GEN	01/1979 - 07/1980	1
82380-90300	FJ55	06/1975 - 01/1979	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-90358	FJ55	01/1975 - 09/1977	1
82410-60010	FJ55..RHD	03/1969 - 09/1972	1
82410-90364	FJ55..EUR,GEN	01/1979 - 07/1980	1
82410-90360	FJ55	09/1977 - 01/1979	1
82412 - WIRE, FUEL GAGE
82412-90350	FJ55	08/1976 - 09/1977	1
82412-90351	FJ55	09/1977 - 01/1979	1
82412-60010	FJ55	03/1969 - 08/1976	1
82412-90352	FJ55	01/1979 - 07/1980	1
82420 - WIRING ASSY, CHASSIS
82420-60180	FJ55	03/1969 - 10/1969	1
82420-90355	FJ55	01/1975 - 08/1976	1
82420-90357	FJ55..VTG FOR TAIL GATE POWER MOTOR	08/1976 - 09/1977	1
82420-90358	FJ55	08/1976 - 09/1977	1
82420-90356	FJ55..VTG FOR TAIL GATE POWER MOTOR	01/1975 - 08/1976	1
82420-90359	FJ55	09/1977 - 01/1979	1
82420-90362	FJ55	01/1979 - 07/1980	1
82420-90360	FJ55..VTG FOR TAIL GATE POWER MOTOR	09/1977 - 01/1979	1
82420-90363	FJ55..VTG FOR TAIL GATE POWER MOTOR	01/1979 - 07/1980	1
82510 - WIRING ASSY, ROOF
82520-60010	FJ55	03/1969 - 07/1980	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-30020	FJ4#;FJ55..VTG	03/1969 - 07/1971	2
Common parts
90159-40029
93381-16016

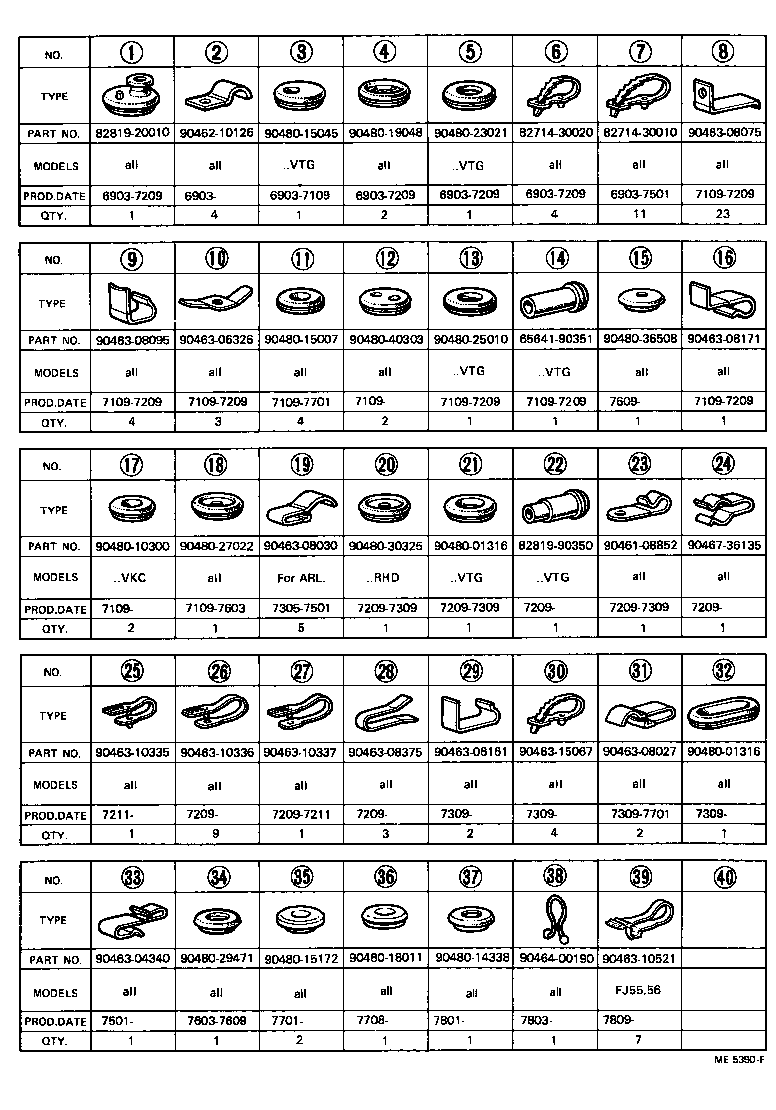

(6903-7901)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
65641-90351
82714-30010
82714-30020
82819-20010
82819-90350
90461-08852
90462-10126
90463-04340
90463-06161
90463-06326
90463-08027
90463-08030
90463-08075
90463-08095
90463-08171
90463-08375
90463-10335
90463-10336
90463-10337
90463-10521
90463-15067
90464-00190
90467-36135
90480-01316
90480-10300
90480-14338
90480-15007
90480-15045
90480-15172
90480-18011
90480-19048
90480-23021
90480-25010
90480-27022
90480-29471
90480-30325
90480-36508
90480-40303

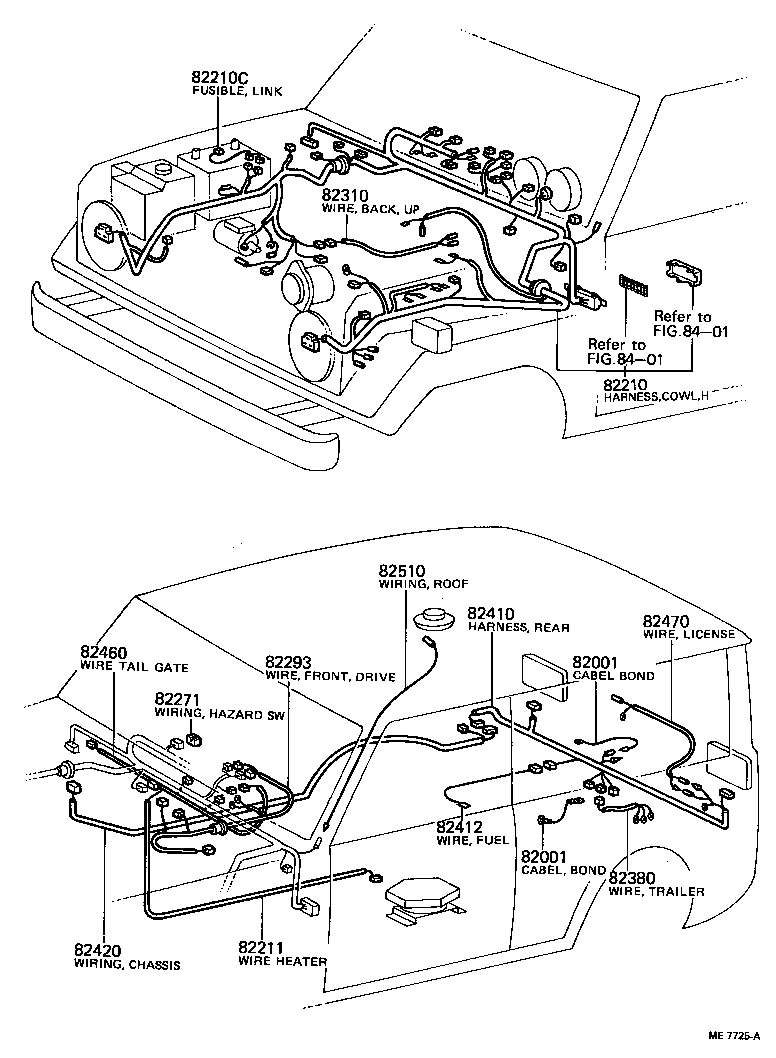

(7709-7901)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-60010	FJ55..RHD..VTG	03/1969 - 10/1969	1
82210-90393	FJ55..RHD..(EUR,GEN)	01/1975 - 08/1976	1
82210-90395	FJ55..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 08/1976	1
82210-90658	FJ55..RHD	09/1977 - 04/1978	1
82210-90654	FJ55..RHD	08/1976 - 09/1977	1
82210-90658	FJ55..RHD..GEN	04/1978 - 01/1979	1
82210-90667	FJ55..RHD..GEN	01/1979 - 07/1980	1
82211 - WIRE, HEATER BLOWER FAN SWITCH
82213-90351	FJ55	08/1976 - 01/1979	1
87295-60110	FJ55	03/1969 - 05/1974	1
82213-90352	FJ55	01/1979 - 07/1980	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ55	01/1975 - 06/1975	1
82380-90300	FJ55..EUR,GEN	01/1979 - 07/1980	1
82380-90300	FJ55	06/1975 - 01/1979	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-90358	FJ55	01/1975 - 09/1977	1
82410-60010	FJ55..RHD	03/1969 - 09/1972	1
82410-90364	FJ55..EUR,GEN	01/1979 - 07/1980	1
82410-90360	FJ55	09/1977 - 01/1979	1
82412 - WIRE, FUEL GAGE
82412-90350	FJ55	08/1976 - 09/1977	1
82412-90351	FJ55	09/1977 - 01/1979	1
82412-60010	FJ55	03/1969 - 08/1976	1
82412-90352	FJ55	01/1979 - 07/1980	1
82420 - WIRING ASSY, CHASSIS
82420-60180	FJ55	03/1969 - 10/1969	1
82420-90355	FJ55	01/1975 - 08/1976	1
82420-90357	FJ55..VTG FOR TAIL GATE POWER MOTOR	08/1976 - 09/1977	1
82420-90358	FJ55	08/1976 - 09/1977	1
82420-90356	FJ55..VTG FOR TAIL GATE POWER MOTOR	01/1975 - 08/1976	1
82420-90359	FJ55	09/1977 - 01/1979	1
82420-90362	FJ55	01/1979 - 07/1980	1
82420-90360	FJ55..VTG FOR TAIL GATE POWER MOTOR	09/1977 - 01/1979	1
82420-90363	FJ55..VTG FOR TAIL GATE POWER MOTOR	01/1979 - 07/1980	1
82460 - WIRING ASSY, TAIL GATE REGULATOR
82460-90354	FJ55..RHD..VTG..GEN	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82520-60010	FJ55	03/1969 - 07/1980	1
Common parts
90159-40029

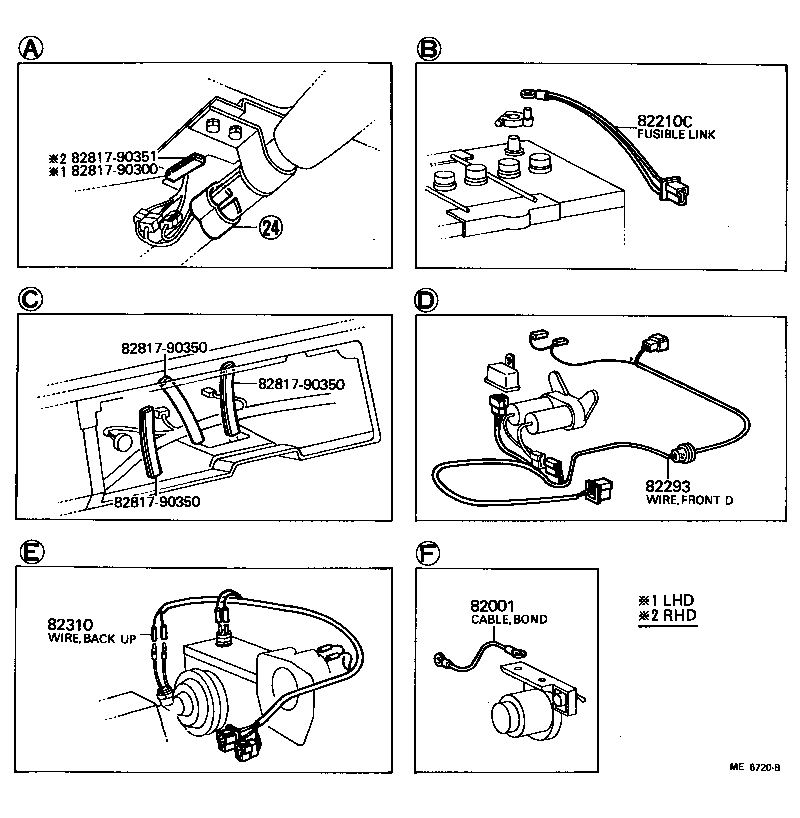

(7709-7901)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82381-60010	FJ55 L=150	01/1975 - 01/1979	1
82461-60010	FJ55..VTG L=350	03/1969 - 07/1980	1
82210C - FUSIBLE LINK
90982-08071	FJ55	09/1977 - 07/1980	1
82293 - WIRE ASSY, FRONT DRIVE SOLENOID
82290-90352	FJ55..RHD FOR MAGNET FRONT DRIVE	01/1979 - 09/1979	1
82290-90350	FJ55..RHD	01/1975 - 01/1979	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-60010	FJ55..RHD	03/1969 - 07/1970	1
82310-90352	FJ55	01/1975 - 08/1976	1
82310-90356	FJ55	01/1979 - 07/1980	1
82310-90354	FJ55	08/1976 - 01/1979	1
82310-90355	FJ55 FOR MAGNET FRONT DRIVE	08/1976 - 01/1979	1
82310-90357	FJ55 FOR MAGNET FRONT DRIVE	01/1979 - 07/1980	1
82310-90353	FJ55 FOR MAGNET FRONT DRIVE	01/1975 - 08/1976	1
Common parts
82817-90300
82817-90350
82817-90351

(7901-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82381-60010	FJ55 L=150	01/1975 - 01/1979	1
82461-60010	FJ55..VTG L=350	03/1969 - 07/1980	1
82001 - CABLE, BOND, NO.1
82381-60010	FJ55 L=150	01/1975 - 01/1979	1
82461-60010	FJ55..VTG L=350	03/1969 - 07/1980	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-60010	FJ55..RHD..VTG	03/1969 - 10/1969	1
82210-90393	FJ55..RHD..(EUR,GEN)	01/1975 - 08/1976	1
82210-90395	FJ55..RHD FOR TANDEM MASTER CYLINDER	01/1975 - 08/1976	1
82210-90658	FJ55..RHD	09/1977 - 04/1978	1
82210-90654	FJ55..RHD	08/1976 - 09/1977	1
82210-90658	FJ55..RHD..GEN	04/1978 - 01/1979	1
82210-90667	FJ55..RHD..GEN	01/1979 - 07/1980	1
82210C - FUSIBLE LINK
90982-08071	FJ55	09/1977 - 07/1980	1
82211 - WIRE, HEATER BLOWER FAN SWITCH
82213-90351	FJ55	08/1976 - 01/1979	1
87295-60110	FJ55	03/1969 - 05/1974	1
82213-90352	FJ55	01/1979 - 07/1980	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82293 - WIRE ASSY, FRONT DRIVE SOLENOID
82290-90352	FJ55..RHD FOR MAGNET FRONT DRIVE	01/1979 - 09/1979	1
82290-90350	FJ55..RHD	01/1975 - 01/1979	1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-60010	FJ55..RHD	03/1969 - 07/1970	1
82310-90352	FJ55	01/1975 - 08/1976	1
82310-90356	FJ55	01/1979 - 07/1980	1
82310-90354	FJ55	08/1976 - 01/1979	1
82310-90355	FJ55 FOR MAGNET FRONT DRIVE	08/1976 - 01/1979	1
82310-90357	FJ55 FOR MAGNET FRONT DRIVE	01/1979 - 07/1980	1
82310-90353	FJ55 FOR MAGNET FRONT DRIVE	01/1975 - 08/1976	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ55	01/1975 - 06/1975	1
82380-90300	FJ55..EUR,GEN	01/1979 - 07/1980	1
82380-90300	FJ55	06/1975 - 01/1979	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-90358	FJ55	01/1975 - 09/1977	1
82410-60010	FJ55..RHD	03/1969 - 09/1972	1
82410-90364	FJ55..EUR,GEN	01/1979 - 07/1980	1
82410-90360	FJ55	09/1977 - 01/1979	1
82412 - WIRE, FUEL GAGE
82412-90350	FJ55	08/1976 - 09/1977	1
82412-90351	FJ55	09/1977 - 01/1979	1
82412-60010	FJ55	03/1969 - 08/1976	1
82412-90352	FJ55	01/1979 - 07/1980	1
82420 - WIRING ASSY, CHASSIS
82420-60180	FJ55	03/1969 - 10/1969	1
82420-90355	FJ55	01/1975 - 08/1976	1
82420-90357	FJ55..VTG FOR TAIL GATE POWER MOTOR	08/1976 - 09/1977	1
82420-90358	FJ55	08/1976 - 09/1977	1
82420-90356	FJ55..VTG FOR TAIL GATE POWER MOTOR	01/1975 - 08/1976	1
82420-90359	FJ55	09/1977 - 01/1979	1
82420-90362	FJ55	01/1979 - 07/1980	1
82420-90360	FJ55..VTG FOR TAIL GATE POWER MOTOR	09/1977 - 01/1979	1
82420-90363	FJ55..VTG FOR TAIL GATE POWER MOTOR	01/1979 - 07/1980	1
82460 - WIRING ASSY, TAIL GATE REGULATOR
82460-90354	FJ55..RHD..VTG..GEN	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82520-60010	FJ55	03/1969 - 07/1980	1
Linked diagrams
8401

(7901-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-90300
82818-90300
82819-90305
90461-06083
90461-08090
90461-08192
90461-08202
90461-08385
90461-08430
90461-08911
90461-10274
90461-10398
90462-10005
90463-04079
90463-04340
90463-06161
90463-08027
90463-08030
90463-08207
90463-08375
90463-10010
90463-10521
90463-15067
90464-00190
90467-10007

(7901-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-08026
90461-08213
90461-10476
90461-12543
90461-12690
90463-04573
90463-08026
90463-10012
90463-10024
90463-10060
90463-12570
90463-15454
90467-36135
90480-01316
90480-10300
90480-13334
90480-15007
90480-15172
90480-15194
90480-18011
90480-21511
90480-36508
90480-40303
90480-58059

FJ55RV-U (1975)

(6903-7709)FJ55

(6903-7709)FJ55

(6903-7901)FJ55

(7709-7901)FJ55

(7709-7901)FJ55

(7901-8007)FJ55

(7901-8007)

(7901-8007)

Part Price Details
