FJ55RV-U (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-8007)FJ55

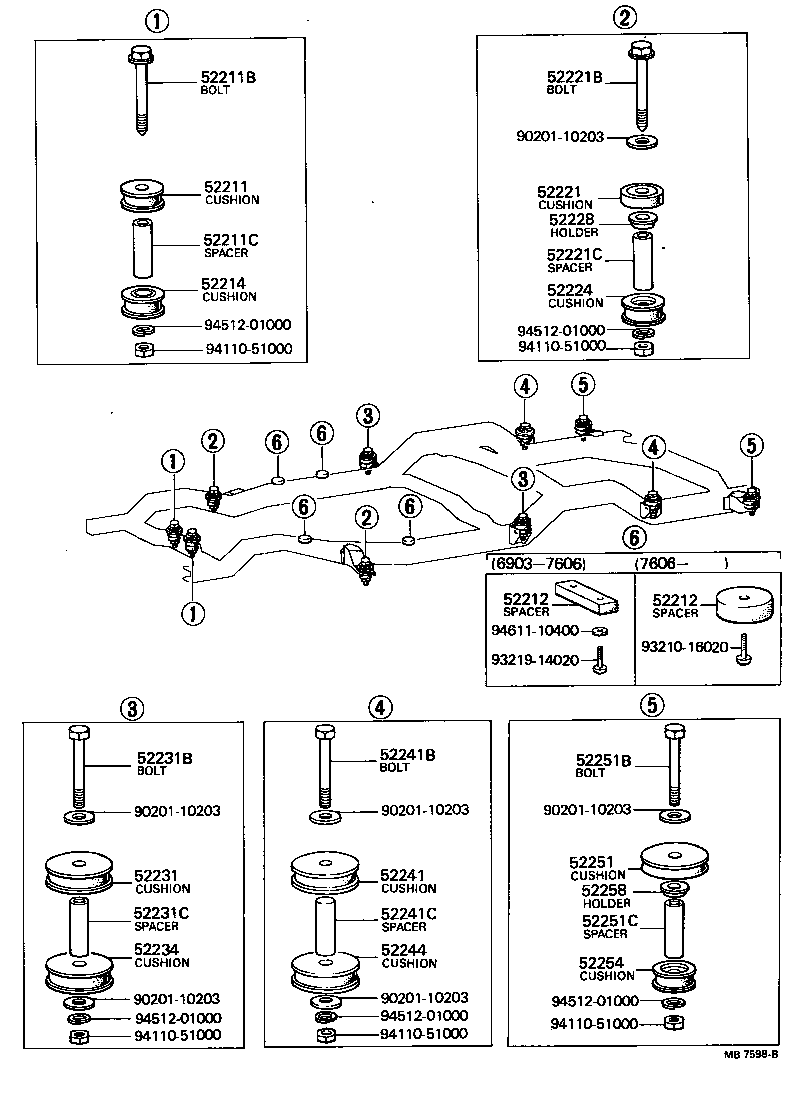

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52211 - CUSHION, BODY MOUNTING, NO.1 UPPER | ||||
| 90540-16043 |
FJ55 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90105-10029 |
FJ55 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90560-12232 |
FJ55 |
2 | ||
| 52212 - SPACER, BODY MOUNTING | ||||
| 52211-90351 |
FJ55 NO.1 |
3 | ||
| 52211-90354 |
FJ55 |
4 | ||
| 52211-90351 |
FJ55 |
4 | ||
| 52212-90351 |
FJ55 NO.2 |
1 | ||
| 52212 - SPACER, BODY MOUNTING | ||||
| 52211-90351 |
FJ55 NO.1 |
3 | ||
| 52211-90354 |
FJ55 |
4 | ||
| 52211-90351 |
FJ55 |
4 | ||
| 52212-90351 |
FJ55 NO.2 |
1 | ||
| 52214 - CUSHION, BODY MOUNT, NO.1 LOWER | ||||
| 52204-35010 |
FJ55 |
2 | ||
| 52221 - CUSHION, BODY MOUNT, NO.2 UPPER | ||||
| 52202-30010 |
FJ55 |
2 | ||
| 52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION) | ||||
| 90105-10029 |
FJ55 |
2 | ||
| 52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION) | ||||
| 90560-12231 |
FJ55 |
2 | ||
| 52224 - CUSHION, BODY MOUNT, NO.2 LOWER | ||||
| 52022-60010 |
FJ55 |
2 | ||
| 52228 - HOLDER, BODY MOUNT BOLT SPACER, NO.2 | ||||
| 52228-30010 |
FJ55 |
2 | ||
| 52228-22010 |
FJ55 |
2 | ||
| 52231 - CUSHION, BODY MOUNT, NO.3 UPPER | ||||
| 90540-17045 |
FJ55 |
2 | ||
| 52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION) | ||||
| 90105-10029 |
FJ55 |
2 | ||
| 52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION) | ||||
| 90560-12233 |
FJ55 |
2 | ||
| 52234 - CUSHION, BODY MOUNT, NO.3 LOWER | ||||
| 52023-60010 |
FJ55 |
2 | ||
| 52241 - CUSHION, BODY MOUNT, NO.4 UPPER | ||||
| 90540-17045 |
FJ55 |
2 | ||
| 52241B - BOLT(FOR BODY MOUNT NO.4 CUSHION) | ||||
| 90101-10149 |
FJ55 |
2 | ||
| 52241C - SPACER(FOR BODY MOUNT NO.4 CUSHION) | ||||
| 90560-12233 |
FJ55 |
2 | ||
| 52244 - CUSHION, BODY MOUNT, NO.4 LOWER | ||||
| 52023-60010 |
FJ55 |
2 | ||
| 52251 - CUSHION, BODY MOUNT, NO.5 UPPER | ||||
| 52209-60010 |
FJ55 |
2 | ||
| 52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION) | ||||
| 90101-10192 |
FJ55 |
2 | ||
| 52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION) | ||||
| 90560-12234 |
FJ55 |
2 | ||
| 52254 - CUSHION, BODY MOUNT, NO.5 LOWER | ||||
| 52022-60010 |
FJ55 |
2 | ||
| 52258 - HOLDER, BODY MOUNT BOLT SPACER, NO.5 | ||||
| 52228-30010 |
FJ55 |
2 | ||
| 52228-22010 |
BJ4#,FJ4#,55,HJ45..TPC,TPS,VKC,VLS,VTG |
2 | ||
| Common parts | ||||
| 90201-10203 | ||||
| 93210-16020 | ||||
| 93219-14020 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
| 94611-10400 | ||||
