FJ55RV-KQ (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7501-7509)PIC,V ; (7509-8007)BJ4#,FJ4#,HJ45

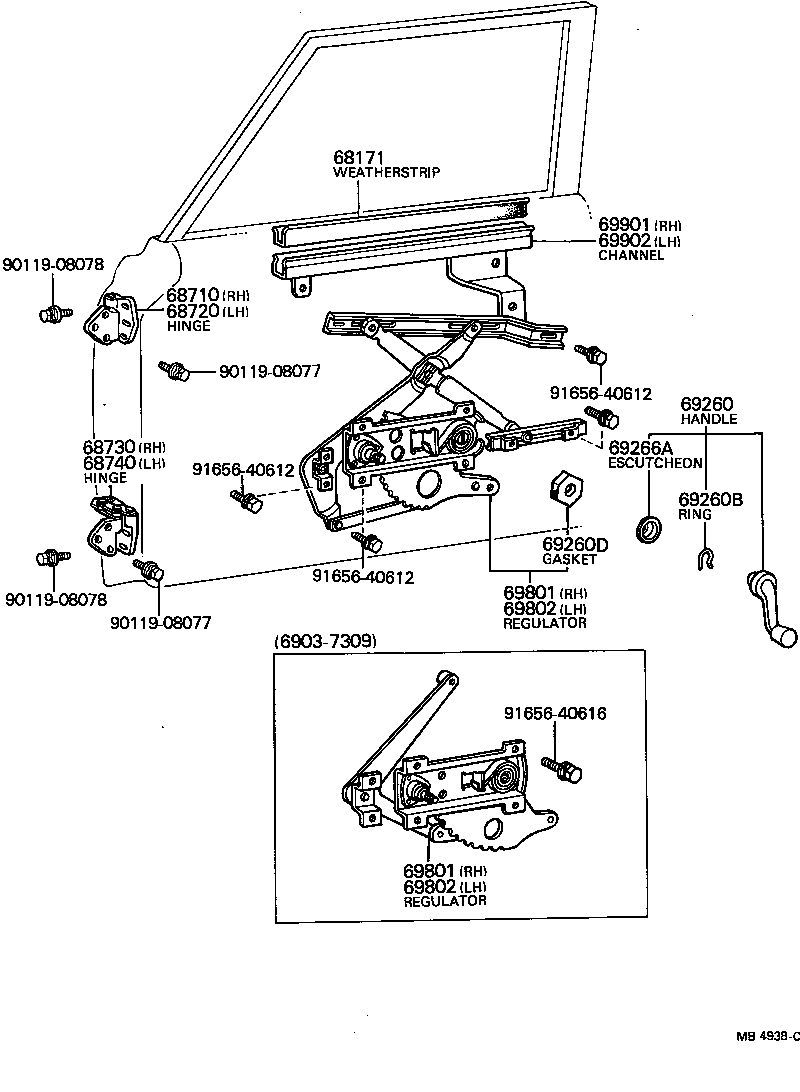

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL | ||||
| 68171-90351 |
FJ55 |
2 | ||
| 68171-90352 |
FJ55 |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-90351 |
FJ55 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68710-90351 |
FJ55 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-90352 |
FJ55 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-90352 |
FJ55 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-39015 |
FJ55 |
2 | ||
| 69260-12010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 69260-90351 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 69260-1004001 |
BJ4#,FJ4#,55,HJ45 BLACK |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01274 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 90520-01002 |
FJ55 |
2 | ||
| 69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR) | ||||
| 69266-22010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 69272-30010 |
FJ55 |
2 | ||
| 69266-2201001 |
BJ4#,FJ4#,55,HJ45 BLACK |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-90351 |
FJ55 |
1 | ||
| 69801-90353 |
FJ55 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-90351 |
FJ55 |
1 | ||
| 69802-90353 |
FJ55 |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-90351 |
FJ55 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-90351 |
FJ55 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90202-08083 | ||||
| 91651-40612 | ||||
| 91651-60820 | ||||
| 91651-60822 | ||||
| 91656-40612 | ||||
(6903-8007)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL | ||||
| 68171-90351 |
FJ55 |
2 | ||
| 68171-90352 |
FJ55 |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-90351 |
FJ55 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68710-90351 |
FJ55 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-90352 |
FJ55 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-90352 |
FJ55 |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-39015 |
FJ55 |
2 | ||
| 69260-12010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 69260-90351 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 69260-1004001 |
BJ4#,FJ4#,55,HJ45 BLACK |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01274 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 90520-01002 |
FJ55 |
2 | ||
| 69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR) | ||||
| 69266-22010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 69272-30010 |
FJ55 |
2 | ||
| 69266-2201001 |
BJ4#,FJ4#,55,HJ45 BLACK |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-90351 |
FJ55 |
1 | ||
| 69801-90353 |
FJ55 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-90351 |
FJ55 |
1 | ||
| 69801-90353 |
FJ55 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-90351 |
FJ55 |
1 | ||
| 69802-90353 |
FJ55 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-90351 |
FJ55 |
1 | ||
| 69802-90353 |
FJ55 |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-90351 |
FJ55 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-90351 |
FJ55 |
1 | ||
| Common parts | ||||
| 90119-08077 | ||||
| 90119-08078 | ||||
| 91656-40612 | ||||
| 91656-40616 | ||||
