FJ55RV-KCW (1975)

Toyota Land Cruiser

Production Jan 1975 - Sep 1977
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)FJ55

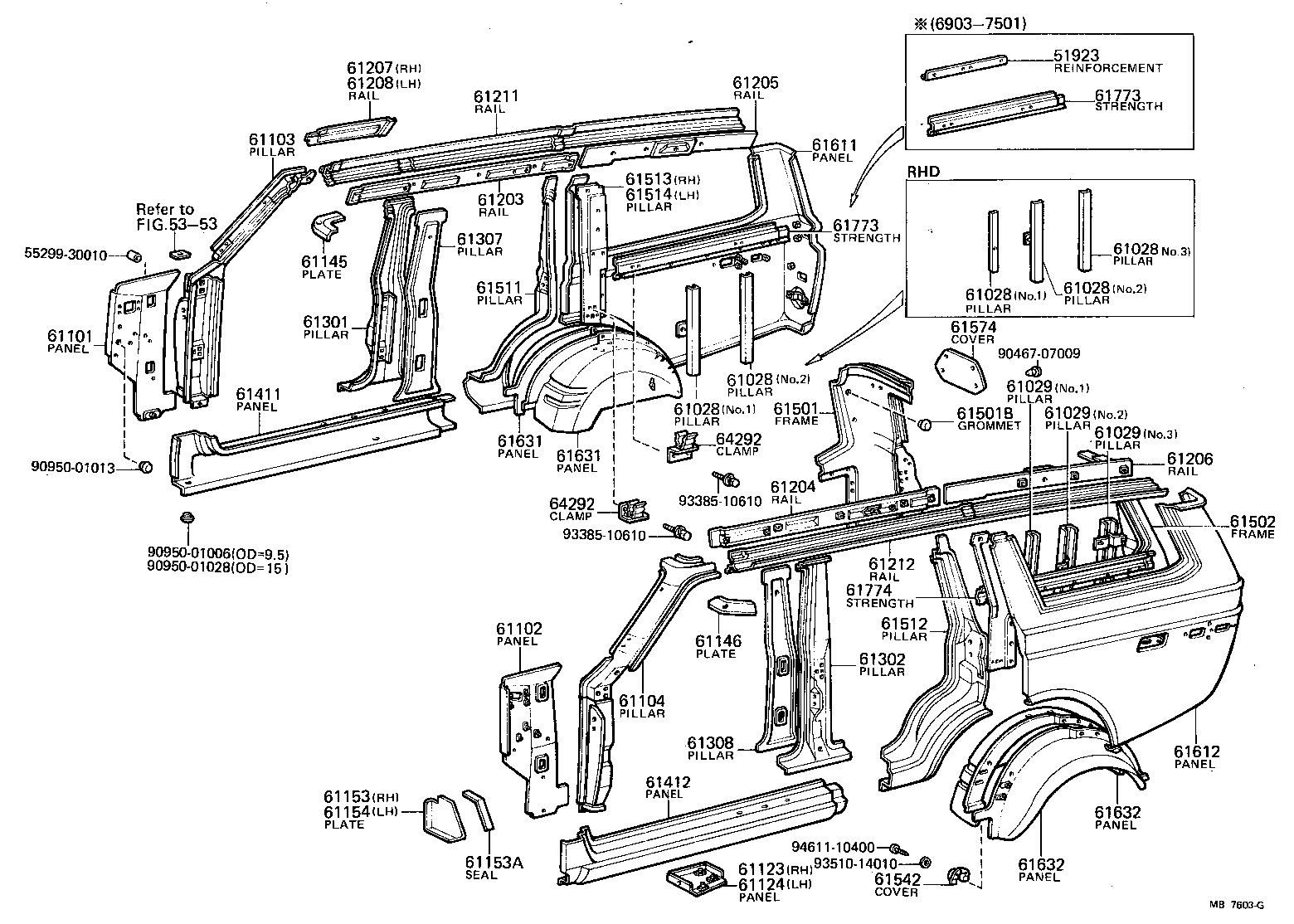

Click highlighted areas on diagram

diagram 51923 5353 5529930010 61028 61028 61028 61028 61028 61029 61029 61029 61101 61102 61103 61104 61123 61124 61145 61146 61153 61153A 61154 61203 61204 61205 61206 61207 61208 61211 61212 61301 61302 61307 61308 61411 61412 61501 61501B 61502 61511 61512 61513 61514 61542 61574 61611 61612 61631 61631 61632 61632 61773 61773 61774 64292 64292 9046707009 9095001006 9095001013 9095001028 9338510610 9338510610 9351014010 9461110400
Part # Description Qty Price
51923 - REINFORCEMENT,SPARE WHEEL
51923-90351

FJ55

FOR INTERIOR SPARE WHEEL

 1
61028 - PILLAR SUB-ASSY, REAR INNER, RH
61621-90903

FJ55..RHD

NO.1,2

 2
61028 - PILLAR SUB-ASSY, REAR INNER, RH
61621-90903

FJ55..RHD

NO.1,2

 2
61028 - PILLAR SUB-ASSY, REAR INNER, RH
61621-90903

FJ55..RHD

NO.1,2

 2
61028 - PILLAR SUB-ASSY, REAR INNER, RH
61621-90903

FJ55..RHD

NO.1,2

 2
61028 - PILLAR SUB-ASSY, REAR INNER, RH
61621-90903

FJ55..RHD

NO.1,2

 2
61029 - PILLAR SUB-ASSY, REAR INNER, LH
61617-90351

FJ55..RHD

NO.1,2

 2
61029 - PILLAR SUB-ASSY, REAR INNER, LH
61617-90351

FJ55..RHD

NO.1,2

 2
61029 - PILLAR SUB-ASSY, REAR INNER, LH
61617-90351

FJ55..RHD

NO.1,2

 2
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-90351

FJ55..RHD

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-90351

FJ55..RHD

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61107-90351

FJ55

 1
61107-90352

FJ55..RHD

FOR W/RADIO

 1
61103-90903

FJ55

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61104-90903

FJ55

 1
61108-90351

FJ55

 1
61123 - PANEL, COWL SIDE LOWER, RH
61123-90351

FJ55

 1
61124 - PANEL, COWL SIDE LOWER, LH
61124-90351

FJ55

 1
61145 - PLATE, FRONT WINDOW UPPER CORNER, RH
61145-90351

FJ55

 1
61146 - PLATE, FRONT WINDOW UPPER CORNER, LH
61146-90351

FJ55

 1
61153 - PLATE, AIR GUIDE, RH
61153-90351

FJ55

 1
61154 - PLATE, AIR GUIDE, LH
61154-90351

FJ55

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61206-90351

FJ55

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61207-90351

FJ55

 1
61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61243-90903

FJ55

 1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61244-90903

FJ55

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61202-90903

FJ55

 1
61202-90352

FJ55

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61203-90903

FJ55

 1
61203-90352

FJ55

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-90353

FJ55..ARL,EUR

 1
61301-90351

FJ55

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-90353

FJ55..ARL,EUR

 1
61302-90351

FJ55

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61343-90351

FJ55

 1
61305-90351

FJ55..ARL,EUR

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61344-90351

FJ55

 1
61306-90351

FJ55..ARL,EUR

 1
61411 - PANEL, ROCKER, OUTER RH
61411-90351

FJ55

 1
61412 - PANEL, ROCKER, OUTER LH
61412-90351

FJ55

 1
61501 - FRAME SUB-ASSY, BACK SIDE, RH
61503-90354

FJ55..VKC

 1
61505-90354

FJ55..VKC

FOR W/SIDE SEAT

 1
61507-90354

FJ55..VKC

FOR INTERIOR SPARE WHEEL

 1
61503-90368

FJ55..VKC

FOR W/SIDE SEAT

 1
61503-90369

FJ55..VKC

FOR INTERIOR SPARE WHEEL

 1
61503-90365

FJ55..VKC

 1
61501B - GROMMET, BACK SIDE PANEL
67556-60010

FJ55

 1
61502 - FRAME SUB-ASSY, BACK SIDE, LH
61504-90354

FJ55..VKC

 1
61506-90354

FJ55..VKC

FOR W/SIDE SEAT

 1
61504-90362

FJ55..VKC

 1
61504-90365

FJ55..VKC

FOR W/SIDE SEAT

 1
61511 - PILLAR, QUARTER LOCK, RH
61303-90351

FJ55

 1
61512 - PILLAR, QUARTER LOCK, LH
61304-90351

FJ55

 1
61513 - PILLAR, QUARTER LOCK INNER, RH
61613-90353

FJ55

 1
61708-90361

FJ55..ARL,EUR

 1
61514 - PILLAR, QUARTER LOCK, INNER LH
61709-90361

FJ55..ARL,EUR

 1
61614-90353

FJ55

 1
61542 - COVER, QUARTER LOCK PILLAR HARNESS
61642-90351

FJ55

 1
61611 - PANEL, QUARTER, RH
61611-90906

FJ55..VKC

 1
61611-90910

FJ55..VKC..(EUR,GEN)

 1
61612 - PANEL, QUARTER, LH
61612-90913

FJ55..VKC

 1
61612-90917

FJ55..VKC..(EUR,GEN)

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-90361

FJ55

INNER,FOR W/3RD SEAT

 1
61625-90903

FJ55

INNER,FOR W/SIDE SEAT

 1
61631-90351

FJ55

OUTER

 1
61633-90904

FJ55

INNER

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-90361

FJ55

INNER,FOR W/3RD SEAT

 1
61625-90903

FJ55

INNER,FOR W/SIDE SEAT

 1
61631-90351

FJ55

OUTER

 1
61633-90904

FJ55

INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61632-90351

FJ55

OUTER

 1
61626-90903

FJ55

INNER,FOR W/SIDE SEAT

 1
61634-90361

FJ55

INNER,FOR W/3RD SEAT

 1
61634-90904

FJ55

INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61632-90351

FJ55

OUTER

 1
61626-90903

FJ55

INNER,FOR W/SIDE SEAT

 1
61634-90361

FJ55

INNER,FOR W/3RD SEAT

 1
61634-90904

FJ55

INNER

 1
61773 - STRENGTH, QUARTER PANEL HORIZONTAL, UPPER RH
61623-90351

FJ55

FOR W/SIDE SEAT

 1
61615-90353

FJ55

FOR INTERIOR SPARE WHEEL

 1
61615-90351

FJ55

 1
61773 - STRENGTH, QUARTER PANEL HORIZONTAL, UPPER RH
61623-90351

FJ55

FOR W/SIDE SEAT

 1
61615-90353

FJ55

FOR INTERIOR SPARE WHEEL

 1
61615-90351

FJ55

 1
61774 - STRENGTH, QUARTER PANEL HORIZONTAL, UPPER LH
61624-90351

FJ55

FOR W/SIDE SEAT

 1
61616-90351

FJ55

 1
64292 - CLAMP, JACK HANDLE
61068-90351

FJ55

FOR STRENGTH

 1
61067-90351

FJ55

FOR PILLER

 1
64292 - CLAMP, JACK HANDLE
61068-90351

FJ55

FOR STRENGTH

 1
61067-90351

FJ55

FOR PILLER

 1
Common parts
55299-30010
90467-07009
90950-01006
90950-01013
90950-01028
93385-10610
93510-14010
94611-10400
Linked diagrams
5353
