FJ55RV-KCQ (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-8007)FJ55

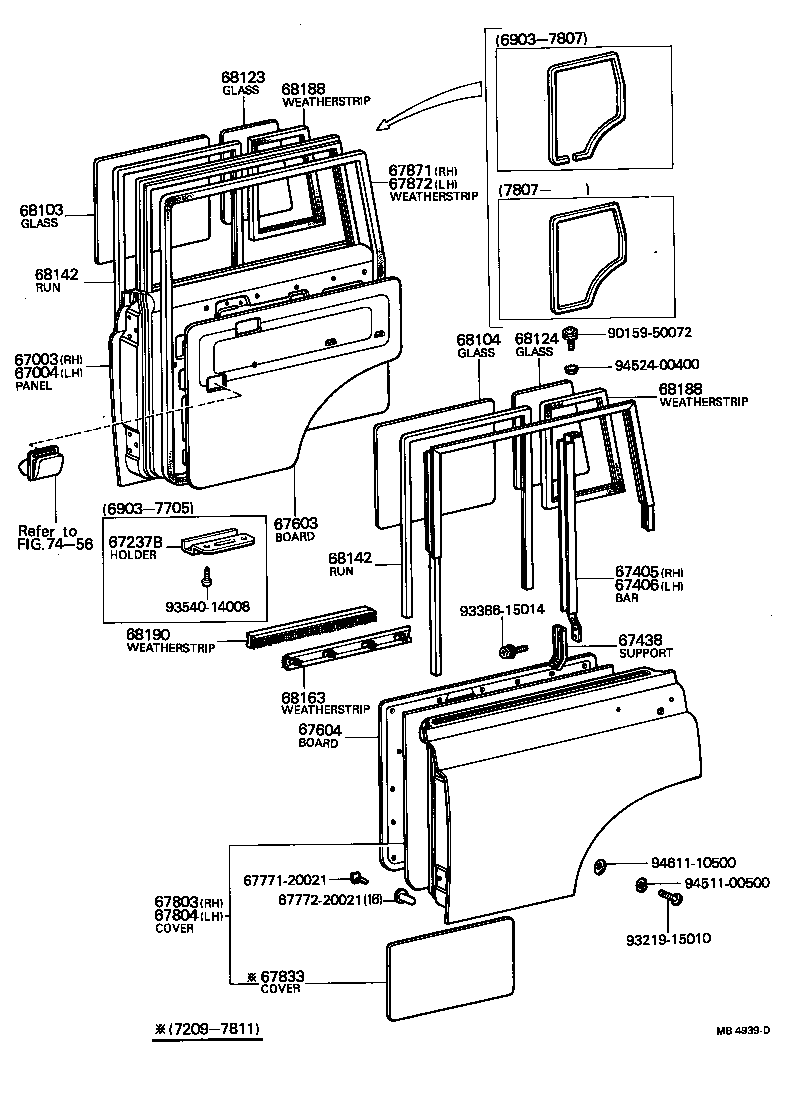

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-90358 |
FJ55 |
1 | ||
| 67003-90352 |
FJ55 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-90358 |
FJ55 |
1 | ||
| 67004-90352 |
FJ55 |
1 | ||
| 67237B - HOLDER, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67237-20010 |
FJ55 |
2 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67405-90353 |
FJ55 |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67406-90353 |
FJ55 |
1 | ||
| 67438 - SUPPORT, REAR DOOR DIVISION BAR | ||||
| 67439-90351 |
FJ55 |
2 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-90351 |
FJ55 |
1 | ||
| 67630-90358 |
FJ55 |
1 | ||
| 67630-90357 |
FJ55 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-90358 |
FJ55 |
1 | ||
| 67640-90357 |
FJ55 |
1 | ||
| 67640-90351 |
FJ55 |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67605-90353 |
FJ55 |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67606-90353 |
FJ55 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-90351 |
FJ55 |
1 | ||
| 67871-90356 |
FJ55 |
1 | ||
| 67871-90357 |
FJ55 |
1 | ||
| 67871-90355 |
FJ55 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-90356 |
FJ55 |
1 | ||
| 67872-90351 |
FJ55 |
1 | ||
| 67872-90355 |
FJ55 |
1 | ||
| 67872-90357 |
FJ55 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-90351 |
FJ55 TP.T=5.0 |
1 | ||
| 68113-90353 |
FJ55 TP.T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-90353 |
FJ55 TP.T=4.0 |
1 | ||
| 68113-90351 |
FJ55 TP.T=5.0 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68122-90353 |
FJ55 TP.T=4.0 |
1 | ||
| 68122-90351 |
FJ55 TP.T=5.0 |
1 | ||
| 68122-90354 |
FJ55 TN.TP.T=4.0 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68122-90351 |
FJ55 TP.T=5.0 |
1 | ||
| 68122-90354 |
FJ55 TN.TP.T=4.0 |
1 | ||
| 68122-90353 |
FJ55 TP.T=4.0 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-90353 |
FJ55 |
2 | ||
| 68142-90351 |
FJ55 |
2 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-90353 |
FJ55 |
2 | ||
| 68142-90351 |
FJ55 |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68180-90351 |
FJ55 |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-90351 |
FJ55 RH. |
1 | ||
| 68189-90351 |
FJ55 LH. |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-90351 |
FJ55 RH. |
1 | ||
| 68189-90351 |
FJ55 LH. |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-90351 |
FJ55 |
2 | ||
| Common parts | ||||
| 67771-20021 | ||||
| 67772-20021 | ||||
| 90159-50072 | ||||
| 93219-15010 | ||||
| 93386-15014 | ||||
| 93540-14008 | ||||
| 94511-00500 | ||||
| 94524-00400 | ||||
| 94611-10500 | ||||
| Linked diagrams | ||||
| 7456 | ||||
