Toyota Land cruiser FJ55 METER - JDM Part Detective

FJ55RV-KC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

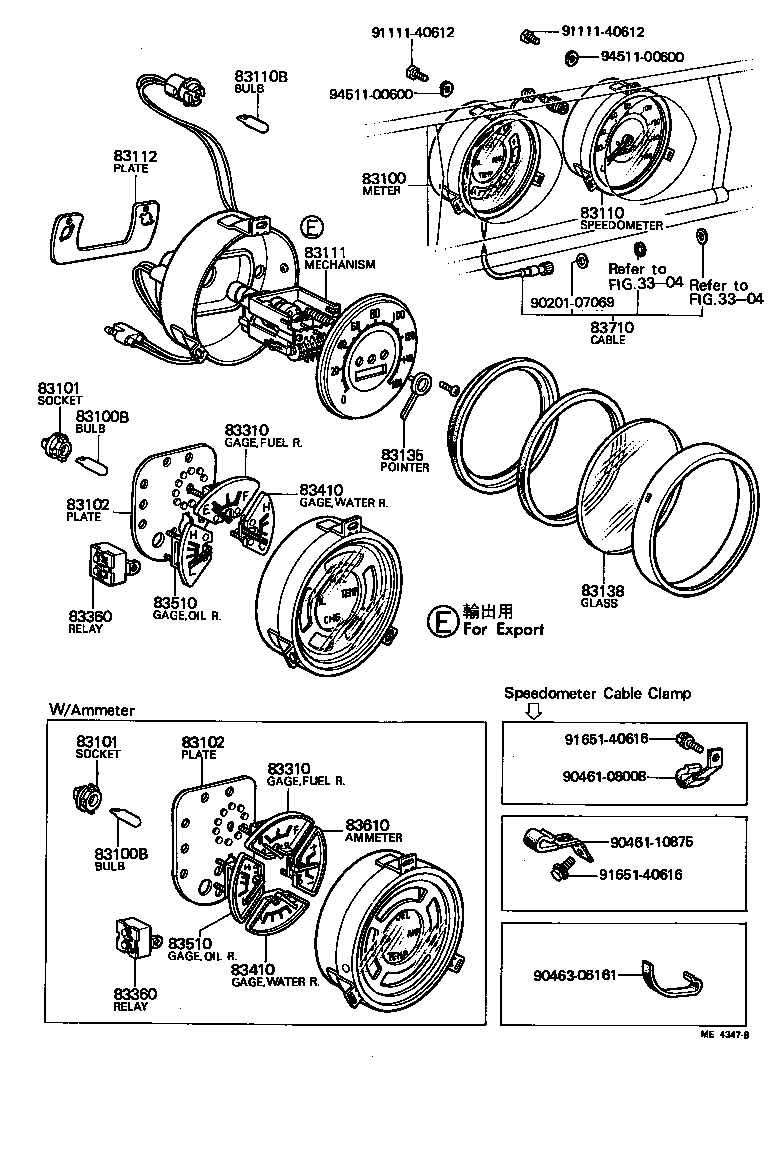

(6903-7709)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83100-60050	FJ55 W/AMMETER	03/1969 - 08/1976	1
83100-60051	FJ55..EUR,GEN	04/1979 - 10/1979	1
83100-60051	FJ55	09/1977 - 04/1979	1
83100-60052	FJ55..EUR,GEN	10/1979 - 07/1980	1
83100B - BULB, COMBINATION METER, NO.1
99132-12034	FJ55 12V 3.4W,12V 3.4W	03/1969 - 08/1973	3
99132-12034	BJ4#,FJ4#,55,HJ45 12V 3.4W,12V 3.4W	07/1975 - 07/1980	5
83100B - BULB, COMBINATION METER, NO.1
99132-12034	FJ55 12V 3.4W,12V 3.4W	03/1969 - 08/1973	3
99132-12034	BJ4#,FJ4#,55,HJ45 12V 3.4W,12V 3.4W	07/1975 - 07/1980	5
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20030	FJ55	03/1969 - 07/1980	2
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20030	FJ55	03/1969 - 07/1980	2
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-60010	FJ55 W/AMMETER	03/1969 - 08/1976	1
83102-60011	FJ55	09/1977 - 07/1980	1
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-60010	FJ55 W/AMMETER	03/1969 - 08/1976	1
83102-60011	FJ55	09/1977 - 07/1980	1
83110 - SPEEDOMETER ASSY
83110-60042	FJ55..ARL,GEN MILE	01/1975 - 08/1976	1
83110-60030	FJ55 KM.	03/1969 - 09/1971	1
83110-60040	FJ55 MILE	03/1969 - 10/1970	1
83110-60031	FJ55..ARL,GEN KM.	01/1975 - 04/1978	1
83110-60043	FJ55..GEN MILE & KM.	09/1977 - 01/1979	1
83110-60043	FJ55..ARL,GEN MILE	08/1976 - 09/1977	1
83110-60053	FJ55..RHD..4F..VKC..GEN HONG KONG SPEC.	04/1978 - 07/1980	1
83110-60044	FJ55..GEN MILE & KM.	01/1979 - 07/1980	1
83110-60031	FJ55..GEN KM.	04/1978 - 01/1979	1
83110-60033	FJ55..GEN KM.	01/1979 - 07/1980	1
83110B - BULB, SPEEDOMETER
90981-11007	FJ55 12V 3W	03/1969 - 08/1969	2
83111 - MECHANISM, SPEEDOMETER
83112-60042	FJ55..ARL,GEN MILE	01/1975 - 08/1976	1
83112-60043	FJ55..ARL,GEN MILE	08/1976 - 09/1977	1
83112-60031	FJ55..ARL,GEN KM.	01/1975 - 04/1978	1
83112-60031	FJ55..GEN KM.	04/1978 - 07/1980	1
83110-60053	FJ55..RHD..4F..VKC..GEN HONG KONG SPEC.	04/1978 - 07/1980	1
83112 - PLATE SUB-ASSY, SPEEDOMETER CIRCUIT
83102-36010	FJ55	03/1969 - 09/1972	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-60032	FJ55	09/1977 - 07/1980	1
83310-60031	FJ55	03/1969 - 09/1977	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-60032	FJ55	09/1977 - 07/1980	1
83310-60031	FJ55	03/1969 - 09/1977	1
83360 - RELAY ASSY, FUEL SENDER
83360-20011	FJ55	03/1969 - 09/1977	1
83360 - RELAY ASSY, FUEL SENDER
83360-20011	FJ55	03/1969 - 09/1977	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-60031	FJ55 FOR W/AMMETER	03/1969 - 09/1969	1
83410-60034	FJ55	10/1979 - 07/1980	1
83410-60033	FJ55	09/1977 - 10/1979	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-60031	FJ55 FOR W/AMMETER	03/1969 - 09/1969	1
83410-60034	FJ55	10/1979 - 07/1980	1
83410-60033	FJ55	09/1977 - 10/1979	1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83510-60031	FJ55	03/1969 - 09/1977	1
83510-60032	FJ55	09/1977 - 07/1980	1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83510-60031	FJ55	03/1969 - 09/1977	1
83510-60032	FJ55	09/1977 - 07/1980	1
83610 - AMMETER ASSY
83610-60031	FJ55	03/1969 - 08/1976	1
83610-60032	FJ55	09/1977 - 07/1980	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-60020	FJ40,43,45,55..RHD L=2300	03/1969 - 10/1971	1
83710-69066	FJ55..RHD L=2450	08/1976 - 09/1977	1
83710-69067	FJ55..RHD L=2050	09/1977 - 07/1980	1
Common parts
90201-07069
90461-08008
90461-10875
90463-06161
91111-40612
91651-40616
94511-00600
Linked diagrams
3304

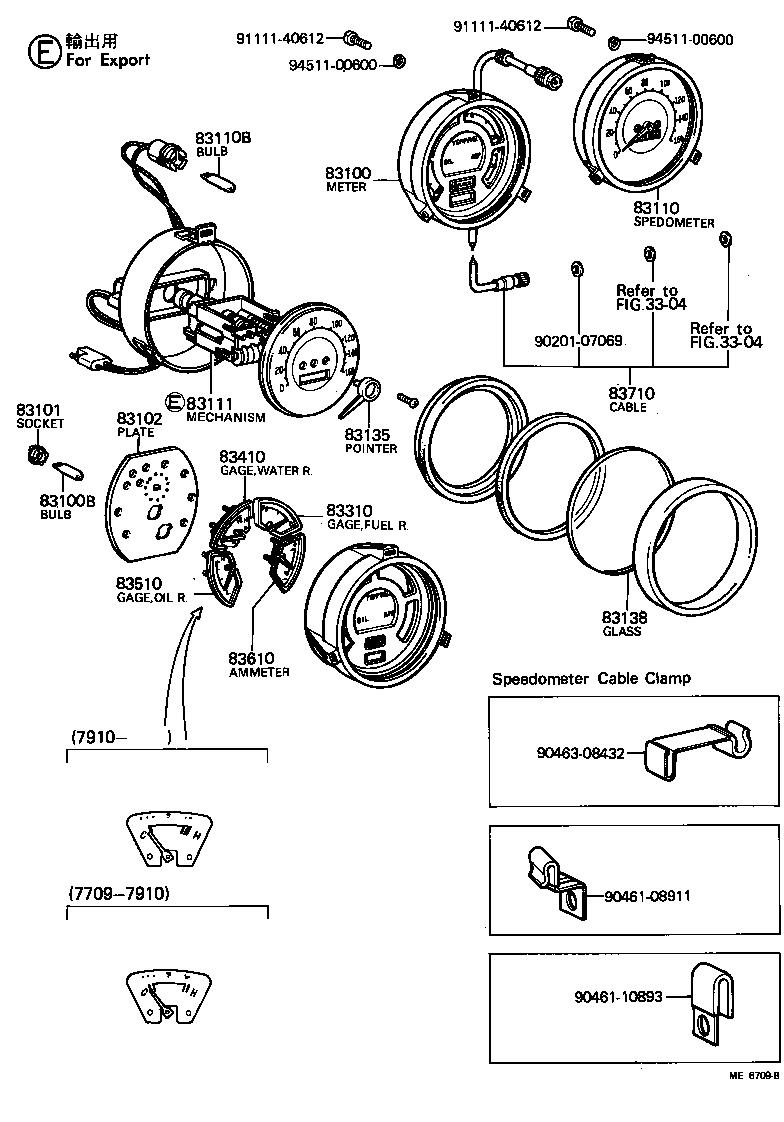

(7709-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83100-60050	FJ55 W/AMMETER	03/1969 - 08/1976	1
83100-60051	FJ55..EUR,GEN	04/1979 - 10/1979	1
83100-60051	FJ55	09/1977 - 04/1979	1
83100-60052	FJ55..EUR,GEN	10/1979 - 07/1980	1
83100B - BULB, COMBINATION METER, NO.1
99132-12034	FJ55 12V 3.4W,12V 3.4W	03/1969 - 08/1973	3
99132-12034	BJ4#,FJ4#,55,HJ45 12V 3.4W,12V 3.4W	07/1975 - 07/1980	5
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20030	FJ55	03/1969 - 07/1980	2
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-60010	FJ55 W/AMMETER	03/1969 - 08/1976	1
83102-60011	FJ55	09/1977 - 07/1980	1
83110 - SPEEDOMETER ASSY
83110-60042	FJ55..ARL,GEN MILE	01/1975 - 08/1976	1
83110-60030	FJ55 KM.	03/1969 - 09/1971	1
83110-60040	FJ55 MILE	03/1969 - 10/1970	1
83110-60031	FJ55..ARL,GEN KM.	01/1975 - 04/1978	1
83110-60043	FJ55..GEN MILE & KM.	09/1977 - 01/1979	1
83110-60043	FJ55..ARL,GEN MILE	08/1976 - 09/1977	1
83110-60053	FJ55..RHD..4F..VKC..GEN HONG KONG SPEC.	04/1978 - 07/1980	1
83110-60044	FJ55..GEN MILE & KM.	01/1979 - 07/1980	1
83110-60031	FJ55..GEN KM.	04/1978 - 01/1979	1
83110-60033	FJ55..GEN KM.	01/1979 - 07/1980	1
83110B - BULB, SPEEDOMETER
90981-11007	FJ55 12V 3W	03/1969 - 08/1969	2
83111 - MECHANISM, SPEEDOMETER
83112-60042	FJ55..ARL,GEN MILE	01/1975 - 08/1976	1
83112-60043	FJ55..ARL,GEN MILE	08/1976 - 09/1977	1
83112-60031	FJ55..ARL,GEN KM.	01/1975 - 04/1978	1
83112-60031	FJ55..GEN KM.	04/1978 - 07/1980	1
83110-60053	FJ55..RHD..4F..VKC..GEN HONG KONG SPEC.	04/1978 - 07/1980	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-60032	FJ55	09/1977 - 07/1980	1
83310-60031	FJ55	03/1969 - 09/1977	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-60031	FJ55 FOR W/AMMETER	03/1969 - 09/1969	1
83410-60034	FJ55	10/1979 - 07/1980	1
83410-60033	FJ55	09/1977 - 10/1979	1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83510-60031	FJ55	03/1969 - 09/1977	1
83510-60032	FJ55	09/1977 - 07/1980	1
83610 - AMMETER ASSY
83610-60031	FJ55	03/1969 - 08/1976	1
83610-60032	FJ55	09/1977 - 07/1980	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-60020	FJ40,43,45,55..RHD L=2300	03/1969 - 10/1971	1
83710-69066	FJ55..RHD L=2450	08/1976 - 09/1977	1
83710-69067	FJ55..RHD L=2050	09/1977 - 07/1980	1
Common parts
90201-07069
90461-08911
90461-10893
90463-08432
91111-40612
94511-00600
Linked diagrams
3304

FJ55RV-KC (1975)

(6903-7709)FJ55

(7709-8007)FJ55
