FJ55RV-KC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7501-8007)FJ55

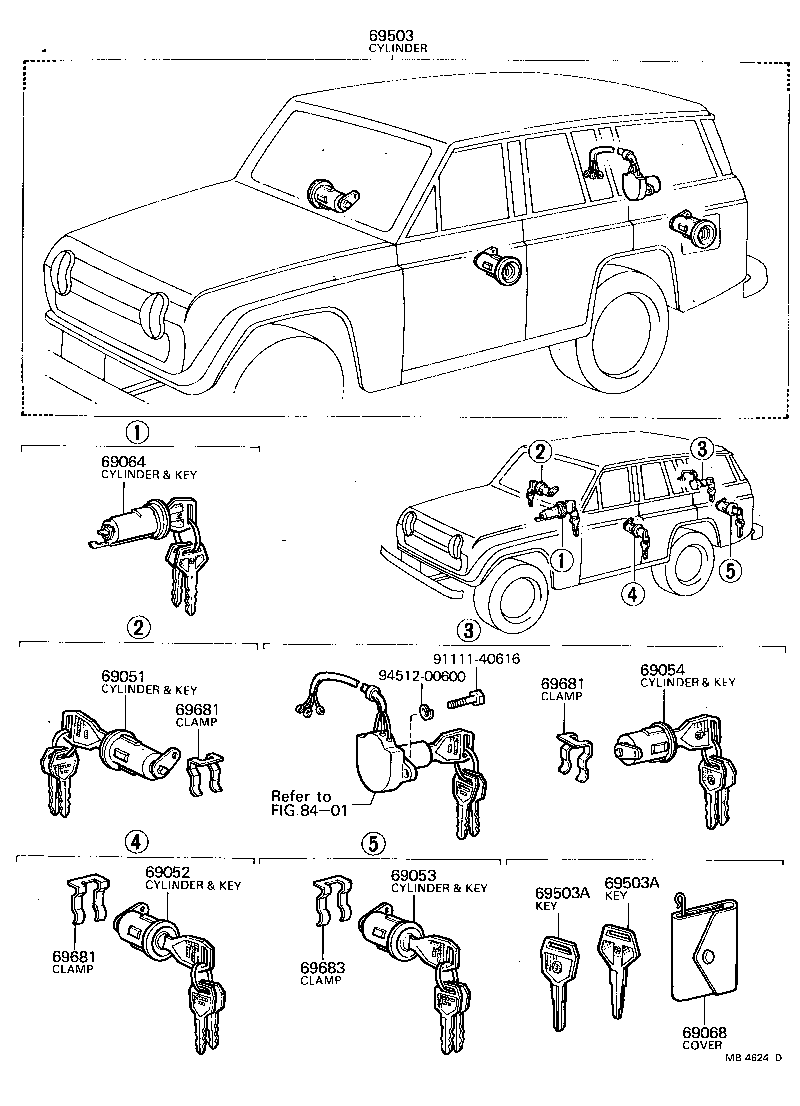

Click highlighted areas on diagram

diagram 69051 69052 69053 69054 69064 69068 69503 69503A 69503A 69681 69681 69681 69683 8401 9111140616 9451200600
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-90351

FJ55

 1
69051-60010

FJ55

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-90351

FJ55

 1
69052-60010

FJ55

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69053-60010

FJ55

 1
69053-90351

FJ55

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-90351

FJ55..VKC

 1
69051-60010

FJ55..VKC

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
84045-26020

FJ55

 1
69064-60021

FJ4#,55

L/STEERING LOCK

 1
69064-60061

FJ4#,55

W/STEERING LOCK

 1
69068 - COVER SUB-ASSY, KEY
84041-12010

FJ55

 1
69503 - CYLINDER SET, LOCK
69503-60060

FJ55..VKC

L/FUEL LOCK

 1
69503-60050

FJ55..VKC

W/FUEL LOCK

 1
69005-90352

FJ55..VKC

 1
69005-90354

FJ55..VKC

W/STEERING LOCK

 1
69005-90352

FJ55..VKC..(EUR,GEN)

 1
69503A - KEY, BLANK
90999-00068

BJ4#,FJ4#,55

SUB KEY

 1
90999-00027

FJ55

FOR DOOR & TAIL GATE SW.

 1
90999-00066

BJ4#,FJ4#,55,HJ45

MASTER KEY

 1
69503A - KEY, BLANK
90999-00068

BJ4#,FJ4#,55

SUB KEY

 1
90999-00027

FJ55

FOR DOOR & TAIL GATE SW.

 1
90999-00066

BJ4#,FJ4#,55,HJ45

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

FJ55

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

FJ55

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

FJ55

 3
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20010

FJ55

 1
69681-20040

BJ4#,FJ4#,55,HJ45..TPC,TPS,VKC,VLS,VTG

 1
Common parts
91111-40616
94512-00600
Linked diagrams
8401

(7501-7509)V ; (7509-8007)TP,V

Click highlighted areas on diagram

diagram 6762 69051 69052 69053 69054 69054 69064 69384 69503 69503 69503A 69503A 69563 69681 69681 69681 69683 69685 69685 69685 9323924010 9411540400 9451100400
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-90351

FJ55

 1
69051-60010

FJ55

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-90351

FJ55

 1
69052-60010

FJ55

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69053-60010

FJ55

 1
69053-90351

FJ55

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-90351

FJ55..VKC

 1
69051-60010

FJ55..VKC

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-90351

FJ55..VKC

 1
69051-60010

FJ55..VKC

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
84045-26020

FJ55

 1
69064-60021

FJ4#,55

L/STEERING LOCK

 1
69064-60061

FJ4#,55

W/STEERING LOCK

 1
69503 - CYLINDER SET, LOCK
69503-60060

FJ55..VKC

L/FUEL LOCK

 1
69503-60050

FJ55..VKC

W/FUEL LOCK

 1
69005-90352

FJ55..VKC

 1
69005-90354

FJ55..VKC

W/STEERING LOCK

 1
69005-90352

FJ55..VKC..(EUR,GEN)

 1
69503 - CYLINDER SET, LOCK
69503-60060

FJ55..VKC

L/FUEL LOCK

 1
69503-60050

FJ55..VKC

W/FUEL LOCK

 1
69005-90352

FJ55..VKC

 1
69005-90354

FJ55..VKC

W/STEERING LOCK

 1
69005-90352

FJ55..VKC..(EUR,GEN)

 1
69503A - KEY, BLANK
90999-00068

BJ4#,FJ4#,55

SUB KEY

 1
90999-00027

FJ55

FOR DOOR & TAIL GATE SW.

 1
90999-00066

BJ4#,FJ4#,55,HJ45

MASTER KEY

 1
69503A - KEY, BLANK
90999-00068

BJ4#,FJ4#,55

SUB KEY

 1
90999-00027

FJ55

FOR DOOR & TAIL GATE SW.

 1
90999-00066

BJ4#,FJ4#,55,HJ45

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

FJ55

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

FJ55

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

FJ55

 3
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20010

FJ55

 1
69681-20040

BJ4#,FJ4#,55,HJ45..TPC,TPS,VKC,VLS,VTG

 1
69685 - PAD, LOCK CYLINDER
69685-20010

FJ55

 4
69685 - PAD, LOCK CYLINDER
69685-20010

FJ55

 4
69685 - PAD, LOCK CYLINDER
69685-20010

FJ55

 4
Common parts
93239-24010
94115-40400
94511-00400
Linked diagrams
6762

(6903-8007)V

Click highlighted areas on diagram

diagram 00000
