FJ55LV-UC (1975)
Toyota Land Cruiser

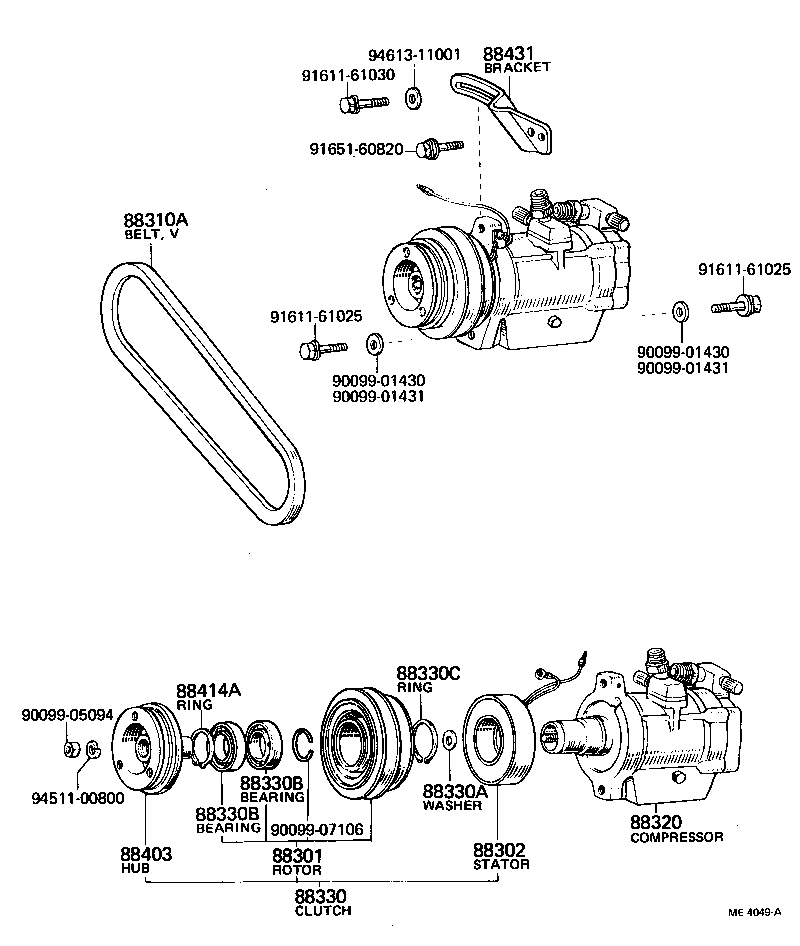

(7501-7901)FJ55..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-60040 |
FJ55..LHD..GEN |
1 | ||
| 88412-12040 |
FJ55..ARL,GEN |
1 | ||
| 88412-60030 |
FJ55..LHD..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60010 |
FJ55..LHD..GEN |
1 | ||
| 88411-22040 |
FJ55..ARL,GEN |
1 | ||
| 88411-30250 |
FJ55..LHD..GEN |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-11275 |
FJ55..LHD..GEN |
1 | ||
| 99322-11250 |
FJ55..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60020 |
FJ55..LHD..GEN |
1 | ||
| 88320-60050 |
FJ55..ARL,GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22060 |
FJ55..ARL,GEN |
1 | ||
| 88410-60030 |
FJ55..LHD..GEN |
1 | ||
| 88410-60040 |
FJ55..LHD..GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01207 |
FJ55..LHD..GEN T=1.5 |
1 | ||
| 90099-01110 |
FJ55..LHD..GEN T=1.0 |
1 | ||
| 90099-01350 |
FJ55..LHD..GEN T=0.1 |
1 | ||
| 90099-01109 |
FJ55..LHD..GEN T=0.8 |
1 | ||
| 90099-01208 |
FJ55..LHD..GEN T=2.0 |
1 | ||
| 90099-01351 |
FJ55..LHD..GEN T=0.2 |
1 | ||
| 90099-01209 |
FJ55..LHD..GEN T=2.5 |
1 | ||
| 90099-01108 |
FJ55..LHD..GEN T=0.5 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
FJ55..ARL,GEN |
2 | ||
| 90099-10097 |
FJ55..LHD..GEN |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
FJ55..ARL,GEN |
2 | ||
| 90099-10097 |
FJ55..LHD..GEN |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
FJ55..ARL,GEN |
1 | ||
| 90099-07087 |
FJ55..LHD..GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30250 |
FJ55..LHD..GEN |
1 | ||
| 88403-26030 |
FJ55..ARL,GEN |
1 | ||
| 88414A - RING, SHIELD SNAP | ||||
| 90099-07086 |
FJ55..LHD..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88437-60080 |
FJ55..LHD..GEN |
1 | ||
| 88437-60110 |
FJ55..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-01430 | ||||
| 90099-01431 | ||||
| 90099-05094 | ||||
| 90099-07106 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91651-60820 | ||||
| 94511-00800 | ||||
| 94613-11001 | ||||

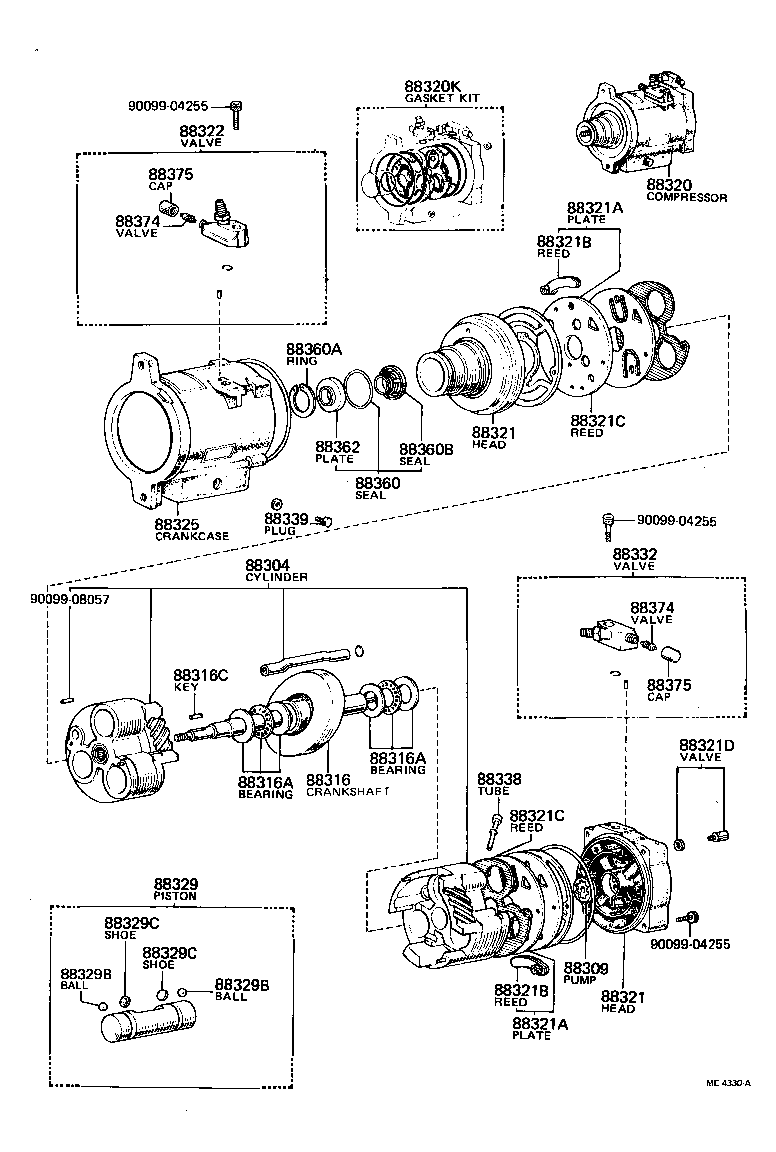

(7501-7901)FJ55..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14010 |
FJ55..ARL,GEN |
1 | ||
| 88304-30251 |
FJ55..LHD..GEN |
1 | ||
| 88309 - PUMP SUB-ASSY, OIL | ||||
| 88308-30251 |
FJ55..LHD..GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-30251 |
FJ55..LHD..GEN |
2 | ||
| 88316-20070 |
FJ55..ARL,GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-30251 |
FJ55..LHD..GEN |
1 | ||
| 88366-20050 |
FJ55..ARL,GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-30251 |
FJ55..LHD..GEN |
1 | ||
| 88366-20050 |
FJ55..ARL,GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
FJ55..LHD..GEN |
1 | ||
| 90099-13011 |
FJ55..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60020 |
FJ55..LHD..GEN |
1 | ||
| 88320-60050 |
FJ55..ARL,GEN |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20040 |
FJ55..ARL,GEN |
1 | ||
| 04881-30011 |
FJ55..LHD..GEN |
1 | ||
| 04881-30030 |
FJ55..ARL,GEN OIL DRAIN TYPE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88322-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88321-20060 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88322-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88321-20061 |
FJ55..ARL,GEN FOR FRONT OIL DRAIN TYPE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88322-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88321-20060 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88322-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88321-20061 |
FJ55..ARL,GEN FOR FRONT OIL DRAIN TYPE |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88305-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88306-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88305-20070 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88305-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88306-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88305-20070 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-30251 |
FJ55..LHD..GEN |
2 | ||
| 88307-20050 |
FJ55..ARL,GEN FOR SMALL |
1 | ||
| 88307-20060 |
FJ55..ARL,GEN FOR LARGE |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-30251 |
FJ55..LHD..GEN |
2 | ||
| 88307-20050 |
FJ55..ARL,GEN FOR SMALL |
1 | ||
| 88307-20060 |
FJ55..ARL,GEN FOR LARGE |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
FJ55..ARL,GEN |
1 | ||
| 88343-30251 |
FJ55..LHD..GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
FJ55..ARL,GEN |
1 | ||
| 88343-30251 |
FJ55..LHD..GEN |
2 | ||
| 88321D - VALVE, PRESSURE RELIEF | ||||
| 88379-12020 |
FJ55..LHD..GEN |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-60040 |
FJ55..ARL,GEN |
1 | ||
| 88371-60020 |
FJ55..LHD..GEN |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-30251 |
FJ55..LHD..GEN |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
FJ55..ARL,GEN |
3 | ||
| 88301-30251 |
FJ55..LHD..GEN |
3 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
FJ55..LHD..GEN |
6 | ||
| 88312-30250 |
FJ55..ARL,GEN |
6 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
FJ55..LHD..GEN |
6 | ||
| 88312-30250 |
FJ55..ARL,GEN |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-30251 |
FJ55..LHD..GEN |
6 | ||
| 88313-20070 |
FJ55..ARL,GEN |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-30251 |
FJ55..LHD..GEN |
6 | ||
| 88313-20070 |
FJ55..ARL,GEN |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-60020 |
FJ55..LHD..GEN |
1 | ||
| 88372-30280 |
FJ55..ARL,GEN |
1 | ||
| 88338 - TUBE, OIL | ||||
| 88338-30250 |
FJ55..LHD..GEN |
1 | ||
| 88339 - PLUG, OIL FILLER | ||||
| 88339-30250 |
FJ55..LHD..GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
FJ55..ARL,GEN |
1 | ||
| 88360-30251 |
FJ55..LHD..GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90006 |
FJ55..LHD..GEN |
1 | ||
| 88360B - SEAL, SHAFT | ||||
| 88361-30250 |
FJ55..LHD..GEN |
1 | ||
| 88362 - PLATE, COOLER COMPRESSOR SEAL | ||||
| 88362-30250 |
FJ55..LHD..GEN |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
FJ55..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
FJ55..ARL,GEN |
2 | ||
| Common parts | ||||
| 90099-04255 | ||||
| 90099-08057 | ||||
(7901-8007)BJ40,FJ4#,55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88437-60080 |
FJ55..LHD..GEN |
1 | ||
| 88437-60110 |
FJ55..ARL,GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88437-60080 |
FJ55..LHD..GEN |
1 | ||
| 88437-60110 |
FJ55..ARL,GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88437-60080 |
FJ55..LHD..GEN |
1 | ||
| 88437-60110 |
FJ55..ARL,GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88437-60080 |
FJ55..LHD..GEN |
1 | ||
| 88437-60110 |
FJ55..ARL,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60020 |
FJ55..ARL,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60020 |
FJ55..ARL,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60020 |
FJ55..ARL,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60020 |
FJ55..ARL,GEN |
1 | ||
| Common parts | ||||
| 88664-36010 | ||||
| 90099-04553 | ||||
| 90099-04914 | ||||
| 90099-04928 | ||||
| 90099-04929 | ||||
| 91112-71095 | ||||
| 91121-71230 | ||||
| 91611-60825 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91651-60820 | ||||
| 91651-60845 | ||||
| 91651-61040 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| 94511-01200 | ||||
| 94542-01000 | ||||
(7901-8007)BJ40,FJ4#,55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-60040 |
FJ55..LHD..GEN |
1 | ||
| 88412-12040 |
FJ55..ARL,GEN |
1 | ||
| 88412-60030 |
FJ55..LHD..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60010 |
FJ55..LHD..GEN |
1 | ||
| 88411-22040 |
FJ55..ARL,GEN |
1 | ||
| 88411-30250 |
FJ55..LHD..GEN |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-11275 |
FJ55..LHD..GEN |
1 | ||
| 99322-11250 |
FJ55..ARL,GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60020 |
FJ55..LHD..GEN |
1 | ||
| 88320-60050 |
FJ55..ARL,GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22060 |
FJ55..ARL,GEN |
1 | ||
| 88410-60030 |
FJ55..LHD..GEN |
1 | ||
| 88410-60040 |
FJ55..LHD..GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
FJ55..ARL,GEN |
2 | ||
| 90099-10097 |
FJ55..LHD..GEN |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
FJ55..ARL,GEN |
2 | ||
| 90099-10097 |
FJ55..LHD..GEN |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
FJ55..ARL,GEN |
1 | ||
| 90099-07087 |
FJ55..LHD..GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30250 |
FJ55..LHD..GEN |
1 | ||
| 88403-26030 |
FJ55..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-20060 |
FJ55..ARL,GEN |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-20060 |
FJ55..ARL,GEN |
1 | ||
| Common parts | ||||
| 88899-14030 | ||||
(7901-8007)BJ40,FJ4#,55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14010 |
FJ55..ARL,GEN |
1 | ||
| 88304-30251 |
FJ55..LHD..GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-30251 |
FJ55..LHD..GEN |
2 | ||
| 88316-20070 |
FJ55..ARL,GEN |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-30251 |
FJ55..LHD..GEN |
1 | ||
| 88366-20050 |
FJ55..ARL,GEN |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
FJ55..LHD..GEN |
1 | ||
| 90099-13011 |
FJ55..ARL,GEN |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90096-04926 |
FJ55..ARL,GEN |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
FJ55..ARL,GEN |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20040 |
FJ55..ARL,GEN |
1 | ||
| 04881-30011 |
FJ55..LHD..GEN |
1 | ||
| 04881-30030 |
FJ55..ARL,GEN OIL DRAIN TYPE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88322-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88321-20060 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88322-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88321-20061 |
FJ55..ARL,GEN FOR FRONT OIL DRAIN TYPE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88322-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88321-20060 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88322-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88321-20061 |
FJ55..ARL,GEN FOR FRONT OIL DRAIN TYPE |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88305-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88306-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88305-20070 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-30251 |
FJ55..LHD..GEN FOR REAR |
1 | ||
| 88305-30251 |
FJ55..LHD..GEN FOR FRONT |
1 | ||
| 88306-20040 |
FJ55..ARL,GEN FOR REAR |
1 | ||
| 88305-20070 |
FJ55..ARL,GEN FOR FRONT |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-30251 |
FJ55..LHD..GEN |
2 | ||
| 88307-20050 |
FJ55..ARL,GEN FOR SMALL |
1 | ||
| 88307-20060 |
FJ55..ARL,GEN FOR LARGE |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-30251 |
FJ55..LHD..GEN |
2 | ||
| 88307-20050 |
FJ55..ARL,GEN FOR SMALL |
1 | ||
| 88307-20060 |
FJ55..ARL,GEN FOR LARGE |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-30251 |
FJ55..LHD..GEN |
2 | ||
| 88307-20050 |
FJ55..ARL,GEN FOR SMALL |
1 | ||
| 88307-20060 |
FJ55..ARL,GEN FOR LARGE |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-30251 |
FJ55..LHD..GEN |
2 | ||
| 88307-20050 |
FJ55..ARL,GEN FOR SMALL |
1 | ||
| 88307-20060 |
FJ55..ARL,GEN FOR LARGE |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
FJ55..ARL,GEN |
1 | ||
| 88343-30251 |
FJ55..LHD..GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
FJ55..ARL,GEN |
1 | ||
| 88343-30251 |
FJ55..LHD..GEN |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-60040 |
FJ55..ARL,GEN |
1 | ||
| 88371-60020 |
FJ55..LHD..GEN |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
FJ55..ARL,GEN |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
FJ55..ARL,GEN |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
FJ55..ARL,GEN |
3 | ||
| 88301-30251 |
FJ55..LHD..GEN |
3 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
FJ55..LHD..GEN |
6 | ||
| 88312-30250 |
FJ55..ARL,GEN |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-30251 |
FJ55..LHD..GEN |
6 | ||
| 88313-20070 |
FJ55..ARL,GEN |
6 | ||
| 88329D - RING, PISTON | ||||
| 88317-20030 |
FJ55..ARL,GEN |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-60020 |
FJ55..LHD..GEN |
1 | ||
| 88372-30280 |
FJ55..ARL,GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
FJ55..ARL,GEN |
1 | ||
| 88360-30251 |
FJ55..LHD..GEN |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
FJ55..ARL,GEN |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
FJ55..ARL,GEN |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
FJ55..ARL,GEN |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
