Toyota Land cruiser FJ55 BRAKE TUBE & CLAMP

FJ55LV-K (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

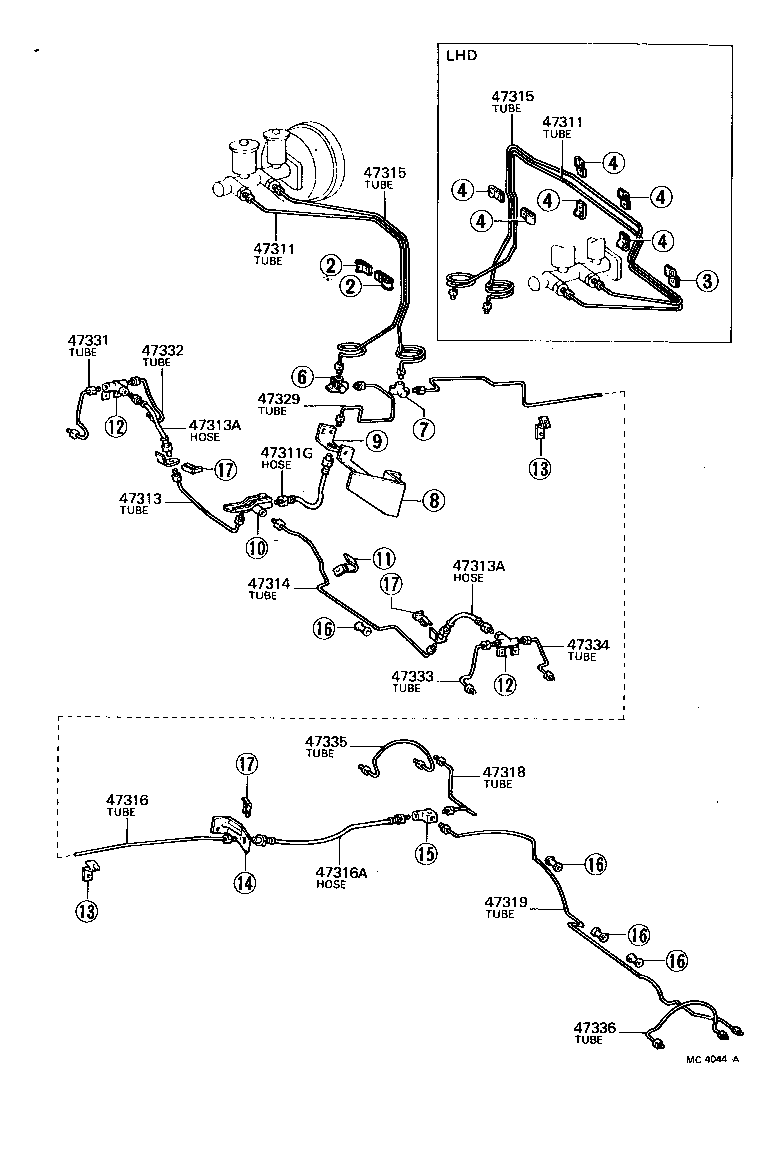

(7509-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60053	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1975 - 09/1975	1
47311-60054	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47311-60111	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1975	1
47311-60113	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 01/1979	1
47311-60390	FJ55..LHD	01/1979 - 07/1980	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60053	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1975 - 09/1975	1
47311-60054	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47311-60111	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1975	1
47311-60113	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 01/1979	1
47311-60390	FJ55..LHD	01/1979 - 07/1980	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32605	FJ4#,55,HJ45	02/1979 - 07/1980	1
96940-30265	FJ4#,55,HJ45	09/1975 - 02/1979	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60081	FJ4#,55,HJ45	09/1975 - 07/1980	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-32255	BJ4#,FJ4#,55,HJ45	02/1979 - 07/1980	2
90947-02073	FJ55	03/1969 - 01/1970	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-32255	BJ4#,FJ4#,55,HJ45	02/1979 - 07/1980	2
90947-02073	FJ55	03/1969 - 01/1970	2
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47315-60250	FJ4#,55,HJ45	09/1977 - 07/1980	1
47314-60101	FJ4#,55,HJ45	09/1975 - 09/1977	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60034	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 01/1979	1
47315-60032	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1975	1
47321-60080	FJ55..LHD	01/1979 - 07/1980	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60034	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 01/1979	1
47315-60032	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1975	1
47321-60080	FJ55..LHD	01/1979 - 07/1980	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60060	FJ55	03/1969 - 03/1970	1
47316-60130	FJ55 FOR TANDEM MASTER CYLINDER	09/1975 - 08/1976	1
47316-60082	FJ55	08/1976 - 07/1980	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02012	FJ55	03/1969 - 05/1969	1
96920-34305	FJ55	02/1979 - 07/1980	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47318-60052	FJ40,43,55	09/1975 - 07/1980	1
47319 - TUBE, FRONT BRAKE, NO.9
47327-60010	FJ40,43,55;FJ45,HJ45..EUR	01/1979 - 03/1979	1
47327-60010	FJ4#,55,HJ45	03/1979 - 07/1980	1
47319-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319-60052	FJ40,43,55	09/1975 - 01/1979	1
47329 - TUBE, REAR BRAKE, NO.9
47329-60023	FJ55 FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47329-60080	FJ55 FOR TANDEM MASTER CYLINDER	09/1975 - 07/1980	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60040	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1980	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE	09/1975 - 07/1980	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60040	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1980	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE	09/1975 - 07/1980	1
47335 - TUBE, REAR BRAKE, NO.14
47335-60010	FJ55	03/1969 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47335-60010	FJ55	03/1969 - 09/1971	1

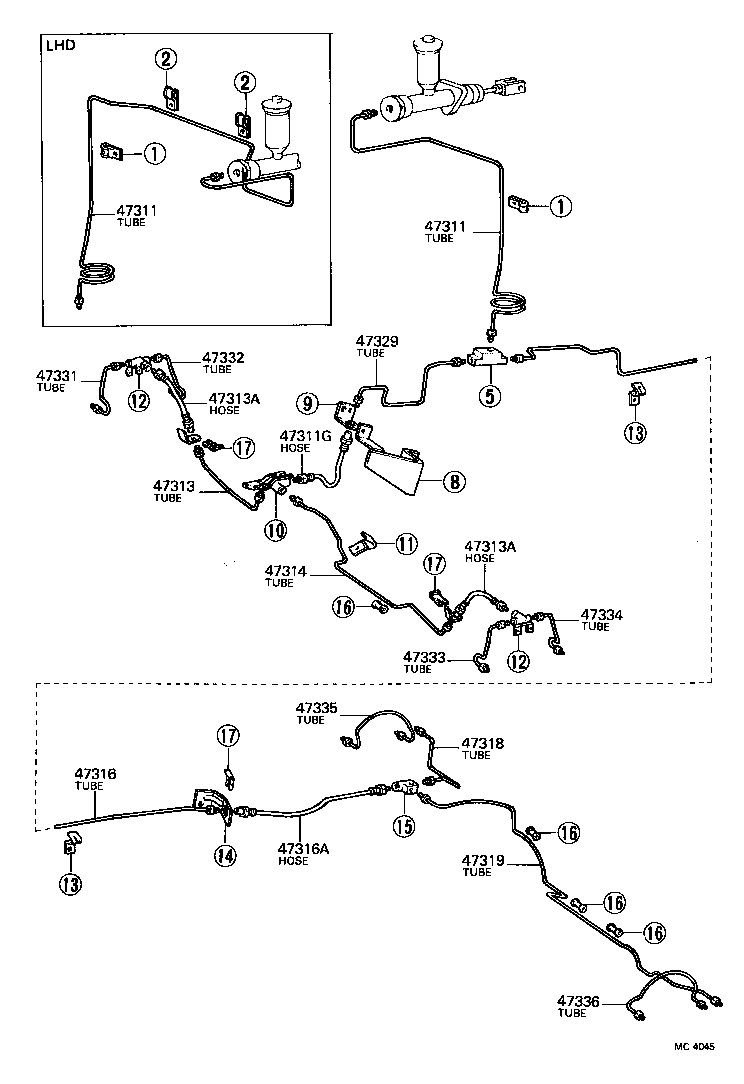

(7509-7608)FJ55..EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60053	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1975 - 09/1975	1
47311-60054	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47311-60111	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1975	1
47311-60113	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 01/1979	1
47311-60390	FJ55..LHD	01/1979 - 07/1980	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60053	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1975 - 09/1975	1
47311-60054	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47311-60111	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1975 - 09/1975	1
47311-60113	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 01/1979	1
47311-60390	FJ55..LHD	01/1979 - 07/1980	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32605	FJ4#,55,HJ45	02/1979 - 07/1980	1
96940-30265	FJ4#,55,HJ45	09/1975 - 02/1979	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60081	FJ4#,55,HJ45	09/1975 - 07/1980	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-32255	BJ4#,FJ4#,55,HJ45	02/1979 - 07/1980	2
90947-02073	FJ55	03/1969 - 01/1970	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-32255	BJ4#,FJ4#,55,HJ45	02/1979 - 07/1980	2
90947-02073	FJ55	03/1969 - 01/1970	2
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47315-60250	FJ4#,55,HJ45	09/1977 - 07/1980	1
47314-60101	FJ4#,55,HJ45	09/1975 - 09/1977	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60060	FJ55	03/1969 - 03/1970	1
47316-60130	FJ55 FOR TANDEM MASTER CYLINDER	09/1975 - 08/1976	1
47316-60082	FJ55	08/1976 - 07/1980	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02012	FJ55	03/1969 - 05/1969	1
96920-34305	FJ55	02/1979 - 07/1980	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47318-60052	FJ40,43,55	09/1975 - 07/1980	1
47319 - TUBE, FRONT BRAKE, NO.9
47327-60010	FJ40,43,55;FJ45,HJ45..EUR	01/1979 - 03/1979	1
47327-60010	FJ4#,55,HJ45	03/1979 - 07/1980	1
47319-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319-60052	FJ40,43,55	09/1975 - 01/1979	1
47329 - TUBE, REAR BRAKE, NO.9
47329-60023	FJ55 FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47329-60080	FJ55 FOR TANDEM MASTER CYLINDER	09/1975 - 07/1980	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60040	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1980	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE	09/1975 - 07/1980	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60040	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1980	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60050	BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE	09/1975 - 07/1980	1
47335 - TUBE, REAR BRAKE, NO.14
47335-60010	FJ55	03/1969 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47335-60010	FJ55	03/1969 - 09/1971	1

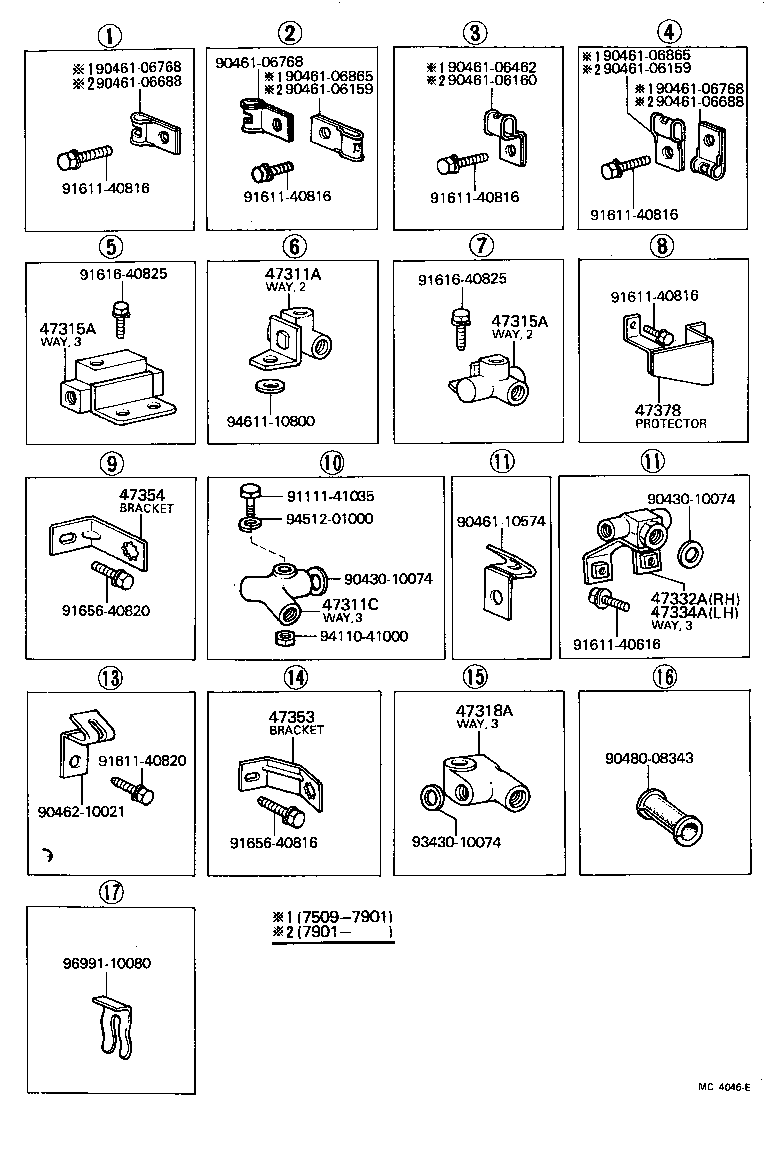

(7509-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10050	FJ55 FOR W/BOOSTER	03/1969 - 09/1971	1
90413-10050	FJ55..LHD	03/1969 - 09/1971	1
90412-10015	FJ55;BJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 07/1980	1
47311C - UNION(FOR FRONT BRAKE TUBE)
90413-10042	FJ4#,55,HJ45	09/1977 - 07/1980	1
90413-10015	FJ4#,55,HJ45	09/1975 - 09/1977	1
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-10038	FJ55;BJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 07/1980	1
90413-10008	BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-10038	FJ55;BJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1975 - 07/1980	1
90413-10008	BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SINGLE MASTER CYLINDER	09/1975 - 08/1976	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10023	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
90413-10023	FJ4#,55,HJ45	09/1975 - 07/1980	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90413-10049	FJ55	03/1969 - 12/1969	1
90413-10006	BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE	09/1975 - 07/1980	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90413-10049	FJ55	03/1969 - 12/1969	1
90413-10006	BJ4#,FJ4#,55,HJ45 FOR FRONT DRUM BRAKE	09/1975 - 07/1980	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-61020	FJ55	03/1969 - 07/1980	1
47378 - PROTECTOR, BRAKE TUBE
47378-60020	FJ55	09/1975 - 07/1980	1
Common parts
90430-10074
90461-06159
90461-06160
90461-06462
90461-06688
90461-06768
90461-06865
90461-10574
90462-10021
90480-08343
91111-41035
91611-40616
91611-40816
91611-40820
91616-40825
91656-40816
91656-40820
93430-10074
94110-41000
94512-01000
94611-10800
96991-10080

FJ55LV-K (1975)

(7509-8007)FJ55

(7509-7608)FJ55..EUR,GEN

(7509-8007)FJ55
