Toyota Land cruiser FJ55 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ55LV- (1969)
4708 - BRAKE TUBE & CLAMP

FJ55LV- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

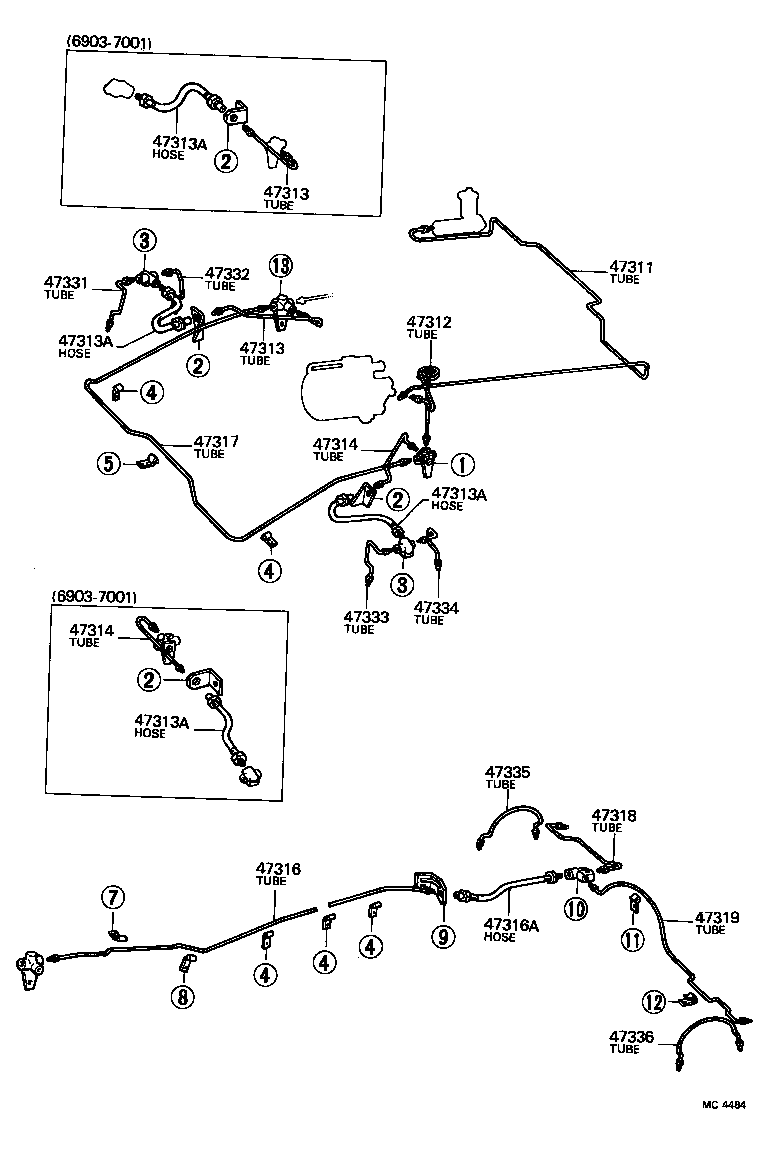

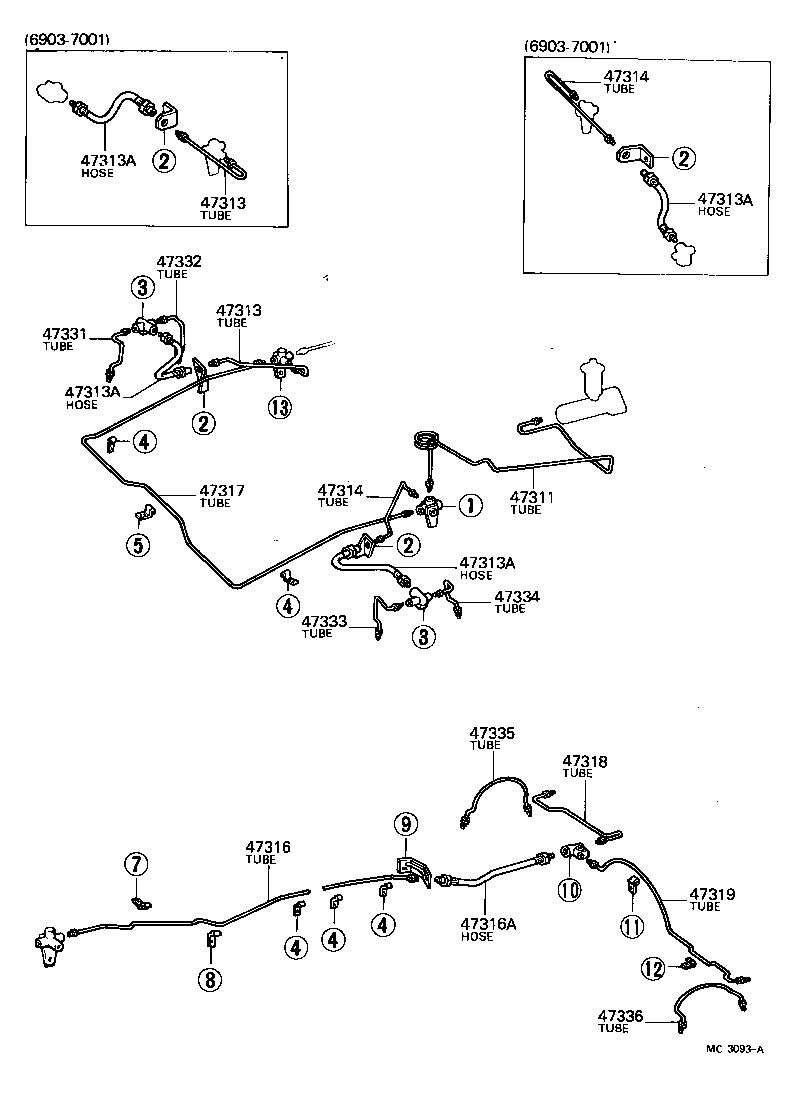

(6903-7109)FJ55..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47322-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60110	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 01/1975	1
47311-60052	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60050	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60050	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47314-60081	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47314-60081	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60080	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316-60060	FJ55	03/1969 - 03/1970	1
47316-60061	FJ55 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02012	FJ55	03/1969 - 05/1969	1
90947-02123	FJ55 FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
90947-02093	FJ55	09/1971 - 09/1974	1
90947-02093	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02093	FJ55	05/1969 - 10/1969	1
47317 - TUBE, FRONT BRAKE, NO.7
47312-60030	FJ55	03/1969 - 09/1971	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47319-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47335-60010	FJ55	03/1969 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47335-60010	FJ55	03/1969 - 09/1971	1

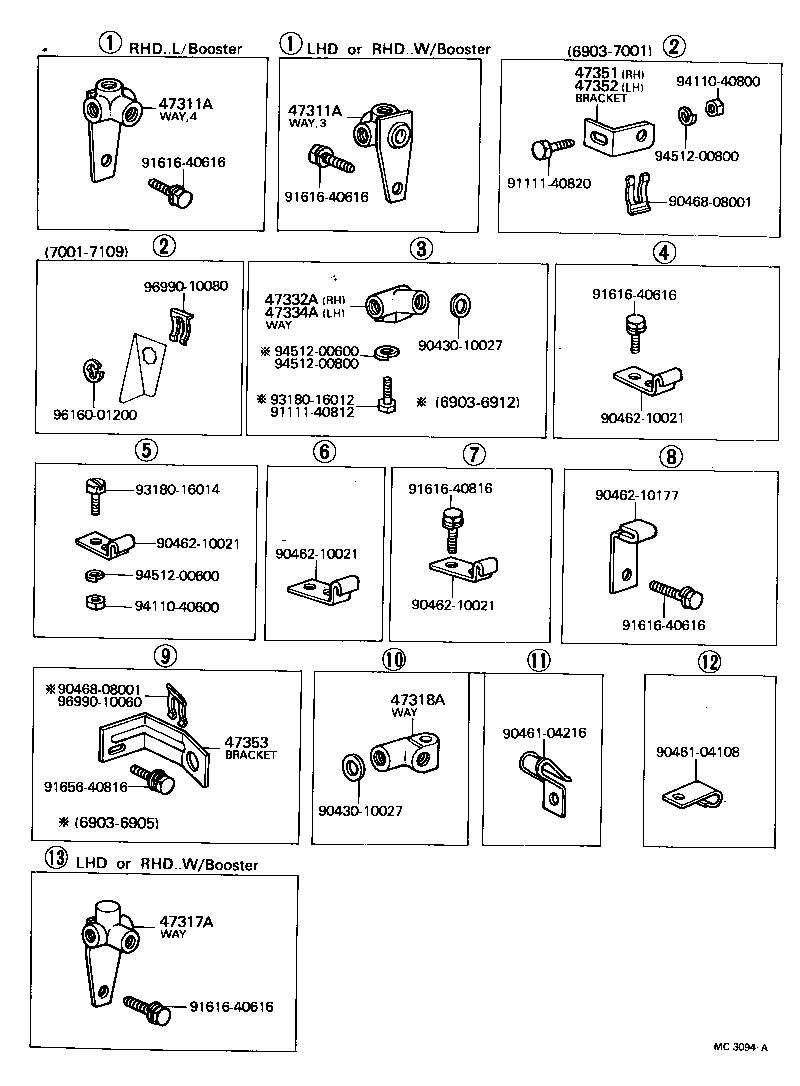

(6903-7101)FJ55..LHD ; (6903-7109)FJ55..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10050	FJ55 FOR W/BOOSTER	03/1969 - 09/1971	1
90413-10050	FJ55..LHD	03/1969 - 09/1971	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10050	FJ55 FOR W/BOOSTER	03/1969 - 09/1971	1
90413-10050	FJ55..LHD	03/1969 - 09/1971	1
47317A - WAY(FOR BRAKE TUBE)
90413-10039	FJ55..LHD	03/1969 - 09/1971	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10023	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
90413-10028	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90413-10083	FJ55	12/1969 - 01/1970	1
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-10049	FJ55	03/1969 - 12/1969	1
90413-10088	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90413-10083	FJ55	12/1969 - 01/1970	1
90413-10049	FJ55	03/1969 - 12/1969	1
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-10089	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-60030	FJ55	03/1969 - 01/1970	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47351-60030	FJ55	03/1969 - 01/1970	1
Common parts
90430-10027
90461-04108
90461-04216
90462-10021
90462-10177
90468-08001
91111-40812
91111-40820
91616-40616
91616-40816
91656-40816
93180-16012
93180-16014
94110-40600
94110-40800
94512-00600
94512-00800
96160-01200
96990-10060
96990-10080

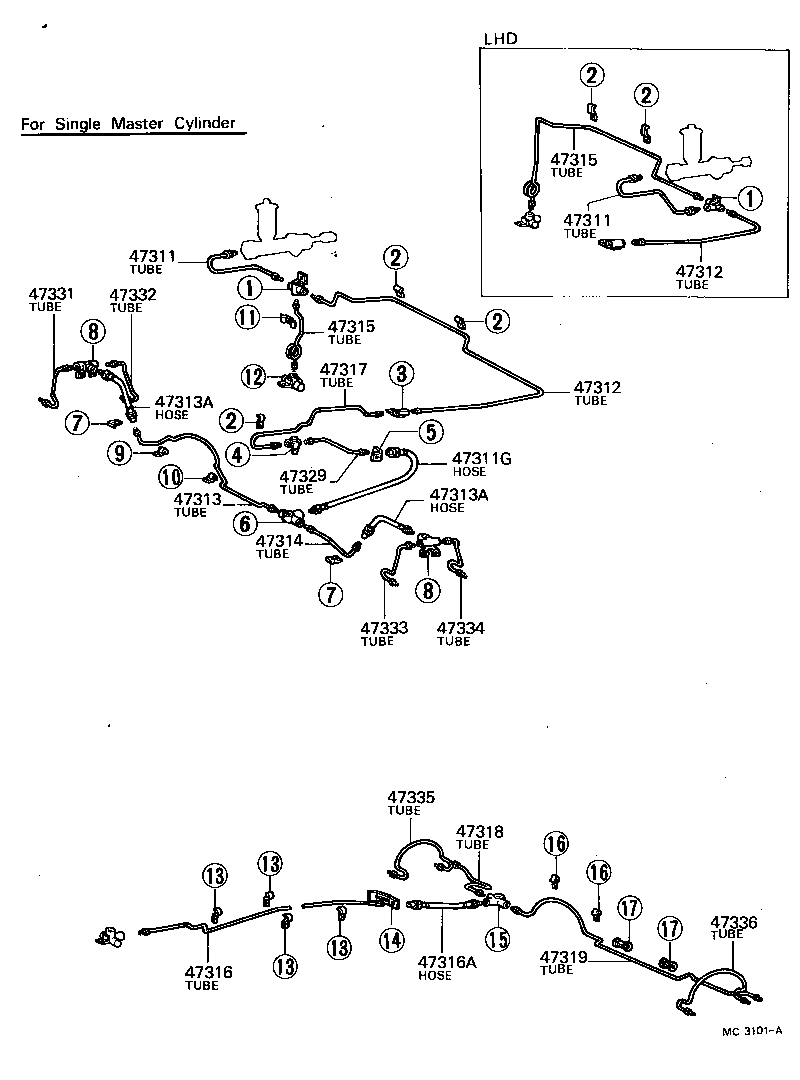

(7109-7501)FJ55 ; (7501-7509)FJ55..EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47322-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60110	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 01/1975	1
47311-60052	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47322-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60110	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 01/1975	1
47311-60052	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02133	BJ4#,FJ55	09/1971 - 09/1974	1
90947-02133	FJ55..LHD	01/1971 - 09/1971	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60040	FJ55	03/1969 - 01/1971	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60040	FJ55	03/1969 - 01/1971	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60050	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47314-60081	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60090	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47321-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60030	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47315-60031	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 01/1975	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60090	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47321-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60030	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47315-60031	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 01/1975	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60080	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316-60060	FJ55	03/1969 - 03/1970	1
47316-60061	FJ55 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02012	FJ55	03/1969 - 05/1969	1
90947-02123	FJ55 FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
90947-02093	FJ55	09/1971 - 09/1974	1
90947-02093	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02093	FJ55	05/1969 - 10/1969	1
47317 - TUBE, FRONT BRAKE, NO.7
47312-60030	FJ55	03/1969 - 09/1971	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47319-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47329 - TUBE, REAR BRAKE, NO.9
47329-60020	FJ55	09/1971 - 11/1973	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47335-60010	FJ55	03/1969 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47335-60010	FJ55	03/1969 - 09/1971	1

(7101-7109)FJ55..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47322-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60110	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 01/1975	1
47311-60052	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10050	FJ55 FOR W/BOOSTER	03/1969 - 09/1971	1
90413-10050	FJ55..LHD	03/1969 - 09/1971	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02133	BJ4#,FJ55	09/1971 - 09/1974	1
90947-02133	FJ55..LHD	01/1971 - 09/1971	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60050	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47314-60081	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60090	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47321-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60030	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47315-60031	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 01/1975	1
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-10015	FJ40,55..LHD	01/1971 - 09/1971	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60080	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316-60060	FJ55	03/1969 - 03/1970	1
47316-60061	FJ55 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02012	FJ55	03/1969 - 05/1969	1
90947-02123	FJ55 FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
90947-02093	FJ55	09/1971 - 09/1974	1
90947-02093	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02093	FJ55	05/1969 - 10/1969	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10023	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
90413-10028	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47319-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90413-10083	FJ55	12/1969 - 01/1970	1
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-10049	FJ55	03/1969 - 12/1969	1
90413-10088	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90413-10083	FJ55	12/1969 - 01/1970	1
90413-10049	FJ55	03/1969 - 12/1969	1
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-10089	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47335-60010	FJ55	03/1969 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47335-60010	FJ55	03/1969 - 09/1971	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-61020	FJ55	03/1969 - 07/1980	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-60010	FJ40,55..LHD	01/1971 - 09/1971	1
47351-60070	FJ55	09/1971 - 11/1973	1
Common parts
90430-10027
90461-04216
90461-10574
90461-10575
90462-10021
91111-40812
91111-41036
91611-40816
91611-40820
91616-40616
94110-40800
94110-41000
94512-00800
94512-01000
94612-10800
96990-10060

(6903-7101)FJ55..LHD ; (6903-7109)FJ55..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60051	FJ55..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47322-60010	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47311-60070	FJ55..LHD FOR W/BOOSTER	03/1969 - 01/1971	1
47311-60110	FJ55..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 01/1975	1
47311-60052	FJ55..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60040	FJ55	03/1969 - 01/1971	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60050	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60030	FJ55	03/1969 - 01/1970	1
47313-60050	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02134	FJ55 FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	2
90947-02073	FJ55	03/1969 - 01/1970	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47314-60081	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47314 - TUBE, FRONT BRAKE, NO.4
47313-60030	FJ55..LHD	03/1969 - 01/1970	1
47314-60081	FJ55..LHD FOR SINGLE MASTER CYLINDER	01/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60080	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316-60060	FJ55	03/1969 - 03/1970	1
47316-60061	FJ55 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02012	FJ55	03/1969 - 05/1969	1
90947-02123	FJ55 FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
90947-02093	FJ55	09/1971 - 09/1974	1
90947-02093	FJ55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02093	FJ55	05/1969 - 10/1969	1
47317 - TUBE, FRONT BRAKE, NO.7
47312-60030	FJ55	03/1969 - 09/1971	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47319-60040	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60020	FJ55 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47335-60010	FJ55	03/1969 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47335-60010	FJ55	03/1969 - 09/1971	1

FJ55LV- (1969)

(6903-7109)FJ55..LHD

(6903-7101)FJ55..LHD ; (6903-7109)FJ55..RHD

(7109-7501)FJ55 ; (7501-7509)FJ55..EUR,GEN

(7101-7109)FJ55..LHD

(6903-7101)FJ55..LHD ; (6903-7109)FJ55..RHD

Part Price Details
