FJ45RV-KCQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ45,FJ45,HJ47..VKC

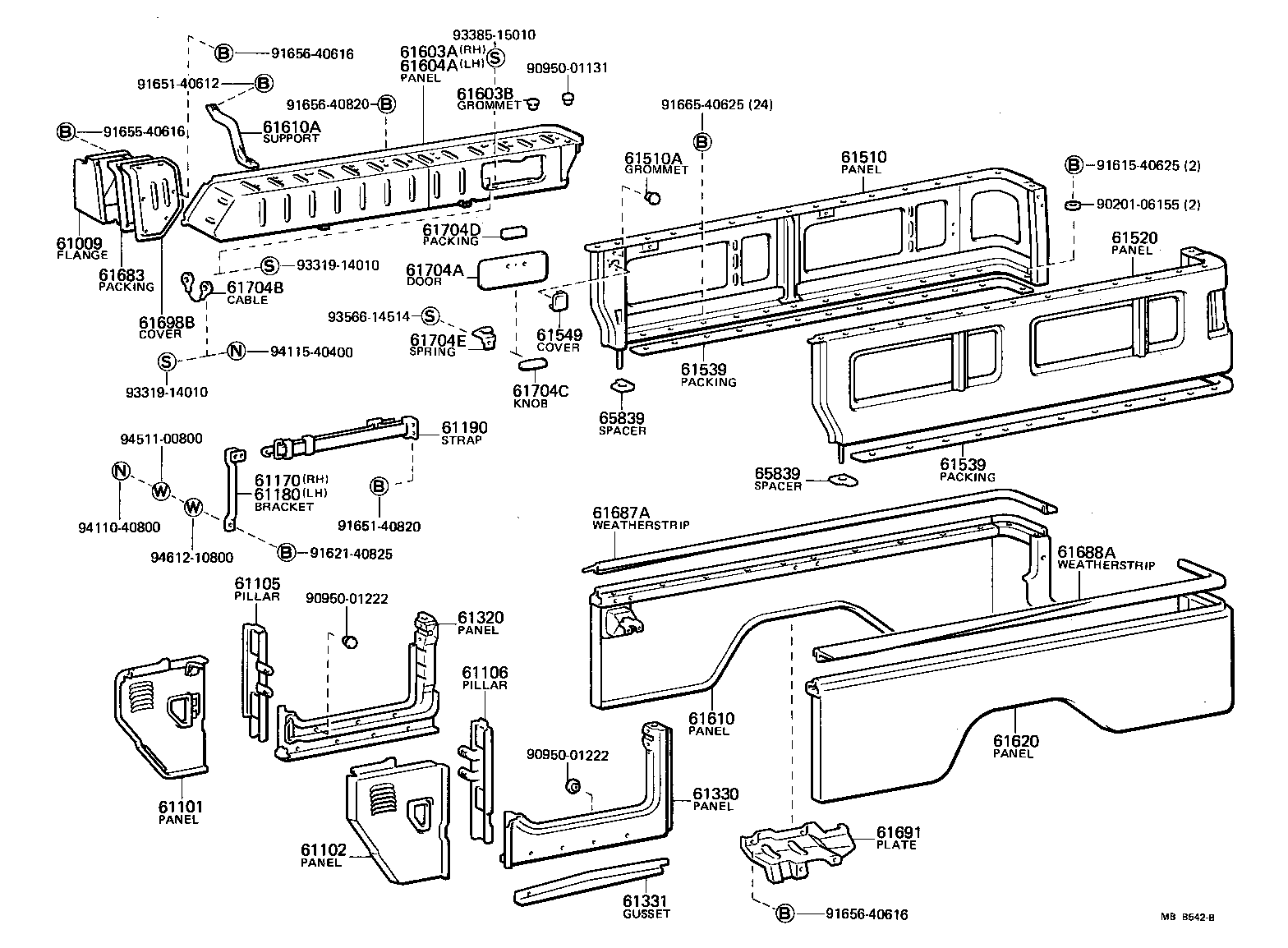

Click highlighted areas on diagram

diagram 61009 61101 61102 61105 61106 61170 61180 61190 61320 61330 61331 61510 61510A 61520 61539 61539 61549 61603A 61603B 61604A 61610 61610A 61620 61683 61687A 61688A 61691 61698B 61704A 61704B 61704C 61704D 61704E 65839 65839 9020106155 9095001131 9095001222 9095001222 9161540625 9162140825 9165140612 9165140820 9165540616 9165640616 9165640616 9165640820 9166540625 9331914010 9331914010 9338515010 9356614514 9411040800 9411540400 9451100800 9461210800
Part # Description Qty Price
61009 - FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET
61009-90300

BJ4#,FJ4#,HJ47..TP,V

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
55007-90301

BJ4#,FJ4#,HJ47..RHD

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
55707-90320

BJ4#,FJ4#..RHD

W/HEATER,ANTENA

 1
55707-90804

BJ42,FJ40,45,HJ47..ARL

W/O ANTENA,SPEAKER

 1
55707-90314

BJ4#,FJ4#..RHD

W/HEATER,W/O ANTENA

 1
55707-90807

BJ4#,FJ4#,HJ47..RHD

W/HEATER,ANTENA,SPEAKER

 1
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106-90309

BJ4#,FJ4#,HJ47..RHD

STEEL DOOR

 1
61106-90800

BJ42,FJ40,45,HJ47..ARL

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61107-90316

BJ4#,FJ4#,HJ47..RHD

STEEL DOOR

 1
61107-90800

BJ42,FJ40,45,HJ47..ARL

 1
61170 - BRACKET ASSY, SAFETY STRAP, RH
61193-90300

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
61180 - BRACKET ASSY, SAFETY STRAP, LH
61193-90300

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
61190 - STRAP ASSY, SAFETY
61190-90300

BJ4#,FJ4#,HJ47

 2
61320 - PANEL, REAR BODY FRONT SIDE, RH
61310-90306

FJ45..(TPS,VKC)..ARL

 1
61330 - PANEL, REAR BODY FRONT SIDE, LH
61320-90307

BJ45,FJ45,HJ47..TP,V

*GIS

 1
61331 - GUSSET, REAR BODY FRONT SIDE, REAR RH
61332-90301

BJ45,FJ45,HJ47..TP,V

LH

 1
61331-90301

BJ45,FJ45,HJ47..TP,V

RH

 1
61510 - PANEL ASSY, REAR UPPER SIDE, RH
61501-90322

BJ45,FJ45,HJ47..RHD..VKC

W/*SIWS

 1
61501-90320

BJ45,FJ45,HJ47..RHD..VKC

W/*ELR,*SWS

 1
61501-90320

BJ45,FJ45,HJ47..VKC

W/*ELR,*SWS

 1
61501-90322

BJ45,FJ45,HJ47..VKC

W/*ELR,*SIWS

 1
61510A - GROMMET, SAFETY BELT ANCHORAGE NUT
90950-01133

BJ45,FJ45,HJ47..VKC

 2
61520 - PANEL ASSY, REAR UPPER SIDE,LH
61502-90321

BJ45,FJ45,HJ47..RHD..VKC

W/*ELR,*SWS

 1
61502-90323

BJ45,FJ45,HJ47..RHD..VKC

W/*ELR,*SIWS

 1
61502-90327

BJ45,FJ45,HJ47..VKC

W/*ELR,*SIWS

 1
61502-90325

BJ45,FJ45,HJ47..VKC

W/*ELR,*SWS

 1
61539 - PACKING, REAR UPPER SIDE PANEL SET
61534-90300

BJ45,FJ45,HJ47..VKC

 2
61539 - PACKING, REAR UPPER SIDE PANEL SET
61534-90300

BJ45,FJ45,HJ47..VKC

 2
61603A - APRON, REAR FENDER, RH
61603-90072

FJ45..RB

 1
61603-90073

BJ45,FJ45,HJ47..VKC

 1
61603B - GROMMET, SEAT BELT ANCHOR
58276-90300

BJ45,FJ45,HJ47..VKC

 10
61604A - APRON, REAR FENDER, LH
61604-90072

FJ45..RB

 1
61604-90073

BJ45,FJ45,HJ47..VKC

 1
61610 - PANEL ASSY, REAR BODY SIDE, RH
61601-90843

BJ45,FJ45,HJ47..VKC..(ARL,GEN)

 1
61610A - SUPPORT, REAR SIDE PANEL
61665-90301

BJ45,FJ45,HJ47..TP,V

 2
61620 - PANEL ASSY, REAR BODY SIDE, LH
61602-90809

BJ45,FJ45,HJ47..VKC..(ARL,GEN)

 1
61602-90843

BJ45,FJ45,HJ47..VKC..(ARL,GEN)

W/AUXILIARY FUEL TANK

 1
61683 - PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER
61683-90300

BJ4#,FJ4#,HJ47..TP,V

 1
61687A - WEATHERSTRIP, REAR BODY REAR SIDE, RH
61687-90308

BJ45,FJ45,HJ47..VKC

 1
61688A - WEATHERSTRIP, REAR BODY REAR SIDE, LH
61688-90308

BJ45,FJ45,HJ47..VKC

 1
61691 - PLATE, REAR FENDER UNDER GUARD
61691-90300

BJ4#,FJ4#,HJ47..TP,V

 1
61698B - COVER, REAR BODY SIDE SERVICE HOLE
61698-90300

BJ4#,FJ4#,HJ47..TP,V

 1
61704A - DOOR SUB-ASSY, TOOL BOX
61704-90302

BJ45,FJ45,HJ47..TP,V

 1
61704B - CABLE SUB-ASSY(FOR TOOL BOX DOOR)
55508-30020

BJ45,FJ45,HJ47..TP,V

 1
61704C - KNOB(FOR TOOL BOX DOOR)
55521-90300

BJ45,FJ45,HJ47..TP,V

 1
61704D - PACKING(FOR TOOL BOX DOOR)
61739-90300

BJ45,FJ45,HJ47..TP,V

 1
61704E - SPRING(FOR TOOL BOX DOOR)
55544-90301

BJ45,FJ45,HJ47..TP,V

 1
65839 - SPACER, FRONT SIDE PANEL PILLAR
65839-90300

BJ40,42,45,FJ40,45,HJ47..V

 2
65839 - SPACER, FRONT SIDE PANEL PILLAR
65839-90300

BJ40,42,45,FJ40,45,HJ47..V

 2
Common parts
90201-06155
90950-01131
90950-01222
91615-40625
91621-40825
91651-40612
91651-40820
91655-40616
91656-40616
91656-40820
91665-40625
93319-14010
93385-15010
93566-14514
94110-40800
94115-40400
94511-00800
94612-10800
