FJ45RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

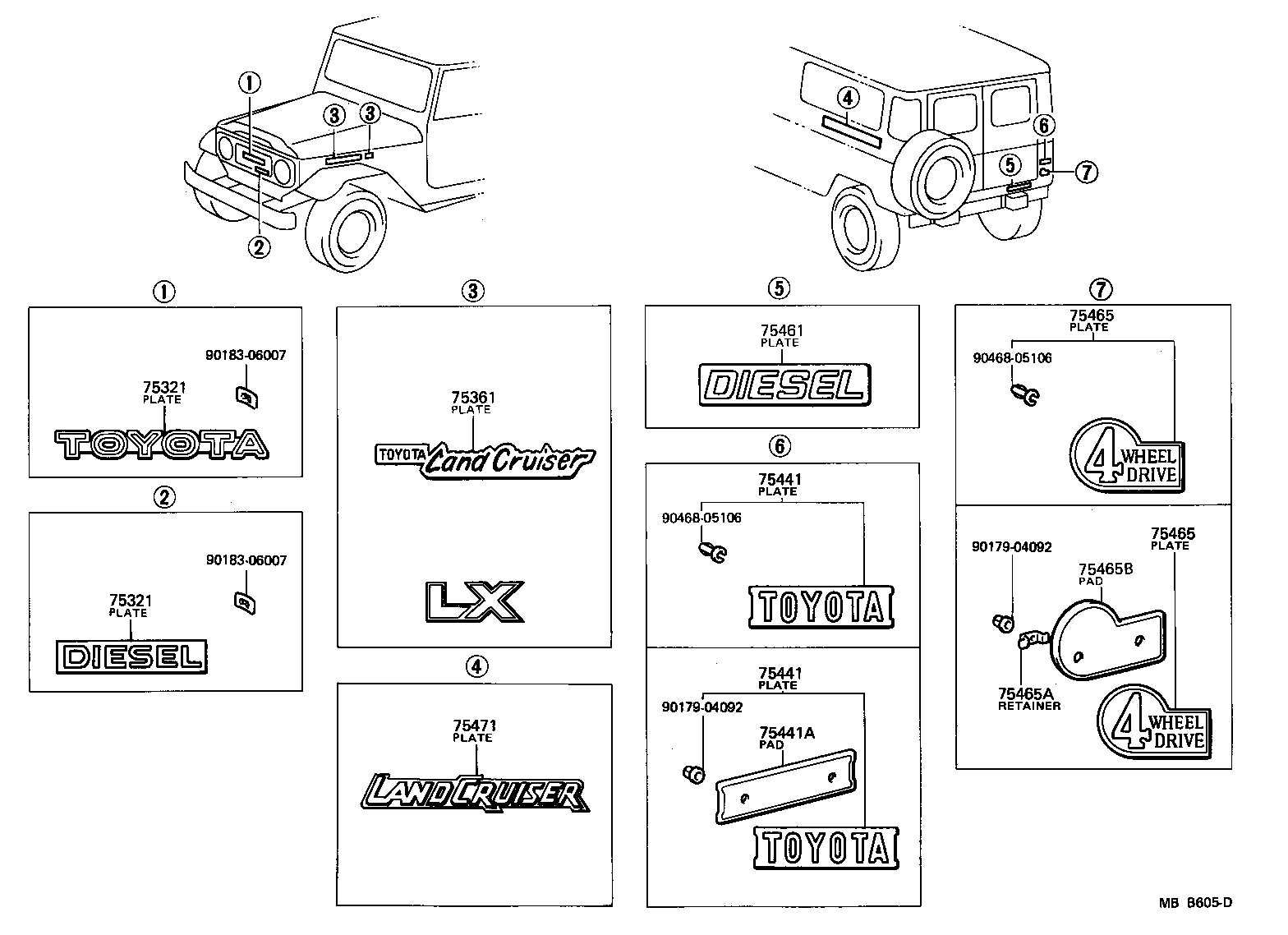

Click highlighted areas on diagram

diagram 75321 75321 75361 75441 75441 75441A 75461 75465 75465 75465A 75465B 75471 9017904092 9017904092 9018306007 9018306007 9046805106 9046805106
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-90301

BJ4#,FJ4#,HJ47

TOYOTA,TOYOTA

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-90301

BJ4#,FJ4#,HJ47

TOYOTA,TOYOTA

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75343-90301

BJ4#,FJ4#,HJ47..3F,4F

TOYOTA LAND CRUISER,TOYOTA LAND CRUISER

 2
75441 - PLATE, REAR NAME, NO.1
75451-90300

BJ4#,FJ4#,HJ47..(TP,V)..(ARL,GEN)

TOYOTA,TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75451-90300

BJ4#,FJ4#,HJ47..(TP,V)..(ARL,GEN)

TOYOTA,TOYOTA

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75453-90300

BJ4#,FJ4#,HJ47..(TP,V)..(ARL,GEN)

4 WHEEL DRIVE,4 WHEEL DRIVE

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75453-90300

BJ4#,FJ4#,HJ47..(TP,V)..(ARL,GEN)

4 WHEEL DRIVE,4 WHEEL DRIVE

 1
Common parts
90179-04092
90183-06007
90468-05106
