FJ45RV-KC (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

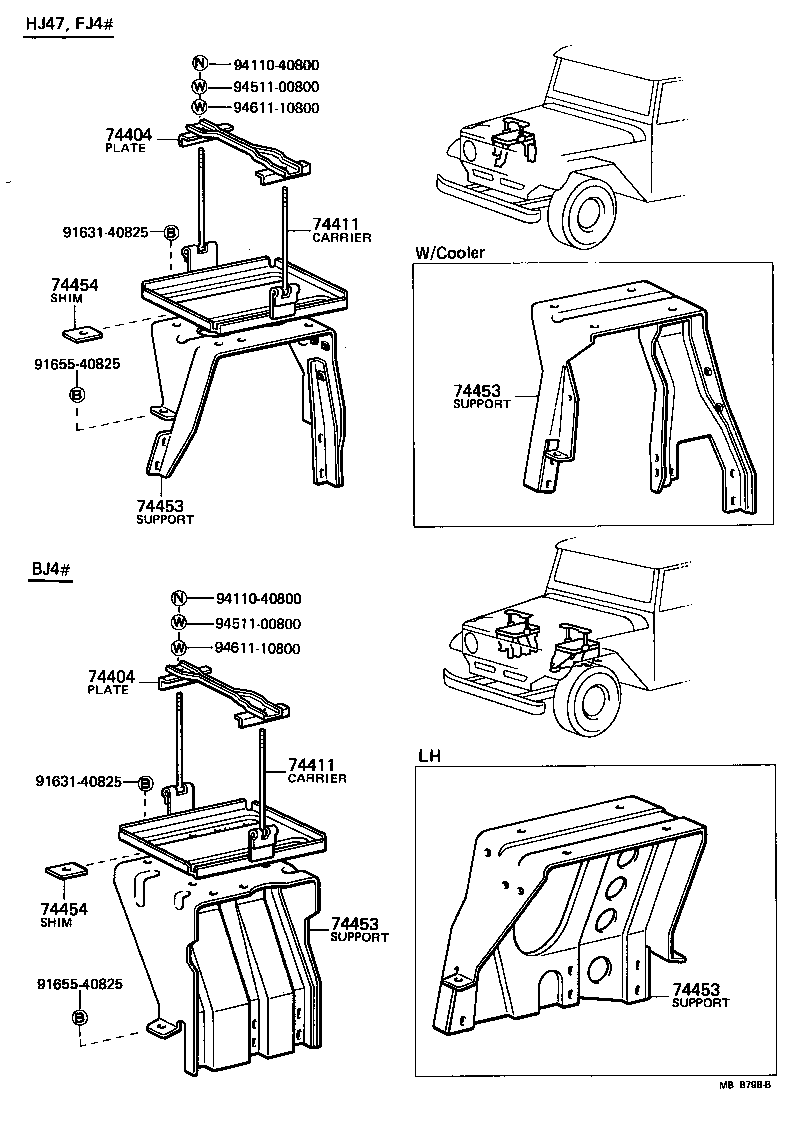

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404 - PLATE SUB-ASSY, BATTERY SET | ||||
| 74404-60060 |
FJ4#,HJ47 |
1 | ||
| 74404 - PLATE SUB-ASSY, BATTERY SET | ||||
| 74404-60060 |
FJ4#,HJ47 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74403-60050 |
FJ4#,HJ47 N70Z,N70ZL |
1 | ||
| 74403-60011 |
FJ4# N50,N50L |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74403-60050 |
FJ4#,HJ47 N70Z,N70ZL |
1 | ||
| 74403-60011 |
FJ4# N50,N50L |
1 | ||
| 74453 - SUPPORT, BATTERY CARRIER | ||||
| 74401-60051 |
FJ40,45..RHD..(PIC,V) W/COOLER |
1 | ||
| 74401-60022 |
FJ4#,HJ47 |
1 | ||
| 74453 - SUPPORT, BATTERY CARRIER | ||||
| 74401-60051 |
FJ40,45..RHD..(PIC,V) W/COOLER |
1 | ||
| 74401-60022 |
FJ4#,HJ47 |
1 | ||
| 74453 - SUPPORT, BATTERY CARRIER | ||||
| 74401-60051 |
FJ40,45..RHD..(PIC,V) W/COOLER |
1 | ||
| 74401-60022 |
FJ4#,HJ47 |
1 | ||
| 74453 - SUPPORT, BATTERY CARRIER | ||||
| 74401-60051 |
FJ40,45..RHD..(PIC,V) W/COOLER |
1 | ||
| 74401-60022 |
FJ4#,HJ47 |
1 | ||
| 74454 - SHIM (FOR BATTERY CARRIER SUPPORT) | ||||
| 52321-55010 |
BJ4#,FJ4#,HJ47 |
8 | ||
| 74454 - SHIM (FOR BATTERY CARRIER SUPPORT) | ||||
| 52321-55010 |
BJ4#,FJ4#,HJ47 |
8 | ||
| Common parts | ||||
| 91631-40825 | ||||
| 91655-40825 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
