FJ45RP-U3 (1975)
Toyota Land Cruiser

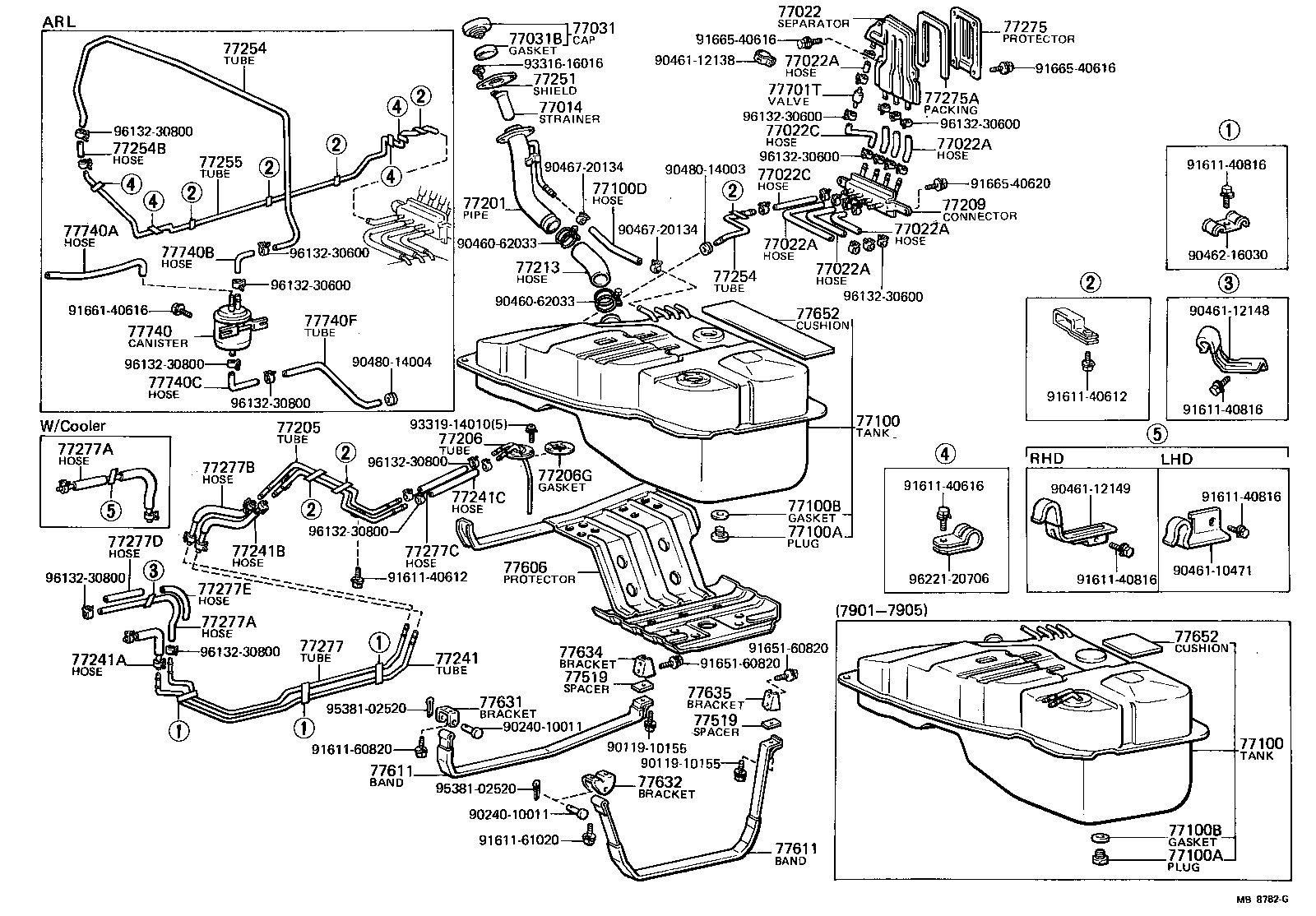

(7901-8007)FJ45..PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77014 - STRAINER SUB-ASSY, FUEL | ||||
| 77014-60010 |
FJ4#,55 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77193-60012 |
BJ4#,FJ4# |
1 | ||
| 77193-60012 |
FJ45..ARL..CBU;BJ4#,FJ4#..TP,V |
1 | ||
| 77193-60013 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
BJ4#,FJ4#..TP,V L=50 |
1 | ||
| 95332-06005 |
BJ4#,FJ4# L=50 |
1 | ||
| 95332-06010 |
HJ45;FJ45..PIC L=100 |
1 | ||
| 95332-06036 |
BJ4#,FJ4#..TP,V L=360 |
1 | ||
| 95331-06005 |
BJ4#,FJ4# L=50 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC L=200 |
1 | ||
| 95332-06040 |
BJ4#,FJ4#..TP,V H,L=360 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
BJ4#,FJ4#..TP,V L=50 |
1 | ||
| 95332-06005 |
BJ4#,FJ4# L=50 |
1 | ||
| 95332-06010 |
HJ45;FJ45..PIC L=100 |
1 | ||
| 95332-06036 |
BJ4#,FJ4#..TP,V L=360 |
1 | ||
| 95331-06005 |
BJ4#,FJ4# L=50 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC L=200 |
1 | ||
| 95332-06040 |
BJ4#,FJ4#..TP,V H,L=360 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-60011 |
FJ45 L/VALVE,W/KEY |
1 | ||
| 77310-60041 |
FJ4# L/VALVE,W/KEY |
1 | ||
| 77310-60011 |
FJ45..PIC L/VALVE,L/KEY |
1 | ||
| 77310-60010 |
FJ4#,55 L/VALVE,L/KEY |
1 | ||
| 77310-60011 |
FJ43;FJ40,45,55..GEN L/VALVE,L/KEY |
1 | ||
| 77310-14070 |
FJ4#,55 W/VALVE,L/KEY |
1 | ||
| 77031-60011 |
FJ45,HJ45..PIC L/VALVE,W/KEY |
1 | ||
| 77031-26023 |
FJ45,HJ45..PIC W/VALVE,W/KEY |
1 | ||
| 77310-60051 |
FJ45..PIC W/VALVE,L/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 90430-40059 |
FJ4#,55 |
1 | ||
| 77316-12050 |
FJ4#,55 |
1 | ||
| 77316-27010 |
FJ45..PIC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-90333 |
FJ45 |
1 | ||
| 77100-60060 |
FJ45..PIC |
1 | ||
| 77100-60043 |
FJ4#..TP,V |
1 | ||
| 77100-60045 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100-60070 |
FJ45..PIC |
1 | ||
| 77100-60044 |
FJ4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-90333 |
FJ45 |
1 | ||
| 77100-60060 |
FJ45..PIC |
1 | ||
| 77100-60043 |
FJ4#..TP,V |
1 | ||
| 77100-60045 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100-60070 |
FJ45..PIC |
1 | ||
| 77100-60044 |
FJ4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 90105-12005 |
FJ4#,55 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 90105-12005 |
FJ4#,55 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FJ4#,55 |
1 | ||
| 90430-12038 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90430-24047 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FJ4#,55 |
1 | ||
| 90430-12038 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90430-24047 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ4#,FJ4#..TP,V L=200 |
1 | ||
| 77221-90332 |
FJ45 |
1 | ||
| 90445-22014 |
FJ45,HJ45..PIC |
1 | ||
| 90445-22913 |
HJ45;FJ45..PIC L=300 |
1 | ||
| 90445-22016 |
BJ4#,FJ4#..TP,V L=220 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-90333 |
FJ45 W/STRAINER |
1 | ||
| 77201-90332 |
FJ45 |
1 | ||
| 77201-60080 |
FJ45,HJ45..PIC W/STRAINER |
1 | ||
| 77201-60051 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77201-60070 |
FJ45,HJ45..PIC |
1 | ||
| 77201-60060 |
BJ4#,FJ4#..TP,V W/STRAINER |
1 | ||
| 77201-60061 |
BJ4#,FJ4#..TP,V W/STRAINER |
1 | ||
| 77201-60072 |
HJ45;FJ45..PIC |
1 | ||
| 77201-60082 |
HJ45;FJ45..PIC W/STRAINER |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60030 |
FJ4# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60020 |
FJ4# |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60020 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77209-60030 |
HJ45;FJ45..PIC |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-90332 |
FJ45 |
1 | ||
| 77217-60015 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77217-60022 |
HJ45;FJ45..PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60050 |
FJ4#..TP,V |
1 | ||
| 90923-01042 |
FJ4# |
1 | ||
| 77251-60080 |
FJ45,HJ45..PIC |
1 | ||
| 77251-60080 |
FJ45,HJ45 |
1 | ||
| 77251-60160 |
FJ45 |
1 | ||
| 77251-60100 |
FJ45,HJ45 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08015 |
FJ4# *H,L=150,ID=7.6 |
1 | ||
| 77260-60011 |
FJ4# |
1 | ||
| 77259-60040 |
FJ4# |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77260-60030 |
FJ4#,HJ45 |
1 | ||
| 95331-08032 |
FJ45,HJ45 *H,L=320 |
1 | ||
| 95332-08032 |
FJ45,HJ45 *H,L=320,ID=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
FJ4#,HJ45 *H,L=170,ID=7.6 |
1 | ||
| 95332-08017 |
FJ4#,HJ45 *H,L=170,ID=7.6 |
1 | ||
| 90445-25011 |
FJ4# L=60 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60010 |
FJ4#,HJ45 |
1 | ||
| 77293-60030 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77244-60030 |
FJ4#..(TP,V)..(EUR,GEN) |
1 | ||
| 77246-60032 |
FJ4#..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
FJ45,HJ45..PIC..(EUR,GEN) |
1 | ||
| 77261-60021 |
FJ45,HJ45..PIC |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77244-60030 |
FJ4#..(TP,V)..(EUR,GEN) |
1 | ||
| 77246-60032 |
FJ4#..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
FJ45,HJ45..PIC..(EUR,GEN) |
1 | ||
| 77261-60021 |
FJ45,HJ45..PIC |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 64197-90300 |
FJ45,HJ45..PIC |
1 | ||
| 77194-60021 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77275A - PACKING, FUEL EVAPORATIVE SEPARATOR | ||||
| 64198-90300 |
FJ45,HJ45..PIC |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77252-60020 |
FJ4#..TP,V |
1 | ||
| 77255-60020 |
FJ45..PIC |
1 | ||
| 77255-60020 |
FJ45 |
1 | ||
| 77255-60021 |
FJ45 |
1 | ||
| 77255-60090 |
FJ45 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08044 |
FJ4# *H,L=440,ID=7.6 |
1 | ||
| 95332-08055 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95332-08060 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95331-08044 |
FJ4# *H,L=440 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08044 |
FJ4# *H,L=440,ID=7.6 |
1 | ||
| 95332-08055 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95332-08060 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95331-08044 |
FJ4# *H,L=440 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95331-08075 |
FJ4# *H,L=750 |
1 | ||
| 95332-08080 |
FJ45 *H,L=800,ID=7.6 |
1 | ||
| 77260-60030 |
FJ4# |
1 | ||
| 77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
FJ4# *H,L=170,ID=7.6 |
1 | ||
| 95332-08017 |
FJ4# *H,L=170,ID=7.6 |
1 | ||
| 90445-25012 |
FJ4# L=110 |
1 | ||
| 77277D - HOSE, FUEL, NO.4 (FOR RETURN TUBE, NO.1) | ||||
| 90445-25012 |
FJ4# L=110 |
1 | ||
| 90445-25008 |
FJ4# L=340 |
1 | ||
| 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) | ||||
| 90445-25008 |
FJ4# L=340 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60010 |
BJ4#,FJ4#,HJ45 T=1.0 |
1 | ||
| 77519-60020 |
BJ4#,FJ4#,HJ45 T=4.5 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60010 |
BJ4#,FJ4#,HJ45 T=1.0 |
1 | ||
| 77519-60020 |
BJ4#,FJ4#,HJ45 T=4.5 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60051 |
FJ45,HJ45..PIC RH. |
1 | ||
| 77601-90902 |
FJ45,HJ45 |
2 | ||
| 77602-60021 |
BJ4#,FJ4#..TP,V LH. |
1 | ||
| 77610-90300 |
FJ45,HJ45..PIC |
2 | ||
| 77601-60041 |
BJ4#,FJ4#..TP,V RH. |
1 | ||
| 77602-60031 |
FJ45,HJ45..PIC LH. |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60051 |
FJ45,HJ45..PIC RH. |
1 | ||
| 77601-90902 |
FJ45,HJ45 |
2 | ||
| 77602-60021 |
BJ4#,FJ4#..TP,V LH. |
1 | ||
| 77610-90300 |
FJ45,HJ45..PIC |
2 | ||
| 77601-60041 |
BJ4#,FJ4#..TP,V RH. |
1 | ||
| 77602-60031 |
FJ45,HJ45..PIC LH. |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60030 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77634 - BRACKET, FUEL TANK BAND, NO.4 | ||||
| 77616-60030 |
FJ45,HJ45..PIC |
1 | ||
| 77635 - BRACKET, FUEL TANK BAND, NO.5 | ||||
| 77617-60020 |
FJ45,HJ45..PIC |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60030 |
BJ4#,FJ4#,HJ45 |
5 | ||
| 77652-60010 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 77652-60011 |
BJ4#,FJ4#,HJ45 230X80 |
2 | ||
| 77654-60010 |
BJ4#,FJ4#,HJ45 100X100 |
4 | ||
| 77651-60020 |
BJ4#,FJ4#,HJ45 750X100 |
1 | ||
| 77653-60010 |
BJ4#,FJ4#,HJ45 350X80 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60030 |
BJ4#,FJ4#,HJ45 |
5 | ||
| 77652-60010 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 77652-60011 |
BJ4#,FJ4#,HJ45 230X80 |
2 | ||
| 77654-60010 |
BJ4#,FJ4#,HJ45 100X100 |
4 | ||
| 77651-60020 |
BJ4#,FJ4#,HJ45 750X100 |
1 | ||
| 77653-60010 |
BJ4#,FJ4#,HJ45 350X80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90917-10020 |
BJ4#,FJ4#,55 |
1 | ||
| Common parts | ||||
| 90119-10155 | ||||
| 90240-10011 | ||||
| 90460-62033 | ||||
| 90461-10471 | ||||
| 90461-12138 | ||||
| 90461-12148 | ||||
| 90461-12149 | ||||
| 90462-16030 | ||||
| 90467-20134 | ||||
| 90480-14003 | ||||
| 90480-14004 | ||||
| 91611-40612 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 91661-40616 | ||||
| 91665-40616 | ||||
| 91665-40620 | ||||
| 93316-16016 | ||||
| 93319-14010 | ||||
| 95381-02520 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20706 | ||||
(7901-8007)BJ4#,FJ4#..TP,V..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77014 - STRAINER SUB-ASSY, FUEL | ||||
| 77014-60010 |
FJ4#,55 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77193-60012 |
BJ4#,FJ4# |
1 | ||
| 77193-60012 |
FJ45..ARL..CBU;BJ4#,FJ4#..TP,V |
1 | ||
| 77193-60013 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95331-08020 |
FJ45..PIC *H,L=200 |
3 | ||
| 95331-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95332-06038 |
BJ4#,FJ4#..TP,V *H,L=380 |
1 | ||
| 95331-08030 |
BJ4#,FJ4#..TP,V *H,L=300 |
3 | ||
| 95332-06007 |
BJ4#,FJ4#..TP,V *H,L=70 |
3 | ||
| 95332-08030 |
BJ4#,FJ4#..TP,V *H,L=300,ID=7.6 |
3 | ||
| 95332-08020 |
FJ45..PIC *H,L=200,ID=7.6 |
3 | ||
| 95332-06026 |
FJ45,HJ45..PIC *H,L=260 |
1 | ||
| 95332-06022 |
FJ45,HJ45..PIC *H,L=220 |
1 | ||
| 95332-06015 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06030 |
FJ45..PIC *H,L=300 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=120 |
3 | ||
| 95332-06020 |
HJ45;FJ45..PIC *H,L=200 |
1 | ||
| 95332-06012 |
FJ45,HJ45..PIC *H,L=120 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06020 |
BJ4#,FJ4#..TP,V *H,L=150 |
3 | ||
| 95332-06010 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06008 |
BJ4#,FJ4#..TP,V *H,L=80 |
3 | ||
| 95332-06006 |
BJ4#,FJ4#,HJ45 *H,L=60 |
1 | ||
| 95332-06030 |
HJ45;FJ45..PIC *H,L=220 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06005 |
BJ4#,FJ4#..TP,V L=50 |
1 | ||
| 95332-06005 |
BJ4#,FJ4# L=50 |
1 | ||
| 95332-06010 |
HJ45;FJ45..PIC L=100 |
1 | ||
| 95332-06036 |
BJ4#,FJ4#..TP,V L=360 |
1 | ||
| 95331-06005 |
BJ4#,FJ4# L=50 |
1 | ||
| 95332-06020 |
HJ45;FJ45..PIC L=200 |
1 | ||
| 95332-06040 |
BJ4#,FJ4#..TP,V H,L=360 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77031-60011 |
FJ45 L/VALVE,W/KEY |
1 | ||
| 77310-60041 |
FJ4# L/VALVE,W/KEY |
1 | ||
| 77310-60011 |
FJ45..PIC L/VALVE,L/KEY |
1 | ||
| 77310-60010 |
FJ4#,55 L/VALVE,L/KEY |
1 | ||
| 77310-60011 |
FJ43;FJ40,45,55..GEN L/VALVE,L/KEY |
1 | ||
| 77310-14070 |
FJ4#,55 W/VALVE,L/KEY |
1 | ||
| 77031-60011 |
FJ45,HJ45..PIC L/VALVE,W/KEY |
1 | ||
| 77031-26023 |
FJ45,HJ45..PIC W/VALVE,W/KEY |
1 | ||
| 77310-60051 |
FJ45..PIC W/VALVE,L/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 90430-40059 |
FJ4#,55 |
1 | ||
| 77316-12050 |
FJ4#,55 |
1 | ||
| 77316-27010 |
FJ45..PIC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-90333 |
FJ45 |
1 | ||
| 77100-60060 |
FJ45..PIC |
1 | ||
| 77100-60043 |
FJ4#..TP,V |
1 | ||
| 77100-60045 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100-60070 |
FJ45..PIC |
1 | ||
| 77100-60044 |
FJ4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-90333 |
FJ45 |
1 | ||
| 77100-60060 |
FJ45..PIC |
1 | ||
| 77100-60043 |
FJ4#..TP,V |
1 | ||
| 77100-60045 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100-60070 |
FJ45..PIC |
1 | ||
| 77100-60044 |
FJ4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 90105-12005 |
FJ4#,55 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 90105-12005 |
FJ4#,55 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FJ4#,55 |
1 | ||
| 90430-12038 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90430-24047 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FJ4#,55 |
1 | ||
| 90430-12038 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90430-24047 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ4#,FJ4#..TP,V L=200 |
1 | ||
| 77221-90332 |
FJ45 |
1 | ||
| 90445-22014 |
FJ45,HJ45..PIC |
1 | ||
| 90445-22913 |
HJ45;FJ45..PIC L=300 |
1 | ||
| 90445-22016 |
BJ4#,FJ4#..TP,V L=220 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-90333 |
FJ45 W/STRAINER |
1 | ||
| 77201-90332 |
FJ45 |
1 | ||
| 77201-60080 |
FJ45,HJ45..PIC W/STRAINER |
1 | ||
| 77201-60051 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77201-60070 |
FJ45,HJ45..PIC |
1 | ||
| 77201-60060 |
BJ4#,FJ4#..TP,V W/STRAINER |
1 | ||
| 77201-60061 |
BJ4#,FJ4#..TP,V W/STRAINER |
1 | ||
| 77201-60072 |
HJ45;FJ45..PIC |
1 | ||
| 77201-60082 |
HJ45;FJ45..PIC W/STRAINER |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60030 |
FJ4# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60020 |
FJ4# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-60020 |
FJ4# |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60020 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77209-60030 |
HJ45;FJ45..PIC |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-90332 |
FJ45 |
1 | ||
| 77217-60015 |
BJ4#,FJ4#..TP,V |
1 | ||
| 77217-60022 |
HJ45;FJ45..PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60050 |
FJ4#..TP,V |
1 | ||
| 90923-01042 |
FJ4# |
1 | ||
| 77251-60080 |
FJ45,HJ45..PIC |
1 | ||
| 77251-60080 |
FJ45,HJ45 |
1 | ||
| 77251-60160 |
FJ45 |
1 | ||
| 77251-60100 |
FJ45,HJ45 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60050 |
FJ4#..TP,V |
1 | ||
| 90923-01042 |
FJ4# |
1 | ||
| 77251-60080 |
FJ45,HJ45..PIC |
1 | ||
| 77251-60080 |
FJ45,HJ45 |
1 | ||
| 77251-60160 |
FJ45 |
1 | ||
| 77251-60100 |
FJ45,HJ45 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08015 |
FJ4# *H,L=150,ID=7.6 |
1 | ||
| 77260-60011 |
FJ4# |
1 | ||
| 77259-60040 |
FJ4# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08015 |
FJ4# *H,L=150,ID=7.6 |
1 | ||
| 77260-60011 |
FJ4# |
1 | ||
| 77259-60040 |
FJ4# |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77260-60030 |
FJ4#,HJ45 |
1 | ||
| 95331-08032 |
FJ45,HJ45 *H,L=320 |
1 | ||
| 95332-08032 |
FJ45,HJ45 *H,L=320,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77260-60030 |
FJ4#,HJ45 |
1 | ||
| 95331-08032 |
FJ45,HJ45 *H,L=320 |
1 | ||
| 95332-08032 |
FJ45,HJ45 *H,L=320,ID=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
FJ4#,HJ45 *H,L=170,ID=7.6 |
1 | ||
| 95332-08017 |
FJ4#,HJ45 *H,L=170,ID=7.6 |
1 | ||
| 90445-25011 |
FJ4# L=60 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60010 |
FJ4#,HJ45 |
1 | ||
| 77293-60030 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77244-60030 |
FJ4#..(TP,V)..(EUR,GEN) |
1 | ||
| 77246-60032 |
FJ4#..(TP,V)..(EUR,GEN) |
1 | ||
| 77244-60060 |
FJ45,HJ45..PIC..(EUR,GEN) |
1 | ||
| 77261-60021 |
FJ45,HJ45..PIC |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77252-60020 |
FJ4#..TP,V |
1 | ||
| 77255-60020 |
FJ45..PIC |
1 | ||
| 77255-60020 |
FJ45 |
1 | ||
| 77255-60021 |
FJ45 |
1 | ||
| 77255-60090 |
FJ45 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08044 |
FJ4# *H,L=440,ID=7.6 |
1 | ||
| 95332-08055 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95332-08060 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95331-08044 |
FJ4# *H,L=440 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08044 |
FJ4# *H,L=440,ID=7.6 |
1 | ||
| 95332-08055 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95332-08060 |
FJ4# *H,L=550,ID=7.6 |
1 | ||
| 95331-08044 |
FJ4# *H,L=440 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95331-08075 |
FJ4# *H,L=750 |
1 | ||
| 95332-08080 |
FJ45 *H,L=800,ID=7.6 |
1 | ||
| 77260-60030 |
FJ4# |
1 | ||
| 77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
FJ4# *H,L=170,ID=7.6 |
1 | ||
| 95332-08017 |
FJ4# *H,L=170,ID=7.6 |
1 | ||
| 90445-25012 |
FJ4# L=110 |
1 | ||
| 77277D - HOSE, FUEL, NO.4 (FOR RETURN TUBE, NO.1) | ||||
| 90445-25012 |
FJ4# L=110 |
1 | ||
| 90445-25008 |
FJ4# L=340 |
1 | ||
| 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) | ||||
| 90445-25008 |
FJ4# L=340 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 61802-90301 |
BJ4#,FJ4#..TP,V |
1 | ||
| 61802-90302 |
BJ4#,FJ4#,HJ45..TP,V |
1 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 61824-90301 |
BJ4#,FJ4#..TP,V |
1 | ||
| 61824-90302 |
BJ4#,FJ4#,HJ45..TP,V |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60010 |
BJ4#,FJ4#,HJ45 T=1.0 |
1 | ||
| 77519-60020 |
BJ4#,FJ4#,HJ45 T=4.5 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60010 |
BJ4#,FJ4#,HJ45 T=1.0 |
1 | ||
| 77519-60020 |
BJ4#,FJ4#,HJ45 T=4.5 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60051 |
FJ45,HJ45..PIC RH. |
1 | ||
| 77601-90902 |
FJ45,HJ45 |
2 | ||
| 77602-60021 |
BJ4#,FJ4#..TP,V LH. |
1 | ||
| 77610-90300 |
FJ45,HJ45..PIC |
2 | ||
| 77601-60041 |
BJ4#,FJ4#..TP,V RH. |
1 | ||
| 77602-60031 |
FJ45,HJ45..PIC LH. |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60051 |
FJ45,HJ45..PIC RH. |
1 | ||
| 77601-90902 |
FJ45,HJ45 |
2 | ||
| 77602-60021 |
BJ4#,FJ4#..TP,V LH. |
1 | ||
| 77610-90300 |
FJ45,HJ45..PIC |
2 | ||
| 77601-60041 |
BJ4#,FJ4#..TP,V RH. |
1 | ||
| 77602-60031 |
FJ45,HJ45..PIC LH. |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60030 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60030 |
BJ4#,FJ4#,HJ45 |
5 | ||
| 77652-60010 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 77652-60011 |
BJ4#,FJ4#,HJ45 230X80 |
2 | ||
| 77654-60010 |
BJ4#,FJ4#,HJ45 100X100 |
4 | ||
| 77651-60020 |
BJ4#,FJ4#,HJ45 750X100 |
1 | ||
| 77653-60010 |
BJ4#,FJ4#,HJ45 350X80 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60030 |
BJ4#,FJ4#,HJ45 |
5 | ||
| 77652-60010 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 77652-60011 |
BJ4#,FJ4#,HJ45 230X80 |
2 | ||
| 77654-60010 |
BJ4#,FJ4#,HJ45 100X100 |
4 | ||
| 77651-60020 |
BJ4#,FJ4#,HJ45 750X100 |
1 | ||
| 77653-60010 |
BJ4#,FJ4#,HJ45 350X80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 90917-10020 |
BJ4#,FJ4#,55 |
1 | ||
| Common parts | ||||
| 90119-10153 | ||||
| 90119-10155 | ||||
| 90240-10011 | ||||
| 90460-62033 | ||||
| 90461-08057 | ||||
| 90461-08422 | ||||
| 90461-10471 | ||||
| 90461-10498 | ||||
| 90461-12138 | ||||
| 90461-12148 | ||||
| 90461-12149 | ||||
| 90461-16052 | ||||
| 90462-16030 | ||||
| 90467-20134 | ||||
| 90480-14003 | ||||
| 90541-03078 | ||||
| 91611-40612 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91656-40616 | ||||
| 91665-40620 | ||||
| 93315-15012 | ||||
| 93316-16016 | ||||
| 93319-14010 | ||||
| 95381-02520 | ||||
| 96132-30060 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20706 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
