Toyota Land cruiser FJ45 WATER PUMP

FJ45R-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008- )2F..GEN

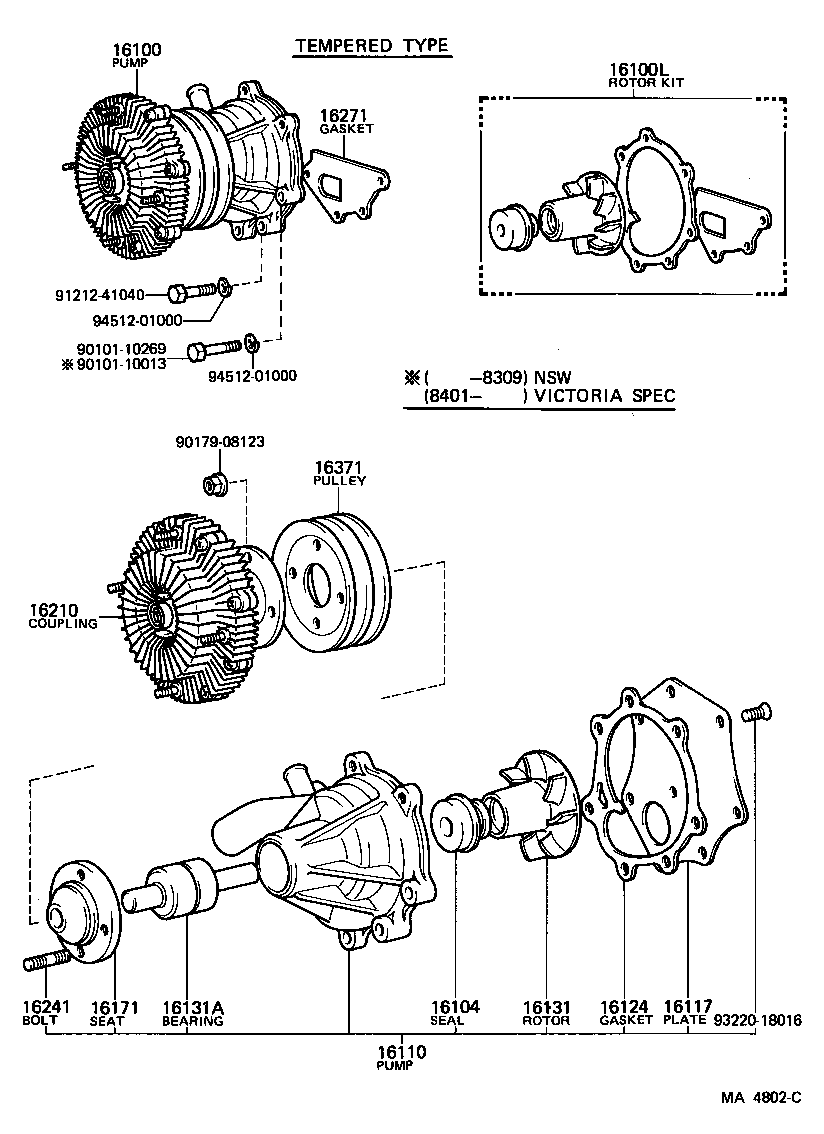

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-61012	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16100-61041	2F..FJ4#..GEN W/OIL COOLER	08/1980 - 04/1986	1
16100-61140	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16100-61150	2F..FJ4#..GEN CAST IRON BODY,W/OIL COOLER	08/1980 - 04/1986	1
16100 - PUMP ASSY, ENGINE WATER
16100-61012	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16100-61041	2F..FJ4#..GEN W/OIL COOLER	08/1980 - 04/1986	1
16100-61140	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16100-61150	2F..FJ4#..GEN CAST IRON BODY,W/OIL COOLER	08/1980 - 04/1986	1
16100 - PUMP ASSY, ENGINE WATER
16100-61012	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16100-61041	2F..FJ4#..GEN W/OIL COOLER	08/1980 - 04/1986	1
16100-61140	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16100-61150	2F..FJ4#..GEN CAST IRON BODY,W/OIL COOLER	08/1980 - 04/1986	1
16104 - SEAL SET, WATER PUMP
16104-41111	2F..FJ4#..3F,4F	08/1980 - 10/1981	1
16117 - PLATE, WATER PUMP
16117-61012	2F..FJ4#	08/1980 - 04/1986	1
16124 - GASKET, WATER PUMP COVER
16124-61012	2F..FJ4#	08/1980 - 04/1986	1
16131 - ROTOR, WATER PUMP
16131-61011	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16131A - BEARING, WATER PUMP
90369-30028	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
90369-30035	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-60010	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16171 - SEAT, WATER PUMP PULLEY
16171-56010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16271 - GASKET, WATER PUMP
16271-60011	2F..FJ4#	08/1980 - 04/1986	1
16371 - PULLEY, FAN
16371-61010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16371-60090	2F..FJ4#..ARL,GEN DIRECT,W/POWER STEERING	08/1980 - 04/1986	1
16371 - PULLEY, FAN
16371-61010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16371-60090	2F..FJ4#..ARL,GEN DIRECT,W/POWER STEERING	08/1980 - 04/1986	1
Common parts
90101-10133
90101-10269
91212-41040
91612-61040
93220-18016
94512-01000

(8008- )2F

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-61012	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16100-61041	2F..FJ4#..GEN W/OIL COOLER	08/1980 - 04/1986	1
16100-61140	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16100-61150	2F..FJ4#..GEN CAST IRON BODY,W/OIL COOLER	08/1980 - 04/1986	1
16100L - ROTOR KIT, WATER PUMP
04162-61011	2F..FJ4#..ARL,GEN DIRECT,CAST IRON BODY	08/1980 - 04/1986	1
16104 - SEAL SET, WATER PUMP
16104-41111	2F..FJ4#..3F,4F	08/1980 - 10/1981	1
16117 - PLATE, WATER PUMP
16117-61012	2F..FJ4#	08/1980 - 04/1986	1
16124 - GASKET, WATER PUMP COVER
16124-61012	2F..FJ4#	08/1980 - 04/1986	1
16131 - ROTOR, WATER PUMP
16131-61011	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16131A - BEARING, WATER PUMP
90369-30028	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
90369-30035	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16171 - SEAT, WATER PUMP PULLEY
16171-56010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16271 - GASKET, WATER PUMP
16271-60011	2F..FJ4#	08/1980 - 04/1986	1
16371 - PULLEY, FAN
16371-61010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16371-60090	2F..FJ4#..ARL,GEN DIRECT,W/POWER STEERING	08/1980 - 04/1986	1
Common parts
90101-10013
90101-10269
90179-08123
91212-41040
93220-18016
94512-01000

(8008-8410)B,3B..ARL,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-61012	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16100-61041	2F..FJ4#..GEN W/OIL COOLER	08/1980 - 04/1986	1
16100-61140	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16100-61150	2F..FJ4#..GEN CAST IRON BODY,W/OIL COOLER	08/1980 - 04/1986	1
16104 - SEAL SET, WATER PUMP
16104-41111	2F..FJ4#..3F,4F	08/1980 - 10/1981	1
16117 - PLATE, WATER PUMP
16117-61012	2F..FJ4#	08/1980 - 04/1986	1
16131 - ROTOR, WATER PUMP
16131-61011	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16131A - BEARING, WATER PUMP
90369-30028	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
90369-30035	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-60010	2F..FJ4#..GEN CAST IRON BODY	08/1980 - 04/1986	1
16171 - SEAT, WATER PUMP PULLEY
16171-56010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16271 - GASKET, WATER PUMP
16271-60011	2F..FJ4#	08/1980 - 04/1986	1
16371 - PULLEY, FAN
16371-61010	2F..FJ4#..ARL,GEN DIRECT	08/1980 - 04/1986	1
16371-60090	2F..FJ4#..ARL,GEN DIRECT,W/POWER STEERING	08/1980 - 04/1986	1
Common parts
90119-08272
90119-08273
93220-16014
