FJ45R-KC (1976)

Toyota Land Cruiser

Production Jun 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

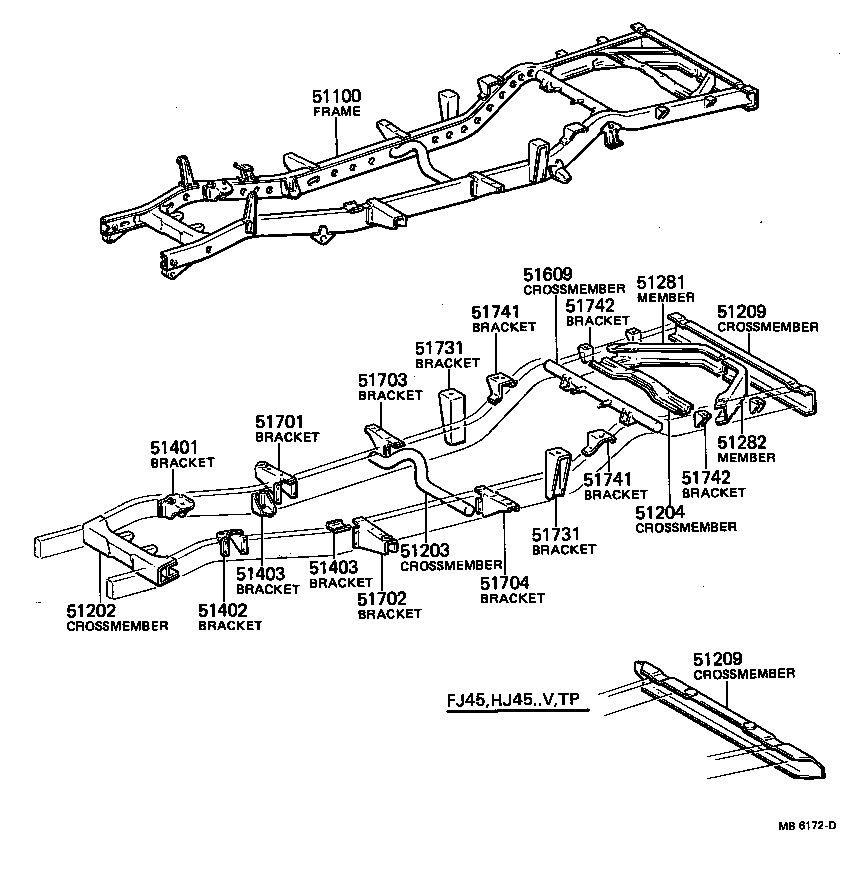

(7901-8007)FJ45,HJ45

Click highlighted areas on diagram

diagram 51100 51202 51203 51204 51209 51209 51281 51282 51401 51402 51403 51403 51609 51701 51702 51703 51704 51731 51731 51741 51741 51742 51742
Part # Description Qty Price
51100 - FRAME ASSY
51001-60110

FJ45..RHD

 1
51001-60300

FJ45..RHD..TP

 1
51001-60301

FJ45..RHD..TP

 1
51001-60302

FJ45..RHD..TP

 1
51001-60304

FJ45..RHD..(TP,V)

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-60020

FJ40,43,45..RHD

 1
51201-60022

BJ4#,FJ4#..RHD

 1
51201-60023

FJ4#..RHD

 1
51201-60024

FJ4#..RHD

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51221-60030

FJ45

 1
51221-60060

FJ45,HJ45

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51204-60010

FJ45,HJ45

 1
51241-60010

FJ45,HJ45

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-60070

FJ45..TP

 1
51209-60050

FJ45,HJ45..TP,V

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-60070

FJ45..TP

 1
51209-60050

FJ45,HJ45..TP,V

 1
51281 - MEMBER, REAR DIAGONAL, RH
51028-60011

FJ45,HJ45

 1
51281-60030

FJ45

 1
51028-60012

FJ45,HJ45

 1
51282 - MEMBER, REAR DIAGONAL, LH
51282-60020

FJ45

 1
51029-60012

FJ45,HJ45

 1
51029-60011

FJ45,HJ45

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60010

FJ4#,HJ45

 1
51421-60011

FJ4#,HJ45

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60010

FJ4#,HJ45

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51431-60020

FJ45

RH.

 1
51434-60010

FJ4#,HJ45

LH.

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51431-60020

FJ45

RH.

 1
51434-60010

FJ4#,HJ45

LH.

 1
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51203-60020

FJ45

 1
51203-60051

FJ45,HJ45

 1
51203-60053

FJ45,HJ45

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60040

FJ45,HJ45

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-60010

FJ45,HJ45

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51723-60010

FJ45,HJ45..TP,V

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51723-60010

FJ45,HJ45..TP,V

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51705-60010

FJ45

 2
51731-60030

FJ45..TP

 2
51706-60020

FJ45..TP

LH.

 1
51705-60051

FJ45,HJ45..TP,V

RH.

 1
51705-60050

FJ45..TP

RH.

 1
51706-60021

FJ45,HJ45..TP,V

LH.

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51705-60010

FJ45

 2
51731-60030

FJ45..TP

 2
51706-60020

FJ45..TP

LH.

 1
51705-60051

FJ45,HJ45..TP,V

RH.

 1
51705-60050

FJ45..TP

RH.

 1
51706-60021

FJ45,HJ45..TP,V

LH.

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51742-60041

FJ45,HJ45

LH.

 1
51741-60040

FJ45..TP

 2
51741-60051

FJ45,HJ45

RH.

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51742-60041

FJ45,HJ45

LH.

 1
51741-60040

FJ45..TP

 2
51741-60051

FJ45,HJ45

RH.

 1
51742 - BRACKET, BODY MOUNTING, NO.2
51737-60010

FJ45,HJ45..TP,V

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51737-60010

FJ45,HJ45..TP,V

 2

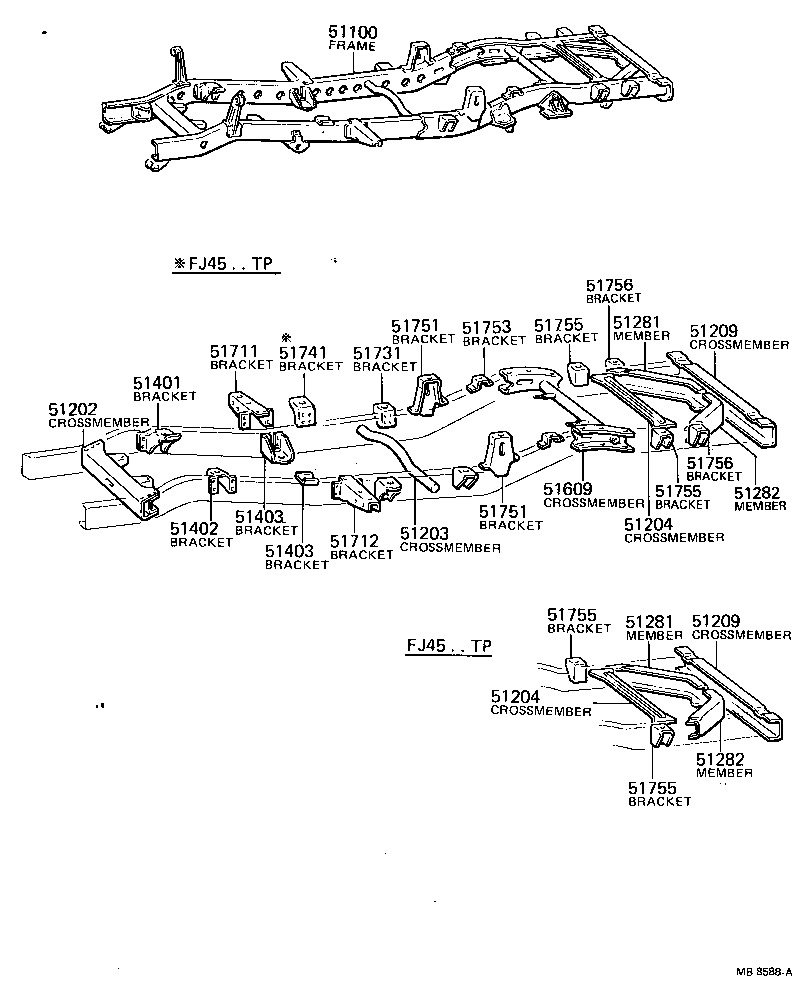

(6903-7901)FJ45,HJ45

Click highlighted areas on diagram

diagram 51100 51202 51203 51204 51204 51209 51209 51281 51281 51282 51282 51401 51402 51403 51403 51609 51711 51712 51731 51741 51751 51751 51753 51755 51755 51755 51755 51756 51756
Part # Description Qty Price
51100 - FRAME ASSY
51001-60110

FJ45..RHD

 1
51001-60300

FJ45..RHD..TP

 1
51001-60301

FJ45..RHD..TP

 1
51001-60302

FJ45..RHD..TP

 1
51001-60304

FJ45..RHD..(TP,V)

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-60020

FJ40,43,45..RHD

 1
51201-60022

BJ4#,FJ4#..RHD

 1
51201-60023

FJ4#..RHD

 1
51201-60024

FJ4#..RHD

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51221-60030

FJ45

 1
51221-60060

FJ45,HJ45

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51204-60010

FJ45,HJ45

 1
51241-60010

FJ45,HJ45

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51204-60010

FJ45,HJ45

 1
51241-60010

FJ45,HJ45

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-60070

FJ45..TP

 1
51209-60050

FJ45,HJ45..TP,V

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51291-60070

FJ45..TP

 1
51209-60050

FJ45,HJ45..TP,V

 1
51281 - MEMBER, REAR DIAGONAL, RH
51028-60011

FJ45,HJ45

 1
51281-60030

FJ45

 1
51028-60012

FJ45,HJ45

 1
51281 - MEMBER, REAR DIAGONAL, RH
51028-60011

FJ45,HJ45

 1
51281-60030

FJ45

 1
51028-60012

FJ45,HJ45

 1
51282 - MEMBER, REAR DIAGONAL, LH
51282-60020

FJ45

 1
51029-60012

FJ45,HJ45

 1
51029-60011

FJ45,HJ45

 1
51282 - MEMBER, REAR DIAGONAL, LH
51282-60020

FJ45

 1
51029-60012

FJ45,HJ45

 1
51029-60011

FJ45,HJ45

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60010

FJ4#,HJ45

 1
51421-60011

FJ4#,HJ45

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60010

FJ4#,HJ45

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51431-60020

FJ45

RH.

 1
51434-60010

FJ4#,HJ45

LH.

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51431-60020

FJ45

RH.

 1
51434-60010

FJ4#,HJ45

LH.

 1
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51203-60020

FJ45

 1
51203-60051

FJ45,HJ45

 1
51203-60053

FJ45,HJ45

 1
51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH
51711-60020

FJ45,HJ45

 1
51712 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, LH
51712-60010

FJ45,HJ45

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51705-60010

FJ45

 2
51731-60030

FJ45..TP

 2
51706-60020

FJ45..TP

LH.

 1
51705-60051

FJ45,HJ45..TP,V

RH.

 1
51705-60050

FJ45..TP

RH.

 1
51706-60021

FJ45,HJ45..TP,V

LH.

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51742-60041

FJ45,HJ45

LH.

 1
51741-60040

FJ45..TP

 2
51741-60051

FJ45,HJ45

RH.

 1
51751 - BRACKET, BODY SUPPORT, NO.1
51752-60010

FJ45

LH.

 1
51751-60010

FJ45

RH.

 1
51751 - BRACKET, BODY SUPPORT, NO.1
51752-60010

FJ45

LH.

 1
51751-60010

FJ45

RH.

 1
51753 - BRACKET, BODY SUPPORT, NO.2
51742-60030

FJ45,HJ45

 2
51741-60050

FJ45,HJ45

RH.

 1
51742-60040

FJ45,HJ45

LH.

 1
51755 - BRACKET, BODY SUPPORT, NO.3 RH
51744-60010

FJ45,HJ45

 2
51755 - BRACKET, BODY SUPPORT, NO.3 RH
51744-60010

FJ45,HJ45

 2
51755 - BRACKET, BODY SUPPORT, NO.3 RH
51744-60010

FJ45,HJ45

 2
51755 - BRACKET, BODY SUPPORT, NO.3 RH
51744-60010

FJ45,HJ45

 2
