FJ45LV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1985
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

Click highlighted areas on diagram

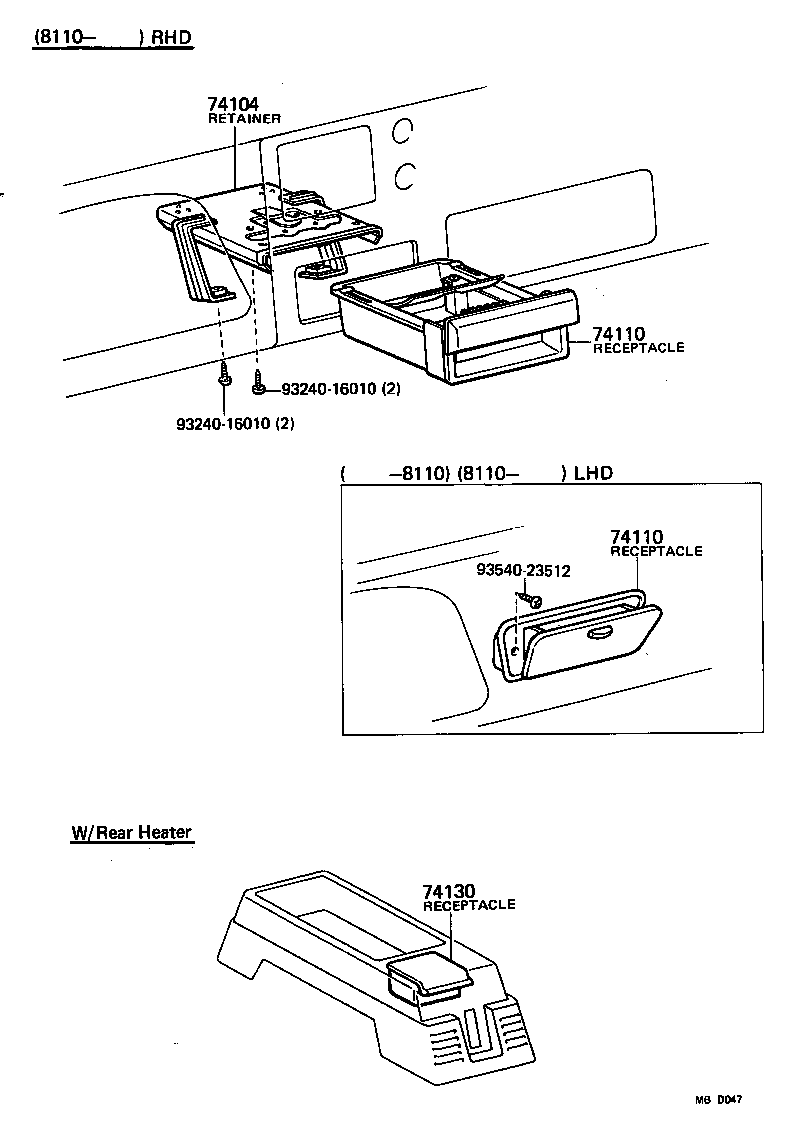

diagram 74104 74110 74110 74130 9324016010 9324016010 9354023512
Part # Description Qty Price
74110 - RECEPTACLE ASSY, INSTRUMENT PANEL ASH
74110-60010

BJ4#,FJ4#,HJ47..3F,4F

 1
74110-60010

BJ4#,FJ4#,HJ47..LHD

 1
74110 - RECEPTACLE ASSY, INSTRUMENT PANEL ASH
74110-60010

BJ4#,FJ4#,HJ47..3F,4F

 1
74110-60010

BJ4#,FJ4#,HJ47..LHD

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-90800

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
Common parts
93240-16010
93540-23512
