FJ45LP-U3 (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#,HJ45

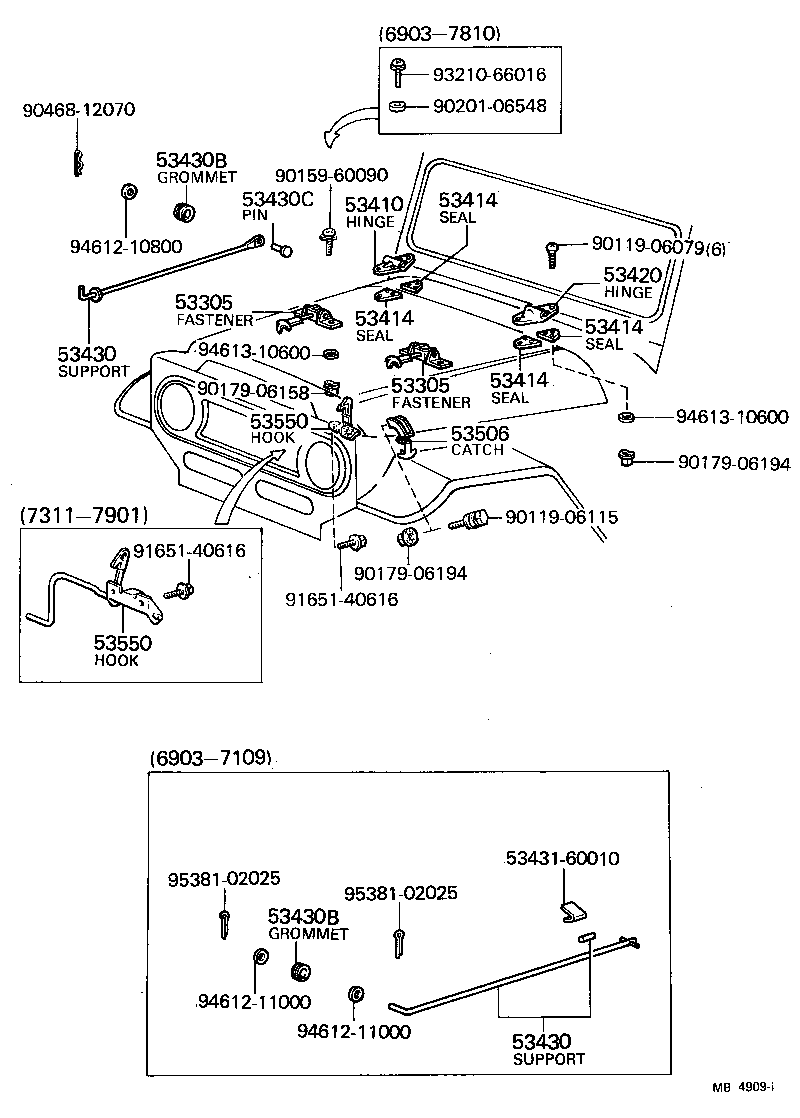

Click highlighted areas on diagram

diagram 53305 53305 53410 53414 53414 53414 53414 53420 53430 53430 53430B 53430B 53430C 5343160010 53506 53550 53550 9011906079 9011906115 9015960090 9017906158 9017906194 9017906194 9020106548 9046812070 9165140616 9165140616 9321066016 9461210800 9461211000 9461211000 9461310600 9461310600 9538102025 9538102025
Part # Description Qty Price
53305 - FASTENER SUB-ASSY, HOOD
53504-90300

BJ4#,FJ4#,HJ45

 2
53304-60020

BJ4#,FJ4#,HJ45

 2
53504-90301

BJ4#,FJ4#,HJ45..GEN

CHROME PLATED

 2
53305 - FASTENER SUB-ASSY, HOOD
53504-90300

BJ4#,FJ4#,HJ45

 2
53304-60020

BJ4#,FJ4#,HJ45

 2
53504-90301

BJ4#,FJ4#,HJ45..GEN

CHROME PLATED

 2
53410 - HINGE ASSY, HOOD, RH
53410-90301

BJ4#,FJ4#,HJ45

 1
53410-60010

BJ4#,FJ4#,HJ45

 1
53414 - SEAL, HOOD HINGE
53412-60010

FJ4#

 4
53414 - SEAL, HOOD HINGE
53412-60010

FJ4#

 4
53414 - SEAL, HOOD HINGE
53412-60010

FJ4#

 4
53414 - SEAL, HOOD HINGE
53412-60010

FJ4#

 4
53420 - HINGE ASSY, HOOD, LH
53410-60010

BJ4#,FJ4#,HJ45

 1
53410-90301

BJ4#,FJ4#,HJ45

 1
53430 - SUPPORT ASSY, HOOD
53403-60010

FJ4#

 1
53403-90300

BJ4#,FJ4#

 1
53430 - SUPPORT ASSY, HOOD
53403-60010

FJ4#

 1
53403-90300

BJ4#,FJ4#

 1
53430B - GROMMET(FOR HOOD SUPPORT)
90480-20023

FJ4#

 1
53430B - GROMMET(FOR HOOD SUPPORT)
90480-20023

FJ4#

 1
53430C - PIN, W/HOLE(FOR HOOD SUPPORT)
90240-08007

FJ4#,55

 1
53506 - CATCH SUB-ASSY, HOOD
53506-60010

FJ4#

 2
53506-90304

BJ4#,FJ4#,HJ45..GEN

CHROME PLATED

 2
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-90303

BJ4#,FJ4#,HJ45

 1
53505-90303

BJ4#,FJ4#,HJ45

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-90303

BJ4#,FJ4#,HJ45

 1
53505-90303

BJ4#,FJ4#,HJ45

 1
Common parts
53431-60010
90119-06079
90119-06115
90159-60090
90179-06158
90179-06194
90201-06548
90468-12070
91651-40616
93210-66016
94612-10800
94612-11000
94613-10600
95381-02025
