FJ45LP-U (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7509)PIC,V ; (7501-7509)PIC,V ; (7509-8007)BJ4#,FJ4#,HJ45 ; (7509-8007)BJ4#,F

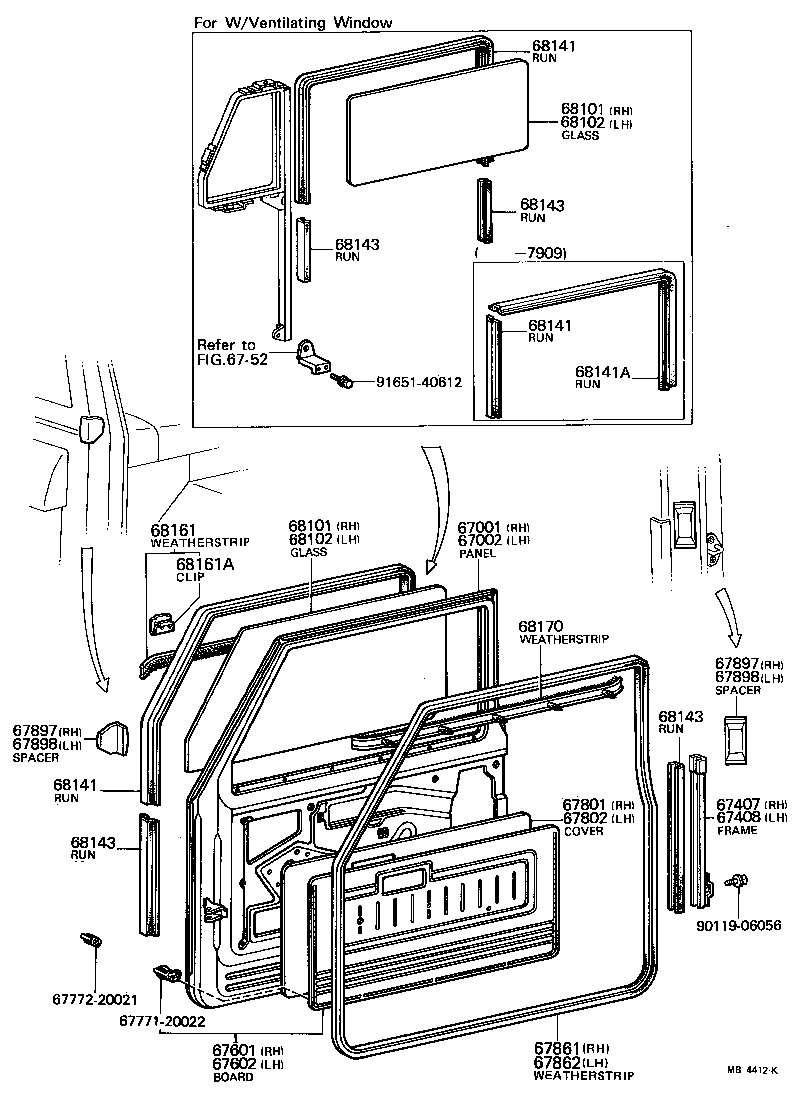

Click highlighted areas on diagram

diagram 67001 67002 67407 67408 6752 67601 67602 6777120022 6777220021 67801 67802 67861 67862 67897 67897 67898 67898 68101 68101 68102 68102 68141 68141 68141 68141A 68143 68143 68143 68143 68161 68161A 68170 9011906056 9165140612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-60022

FJ40,43,45,HJ45..LHD

STEEL DOOR

 1
67001-60061

FJ40,45,HJ45..LHD..(PIC,V)

W/DOOR TRIM

 1
67001-90312

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67001-90312

BJ40,FJ40,45,HJ45..PIC,V

STEEL DOOR

 1
67001-90313

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67001-90316

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67001-90800

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-60022

FJ40,43,45,HJ45..LHD

STEEL DOOR

 1
67002-60061

FJ40,45,HJ45..LHD..(PIC,V)

W/DOOR TRIM

 1
67002-90800

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67002-90313

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67002-90316

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67002-90312

BJ4#,FJ4#,HJ45

STEEL DOOR

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67047-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
67047-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67047-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 1
67047-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-60010

FJ40,45,HJ45..PIC,V

 1
67610-90302

BJ40,FJ40,45,HJ45..PIC,V

 1
67610-90302

BJ4#,FJ4#,HJ45

 1
67610-90304

BJ40,FJ40,45,HJ45..PIC,V

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-60010

FJ40,45,HJ45..PIC,V

 1
67620-90302

BJ40,FJ40,45,HJ45..PIC,V

 1
67620-90304

BJ40,FJ40,45,HJ45..PIC,V

 1
67620-90302

BJ4#,FJ4#,HJ45

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
69881-60031

BJ4#,FJ40,43,45,HJ45

 1
67801-90300

BJ40,FJ40,45,HJ45..PIC,V

 1
67801-90300

BJ4#,FJ4#,HJ45

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
69881-60031

BJ4#,FJ40,43,45,HJ45

 1
67802-90300

BJ40,FJ40,45,HJ45..PIC,V

 1
67802-90300

BJ4#,FJ4#,HJ45

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
68108-90301

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
68108-60020

FJ40,43,45,HJ45

FOR STEEL DOOR

 1
67861-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
68108-90301

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
68109-90301

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
68109-60020

FJ40,43,45,HJ45

FOR STEEL DOOR

 1
68109-90301

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 1
67862-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
67897 - SPACER, FRONT DOOR WEATHERSTRIP, RH
68192-90300

BJ4#,FJ4#,HJ45

REAR

 1
68191-90300

BJ4#,FJ4#,HJ45

FRONT

 1
67897 - SPACER, FRONT DOOR WEATHERSTRIP, RH
68192-90300

BJ4#,FJ4#,HJ45

REAR

 1
68191-90300

BJ4#,FJ4#,HJ45

FRONT

 1
67898 - SPACER, FRONT DOOR WEATHERSTRIP, LH
68191-90300

BJ4#,FJ4#,HJ45

FRONT

 1
68192-90300

BJ4#,FJ4#,HJ45

REAR

 1
67898 - SPACER, FRONT DOOR WEATHERSTRIP, LH
68191-90300

BJ4#,FJ4#,HJ45

FRONT

 1
68192-90300

BJ4#,FJ4#,HJ45

REAR

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-60012

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 1
68111-90303

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90302

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR STEEL DOOR

 1
68111-90304

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.T.T=5.0,FOR STEEL DOOR

 1
68111-90305

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90302

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR STEEL DOOR

 1
68111-90303

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR W/VENT.WINDOW

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-60012

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 1
68111-90303

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90302

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR STEEL DOOR

 1
68111-90304

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.T.T=5.0,FOR STEEL DOOR

 1
68111-90305

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90302

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR STEEL DOOR

 1
68111-90303

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR W/VENT.WINDOW

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68111-90304

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.T.T=5.0,FOR STEEL DOOR

 1
68111-90303

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90305

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-60012

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 1
68111-90302

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR STEEL DOOR

 1
68111-90303

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90302

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR STEEL DOOR

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68111-90304

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.T.T=5.0,FOR STEEL DOOR

 1
68111-90303

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90305

HJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN

TN.TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-60012

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR

 1
68111-90302

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR STEEL DOOR

 1
68111-90303

BJ4#,FJ4#,HJ45

TP.T=5.0,FOR W/VENT.WINDOW

 1
68111-90302

BJ40,FJ40,45,HJ45..PIC,V

TP.T=5.0,FOR STEEL DOOR

 1
68141 - RUN, FRONT DOOR GLASS
68213-60010

FJ40,43,45

FOR STEEL DOOR,SIDE,L=908

 4
68212-90300

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR,UPPER,L=487

 2
68105-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR,UPPER

 2
68105-90301

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68105-90301

BJ40,FJ40,45,HJ45..PIC,V

FOR W/VENTILATING WINDOW

 2
68105-90300

BJ4#,FJ4#,HJ45

FOR L/VENTILATING WINDOW

 2
68105-90302

BJ4#,FJ4#,HJ45

FOR L/VENTILATING WINDOW

 2
68105-90303

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68141 - RUN, FRONT DOOR GLASS
68213-60010

FJ40,43,45

FOR STEEL DOOR,SIDE,L=908

 4
68212-90300

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR,UPPER,L=487

 2
68105-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR,UPPER

 2
68105-90301

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68105-90301

BJ40,FJ40,45,HJ45..PIC,V

FOR W/VENTILATING WINDOW

 2
68105-90300

BJ4#,FJ4#,HJ45

FOR L/VENTILATING WINDOW

 2
68105-90302

BJ4#,FJ4#,HJ45

FOR L/VENTILATING WINDOW

 2
68105-90303

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68141 - RUN, FRONT DOOR GLASS
68213-60010

FJ40,43,45

FOR STEEL DOOR,SIDE,L=908

 4
68212-90300

BJ4#,FJ40,43,45,HJ45

FOR STEEL DOOR,UPPER,L=487

 2
68105-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR,UPPER

 2
68105-90301

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68105-90301

BJ40,FJ40,45,HJ45..PIC,V

FOR W/VENTILATING WINDOW

 2
68105-90300

BJ4#,FJ4#,HJ45

FOR L/VENTILATING WINDOW

 2
68105-90302

BJ4#,FJ4#,HJ45

FOR L/VENTILATING WINDOW

 2
68105-90303

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68141A - RUN, FRONT DOOR GLASS, UPPER
68106-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR W/VENTILATING WINDOW

 2
68106-90300

BJ4#,FJ4#,HJ45

FOR W/VENTILATING WINDOW

 2
68143 - RUN, FRONT DOOR GLASS, LOWER
67434-90300

BJ4#,FJ4#,HJ45

 4
67434-90300

BJ40,FJ40,45,HJ45..PIC,V

 4
68143 - RUN, FRONT DOOR GLASS, LOWER
67434-90300

BJ4#,FJ4#,HJ45

 4
67434-90300

BJ40,FJ40,45,HJ45..PIC,V

 4
68143 - RUN, FRONT DOOR GLASS, LOWER
67434-90300

BJ4#,FJ4#,HJ45

 4
67434-90300

BJ40,FJ40,45,HJ45..PIC,V

 4
68143 - RUN, FRONT DOOR GLASS, LOWER
67434-90300

BJ4#,FJ4#,HJ45

 4
67434-90300

BJ40,FJ40,45,HJ45..PIC,V

 4
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68180-90300

BJ4#,FJ4#,HJ45

 2
68190-90302

BJ4#,FJ4#,HJ45

LH.,FOR W/VENTILATING WINDOW

 1
68180-90302

BJ40,FJ40,45,HJ45..PIC,V

RH.,FOR W/VENTILATING WINDOW

 1
68161-60010

BJ4#,FJ40,43,45,HJ45

 2
68190-90302

BJ40,FJ40,45,HJ45..PIC,V

LH.,FOR W/VENTILATING WINDOW

 1
68160-90801

BJ4#,FJ4#,HJ45

 2
68210-90800

BJ4#,FJ4#,HJ45

LH.,FOR W/VENTILATIONG WINDOW

 1
68160-90800

BJ4#,FJ4#,HJ45

RH.,FOR W/VENTILATIONG WINDOW

 1
68180-90302

BJ4#,FJ4#,HJ45

RH.,FOR W/VENTILATING WINDOW

 1
68180-90300

BJ40,FJ40,45,HJ45..PIC,V

 2
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-10030

BJ4#,FJ4#,HJ45

 8
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68160-90300

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 2
68170-60010

FJ40,43,45

FOR STEEL DOOR

 2
68170-90302

BJ40,FJ40,45,HJ45..PIC,V

LH.,FOR W/VENTILATING WINDOW

 1
68160-90301

BJ40,FJ40,45,HJ45..PIC,V

RH.,FOR W/VENTILATING WINDOW

 1
68160-90300

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 2
68160-90301

BJ4#,FJ4#,HJ45

RH.,FOR W/VENTILATING WINDOW

 1
68170-90302

BJ4#,FJ4#,HJ45

LH.,FOR W/VENTILATING WINDOW

 1
Common parts
67771-20022
67772-20021
90119-06056
91651-40612
Linked diagrams
6752
