FJ45LP-U (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)FJ45,HJ45..PIC,TP

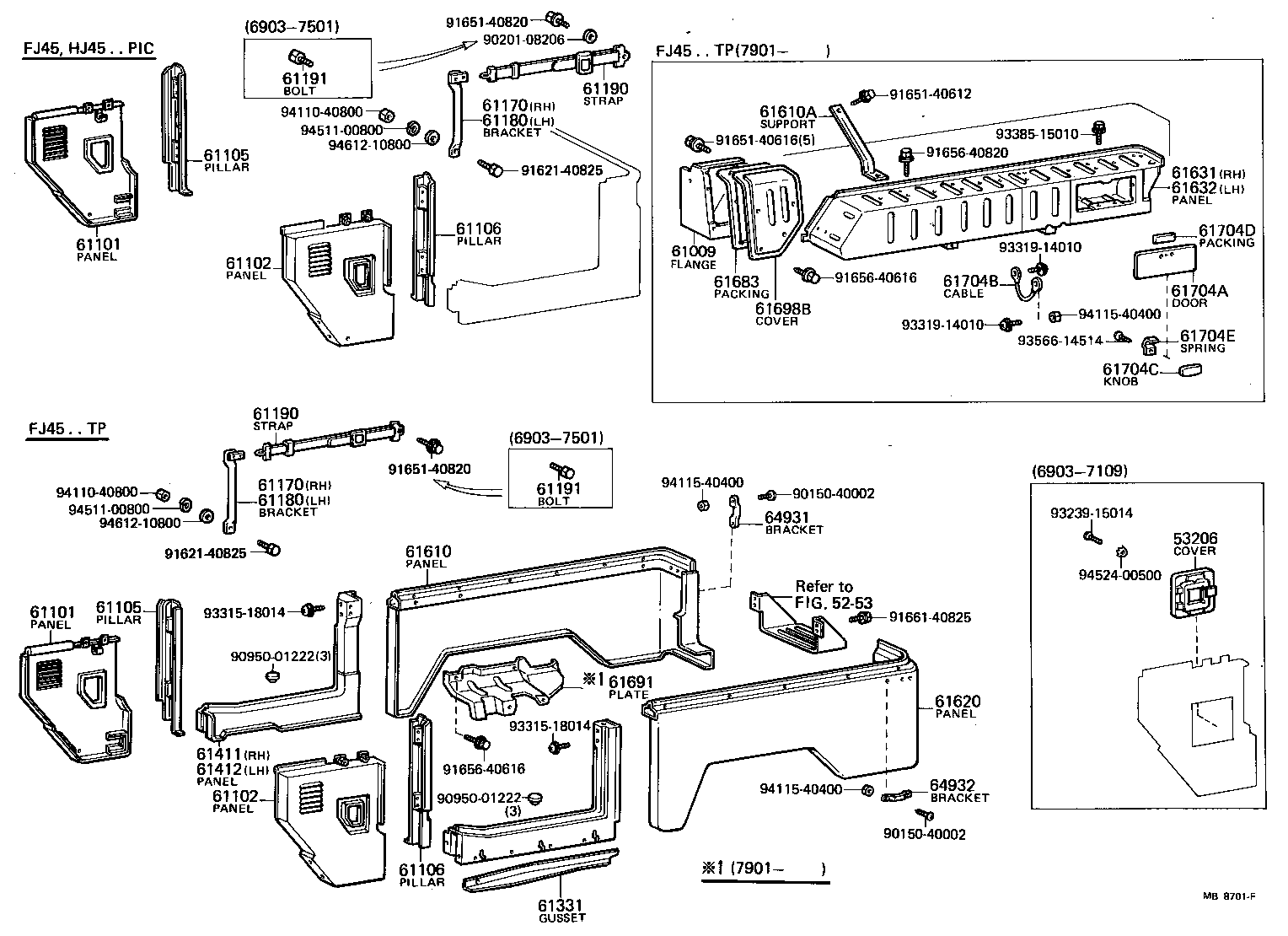

Click highlighted areas on diagram

diagram 5253 53206 61009 61101 61101 61102 61102 61105 61105 61106 61106 61170 61170 61180 61180 61190 61190 61191 61191 61331 61411 61412 61610 61610A 61620 61631 61632 61683 61691 61698B 61704A 61704B 61704C 61704D 61704E 64931 64932 9015040002 9015040002 9020108206 9095001222 9095001222 9162140825 9162140825 9165140612 9165140616 9165140820 9165140820 9165640616 9165640616 9165640820 9166140825 9323915014 9331518014 9331518014 9331914010 9331914010 9338515010 9356614514 9411040800 9411040800 9411540400 9411540400 9411540400 9451100800 9451100800 9452400500 9461210800 9461210800
Part # Description Qty Price
53206 - COVER SUB-ASSY, COWL SIDE AIR GUIDE
53206-60010

FJ4#..LHD

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
55706-90305

BJ4#,FJ4#,HJ45..LHD

FOR W/HEATER

 1
55706-90310

BJ4#,FJ4#,HJ45..LHD

FOR W/HEATER & W/RADIO

 1
55007-90300

BJ4#,FJ4#,HJ45..LHD

FOR L/HEATER

 1
55706-90308

BJ4#,FJ4#,HJ45..LHD..GEN

FOR L/HEATER

 1
55706-90309

BJ4#,FJ4#,HJ45..LHD..GEN

FOR L/HEATER & W/RADIO

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
55706-90305

BJ4#,FJ4#,HJ45..LHD

FOR W/HEATER

 1
55706-90310

BJ4#,FJ4#,HJ45..LHD

FOR W/HEATER & W/RADIO

 1
55007-90300

BJ4#,FJ4#,HJ45..LHD

FOR L/HEATER

 1
55706-90308

BJ4#,FJ4#,HJ45..LHD..GEN

FOR L/HEATER

 1
55706-90309

BJ4#,FJ4#,HJ45..LHD..GEN

FOR L/HEATER & W/RADIO

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
55707-90311

BJ4#,FJ4#,HJ45..LHD

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
55707-90311

BJ4#,FJ4#,HJ45..LHD

 1
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106-90306

FJ45,HJ45..LHD

FOR STEEL DOOR

 1
61106-90311

BJ40,FJ40,45..LHD..(PIC,V)

FOR STEEL DOOR,W/COOLER

 1
61106-90306

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61106-90310

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106-90306

FJ45,HJ45..LHD

FOR STEEL DOOR

 1
61106-90311

BJ40,FJ40,45..LHD..(PIC,V)

FOR STEEL DOOR,W/COOLER

 1
61106-90306

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61106-90310

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61107-90313

FJ45,HJ45..LHD

FOR STEEL DOOR

 1
61107-90313

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61107-90317

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61107-90313

FJ45,HJ45..LHD

FOR STEEL DOOR

 1
61107-90313

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61107-90317

BJ4#,FJ4#,HJ45..LHD

FOR STEEL DOOR

 1
61170 - BRACKET ASSY, SAFETY STRAP, RH
61018-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
61193-90300

BJ4#,FJ40,43;FJ45,HJ45..PIC,TP;FJ45,HJ45..RHD..VKC..GEN

FOR STEEL DOOR

 1
61170 - BRACKET ASSY, SAFETY STRAP, RH
61018-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
61193-90300

BJ4#,FJ40,43;FJ45,HJ45..PIC,TP;FJ45,HJ45..RHD..VKC..GEN

FOR STEEL DOOR

 1
61180 - BRACKET ASSY, SAFETY STRAP, LH
61019-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
61193-90300

BJ4#,FJ40,43;FJ45,HJ45..PIC,TP;FJ45,HJ45..RHD..VKC..GEN

FOR STEEL DOOR

 1
61180 - BRACKET ASSY, SAFETY STRAP, LH
61019-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
61193-90300

BJ4#,FJ40,43;FJ45,HJ45..PIC,TP;FJ45,HJ45..RHD..VKC..GEN

FOR STEEL DOOR

 1
61190 - STRAP ASSY, SAFETY
61190-60011

BJ4#,FJ4#,HJ45

 2
61190-90300

BJ4#,FJ40,43;FJ45,HJ45..PIC,TP;FJ45,HJ45..RHD..VKC..GEN

 2
61190 - STRAP ASSY, SAFETY
61190-60011

BJ4#,FJ4#,HJ45

 2
61190-90300

BJ4#,FJ40,43;FJ45,HJ45..PIC,TP;FJ45,HJ45..RHD..VKC..GEN

 2
61191 - BOLT, SAFETY STRAP RING
61191-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 2
61191 - BOLT, SAFETY STRAP RING
61191-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 2
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61603-90072

FJ45..RB

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61604-90072

FJ45..RB

 1
Common parts
90150-40002
90201-08206
90950-01222
91621-40825
91651-40612
91651-40616
91651-40820
91656-40616
91656-40820
91661-40825
93239-15014
93315-18014
93319-14010
93385-15010
93566-14514
94110-40800
94115-40400
94511-00800
94524-00500
94612-10800
Linked diagrams
5253
