Toyota Land cruiser FJ45 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ45LP-U (1975)
4804 - REAR SPRING & SHOCK ABSORBER

FJ45LP-U (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

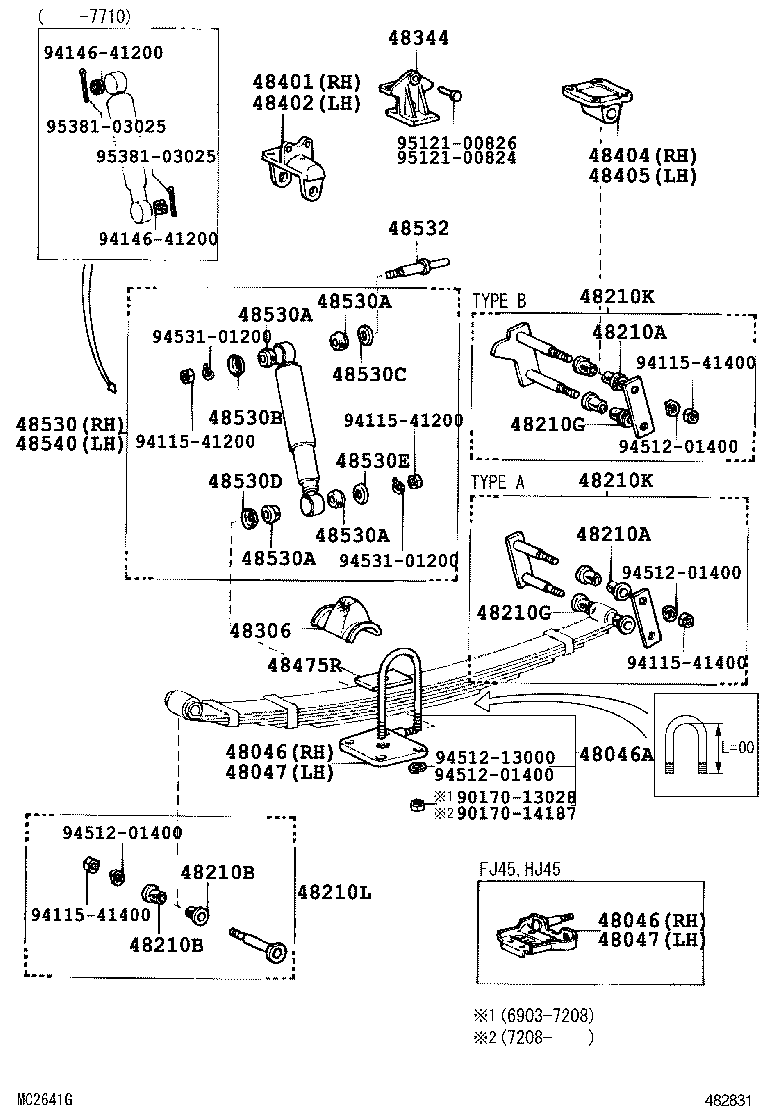

(6903-8007)BJ43,FJ43,45,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-60020	FJ45	03/1969 - 08/1969	1
48046-60022	FJ45,HJ45	10/1977 - 07/1980	1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-60020	FJ45	03/1969 - 08/1969	1
48046-60022	FJ45,HJ45	10/1977 - 07/1980	1
48046A - BOLT, U(FOR REAR SPRING)
90118-13113	FJ43,45,HJ45 L=200,D=13	03/1969 - 08/1972	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-60020	FJ45	03/1969 - 08/1969	1
48047-60022	FJ45,HJ45	10/1977 - 07/1980	1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-60020	FJ45	03/1969 - 08/1969	1
48047-60022	FJ45,HJ45	10/1977 - 07/1980	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18025	BJ43,FJ43,45,55,HJ45	03/1969 - 07/1980	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18025	BJ43,FJ43,45,55,HJ45	03/1969 - 07/1980	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18025	BJ43,FJ43,45,55,HJ45	03/1969 - 07/1980	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18025	BJ43,FJ43,45,55,HJ45	03/1969 - 07/1980	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18025	BJ43,FJ43,45,55,HJ45	03/1969 - 07/1980	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18025	BJ43,FJ43,45,55,HJ45	03/1969 - 07/1980	4
48210K - SHACKLE KIT, REAR SPRING
04483-60030	BJ43,FJ43,45,HJ45 FOR RH.TYPE B	01/1979 - 07/1980	1
04483-35020	BJ43,FJ43,45,55,HJ45 TYPE A	03/1969 - 01/1979	2
04483-60030	BJ43,FJ43,45,HJ45..ARL,GEN FOR RH.TYPE B	09/1978 - 01/1979	1
04483-60040	BJ43,FJ43,45,HJ45..ARL,GEN FOR LH.TYPE B	09/1978 - 01/1979	1
04483-60040	BJ43,FJ43,45,HJ45 FOR LH.TYPE B	01/1979 - 07/1980	1
48210K - SHACKLE KIT, REAR SPRING
04483-60030	BJ43,FJ43,45,HJ45 FOR RH.TYPE B	01/1979 - 07/1980	1
04483-35020	BJ43,FJ43,45,55,HJ45 TYPE A	03/1969 - 01/1979	2
04483-60030	BJ43,FJ43,45,HJ45..ARL,GEN FOR RH.TYPE B	09/1978 - 01/1979	1
04483-60040	BJ43,FJ43,45,HJ45..ARL,GEN FOR LH.TYPE B	09/1978 - 01/1979	1
04483-60040	BJ43,FJ43,45,HJ45 FOR LH.TYPE B	01/1979 - 07/1980	1
48210L - PIN KIT, REAR SPRING
04484-35011	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-60010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
48344 - STOPPER, BUMPER, REAR
48344-60040	FJ45,HJ45 RH.	03/1969 - 07/1980	1
48354-60040	FJ45,HJ45 LH.	03/1969 - 07/1980	1
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-35010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-35010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-35011	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-35011	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	1
48475R - PLATE, DISTANCE(FOR REAR)
48475-60011	BJ4#,FJ4#,55,HJ45	06/1977 - 07/1980	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-69055	FJ43,45,55	03/1969 - 04/1971	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03004	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03003	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
48532 - PIN, REAR SHOCK ABSORBER PIVOT
48532-30010	FJ4#,55	03/1969 - 08/1969	2
48532-60010	BJ4#,FJ4#,55,HJ45	10/1977 - 07/1980	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-69055	FJ43,45,55	03/1969 - 04/1971	1
Common parts
90170-13028
90170-14187
94115-41200
94115-41400
94146-41200
94512-01400
94512-13000
94531-01200
95121-00824
95121-00826
95381-03025

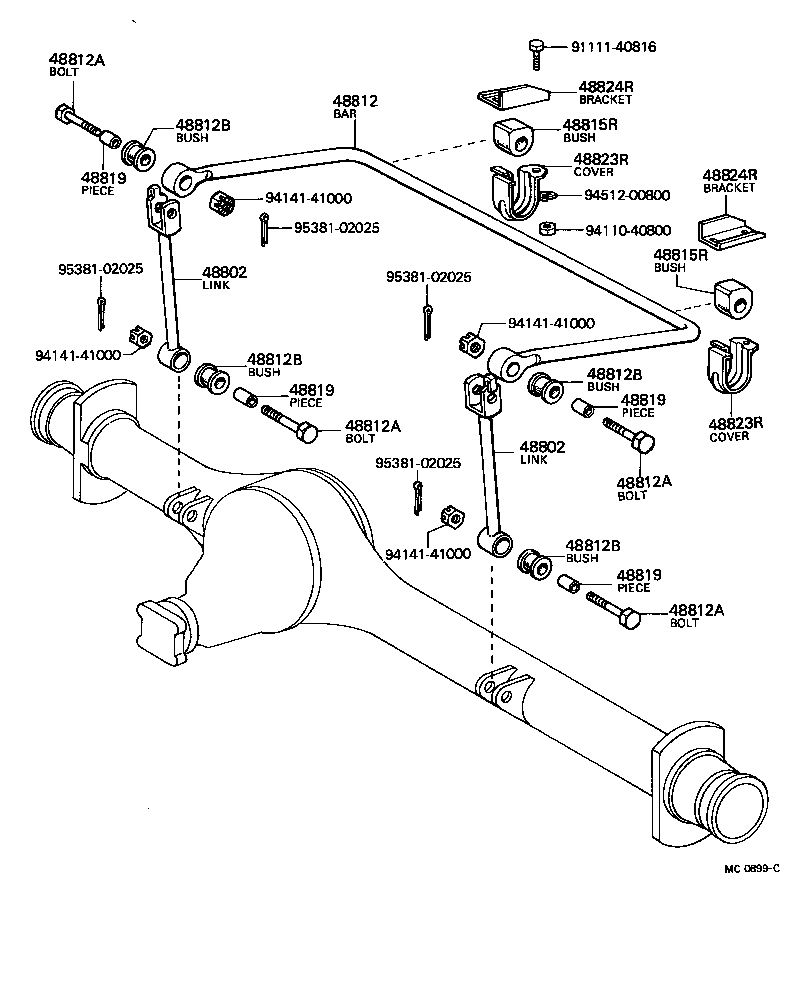

(6903-7901)BJ43,FJ43,45,55,HJ45 ; (7901-8007)BJ43,FJ43,45,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
48802 - LINK SUB-ASSY, STABILIZER
48802-60010	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	2
48802-60010	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	2
48802 - LINK SUB-ASSY, STABILIZER
48802-60010	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	2
48802-60010	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	2
48812 - BAR, STABILIZER, REAR
48812-60010	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	1
48812-60010	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	1
48812A - BOLT, STABILIZER REAR BAR
90102-10015	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90102-10015	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812A - BOLT, STABILIZER REAR BAR
90102-10015	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90102-10015	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812A - BOLT, STABILIZER REAR BAR
90102-10015	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90102-10015	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812A - BOLT, STABILIZER REAR BAR
90102-10015	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90102-10015	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812B - BUSH, STABILIZER REAR BAR
90385-11021	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90385-11021	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812B - BUSH, STABILIZER REAR BAR
90385-11021	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90385-11021	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812B - BUSH, STABILIZER REAR BAR
90385-11021	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90385-11021	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48812B - BUSH, STABILIZER REAR BAR
90385-11021	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
90385-11021	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	4
48815R - BUSH, STABILIZER(FOR REAR)
48815-60010	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	2
48815-60010	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	2
48815R - BUSH, STABILIZER(FOR REAR)
48815-60010	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	2
48815-60010	BJ43,FJ43,45,55,HJ45	03/1969 - 01/1979	2
48819 - PIECE, STABILIZER BUSH
90560-10275	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
48819-30010	FJ43,45,55	03/1969 - 09/1969	4
48819 - PIECE, STABILIZER BUSH
90560-10275	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
48819-30010	FJ43,45,55	03/1969 - 09/1969	4
48819 - PIECE, STABILIZER BUSH
90560-10275	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
48819-30010	FJ43,45,55	03/1969 - 09/1969	4
48819 - PIECE, STABILIZER BUSH
90560-10275	BJ43,FJ43,45,HJ45	01/1979 - 07/1980	4
48819-30010	FJ43,45,55	03/1969 - 09/1969	4
48823R - COVER, STABILIZER LINK(FOR REAR)
48823-60010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
48823R - COVER, STABILIZER LINK(FOR REAR)
48823-60010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-60010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-60010	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
Common parts
91111-40816
94110-40800
94141-41000
94512-00800
95381-02025

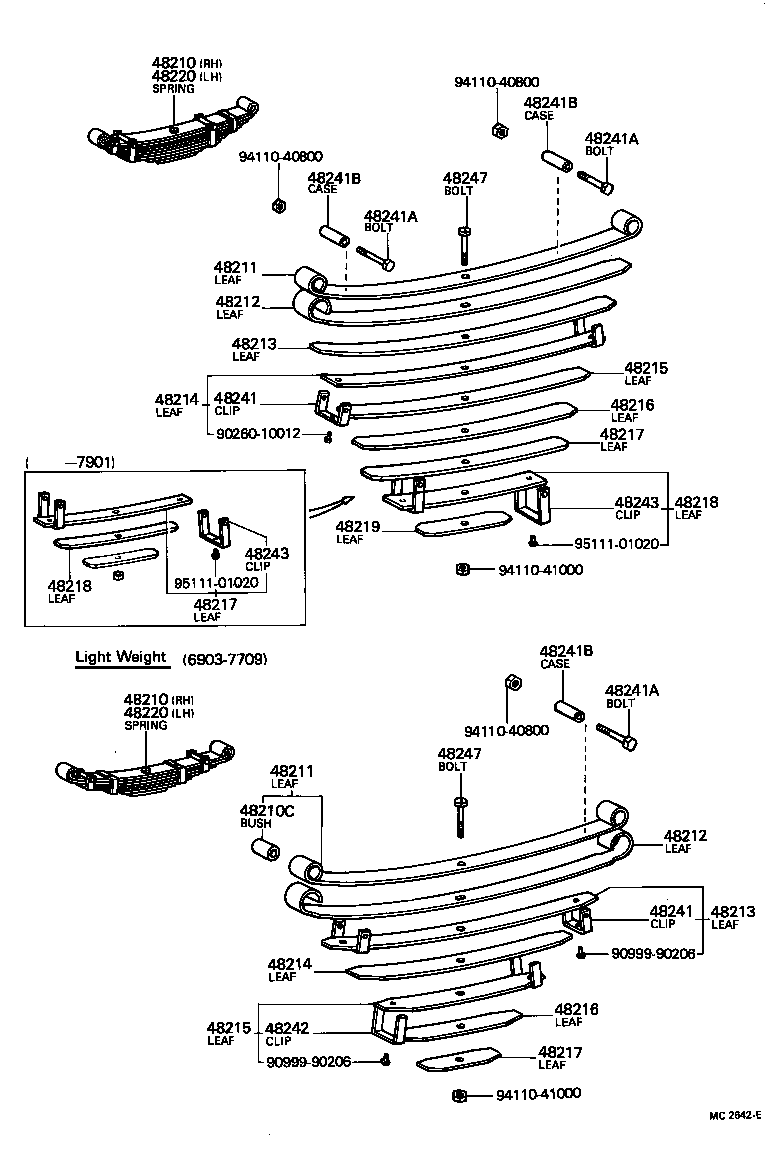

(6903-8007)BJ43,FJ43,45,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-60140	FJ45,HJ45..LHD	09/1977 - 07/1980	1
48210-60140	FJ45,HJ45	03/1969 - 09/1977	1
48210 - SPRING ASSY, REAR RH
48210-60140	FJ45,HJ45..LHD	09/1977 - 07/1980	1
48210-60140	FJ45,HJ45	03/1969 - 09/1977	1
48211 - LEAF, REAR SPRING, NO.1
48211-60140	FJ45,HJ45	03/1969 - 07/1973	2
48211-60141	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48211-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48211 - LEAF, REAR SPRING, NO.1
48211-60140	FJ45,HJ45	03/1969 - 07/1973	2
48211-60141	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48211-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48212 - LEAF, REAR SPRING, NO.2
48212-60140	FJ45,HJ45	03/1969 - 07/1973	2
48212-60141	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48212-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48212 - LEAF, REAR SPRING, NO.2
48212-60140	FJ45,HJ45	03/1969 - 07/1973	2
48212-60141	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48212-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48213 - LEAF, REAR SPRING, NO.3
48213-60140	FJ45,HJ45	03/1969 - 09/1977	2
48213-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48213-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48213 - LEAF, REAR SPRING, NO.3
48213-60140	FJ45,HJ45	03/1969 - 09/1977	2
48213-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48213-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48214 - LEAF, REAR SPRING, NO.4
48202-60140	FJ45,HJ45	03/1969 - 09/1977	2
48202-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48202-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48214 - LEAF, REAR SPRING, NO.4
48202-60140	FJ45,HJ45	03/1969 - 09/1977	2
48202-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48202-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48215 - LEAF, REAR SPRING, NO.5
48215-60140	FJ45,HJ45	03/1969 - 09/1977	2
48215-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48215-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48215 - LEAF, REAR SPRING, NO.5
48215-60140	FJ45,HJ45	03/1969 - 09/1977	2
48215-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48215-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48216 - LEAF, REAR SPRING, NO.6
48216-60140	FJ45,HJ45	03/1969 - 09/1977	2
48216-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48216-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48216 - LEAF, REAR SPRING, NO.6
48216-60140	FJ45,HJ45	03/1969 - 09/1977	2
48216-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48216-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48217 - LEAF, REAR SPRING, NO.7
48203-60140	FJ45,HJ45	03/1969 - 09/1977	2
48203-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48203-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48217 - LEAF, REAR SPRING, NO.7
48203-60140	FJ45,HJ45	03/1969 - 09/1977	2
48203-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48203-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48217 - LEAF, REAR SPRING, NO.7
48203-60140	FJ45,HJ45	03/1969 - 09/1977	2
48203-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48203-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48218 - LEAF, REAR SPRING, NO.8
48218-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48218-60140	FJ45,HJ45	03/1969 - 09/1977	2
48218-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48218 - LEAF, REAR SPRING, NO.8
48218-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48218-60140	FJ45,HJ45	03/1969 - 09/1977	2
48218-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48219 - LEAF, REAR SPRING, NO.9
48219-60210	FJ45,HJ45 DRIVERS SEAT SIDE	09/1977 - 07/1980	1
48219-60140	FJ45,HJ45 PASSENGER SEAT SIDE	09/1977 - 07/1980	1
48219-60140	FJ45,HJ45	03/1969 - 09/1977	2
48220 - SPRING ASSY, REAR LH
48220-60060	FJ45,HJ45	03/1969 - 10/1974	1
48210-60210	FJ45,HJ45..LHD	09/1977 - 07/1980	1
48220 - SPRING ASSY, REAR LH
48220-60060	FJ45,HJ45	03/1969 - 10/1974	1
48210-60210	FJ45,HJ45..LHD	09/1977 - 07/1980	1
48241 - CLIP, REAR SPRING, NO.1
48241-60100	BJ43,FJ43,45,HJ45 FOR FRONT	03/1969 - 07/1980	2
48242-60100	BJ43,FJ43,45,HJ45 FOR REAR	03/1969 - 07/1980	2
48241 - CLIP, REAR SPRING, NO.1
48241-60100	BJ43,FJ43,45,HJ45 FOR FRONT	03/1969 - 07/1980	2
48242-60100	BJ43,FJ43,45,HJ45 FOR REAR	03/1969 - 07/1980	2
48241A - BOLT, HEXAGON(FOR REAR SPRING CLIP)
48256-25050	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	6
48241A - BOLT, HEXAGON(FOR REAR SPRING CLIP)
48256-25050	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	6
48241A - BOLT, HEXAGON(FOR REAR SPRING CLIP)
48256-25050	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	6
48241B - CASE(FOR REAR SPRING CLIP BOLT)
48146-60070	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	6
48241B - CASE(FOR REAR SPRING CLIP BOLT)
48146-60070	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	6
48241B - CASE(FOR REAR SPRING CLIP BOLT)
48146-60070	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	6
48243 - CLIP, REAR SPRING, NO.3
48243-60100	BJ43,FJ43,45,HJ45	03/1969 - 05/1976	4
48243-60100	FJ45,HJ45	05/1976 - 07/1980	4
48243 - CLIP, REAR SPRING, NO.3
48243-60100	BJ43,FJ43,45,HJ45	03/1969 - 05/1976	4
48243-60100	FJ45,HJ45	05/1976 - 07/1980	4
48247 - BOLT, REAR SPRING, CENTER
48247-60100	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
48247 - BOLT, REAR SPRING, CENTER
48247-60100	BJ43,FJ43,45,HJ45	03/1969 - 07/1980	2
Common parts
90260-10012
90999-90206
94110-40800
94110-41000
95111-01020

FJ45LP-U (1975)

(6903-8007)BJ43,FJ43,45,HJ45

(6903-7901)BJ43,FJ43,45,55,HJ45 ; (7901-8007)BJ43,FJ43,45,HJ45

(6903-8007)BJ43,FJ43,45,HJ45

Part Price Details
