FJ45LP-U (1975)
Toyota Land Cruiser
(8008- )FJ4#..LHD ; (8210-8410)BJ4#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 93219-15008 | ||||
| 94521-00500 | ||||

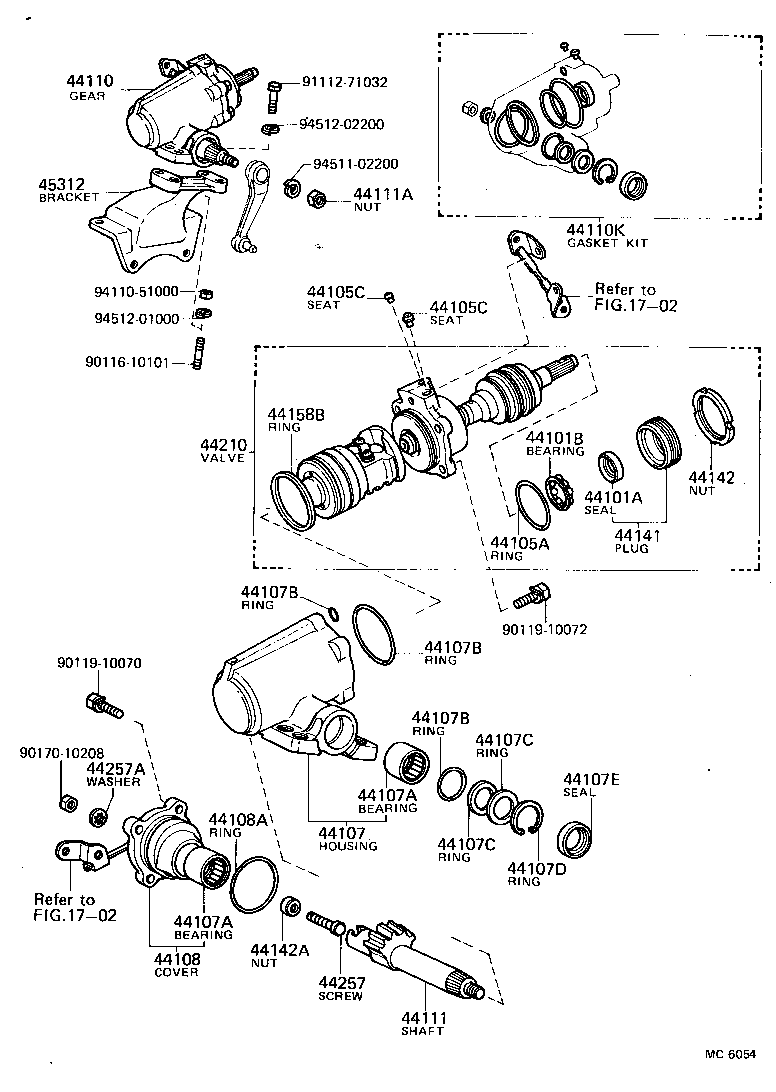

| Linked diagrams | ||||
| 1702 | ||||
(8008-8506)FJ4#..RHD ; (8110-8410)BJ42..ARL ; (8210-8410)BJ40,45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 93219-15008 | ||||
| 94521-00500 | ||||
(8008-8506)FJ4#..RHD ; (8110-8410)BJ42..ARL ; (8210-8410)BJ40,45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-10101 | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8008- )FJ4#..LHD ; (8210-8410)BJ4#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-10101 | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(7909-8007)FJ45..EUR..IV ; (7909-8007)FJ4#..LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90311-19002 |
FJ4#..LHD..GEN |
1 | ||
| 44101B - BEARING(FOR STEERING WORM) | ||||
| 90369-22001 |
FJ4#..LHD..GEN |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-51001 |
FJ4#..LHD..GEN |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
FJ4#..LHD..GEN OD=11.8,RETURN PORT |
1 | ||
| 90410-06030 |
FJ4#..LHD..GEN OD=13,PRESSUR PORT |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
FJ4#..LHD..GEN OD=11.8,RETURN PORT |
1 | ||
| 90410-06030 |
FJ4#..LHD..GEN OD=13,PRESSUR PORT |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-60020 |
FJ4#..LHD..GEN |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
FJ4#..LHD..GEN |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
FJ4#..LHD..GEN |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-35001 |
FJ4#..LHD..GEN OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
FJ4#..LHD..GEN ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96710-01010 |
FJ4#..LHD..GEN OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-35001 |
FJ4#..LHD..GEN OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
FJ4#..LHD..GEN ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96710-01010 |
FJ4#..LHD..GEN OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-35001 |
FJ4#..LHD..GEN OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
FJ4#..LHD..GEN ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96710-01010 |
FJ4#..LHD..GEN OD=13,T=1.9 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
FJ4#..LHD..GEN OD=35.7,OD=35.7 |
1 | ||
| 90562-32001 |
FJ4#..LHD..GEN ID=32,OD=42,OD=42.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
FJ4#..LHD..GEN OD=35.7,OD=35.7 |
1 | ||
| 90562-32001 |
FJ4#..LHD..GEN ID=32,OD=42,OD=42.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
FJ4#..LHD..GEN |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
FJ4#..LHD..GEN |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
FJ4#..LHD..GEN |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
FJ4#..LHD..GEN |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-60020 |
FJ4#..LHD..GEN |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-35010 |
FJ4#..LHD..GEN |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
FJ4#..LHD..GEN |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
FJ4#..LHD..GEN |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
FJ4#..LHD..GEN |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
FJ4#..LHD..GEN |
1 | ||
| 44158B - RING(FOR POWER PISTON END PLUG) | ||||
| 90562-67001 |
FJ4#..LHD..GEN |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-60020 |
FJ4#..LHD..GEN |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
FJ4#..LHD..GEN |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
FJ4#..LHD..GEN |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60040 |
FJ4#,HJ45..LHD |
1 | ||
| Common parts | ||||
| 90116-10101 | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
| 94512-02200 | ||||
| Linked diagrams | ||||
| 1702 | ||||
