FJ45LP-KW3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

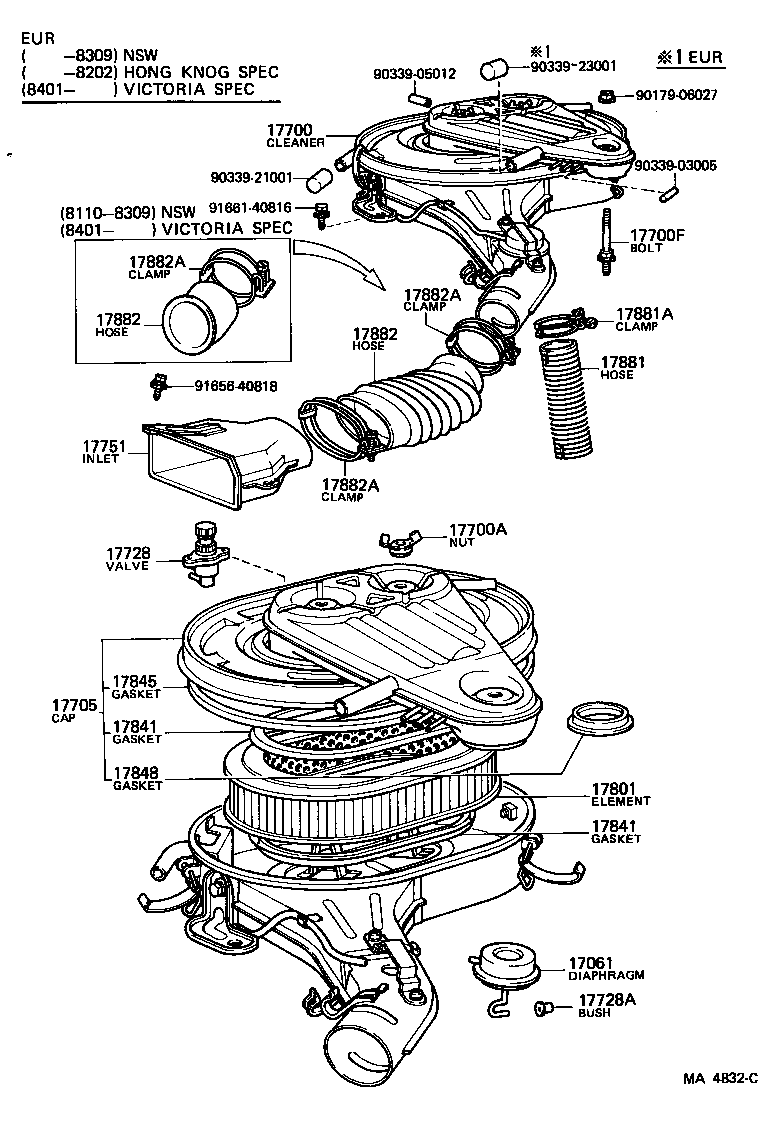

(8008- )2F

Click highlighted areas on diagram

diagram 17061 17700 17700A 17700F 17705 17728 17728A 17751 17801 17841 17841 17845 17848 17881 17881A 17882 17882 17882A 17882A 17882A 9017906027 9033903005 9033905012 9033921001 9033923001 9165640818 9166140816
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-61020

2F..FJ40,45..EUR

 1
17700 - CLEANER ASSY, AIR
17700-61023

2F..FJ40,45..EUR

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018

2F..FJ40,45..EUR

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-61023

2F..FJ40,45..EUR

 1
17728 - VALVE, THERMOSTATIC
17728-24030

2F..FJ40,45..EUR

 1
17728A - BUSH
90386-03001

2F..FJ40,45..EUR

 1
17751 - INLET, AIR CLEANER, NO.1
17751-61040

2F..FJ40,45..EUR

 1
17751-61021

2F..FJ40,45..EUR

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61010

2F..FJ40,45..EUR

 1
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

2F..FJ40,45..EUR

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-61020

2F..FJ4#..EUR,GEN

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-61011

2F..FJ40,45..EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-61011

2F..FJ40,45..EUR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
Common parts
90179-06027
90339-03005
90339-05012
90339-21001
90339-23001
91656-40818
91661-40816

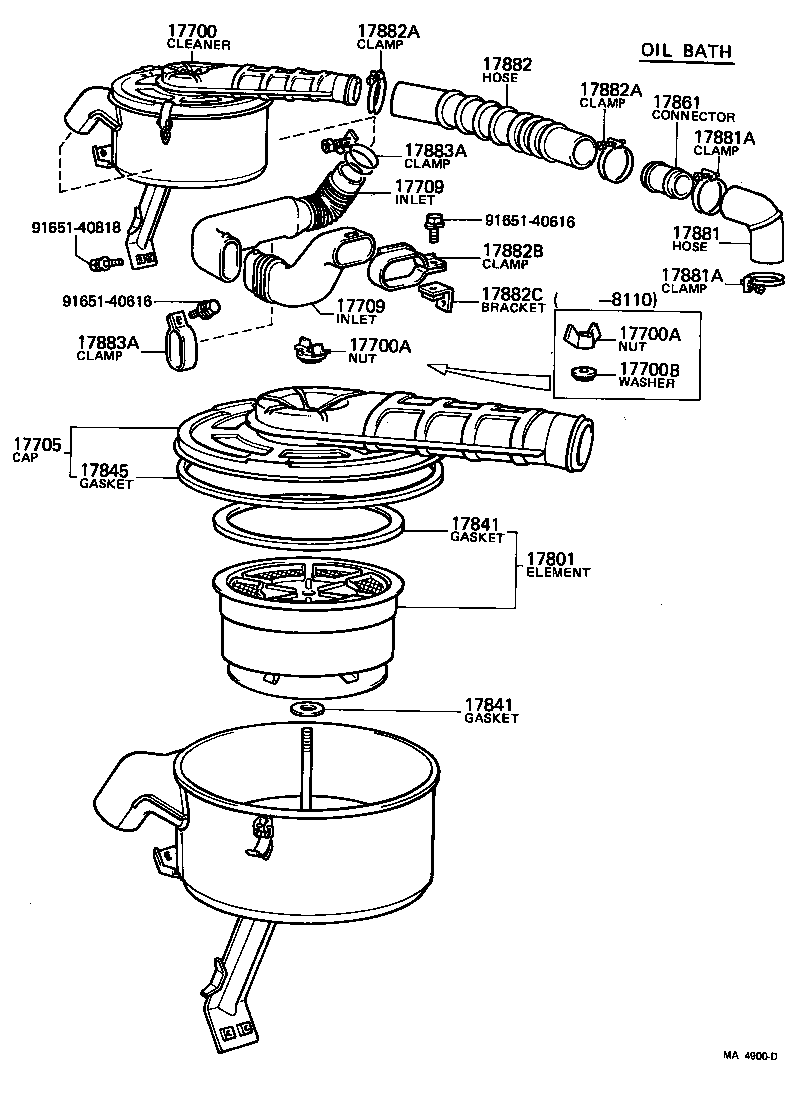

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-61023

2F..FJ40,45..EUR

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-61023

2F..FJ40,45..EUR

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61010

2F..FJ40,45..EUR

 1
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

2F..FJ40,45..EUR

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-61011

2F..FJ40,45..EUR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
Common parts
91651-40616
91651-40818

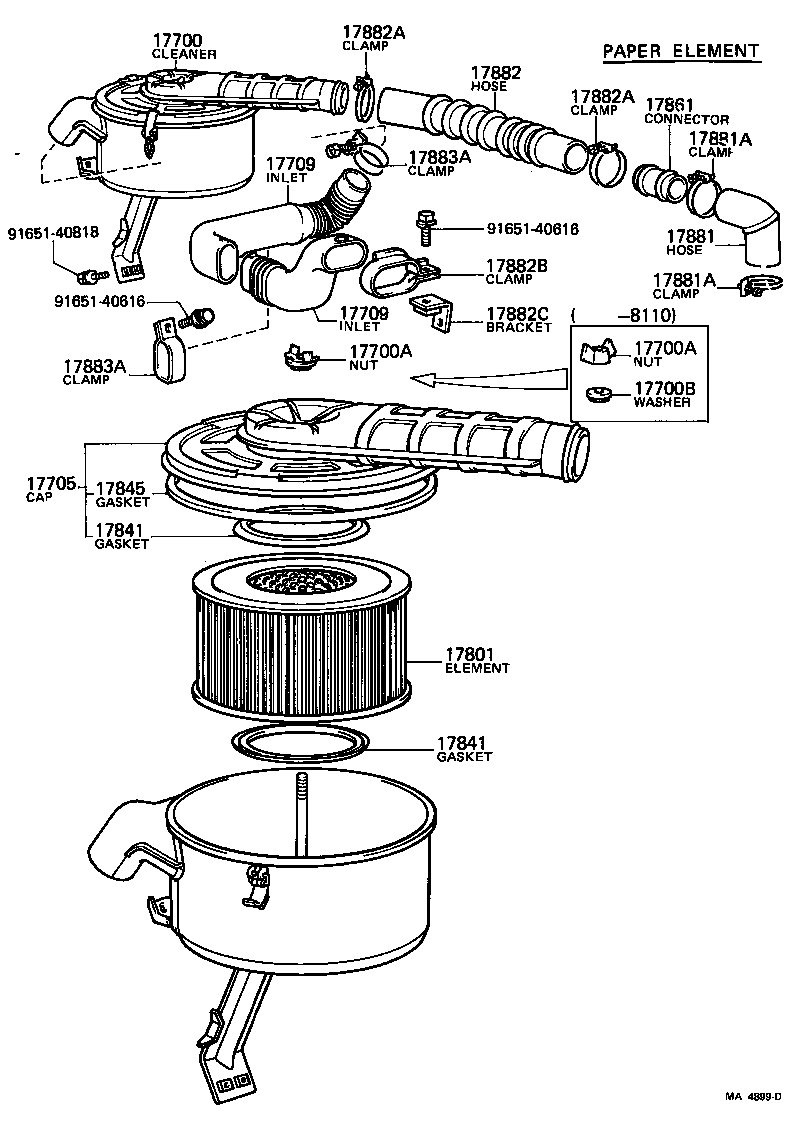

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-61023

2F..FJ40,45..EUR

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-61023

2F..FJ40,45..EUR

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61010

2F..FJ40,45..EUR

 1
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

2F..FJ40,45..EUR

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-61011

2F..FJ40,45..EUR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
Common parts
91651-40616
91651-40818

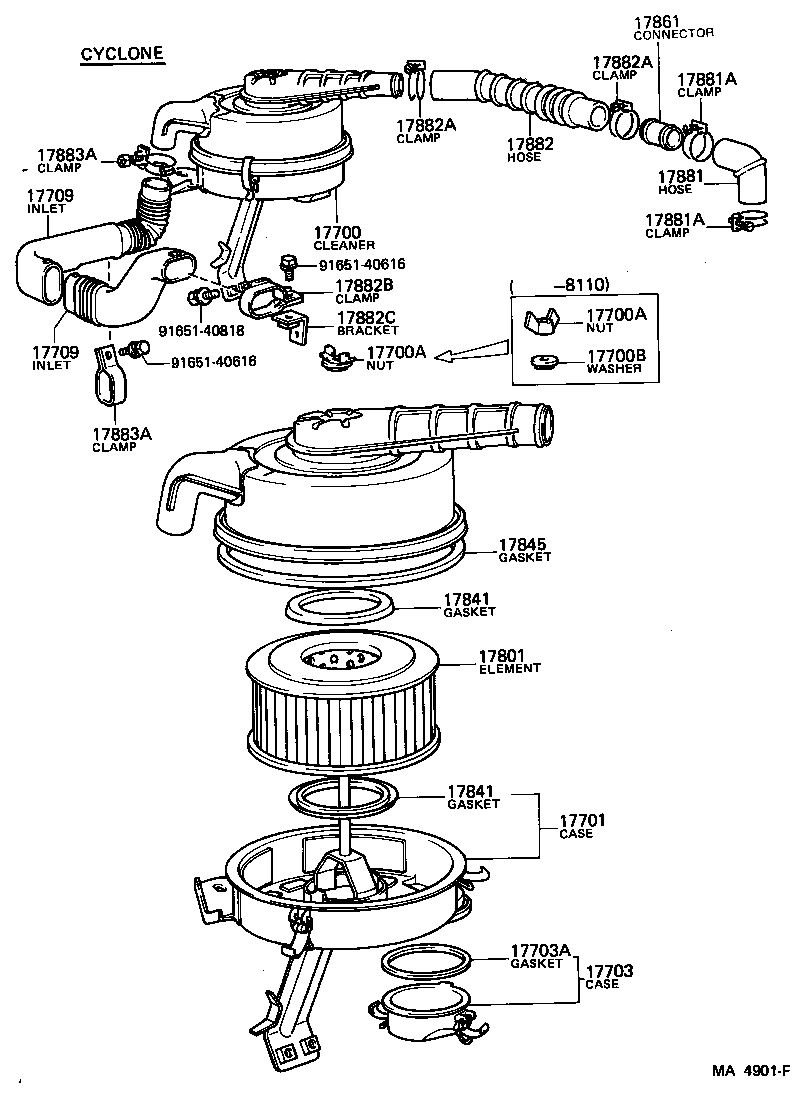

(8008-8410)B,3B..EUR,GEN

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17701 17703 17703A 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-61023

2F..FJ40,45..EUR

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2F..FJ40,45..EUR

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61010

2F..FJ40,45..EUR

 1
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17841 - GASKET, FILTER ELEMENT
17841-61011

2F..FJ40,45..EUR

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

2F..FJ40,45..EUR

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ40,45..EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-61011

2F..FJ40,45..EUR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01007

2F..FJ40,45..EUR

INLET SIDE

 1
96111-10800

2F..FJ40,45..EUR

CLEANER SIDE

 1
Common parts
91651-40616
91651-40818
