FJ45LP-KW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )PIC

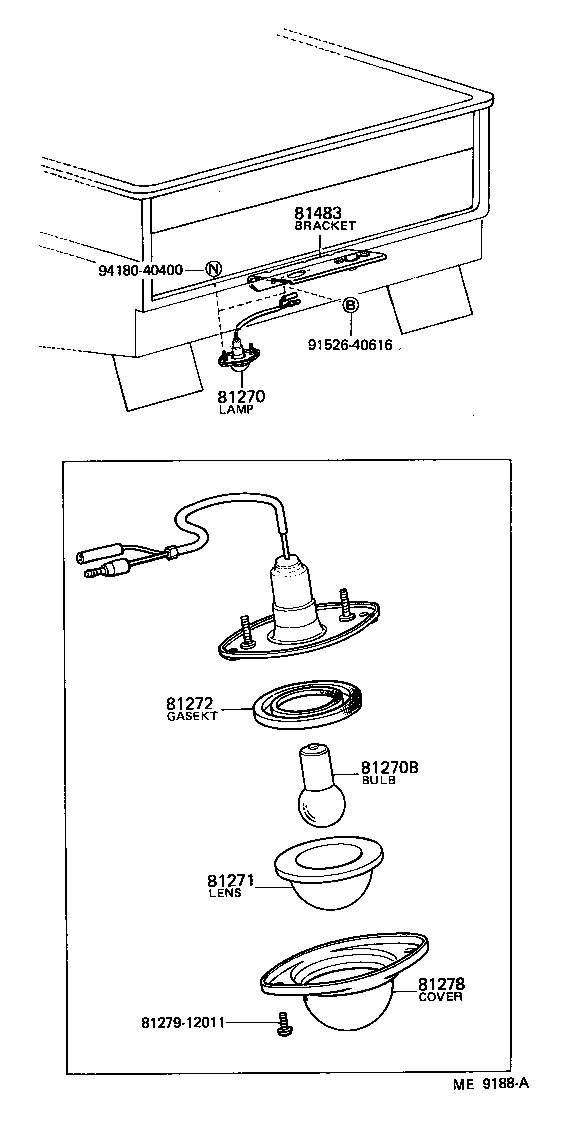

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 8127912011 81483 9152640616 9418040400
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-60101

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 2
81270-60081

BJ42,45,46..EUR

24V

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10011

BJ42,45,46..EUR

24V

 2
81271-10011

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BJ4#,FJ4#,HJ47

 2
81278 - COVER, LICENSE PLATE LAMP
81278-10011

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 2
81278-10011

BJ42,45,46..EUR

24V

 2
81483 - BRACKET, LICENSE PLATE LAMP
81484-90300

BJ45,FJ45,HJ47..PIC

 1
Common parts
81279-12011
91526-40616
94180-40400
