Toyota Land cruiser FJ45 TOOL BOX & LICENSE PLATE BRACKET

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ45LP-K3 (1975)
7554 - TOOL BOX & LICENSE PLATE BRACKET

FJ45LP-K3 (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(6903-8007)

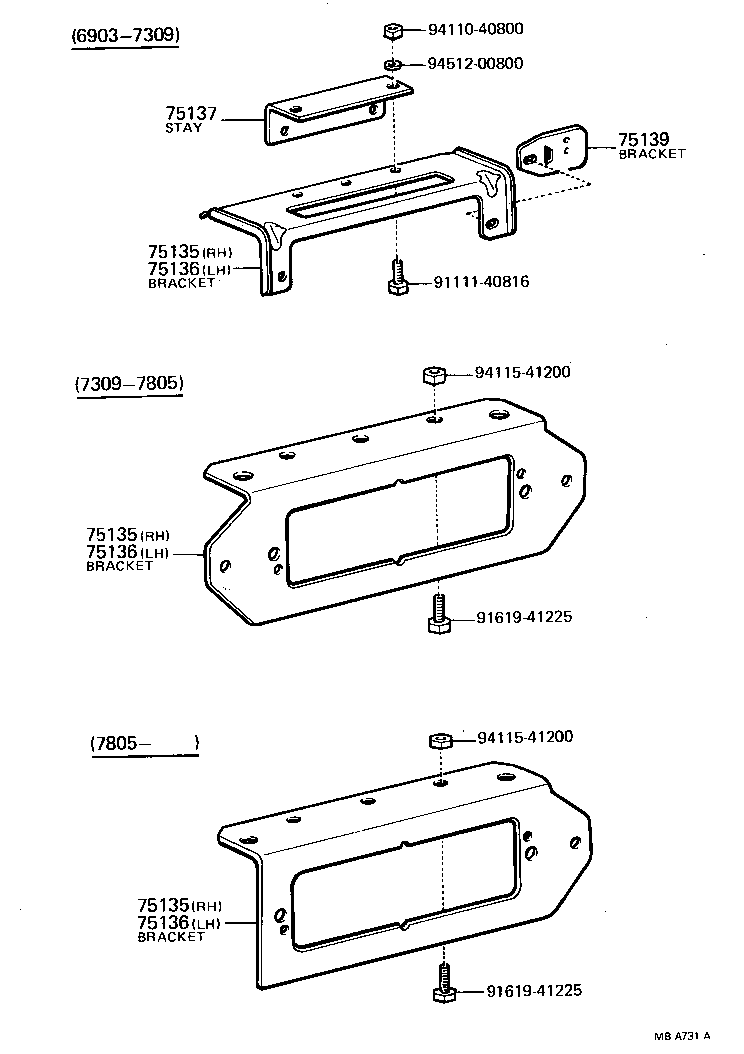

Click highlighted areas on diagram

Part #	Description	Period	Qty
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-90303	BJ4#,FJ4#..(TP,V)..(ARL,GEN)	01/1975 - 01/1979	1
75102-90303	BJ4#,FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-90303	BJ4#,FJ4#..(TP,V)..(ARL,GEN)	01/1975 - 01/1979	1
75102-90303	BJ4#,FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-90303	BJ4#,FJ4#..(TP,V)..(ARL,GEN)	01/1975 - 01/1979	1
75102-90303	BJ4#,FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
75111 - BRACKET, FRONT LICENSE PLATE
75101-60020	BJ4#,FJ4#,HJ45..4F FOR W/WINCH & FOG LAMP	01/1979 - 07/1980	1
75101-60011	BJ4#,FJ4#,55,HJ45	04/1976 - 07/1980	1
75101-60010	BJ4#,FJ4#,55,HJ45	03/1969 - 04/1976	1
75111 - BRACKET, FRONT LICENSE PLATE
75101-60020	BJ4#,FJ4#,HJ45..4F FOR W/WINCH & FOG LAMP	01/1979 - 07/1980	1
75101-60011	BJ4#,FJ4#,55,HJ45	04/1976 - 07/1980	1
75101-60010	BJ4#,FJ4#,55,HJ45	03/1969 - 04/1976	1
75122 - STAY, REAR LICENSE PLATE BRACKET, UPPER
75122-60021	FJ45,HJ45	03/1969 - 09/1973	1
75123 - BRACKET, LICENSE PLATE
75121-35010	FJ45,HJ45	03/1969 - 09/1973	1
75123 - BRACKET, LICENSE PLATE
75121-35010	FJ45,HJ45	03/1969 - 09/1973	1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
75126-60022	FJ45,HJ45	03/1969 - 09/1973	1
75126-60030	FJ45,HJ45..LHD..PIC FOR LICENSE PLATE POSITION LH.	01/1979 - 07/1980	1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
75126-60022	FJ45,HJ45	03/1969 - 09/1973	1
75126-60030	FJ45,HJ45..LHD..PIC FOR LICENSE PLATE POSITION LH.	01/1979 - 07/1980	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-60011	FJ45,HJ45..IV	05/1978 - 07/1980	1
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75136-60030	FJ45,HJ45..IV	05/1978 - 07/1980	1
75216 - BRACKET, TOOL BAG BAND
75216-90301	BJ4#,FJ4#,55,HJ45	07/1978 - 07/1980	1
75216-90300	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1978	1
75216 - BRACKET, TOOL BAG BAND
75216-90301	BJ4#,FJ4#,55,HJ45	07/1978 - 07/1980	1
75216-90300	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1978	1
75217 - BAND, TOOL BAG
74701-95601	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1978	1
75210-90332	FJ45,55,HJ45	03/1969 - 09/1975	1
75217-90300	BJ4#,FJ4#,55,HJ45	07/1978 - 07/1980	1
75217 - BAND, TOOL BAG
74701-95601	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1978	1
75210-90332	FJ45,55,HJ45	03/1969 - 09/1975	1
75217-90300	BJ4#,FJ4#,55,HJ45	07/1978 - 07/1980	1
75217 - BAND, TOOL BAG
74701-95601	BJ4#,FJ4#,55,HJ45	09/1975 - 07/1978	1
75210-90332	FJ45,55,HJ45	03/1969 - 09/1975	1
75217-90300	BJ4#,FJ4#,55,HJ45	07/1978 - 07/1980	1
Common parts
75214-90301
75214-90901
90119-06083
90179-08146
91111-40816
91111-40820
91651-40612
91651-40620
91651-40820
93219-14008
94110-40800
94512-00800
94611-10800
94613-10800

(6903-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
52177 - HANDLE, STARTING OR SPARE WHEEL CARRIER
51481-65010	FJ45,55,HJ45 L=1005	06/1976 - 07/1980	1
51409-66010	FJ4#,55,HJ45 L=850	03/1969 - 06/1976	1
74741 - SPRING, STARTING HANDLE SUPPORT
74741-90301	FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
74741 - SPRING, STARTING HANDLE SUPPORT
74741-90301	FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
75202 - REST SUB-ASSY, JACK
75202-90300	BJ4#,FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
75202-90301	FJ45,HJ45..PIC	01/1979 - 07/1980	1
75202 - REST SUB-ASSY, JACK
75202-90300	BJ4#,FJ4#,HJ45..TP,V	01/1979 - 07/1980	1
75202-90301	FJ45,HJ45..PIC	01/1979 - 07/1980	1
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90302	FJ4#,HJ45..TP,V FOR W/STARTING HANDLE	01/1979 - 07/1980	2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90302	FJ4#,HJ45..TP,V FOR W/STARTING HANDLE	01/1979 - 07/1980	2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90302	FJ4#,HJ45..TP,V FOR W/STARTING HANDLE	01/1979 - 07/1980	2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90302	FJ4#,HJ45..TP,V FOR W/STARTING HANDLE	01/1979 - 07/1980	2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90302	FJ4#,HJ45..TP,V FOR W/STARTING HANDLE	01/1979 - 07/1980	2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90302	FJ4#,HJ45..TP,V FOR W/STARTING HANDLE	01/1979 - 07/1980	2
75242 - CUSHION, JACK SEAT
75242-90301	FJ45,HJ45..PIC	01/1979 - 07/1980	1
Common parts
91611-40612
91651-40616
93219-14010
93540-14008
94511-00400

(6903-8007)IV

Click highlighted areas on diagram

Part #	Description	Period	Qty
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-60011	FJ45,HJ45..IV	05/1978 - 07/1980	1
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-60011	FJ45,HJ45..IV	05/1978 - 07/1980	1
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-60011	FJ45,HJ45..IV	05/1978 - 07/1980	1
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75136-60030	FJ45,HJ45..IV	05/1978 - 07/1980	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75136-60030	FJ45,HJ45..IV	05/1978 - 07/1980	1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-36010	FJ45,HJ45..IV	03/1969 - 09/1973	1
75136-60030	FJ45,HJ45..IV	05/1978 - 07/1980	1
75137 - BRACKET, LICENSE PLATE LAMP
75137-60010	FJ45,HJ45..IV	03/1969 - 09/1973	2
75139 - BRACKET, REFLEX REFLECTOR
75139-60010	FJ45,HJ45..IV	03/1969 - 09/1973	2
Common parts
91111-40816
91619-41225
94110-40800
94115-41200
94512-00800

FJ45LP-K3 (1975)

(6903-8007)

(6903-8007)BJ4#,FJ4#,HJ45

(6903-8007)IV
