FJ45LP-K3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Apr 1986
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

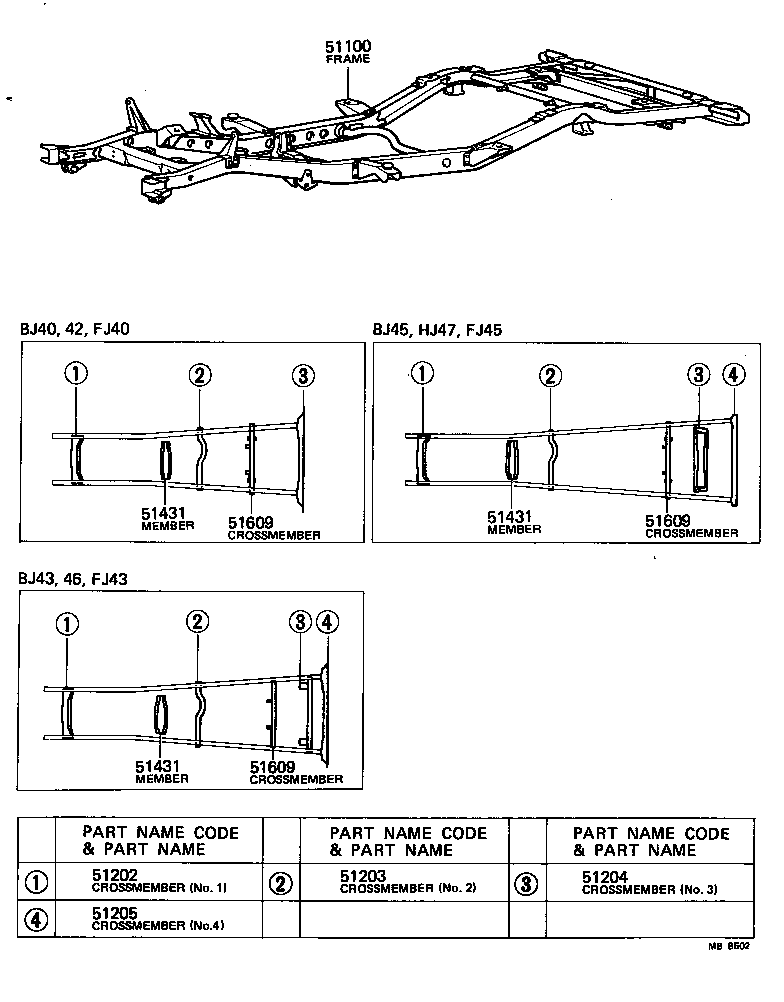

Click highlighted areas on diagram

diagram 51100 51202 51203 51204 51205 51431 51431 51431 51609 51609 51609
Part # Description Qty Price
51100 - FRAME ASSY
51001-60521

FJ45..LHD..PIC

POSITION OF LICENSE PLATE LH

 1
51001-60700

FJ45..LHD..PIC..GEN

 1
51001-60701

FJ45..LHD..PIC..GEN

 1
51001-60345

FJ45..LHD..(TP,V)

 1
51001-60522

FJ45..LHD..PIC

POSITION OF LICENSE PLATE LH

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-60014

FJ43,45,HJ47..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
51201-60015

FJ40..LHD..GEN;FJ40..VKC..EUR;FJ43,45,HJ47..LHD

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60080

FJ45,HJ47

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51204-60010

BJ45,FJ45,HJ47

 1
51204-60011

BJ45,FJ45,HJ47

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51209-60060

BJ45,FJ45,HJ47..PIC

 1
51291-60021

BJ45,FJ45,HJ47..PIC

 1
51209-60050

BJ45,FJ45,HJ47..TP,V

 1
51431 - MEMBER, ENGINE REAR MOUNTING
51403-60011

BJ4#,FJ4#,HJ47

 1
51403-60010

BJ4#,FJ4#,HJ47

 1
51431 - MEMBER, ENGINE REAR MOUNTING
51403-60011

BJ4#,FJ4#,HJ47

 1
51403-60010

BJ4#,FJ4#,HJ47

 1
51431 - MEMBER, ENGINE REAR MOUNTING
51403-60011

BJ4#,FJ4#,HJ47

 1
51403-60010

BJ4#,FJ4#,HJ47

 1
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51203-60053

BJ45,FJ45,HJ47

 1
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51203-60053

BJ45,FJ45,HJ47

 1
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51203-60053

BJ45,FJ45,HJ47

 1

(8008- )

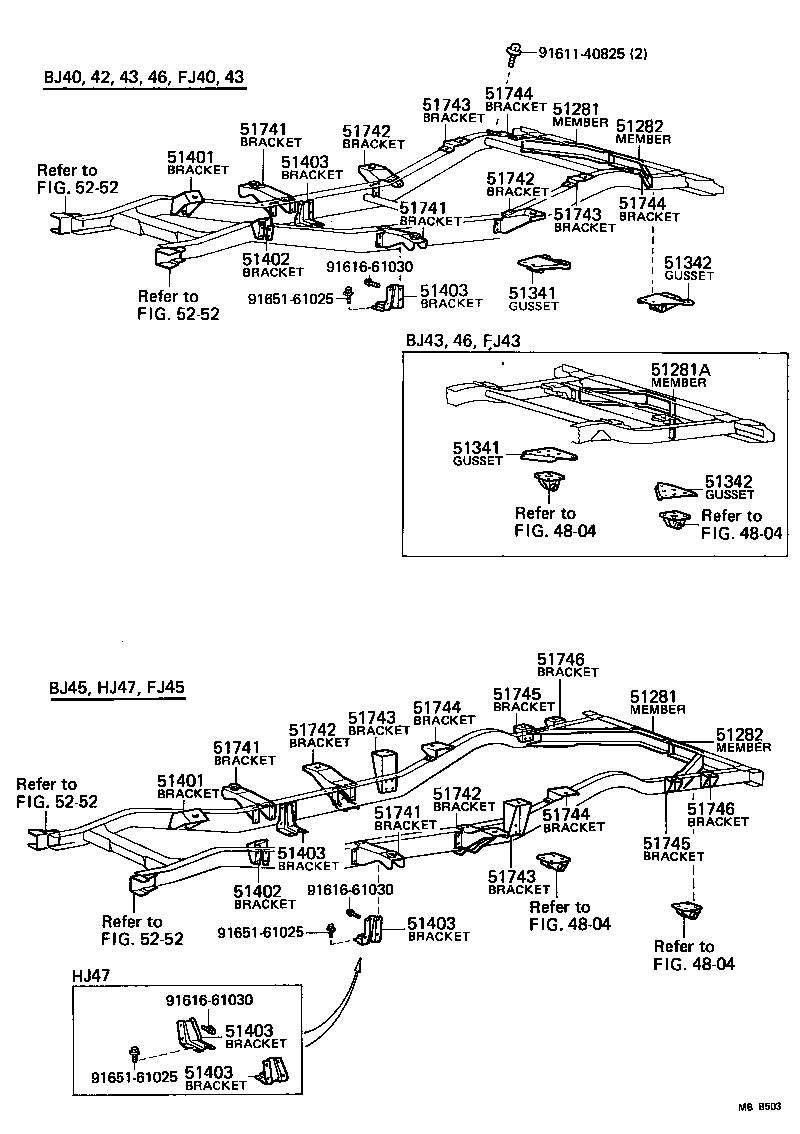

Click highlighted areas on diagram

diagram 4804 4804 4804 4804 51281 51281 51281A 51282 51282 51341 51341 51342 51342 51401 51401 51402 51402 51403 51403 51403 51403 51403 51403 51741 51741 51741 51741 51742 51742 51742 51742 51743 51743 51743 51743 51744 51744 51744 51744 51745 51745 51746 51746 5252 5252 5252 5252 9161140825 9161661030 9161661030 9161661030 9165161025 9165161025 9165161025
Part # Description Qty Price
51281 - MEMBER, REAR DIAGONAL, RH
51028-60012

BJ45,FJ45,HJ47

 1
51281 - MEMBER, REAR DIAGONAL, RH
51028-60012

BJ45,FJ45,HJ47

 1
51282 - MEMBER, REAR DIAGONAL, LH
51029-60012

BJ45,FJ45,HJ47

 1
51282 - MEMBER, REAR DIAGONAL, LH
51029-60012

BJ45,FJ45,HJ47

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60012

FJ4#,HJ47

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60012

FJ4#,HJ47

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60010

FJ4#,HJ47

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60010

FJ4#,HJ47

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60031

BJ45,FJ45

RH

 1
51434-60041

BJ45,FJ45

LH

 1
51434-60040

BJ45,FJ45

LH

 1
51433-60030

BJ45,FJ45

RH

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60031

BJ45,FJ45

RH

 1
51434-60041

BJ45,FJ45

LH

 1
51434-60040

BJ45,FJ45

LH

 1
51433-60030

BJ45,FJ45

RH

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60031

BJ45,FJ45

RH

 1
51434-60041

BJ45,FJ45

LH

 1
51434-60040

BJ45,FJ45

LH

 1
51433-60030

BJ45,FJ45

RH

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60031

BJ45,FJ45

RH

 1
51434-60041

BJ45,FJ45

LH

 1
51434-60040

BJ45,FJ45

LH

 1
51433-60030

BJ45,FJ45

RH

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60031

BJ45,FJ45

RH

 1
51434-60041

BJ45,FJ45

LH

 1
51434-60040

BJ45,FJ45

LH

 1
51433-60030

BJ45,FJ45

RH

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60031

BJ45,FJ45

RH

 1
51434-60041

BJ45,FJ45

LH

 1
51434-60040

BJ45,FJ45

LH

 1
51433-60030

BJ45,FJ45

RH

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51702-60010

BJ45,FJ45,HJ47

LH

 1
51701-60040

BJ45,FJ45,HJ47

RH

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51702-60010

BJ45,FJ45,HJ47

LH

 1
51701-60040

BJ45,FJ45,HJ47

RH

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51702-60010

BJ45,FJ45,HJ47

LH

 1
51701-60040

BJ45,FJ45,HJ47

RH

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51702-60010

BJ45,FJ45,HJ47

LH

 1
51701-60040

BJ45,FJ45,HJ47

RH

 1
51742 - BRACKET, BODY MOUNTING, NO.2
51703-60010

BJ45,FJ45,HJ47..PIC

 2
51723-60010

BJ45,FJ45,HJ47..TP,V

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51703-60010

BJ45,FJ45,HJ47..PIC

 2
51723-60010

BJ45,FJ45,HJ47..TP,V

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51703-60010

BJ45,FJ45,HJ47..PIC

 2
51723-60010

BJ45,FJ45,HJ47..TP,V

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51703-60010

BJ45,FJ45,HJ47..PIC

 2
51723-60010

BJ45,FJ45,HJ47..TP,V

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51706-60021

BJ45,FJ45,HJ47..TP,V

LH

 1
51705-60051

BJ45,FJ45,HJ47..TP,V

RH

 1
51706-60011

BJ45,FJ45,HJ47..PIC

LH

 1
51705-60041

BJ45,FJ45,HJ47..PIC

RH

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51706-60021

BJ45,FJ45,HJ47..TP,V

LH

 1
51705-60051

BJ45,FJ45,HJ47..TP,V

RH

 1
51706-60011

BJ45,FJ45,HJ47..PIC

LH

 1
51705-60041

BJ45,FJ45,HJ47..PIC

RH

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51706-60021

BJ45,FJ45,HJ47..TP,V

LH

 1
51705-60051

BJ45,FJ45,HJ47..TP,V

RH

 1
51706-60011

BJ45,FJ45,HJ47..PIC

LH

 1
51705-60041

BJ45,FJ45,HJ47..PIC

RH

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51706-60021

BJ45,FJ45,HJ47..TP,V

LH

 1
51705-60051

BJ45,FJ45,HJ47..TP,V

RH

 1
51706-60011

BJ45,FJ45,HJ47..PIC

LH

 1
51705-60041

BJ45,FJ45,HJ47..PIC

RH

 1
51744 - BRACKET, BODY MOUNTING, NO.4
51742-60041

BJ45,FJ45,HJ47

LH

 1
51741-60051

BJ45,FJ45,HJ47

RH

 1
51744 - BRACKET, BODY MOUNTING, NO.4
51742-60041

BJ45,FJ45,HJ47

LH

 1
51741-60051

BJ45,FJ45,HJ47

RH

 1
51744 - BRACKET, BODY MOUNTING, NO.4
51742-60041

BJ45,FJ45,HJ47

LH

 1
51741-60051

BJ45,FJ45,HJ47

RH

 1
51744 - BRACKET, BODY MOUNTING, NO.4
51742-60041

BJ45,FJ45,HJ47

LH

 1
51741-60051

BJ45,FJ45,HJ47

RH

 1
51745 - BRACKET, BODY MOUNTING, NO.5
51744-60010

BJ45,FJ45,HJ47..PIC

 2
51737-60010

BJ45,FJ45,HJ47..TP,V

 2
51745 - BRACKET, BODY MOUNTING, NO.5
51744-60010

BJ45,FJ45,HJ47..PIC

 2
51737-60010

BJ45,FJ45,HJ47..TP,V

 2
51746 - BRACKET, BODY MOUNTING, NO.6
51744-60010

BJ45,FJ45,HJ47..PIC

 2
51746 - BRACKET, BODY MOUNTING, NO.6
51744-60010

BJ45,FJ45,HJ47..PIC

 2
Common parts
91611-40825
91616-61030
91651-61025
Linked diagrams
4804
5252
