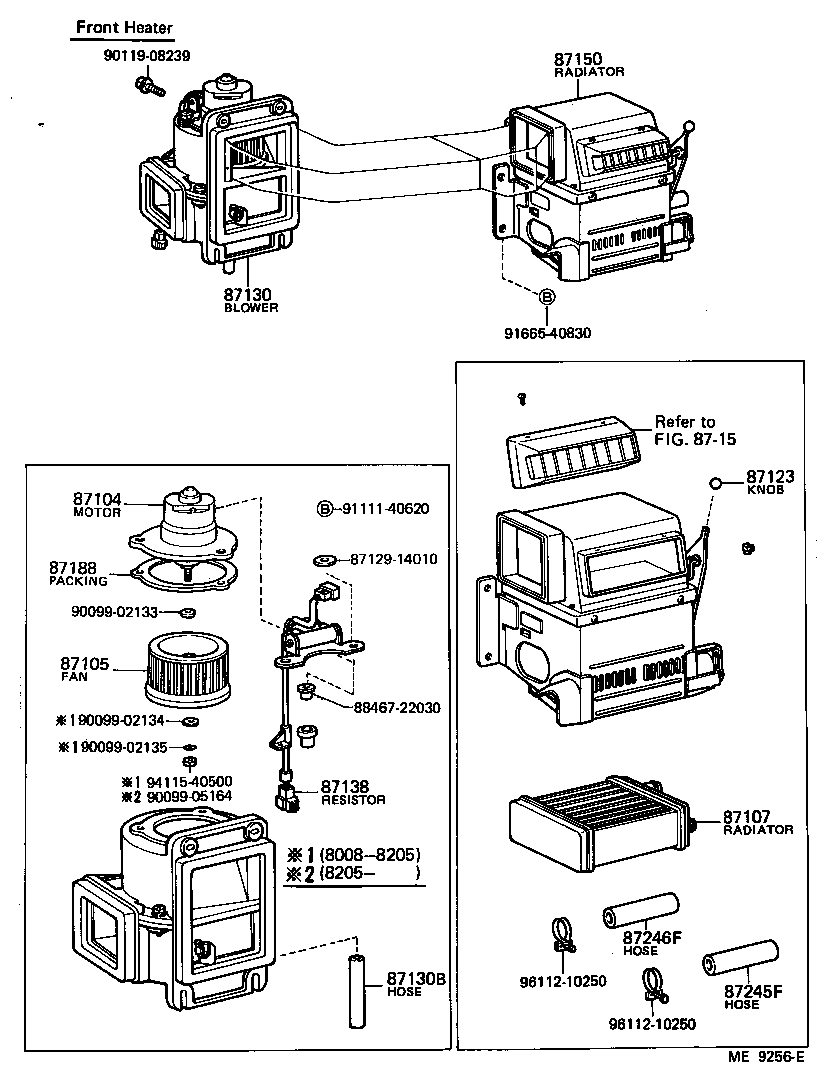

Toyota Land cruiser FJ45 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-60094	FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN 12V,FR HEATER	08/1980 - 04/1986	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22020	FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ40,43,FJ43,45,HJ47..LHD	08/1980 - 04/1986	1
87105-22020	BJ42,45,46..LHD..GEN	08/1980 - 10/1984	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-60093	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	1
87123 - KNOB, HEATER
87123-10050	BJ4#,FJ4#,HJ47..3F,4F FR HEATER	08/1980 - 10/1981	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60034	BJ42,45,46..LHD..GEN 12V	08/1980 - 10/1984	1
87130-60034	FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ40,43,FJ43,45,HJ47..LHD 12V	08/1980 - 04/1986	1
87130B - HOSE, HEATER BLOWER DRAIN
87294-60040	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	1
87138 - RESISTOR, HEATER BLOWER
87138-60140	FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ40,43,FJ43,45,HJ47..LHD 12V	08/1980 - 04/1986	1
87138-60140	BJ42,45,46..LHD..GEN 12V	08/1980 - 10/1984	1
87150 - RADIATOR ASSY, HEATER
87150-60110	BJ40,43,FJ4#,HJ47..LHD..(3F,4F)	08/1980 - 10/1981	1
87150-60111	BJ42,45,46..LHD..GEN	10/1981 - 10/1984	1
87150-60110	BJ42,45,46..LHD..GEN	08/1980 - 10/1981	1
87188 - PACKING, HEATER BLOWER MOTOR
87145-60031	BJ4#,FJ4#,HJ47	08/1980 - 04/1986	1
87245F - HOSE, HEATER WATER, INLET F
99552-30100	BJ4#,FJ4#,HJ47 *H,L=75	08/1980 - 04/1986	1
87246F - HOSE, HEATER WATER, OUTLET F
99552-30100	BJ4#,FJ4#,HJ47 *H,L=75	08/1980 - 04/1986	1
Common parts
87129-14010
88467-22030
90099-02133
90099-02134
90099-02135
90099-05164
90119-08239
91111-40620
91665-40830
94115-40500
96112-10250
Linked diagrams
8715

FJ45LP-K (1980)

(8008- )

(8008- )

(8008- )
