FJ45LP-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ4#..LHD

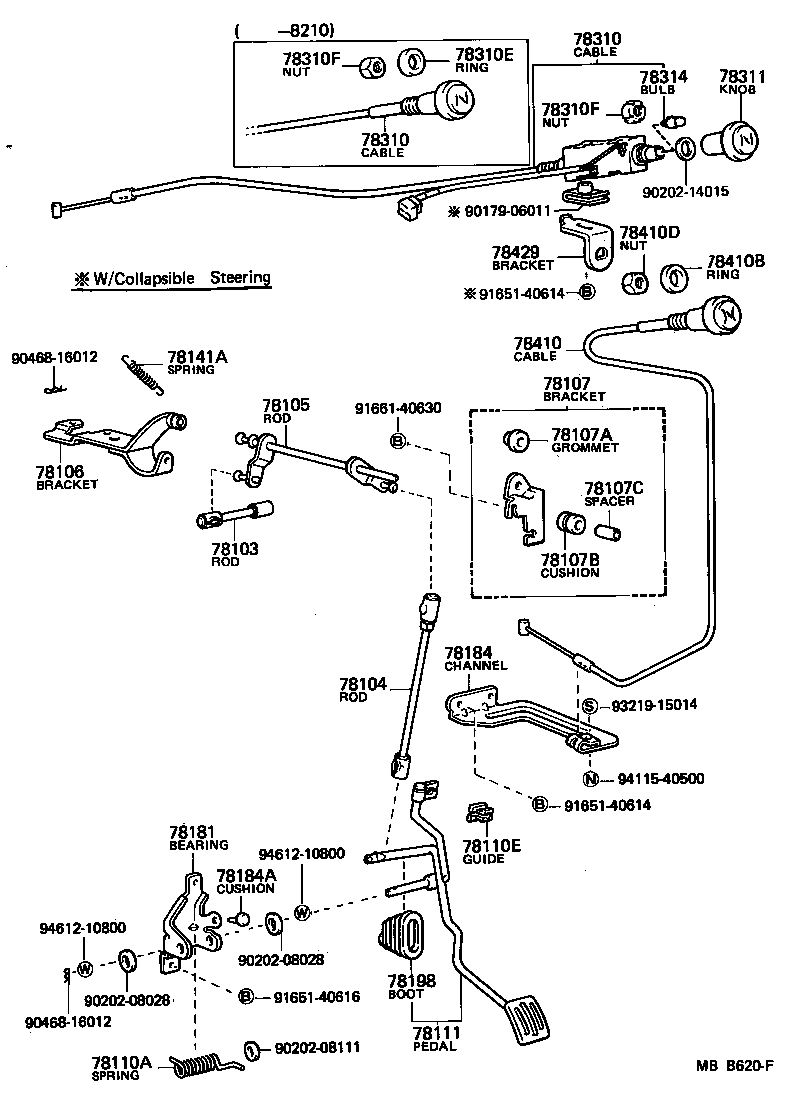

Click highlighted areas on diagram

diagram 78103 78104 78105 78106 78107 78107A 78107B 78107C 78110A 78110E 78111 78141A 78181 78184 78184A 78198 78310 78310 78310E 78310F 78310F 78311 78314 78410 78410B 78410D 78429 9017906011 9020208028 9020208028 9020208111 9020214015 9046816012 9046816012 9165140614 9165140614 9165140616 9166140630 9321915014 9411540500 9461210800 9461210800
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-90A00

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78060-90302

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-90800

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78014-90A00

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78107-90303

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78107A - GROMMET (FOR ACCELERATOR TORQUE ROD BRACKET)
90480-15227

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
90540-09059

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 2
78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
90560-06238

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 2
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26392

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78110E - GUIDE, THROTTLE WIRE
78449-90300

BJ4#,FJ4#,HJ47

 1
78111 - PEDAL, ACCELERATOR
78101-90310

FJ4#..LHD..(3F,4F)

 1
78101-90311

FJ4#..LHD..(3F,4F)

W/THEROTTLE ROD

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90506-12034

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-90304

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78441-90351

FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ4#,FJ4#,HJ47

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-90351

FJ4#..LHD..(3F,4F)

 1
78310 - CABLE ASSY, CHOKE
78310-90801

FJ4#..LHD..GEN

 1
78310 - CABLE ASSY, CHOKE
78310-90801

FJ4#..LHD..GEN

 1
78310E - RING, CHOKE
78311-90351

FJ4#

 1
78310F - NUT, CHOKE
90170-11002

FJ4#

 1
78310F - NUT, CHOKE
90170-11002

FJ4#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90800

BJ4#,FJ4#,HJ47..EUR,GEN

 1
78410B - RING, THROTTLE
78311-90351

BJ4#,FJ4#,HJ47

 1
78410D - NUT, THROTTLE
90170-11002

BJ4#,FJ4#,HJ47

 1
78429 - BRACKET, THROTTLE ROD
78442-90301

FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD

 1
Common parts
90179-06011
90202-08028
90202-08111
90202-14015
90468-16012
91651-40614
91651-40616
91661-40630
93219-15014
94115-40500
94612-10800
