FJ45LP-K (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7501-8007)PIC

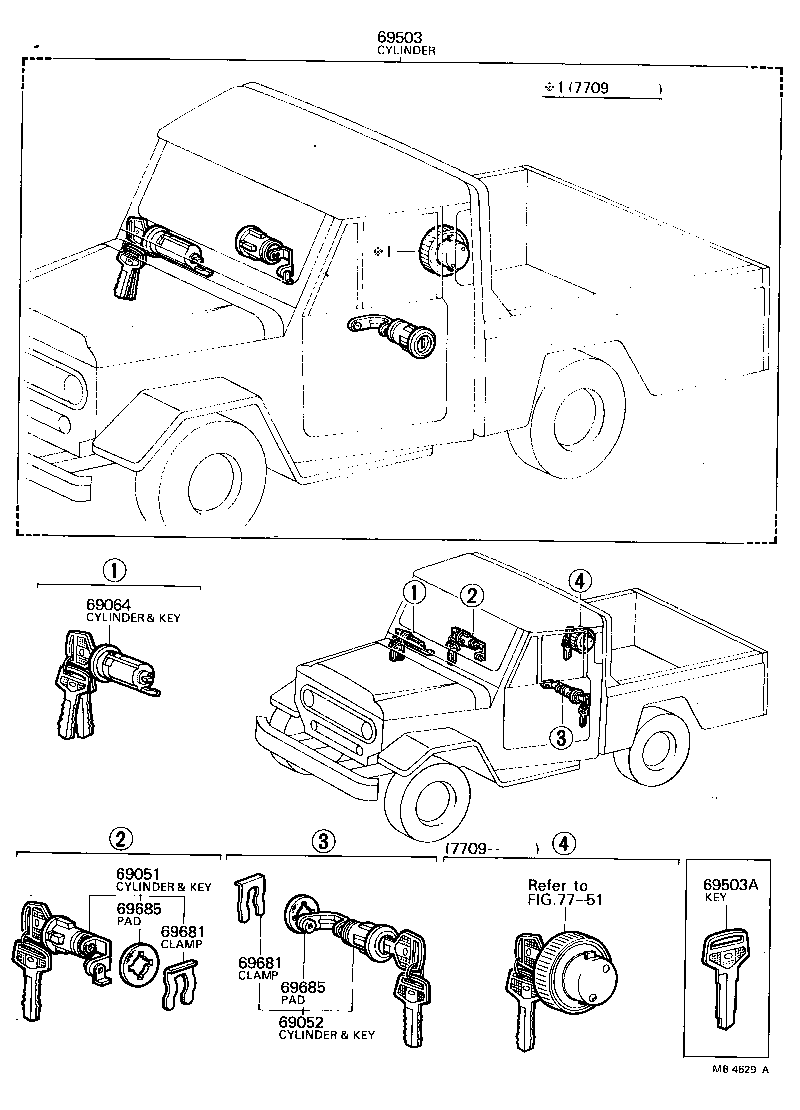

Click highlighted areas on diagram

diagram 69051 69052 69064 69503 69503A 69681 69681 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-69015

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 1
69051-69015

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-69015

BJ40,FJ40,45,HJ45..PIC,V

FOR STEEL DOOR

 1
69510-60030

FJ40,43,45..LHD

 1
69052-69015

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
84450-60020

FJ4#

 1
69064-60021

FJ4#,55

L/STEERING LOCK

 1
69064-60061

FJ4#,55

W/STEERING LOCK

 1
69503 - CYLINDER SET, LOCK
69500-60070

FJ40,43,45..PIC,TP

L/FUEL LOCK,STEEL DOOR

 1
69500-60050

FJ45

W/FUEL LOCK

 1
69005-69047

FJ45..PIC

L/STEERING LOCK

 1
69005-69076

FJ45..PIC

W/STEERING LOCK

 1
69005-90303

FJ45..PIC

W/STEERING & FUEL LOCK

 1
69005-90301

FJ45..PIC

L/STEERING LOCK,W/FUEL LOCK

 1
69503A - KEY, BLANK
90999-00068

BJ4#,FJ4#,55

SUB KEY

 1
90999-00066

BJ4#,FJ4#,55,HJ45

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ40,FJ40,45,HJ45..PIC,V

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ40,FJ40,45,HJ45..PIC,V

 3
69685 - PAD, LOCK CYLINDER
69685-12010

BJ40,FJ40,45,HJ45..PIC,V

FOR FRONT DOOR

 2
69685 - PAD, LOCK CYLINDER
69685-12010

BJ40,FJ40,45,HJ45..PIC,V

FOR FRONT DOOR

 2
Linked diagrams
7751
