Toyota Land cruiser FJ45 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ45LP-B3 (1969)
4601 - PARKING BRAKE & CABLE

FJ45LP-B3 (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(6903-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-60011	FJ4#,55,HJ45	03/1969 - 01/1974	1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-10007	FJ4#,55,HJ45	03/1969 - 01/1974	4
46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46506-35010	FJ4#,55	03/1969 - 02/1972	1
46520 - PLATE SUB-ASSY, PARKING BRAKE
46520-60902	BJ4#,FJ4#,HJ45..LHD	03/1969 - 01/1979	1
46527 - GUIDE, SHOE(FOR PARKING BRAKE)
46527-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-35011	FJ4#,55	03/1969 - 09/1970	2
46550-35012	FJ4#,55	09/1970 - 02/1972	2
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-35011	FJ4#,55	03/1969 - 09/1970	2
46550-35012	FJ4#,55	09/1970 - 02/1972	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-16052	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
46550B - PIN(FOR PARKING BRAKE SHOE)
90249-08016	FJ4#,55	03/1969 - 02/1972	2
90249-08005	FJ4#,55,HJ45	02/1972 - 11/1972	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013	FJ4#,55,HJ45 ID=6	11/1972 - 02/1974	3
90213-07006	BJ4#,FJ4#,55,HJ45 ID= 7.5	03/1969 - 07/1980	1
90213-09005	BJ4#,FJ4#,55,HJ45 ID=11.5	03/1969 - 07/1980	1
90213-04004	FJ4#,55,HJ45 ID= 4	03/1969 - 11/1972	3
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013	FJ4#,55,HJ45 ID=6	11/1972 - 02/1974	3
90213-07006	BJ4#,FJ4#,55,HJ45 ID= 7.5	03/1969 - 07/1980	1
90213-09005	BJ4#,FJ4#,55,HJ45 ID=11.5	03/1969 - 07/1980	1
90213-04004	FJ4#,55,HJ45 ID= 4	03/1969 - 11/1972	3
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013	FJ4#,55,HJ45 ID=6	11/1972 - 02/1974	3
90213-07006	BJ4#,FJ4#,55,HJ45 ID= 7.5	03/1969 - 07/1980	1
90213-09005	BJ4#,FJ4#,55,HJ45 ID=11.5	03/1969 - 07/1980	1
90213-04004	FJ4#,55,HJ45 ID= 4	03/1969 - 11/1972	3
46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE)
90206-08024	BJ4#,FJ4#,55,HJ45	03/1969 - 08/1978	4
46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE)
90206-08024	BJ4#,FJ4#,55,HJ45	03/1969 - 08/1978	4
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14048	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
46551 - PIN, ANCHOR(FOR PARKING BRAKE)
46551-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	2
46577 - COVER, ADJUSTING CAM HOLE
46577-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	1
46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER
46611-35020	BJ4#,FJ4#,HJ45..LHD	03/1969 - 08/1978	1
46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER
46611-35020	BJ4#,FJ4#,HJ45..LHD	03/1969 - 08/1978	1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-35020	BJ4#,FJ4#,HJ45..LHD	03/1969 - 08/1978	1
46612A - PIN(FOR PARKING BRAKE SHOE LEVER STRUT)
90249-08005	FJ4#,55,HJ45	03/1969 - 11/1972	1
Common parts
90101-08063
90101-08064
94110-41400
94115-41400
94511-01400
94512-00800

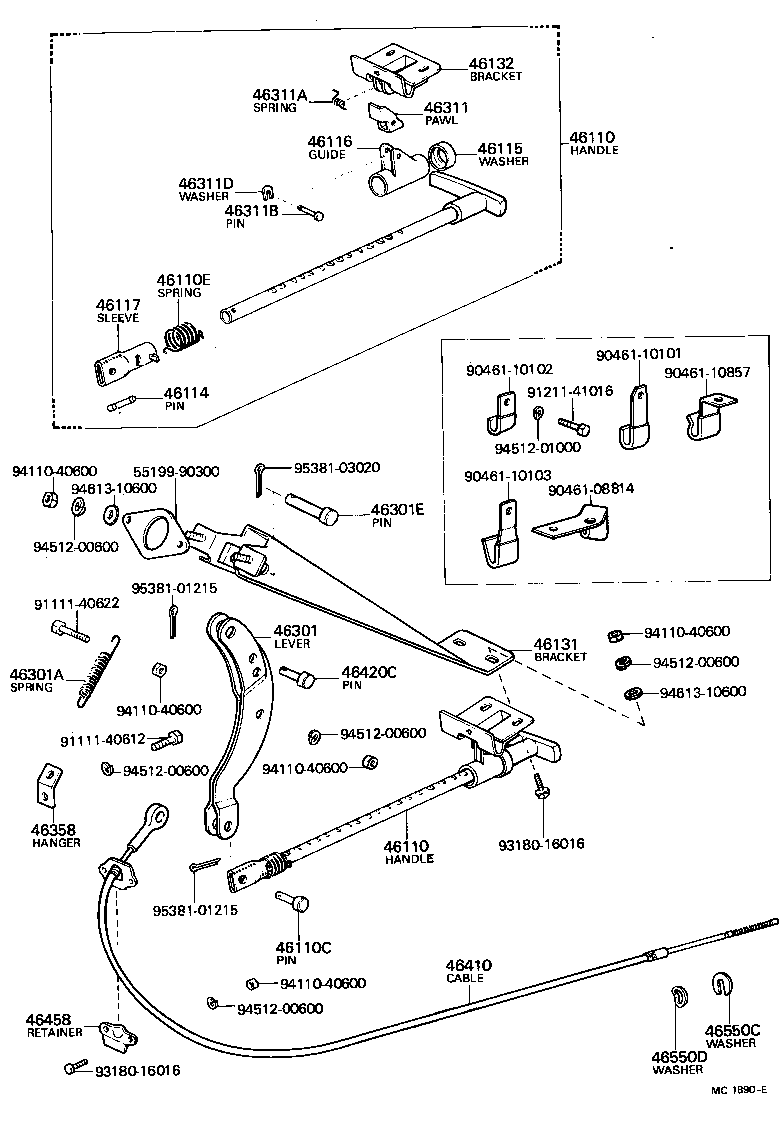

(6903-7007)FJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46120-60050	FJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46120-60021	BJ4#,FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 08/1976	1
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46120-60050	FJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46120-60021	BJ4#,FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 08/1976	1
46110C - PIN(FOR PARKING BRAKE HANDLE SET)
90240-08038	BJ4#,FJ4#,55,HJ45 ID=1.6	03/1969 - 01/1978	1
46110E - SPRING, TORSION(FOR PARKING BRAKE PLUNGER)
90508-14039	BJ4#,FJ4#,55,HJ45..LHD	03/1969 - 01/1979	1
46114 - PIN, PARKING BRAKE PLUNGER
46114-30010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46115 - WASHER, PARKING BRAKE PLUNGER
46115-30010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46116 - GUIDE, PARKING BRAKE PLUNGER
46116-30010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46117 - SLEEVE, PARKING BRAKE PLUNGER
46117-30020	BJ4#,FJ4#,55,HJ45..LHD	03/1969 - 01/1979	1
46131 - BRACKET SUB-ASSY, PARKING BRAKE
55107-60011	FJ4#	03/1969 - 09/1971	1
55107-90300	BJ4#,FJ4#,HJ45	09/1971 - 01/1975	1
46132 - BRACKET, PARKING BRAKE PLUNGER, NO.2
46131-60011	BJ4#,FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
46131-60030	FJ4# FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-30010	FJ55..RHD;BJ4#,FJ4#,HJ45	03/1969 - 01/1975	1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-12023	BJ4#,FJ4#,HJ45	03/1969 - 01/1979	1
46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER)
90240-12043	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	1
46311 - PAWL, PARKING BRAKE
46311-30020	BJ4#,FJ40,43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
46311-60010	FJ4#,55 FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08041	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46311B - PIN, PARKING BRAKE PAWL PIVOT
90249-05010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL)
90213-03007	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46358 - HANGER, PULL ROD RETURN SPRING
46358-60010	FJ4#,55,HJ45	03/1969 - 09/1973	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60020	FJ4#..LHD L=1676,FOR 3-SPEED T/M	03/1969 - 07/1970	1
46410-60050	FJ45..LHD L=1728,FOR 4-SPEED T/M	10/1971 - 09/1972	1
46410-60050	BJ4#,FJ4#..LHD L=1728,FOR 4-SPEED T/M	09/1972 - 01/1975	1
46410-60021	FJ4#..LHD L=1643,FOR 3-SPEED T/M	07/1970 - 01/1975	1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08038	BJ4#,FJ4#,55,HJ45	03/1969 - 03/1976	1
46458 - RETAINER, CABLE
46458-60010	FJ4#	03/1969 - 07/1970	1
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06013	FJ4#,55,HJ45 ID=6	11/1972 - 02/1974	3
90213-07006	BJ4#,FJ4#,55,HJ45 ID= 7.5	03/1969 - 07/1980	1
90213-09005	BJ4#,FJ4#,55,HJ45 ID=11.5	03/1969 - 07/1980	1
90213-04004	FJ4#,55,HJ45 ID= 4	03/1969 - 11/1972	3
46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE)
90206-08024	BJ4#,FJ4#,55,HJ45	03/1969 - 08/1978	4
Common parts
55199-90300
90461-08814
90461-10101
90461-10102
90461-10103
90461-10857
91111-40612
91111-40622
91211-41016
93180-16016
94110-40600
94512-00600
94512-01000
94613-10600
95381-01215
95381-03020

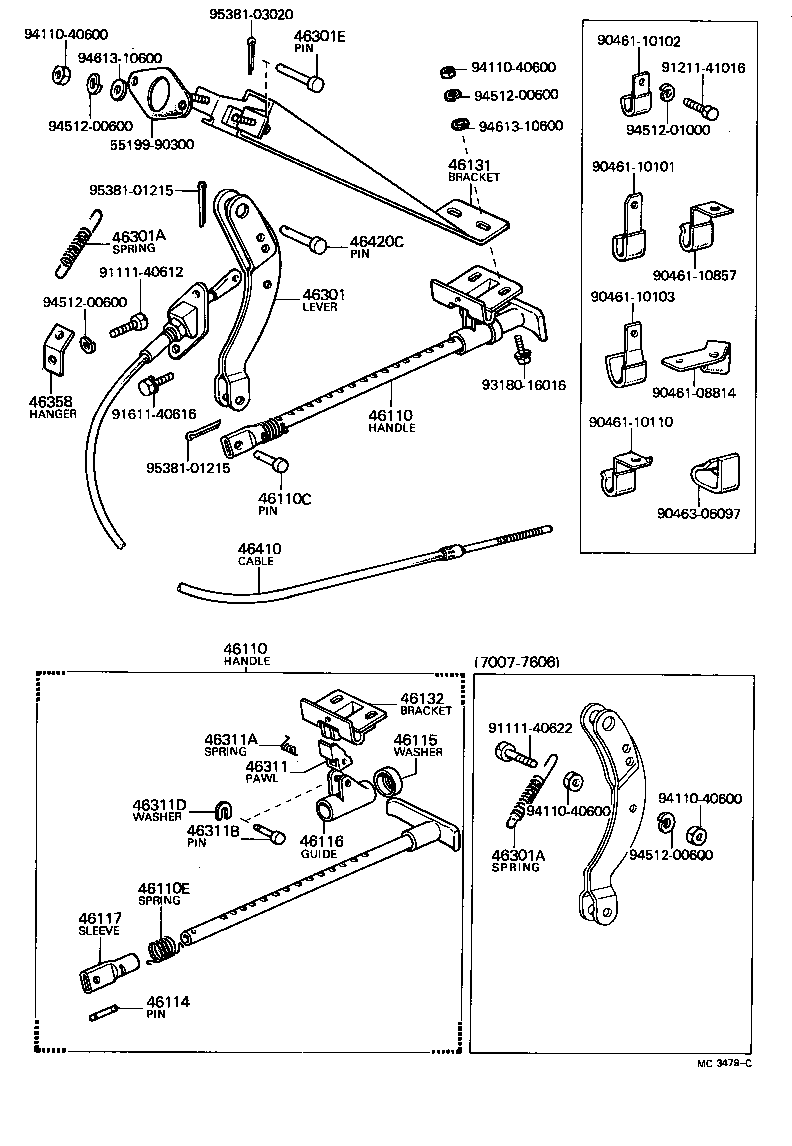

(7007-7501)BJ4#,FJ4#,HJ45 ; (7501-7709)FJ4#..RHD; (7808- )BJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46120-60050	FJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46120-60021	BJ4#,FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 08/1976	1
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46120-60050	FJ4#..LHD FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46120-60021	BJ4#,FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 08/1976	1
46110C - PIN(FOR PARKING BRAKE HANDLE SET)
90240-08038	BJ4#,FJ4#,55,HJ45 ID=1.6	03/1969 - 01/1978	1
46110E - SPRING, TORSION(FOR PARKING BRAKE PLUNGER)
90508-14039	BJ4#,FJ4#,55,HJ45..LHD	03/1969 - 01/1979	1
46114 - PIN, PARKING BRAKE PLUNGER
46114-30010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46115 - WASHER, PARKING BRAKE PLUNGER
46115-30010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46116 - GUIDE, PARKING BRAKE PLUNGER
46116-30010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46117 - SLEEVE, PARKING BRAKE PLUNGER
46117-30020	BJ4#,FJ4#,55,HJ45..LHD	03/1969 - 01/1979	1
46131 - BRACKET SUB-ASSY, PARKING BRAKE
55107-60011	FJ4#	03/1969 - 09/1971	1
55107-90300	BJ4#,FJ4#,HJ45	09/1971 - 01/1975	1
46132 - BRACKET, PARKING BRAKE PLUNGER, NO.2
46131-60011	BJ4#,FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
46131-60030	FJ4# FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-30010	FJ55..RHD;BJ4#,FJ4#,HJ45	03/1969 - 01/1975	1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-12023	BJ4#,FJ4#,HJ45	03/1969 - 01/1979	1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-12023	BJ4#,FJ4#,HJ45	03/1969 - 01/1979	1
46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER)
90240-12043	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	1
46311 - PAWL, PARKING BRAKE
46311-30020	BJ4#,FJ40,43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 01/1975	1
46311-60010	FJ4#,55 FOR TANDEM MASTER CYLINDER	09/1973 - 11/1973	1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08041	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46311B - PIN, PARKING BRAKE PAWL PIVOT
90249-05010	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL)
90213-03007	BJ4#,FJ4#,55,HJ45	03/1969 - 01/1979	1
46358 - HANGER, PULL ROD RETURN SPRING
46358-60010	FJ4#,55,HJ45	03/1969 - 09/1973	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60020	FJ4#..LHD L=1676,FOR 3-SPEED T/M	03/1969 - 07/1970	1
46410-60050	FJ45..LHD L=1728,FOR 4-SPEED T/M	10/1971 - 09/1972	1
46410-60050	BJ4#,FJ4#..LHD L=1728,FOR 4-SPEED T/M	09/1972 - 01/1975	1
46410-60021	FJ4#..LHD L=1643,FOR 3-SPEED T/M	07/1970 - 01/1975	1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08038	BJ4#,FJ4#,55,HJ45	03/1969 - 03/1976	1
Common parts
55199-90300
90461-08814
90461-10101
90461-10102
90461-10103
90461-10110
90461-10857
90463-06097
91111-40612
91111-40622
91211-41016
91611-40616
93180-16016
94110-40600
94512-00600
94512-01000
94613-10600
95381-01215
95381-03020

FJ45LP-B3 (1969)

(6903-8007)

(6903-7007)FJ4#

(7007-7501)BJ4#,FJ4#,HJ45 ; (7501-7709)FJ4#..RHD; (7808- )BJ4#,HJ45
