FJ45LP-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7501)BJ4#,FJ4#,HJ45

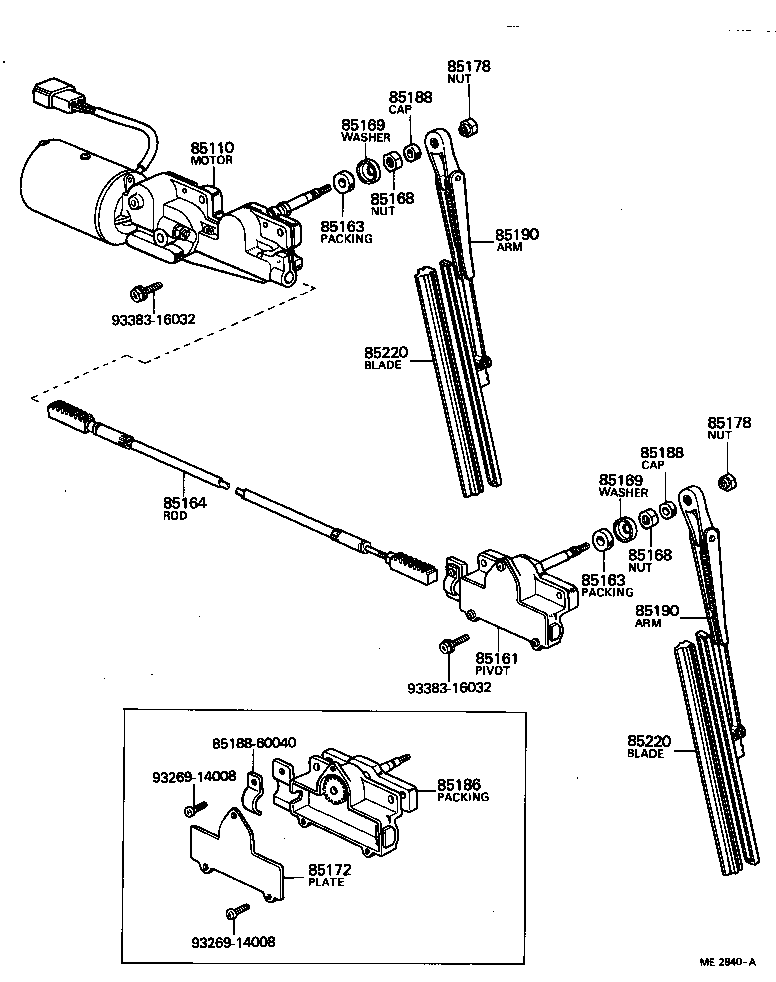

Click highlighted areas on diagram

diagram 85110 85161 85163 85163 85164 85168 85168 85169 85169 85172 85178 85178 85186 85188 85188 8518860040 85190 85190 85220 85220 9326914008 9326914008 9338316032 9338316032
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60080

FJ4#,HJ45..LHD

 1
85161 - PIVOT, WINDSHIELD WIPER LINK, NO.1
85161-60050

BJ4#,FJ4#,HJ45..LHD

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

BJ4#,FJ4#,HJ45

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

BJ4#,FJ4#,HJ45

 2
85164 - ROD, WINDSHIELD WIPER LINK, NO.1
85164-60050

BJ4#,FJ40,43,45,HJ45..LHD

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-60040

BJ4#,FJ4#,HJ45

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-60040

BJ4#,FJ4#,HJ45

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-60040

BJ4#,FJ4#,HJ45

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-60040

BJ4#,FJ4#,HJ45

 2
85172 - PLATE, WINDSHIELD WIPER LINK PIVOT HOUSING END
85172-60040

BJ4#,FJ4#,HJ45

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-60040

BJ4#,FJ4#,HJ45

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-60040

BJ4#,FJ4#,HJ45

 2
85186 - PACKING, WINDSHIELD WIPER LINK PIVOT, B
85185-60040

BJ4#,FJ4#,HJ45

PIVOT SIDE

 1
85159-60070

FJ4#,HJ45

MOTOR SIDE

 1
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85177-60040

BJ4#,FJ4#,HJ45

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85177-60040

BJ4#,FJ4#,HJ45

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-60061

FJ4#,HJ45..LHD

 2
85190-90301

BJ4#,FJ4#,HJ45..LHD

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-60061

FJ4#,HJ45..LHD

 2
85190-90301

BJ4#,FJ4#,HJ45..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-60030

FJ4#,HJ45

 2
85220-90300

BJ4#,FJ4#,HJ45

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-60030

FJ4#,HJ45

 2
85220-90300

BJ4#,FJ4#,HJ45

 2
Common parts
85188-60040
93269-14008
93383-16032

(6903-7501)BJ4#,FJ4#,HJ45

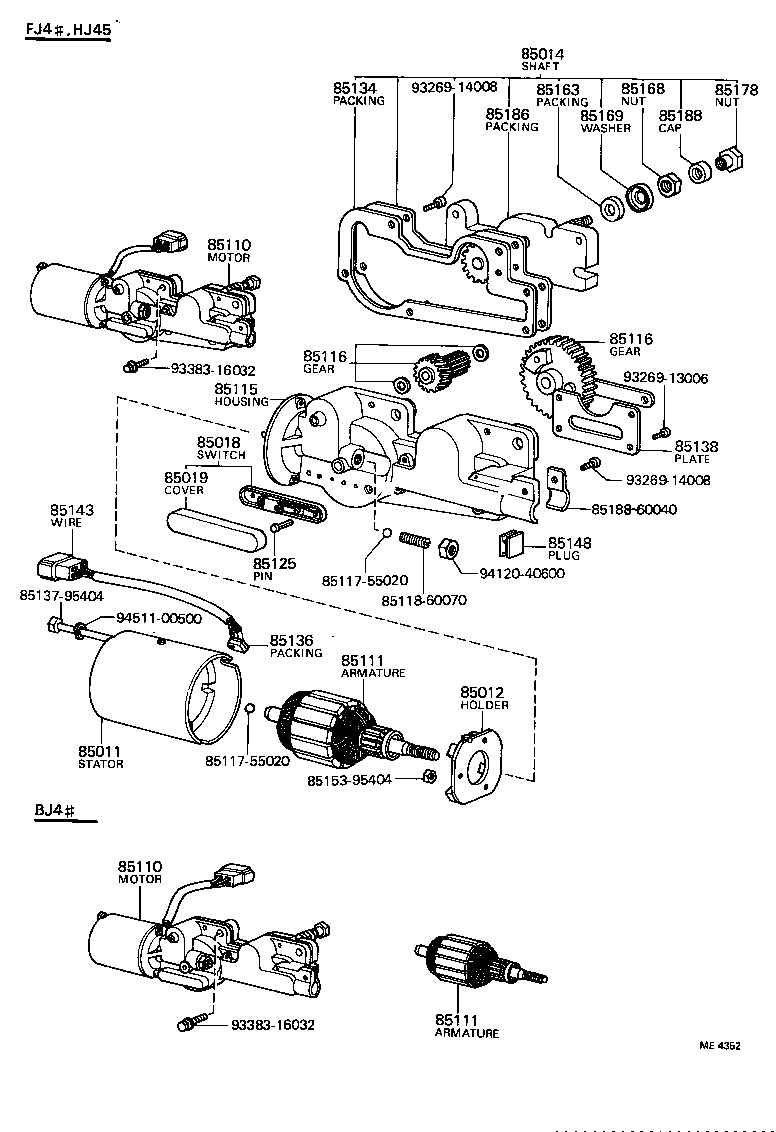

Click highlighted areas on diagram

diagram 85011 85012 85014 85018 85019 85110 85110 85111 85111 85115 85116 85116 8511755020 8511755020 8511860070 85125 85134 85136 8513795404 85138 85143 85148 8515395404 85163 85168 85169 85178 85186 85188 8518860040 9326913006 9326914008 9326914008 9338316032 9338316032 9412040600 9451100500
Part # Description Qty Price
85011 - STATOR SUB-ASSY, WINDSHIELD WIPER MOTOR
85011-60070

FJ4#,HJ45

 1
85012 - HOLDER SUB-ASSY, WINDSHIELD WIPER MOTOR BRUSH
85012-95404

FJ4#,HJ45

 1
85014 - SHAFT SUB-ASSY, WINDSHIELD WIPER DRIVE
85014-60080

FJ4#,HJ45..LHD

 1
85018 - SWITCH SUB-ASSY, WINDSHIELD WIPER AUTO STOP
85013-60070

FJ4#,HJ45

 1
85019 - COVER, WINDSHIELD WIPER MOTOR AUTO STOP SWITCH
85146-60070

FJ4#,HJ45

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60080

FJ4#,HJ45..LHD

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60080

FJ4#,HJ45..LHD

 1
85111 - ARMATURE, WINDSHIELD WIPER MOTOR
85111-60070

FJ4#,HJ45

 1
85111 - ARMATURE, WINDSHIELD WIPER MOTOR
85111-60070

FJ4#,HJ45

 1
85115 - HOUSING, WINDSHIELD WIPER MOTOR GEAR
85115-60080

FJ4#,HJ45..LHD

 1
85116 - GEAR, WINDSHIELD WIPER MOTOR
85127-60080

FJ4#,HJ45..LHD

N=50

 1
85116-60070

FJ4#,HJ45

N=11 & 25

 1
85116 - GEAR, WINDSHIELD WIPER MOTOR
85127-60080

FJ4#,HJ45..LHD

N=50

 1
85116-60070

FJ4#,HJ45

N=11 & 25

 1
85125 - PIN, WINDSHIELD WIPER MOTOR AUTO STOP SWITCH
85125-60070

FJ4#,HJ45

 1
85134 - GASKET, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85134-60070

FJ4#,HJ45

 1
85136 - PACKING, WINDSHIELD WIPER MOTOR WIRE
85136-95404

FJ4#,HJ45

 1
85138 - PLATE, WINDSHIELD WIPER MOTOR GEAR
85138-60070

FJ4#,HJ45

 1
85143 - WIRING, WINDSHIELD WIPER MOTOR LEAD
85143-60080

FJ4#,HJ45..LHD

 1
85148 - PLUG, WINDSHIELD WIPER MOTOR GEAR CASE HOLE
85156-60070

FJ4#,HJ45

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

BJ4#,FJ4#,HJ45

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-60040

BJ4#,FJ4#,HJ45

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-60040

BJ4#,FJ4#,HJ45

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85182-60040

BJ4#,FJ4#,HJ45

 2
85186 - PACKING, WINDSHIELD WIPER LINK PIVOT, B
85185-60040

BJ4#,FJ4#,HJ45

PIVOT SIDE

 1
85159-60070

FJ4#,HJ45

MOTOR SIDE

 1
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85177-60040

BJ4#,FJ4#,HJ45

 2
Common parts
85117-55020
85118-60070
85137-95404
85153-95404
85188-60040
93269-13006
93269-14008
93383-16032
94120-40600
94511-00500
