FJ45LP-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

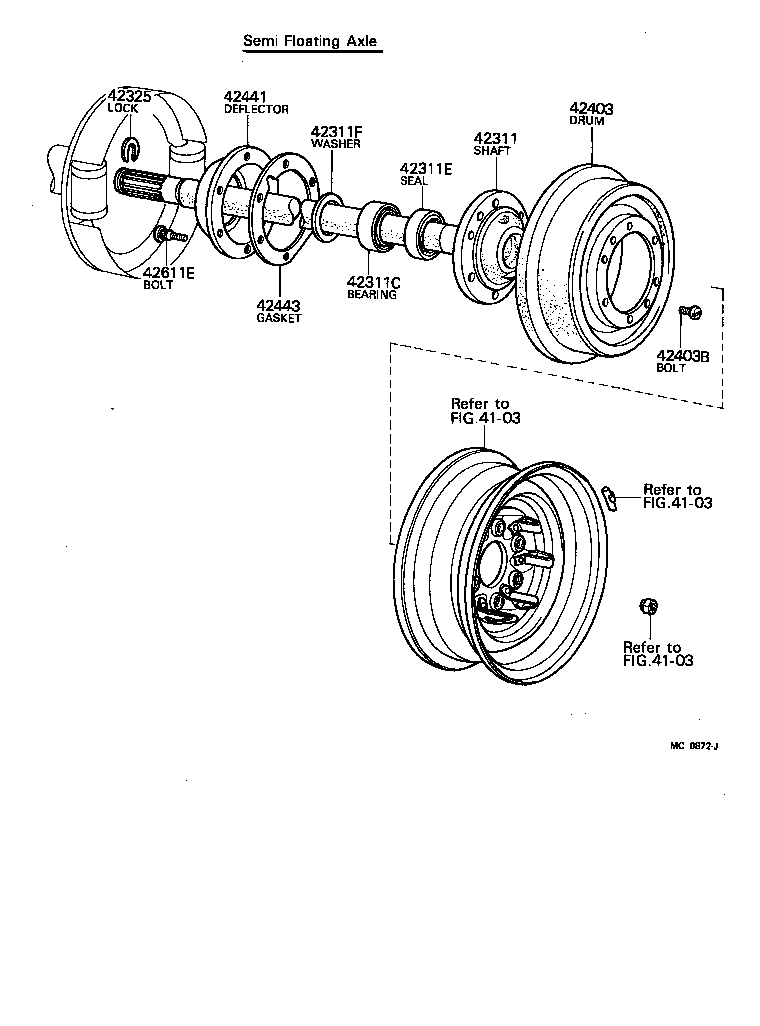

Click highlighted areas on diagram

diagram 4103 4103 4103 42311 42311C 42311E 42311F 42325 42403 42403B 42441 42443 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-60021

FJ4#,55,HJ45

FOR RH.

 1
42312-60011

FJ4#,55,HJ45

FOR LH.

 1
42311C - BEARING (FOR REAR AXLE SHAFT)
90365-47005

FJ4#,55,HJ45

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90311-47048

BJ4#,FJ4#,55,HJ45

 2
90311-47029

FJ4#,55,HJ45

 2
42311F - WASHER, PLATE (FOR REAR AXLE SHAFT)
90201-48132

FJ4#,55,HJ45

 2
42325 - LOCK, REAR AXLE SHAFT
42325-55010

BJ4#,FJ4#,55,HJ45

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
43501-60010

BJ4#,FJ4#,55,HJ45

 2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10007

BJ4#,FJ4#,55,HJ45

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-30010

BJ4#,FJ4#,55,HJ45

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-55020

BJ4#,FJ4#,55,HJ45

FOR SEMI FLOATING AXLE

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02014

BJ4#,FJ4#,55,HJ45

 12
Linked diagrams
4103
