FJ45LP-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-6907)

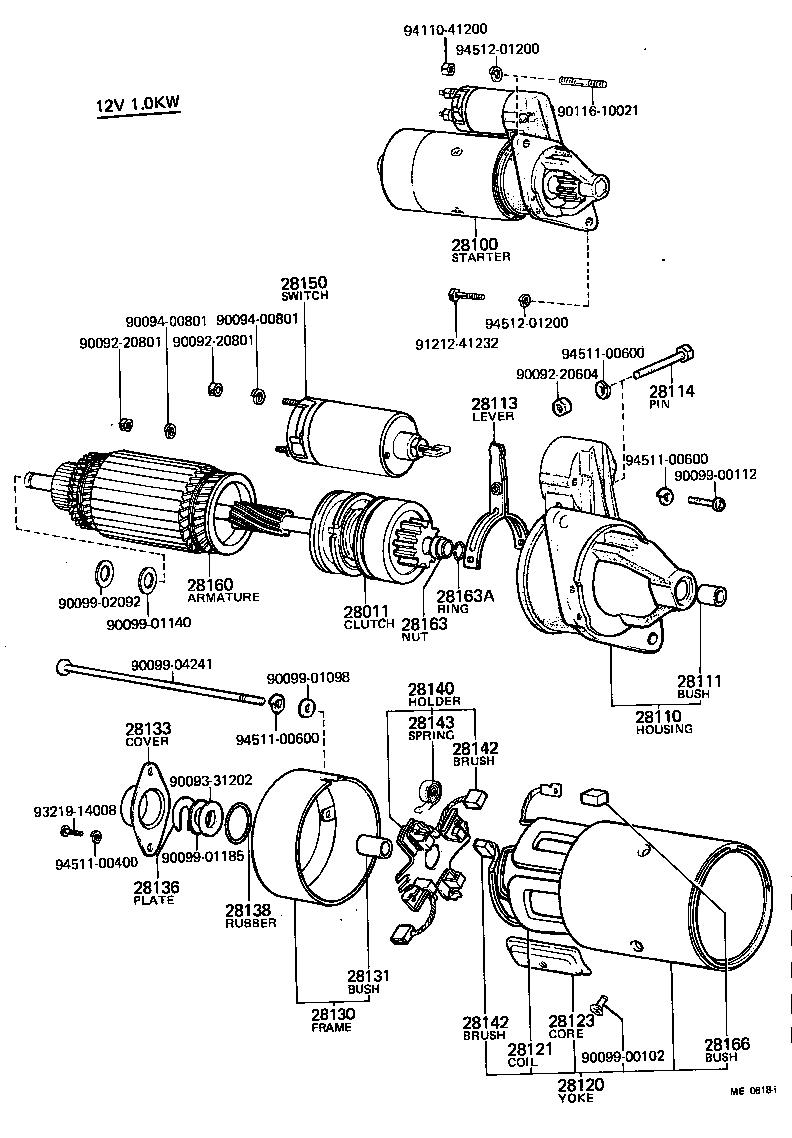

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28114 28120 28121 28123 28130 28131 28133 28136 28138 28140 28142 28142 28143 28150 28160 28163 28163A 28166 9009220604 9009220801 9009220801 9009331202 9009400801 9009400801 9009900102 9009900112 9009901098 9009901140 9009901185 9009902092 9009904241 9011610021 9121241232 9321914008 9411041200 9451100400 9451100600 9451100600 9451100600 9451201200 9451201200
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-60040

F..FJ4#,55

 1
28100 - STARTER ASSY
28100-60040

F..FJ4#,55

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-56080

F..FJ4#,55

 1
28110-60041

F..FJ4#,55

 1
28111 - BUSH(FOR STARTER HOUSING)
90099-10050

F..FJ4#,55

STD

 1
90099-10052

F..FJ4#,55

U/S 0.3

 1
90099-10053

F..FJ4#,55

U/S 0.5

 1
28113 - LEVER, STARTER PINION DRIVE
28113-40010

F..FJ4#,55

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-40010

F..FJ4#,55

 1
28120 - YOKE ASSY, STARTER
28120-60042

F..FJ4#,55

 1
28120-60040

F..FJ4#,55

 1
28121 - COIL, STARTER FIELD
28121-60040

F..FJ4#,55

 1
28123 - CORE, STARTER POLE
28123-50010

F..FJ4#,55

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-50010

F..FJ4#,55

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

F,2F..FJ4#,55

STD

 1
90099-10040

F,2F..FJ4#,55

U/S 0.5

 1
90099-10039

F,2F..FJ4#,55

U/S 0.3

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-40010

F,2F..FJ4#,55

 1
28136 - PLATE, STARTER LOCK
28136-40010

F,2F..FJ4#,55

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-40010

F,2F..FJ4#,55

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-50011

F..FJ4#,55

 1
28142 - BRUSH, STARTER
28148-50010

F..FJ4#,55

 4
28142 - BRUSH, STARTER
28148-50010

F..FJ4#,55

 4
28143 - SPRING, STARTER BRUSH
28143-40010

F,2F..FJ4#,55

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-21011

F..FJ4#,55

 1
28160 - ARMATURE ASSY, STARTER
28160-50012

F..FJ4#,55

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

F,2F..FJ4#,55

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

F,2F..FJ4#,55

 1
28166 - BUSH, STARTER INSULATION
28127-40010

F..FJ4#,55

 1
Common parts
90092-20604
90092-20801
90093-31202
90094-00801
90099-00102
90099-00112
90099-01098
90099-01140
90099-01185
90099-02092
90099-04241
90116-10021
91212-41232
93219-14008
94110-41200
94511-00400
94511-00600
94512-01200
